Product Details
Specification
- Coaxial cable length: 65mm (2.4G)/90mm (868MHz/915MHz)
- Connector: SMA Male
- Gain: 2.3dBi (2.4G)/2.3dBi (868MHz/915MHz)
- VSWR: <1.5 (2.4G)/<2.0 (868MHz/915MHz)
- Polarization type: Linear polarization
- Suggested for: Any 2.4G/915MHz TX module or radios
- Suggested for: BETAFPV Nano TX Module / BETAFPV Micro TX Module , Any 2.4G/868MHz/915MHz TX module or radios

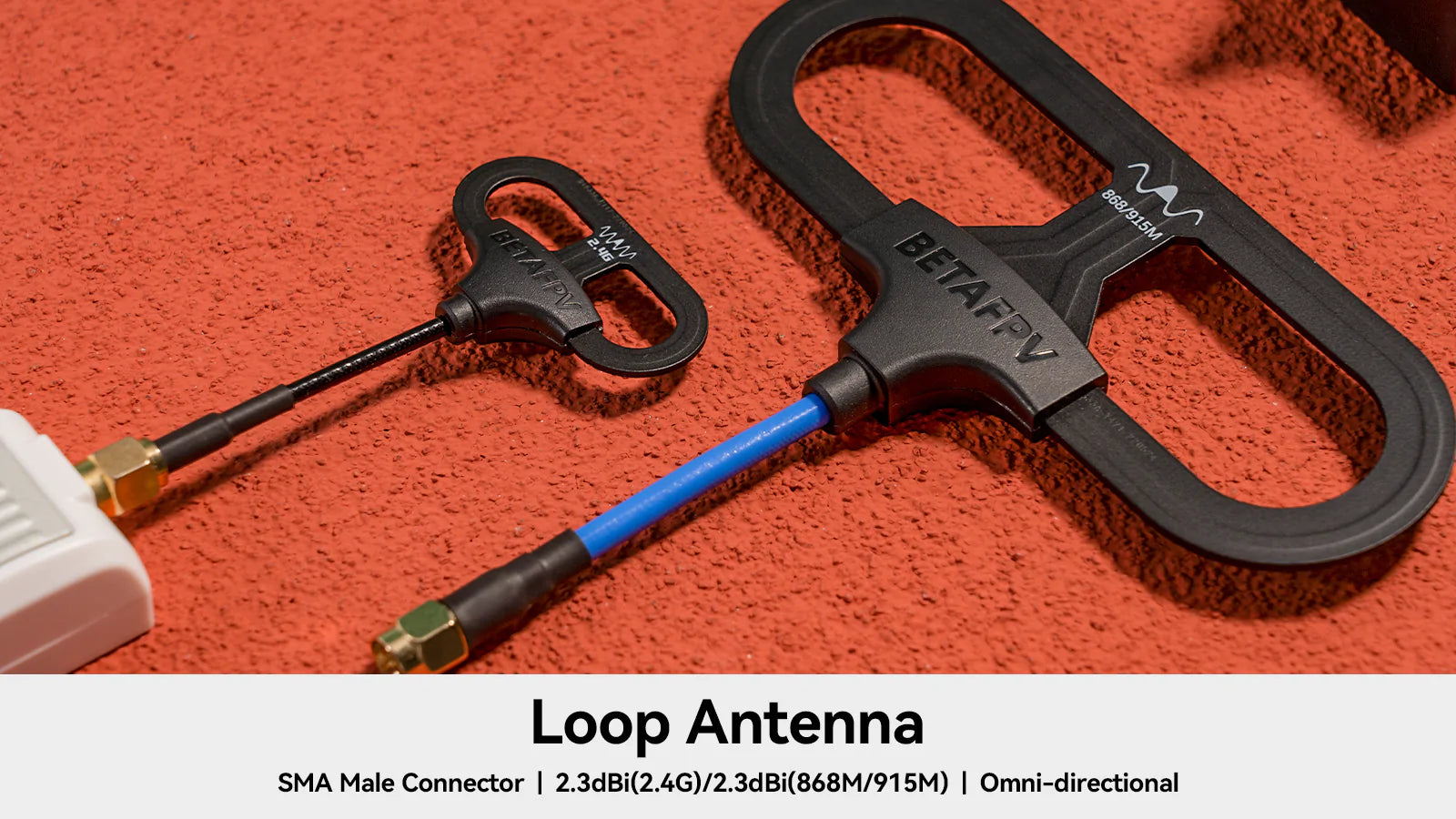

Loop Antenna or Moxon Antenna
All antennas have a specific use case and choosing a suitable antenna is important to fly a quadcopter. BETAFPV Loop antenna is an omnidirectional antenna that radiates and receives the RF energy equally, providing a 360-degree radiation pattern that allows connectivity in all horizontal directions. BETAFPV Moxon antenna is a directional antenna that focuses RF energy on a required direction. For example, if pilots fly a quadcopter around within a certain range, the Loop antenna is an excellent choice. When flying a quadcopter for long distances in one direction, the Moxon antenna works better.

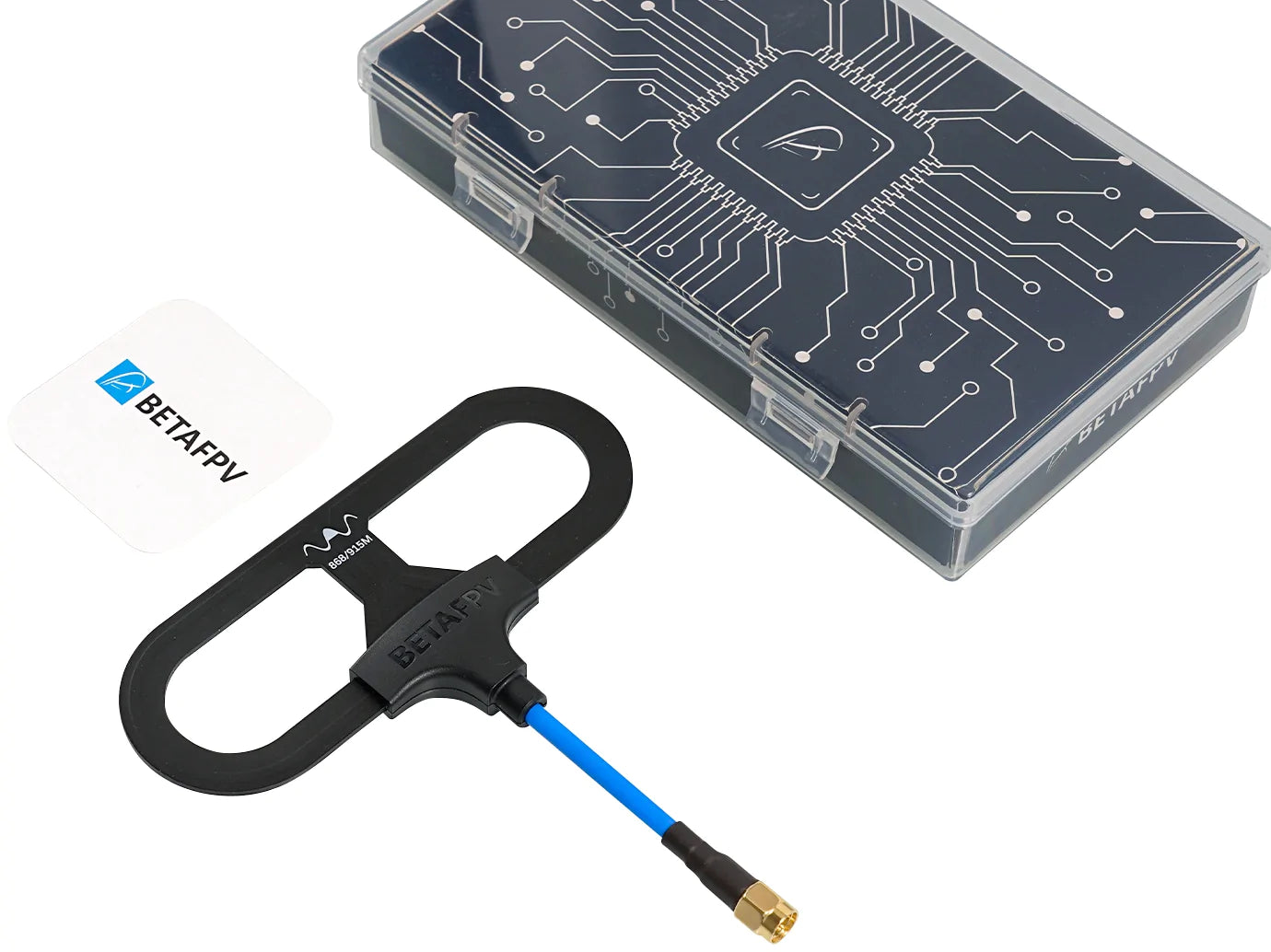

Included
- 1pc BETAFPV Loop antenna
