Product Details

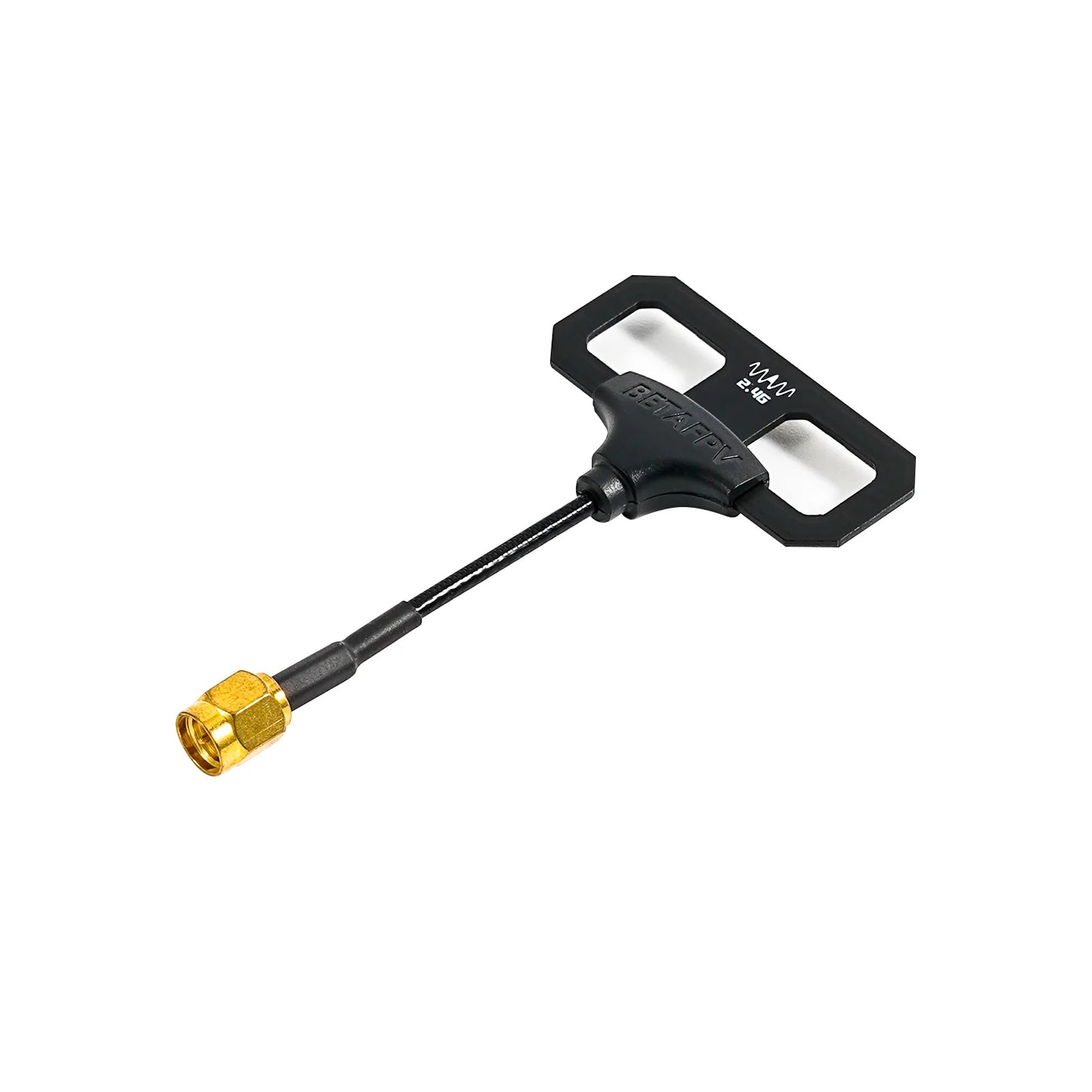

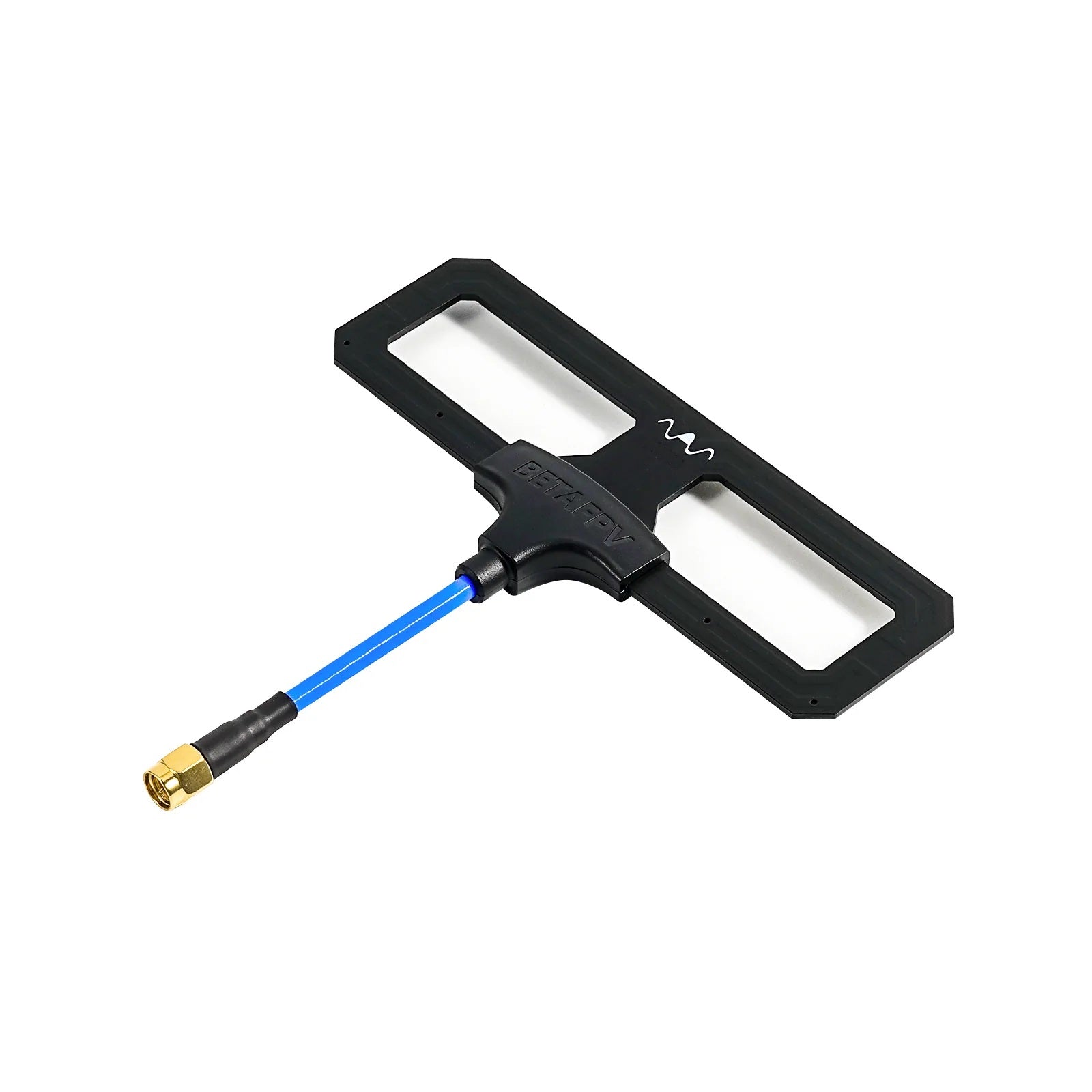

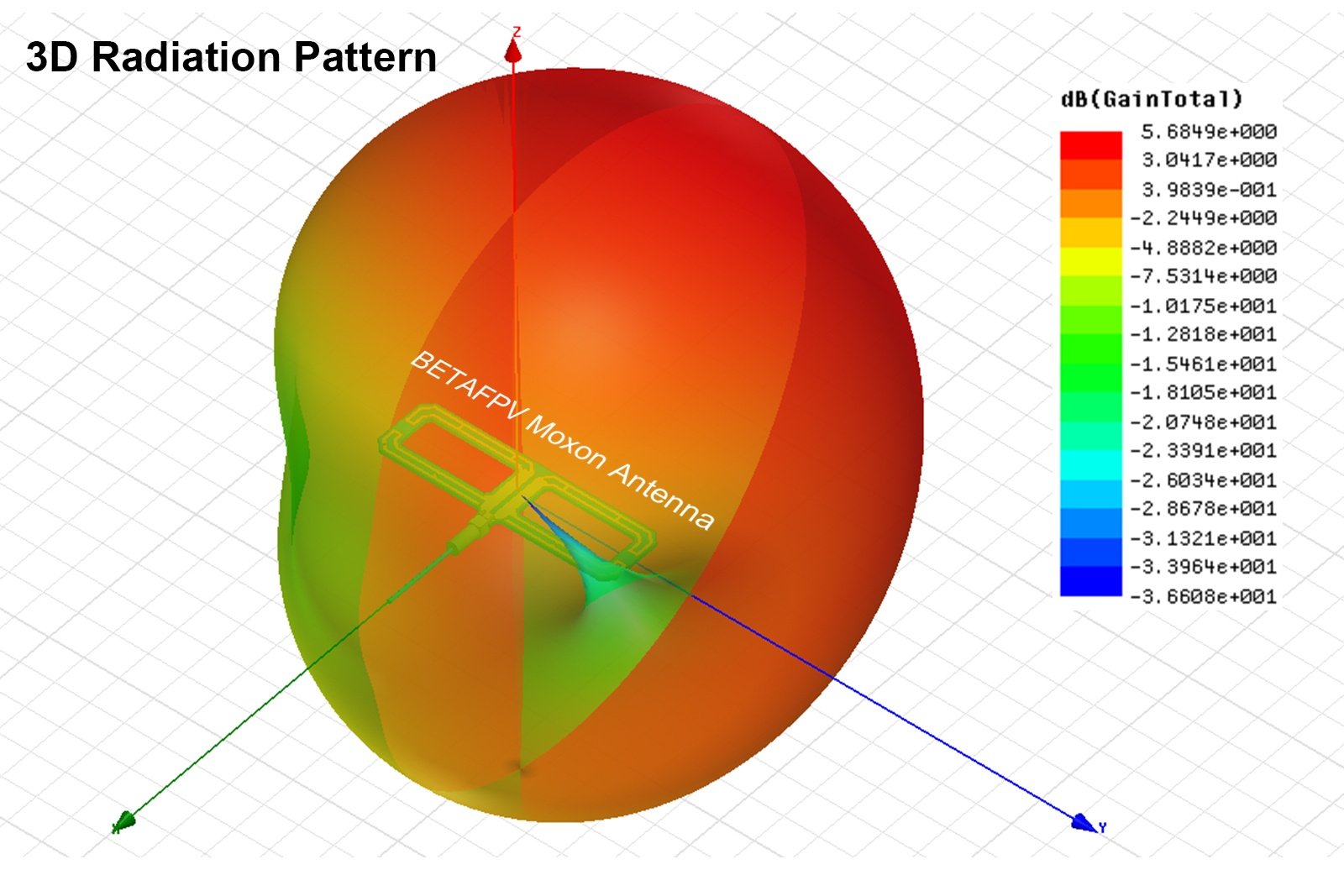

The Moxon antenna is designed and manufactured by BETAFPV for the 2.4G/915MHz/868MHz TX module. The Moxon antenna is directional antenna with a high gain of 5.5dbi to the front.
Specification
- Coaxial cable length: 65mm(2.4G)/90mm(915M)
- Connector: SMA Male
- Gain: 5.4dBi(2.4G)/5.9dBi(915M)
- VSWR: <2.0(2.4G)/<2.0(915M)
- Polarization type: Linear polarization
- Suggested for: Any 2.4G/915MHz TX module or radios
- Suggested for: BETAFPV Nano TX Module / BETAFPV Micro TX Module , Any 2.4G/868MHz/915MHz TX module or radios

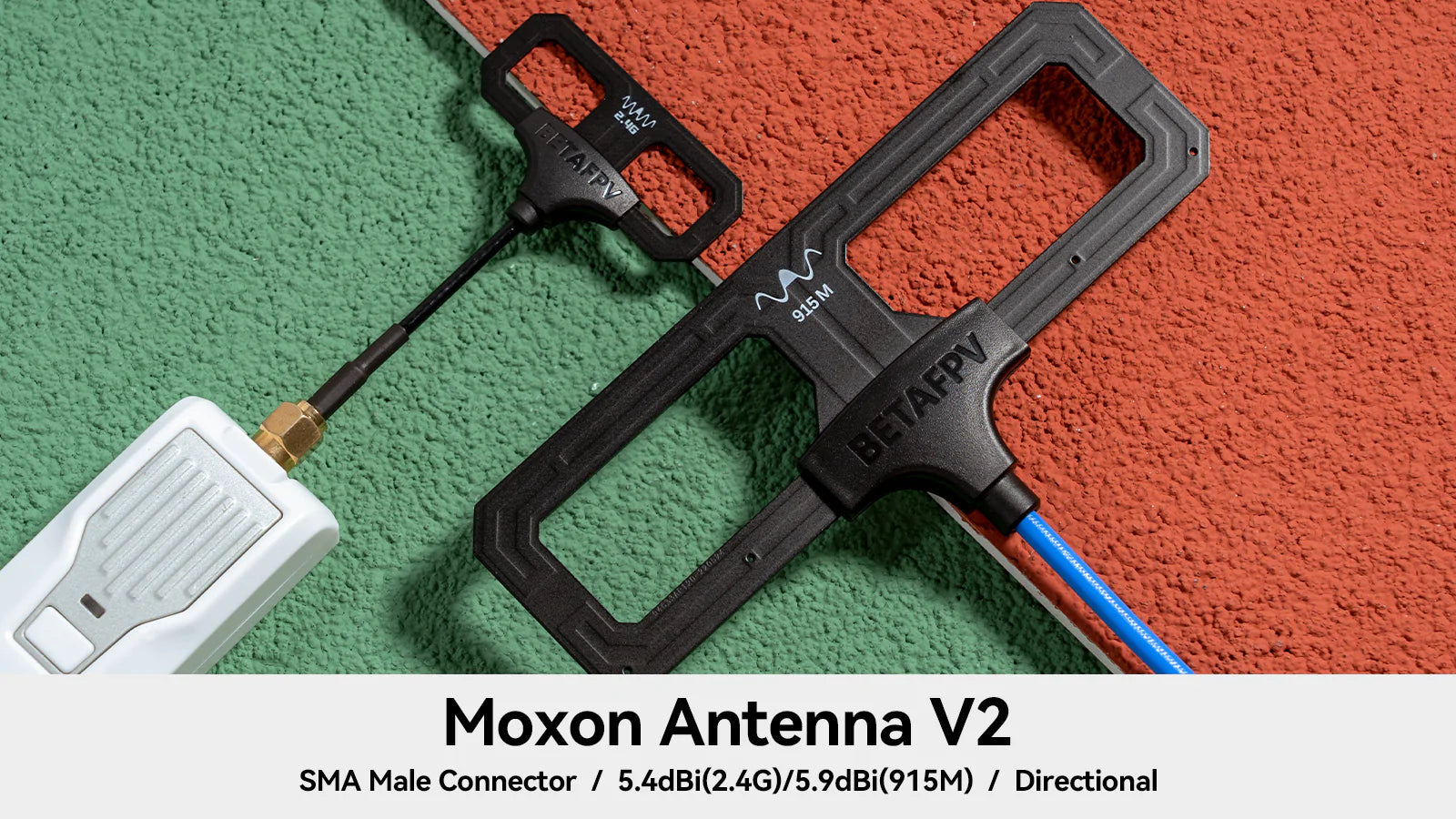

New Features on Moxon Antenna V2
BETAFPV Moxon Antenna has been very popular with pilots since its release. By taking the features of Moxon and adding some new ones, the coaxial cable of Moxon V2 is soldered to the antenna, decreasing the signal transmission loss for better performance. Besides, the soldered joint is protected by an injection molding cover, making it a whole unit and very easy to install.
Included

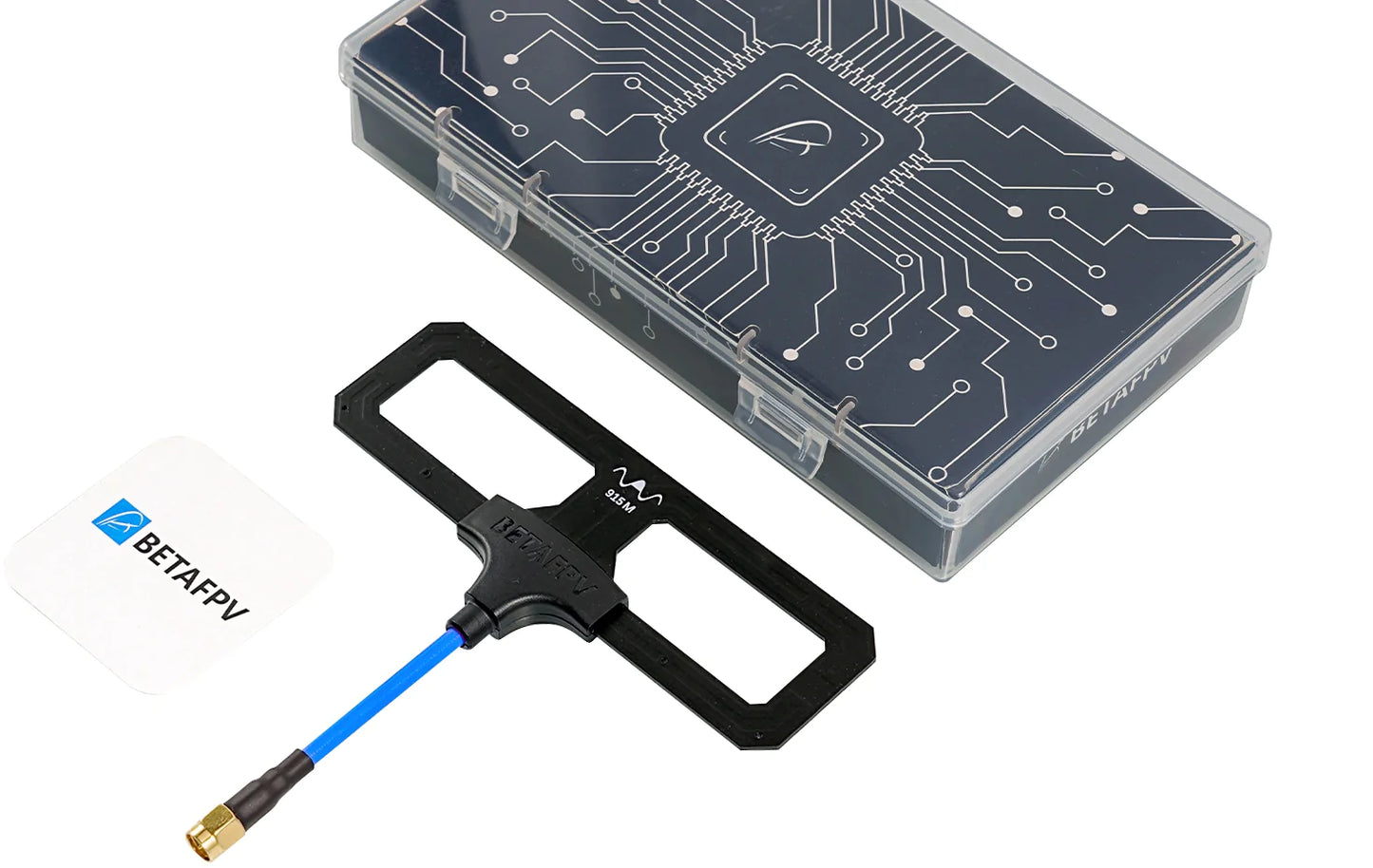

- 1pc BETAFPV Moxon V2 antenna
