Quick Answer
FPV video static is usually caused by a damaged antenna, incorrect VTX channel, low transmit power, or a loose coaxial cable. Start by checking your antenna connections, then verify your VTX frequency matches your goggles, and ensure your antenna polarisation (RHCP or LHCP) is consistent across the system.
Common Causes of FPV Video Static
When your goggles fill with static or your picture drops out mid-flight, the root cause almost always falls into one of four categories: antenna problems, VTX configuration, cable or connector faults, and environmental interference. Working through these in order, from simplest to most involved, will solve the vast majority of video issues without replacing any parts.
The most frequent culprit is a damaged or mismatched antenna. A bent element, a cracked solder joint inside the connector, or mixing RHCP and LHCP antennas on the same system will produce exactly the sort of grainy, rolling static most pilots recognise. Always run the same polarisation on both your transmitting and receiving antennas. If your VTX antenna is RHCP, your goggle antenna must also be RHCP. Mixing them halves your effective signal strength and invites multipath interference.
Step-by-Step Diagnosis
1. Inspect your antennas. Remove each antenna and examine the connector and element. A loose U.FL or MMCX connector is easy to overlook but will cause intermittent signal loss under vibration. Replace any antenna with visible damage. Quality replacement antennas like the FlyFishRC Osprey 5.8GHz SMA Antenna (RHCP) offer reliable circular polarisation and a robust SMA connection.
2. Check your VTX channel and frequency. Your VTX and goggles must be set to the same channel. In analogue FPV, this means matching both the band (e.g. Raceband, FatShark) and the specific channel number. A mismatch will produce a snowy or distorted image. Open your VTX menu via your OSD or check the LED indication on the unit itself.
3. Verify VTX power output. Running your VTX at 25mW when you are flying behind trees or at range will give you a weak, static-ridden picture. Increase power to 200mW or 600mW for general freestyle flying. Be aware that higher power draws more current and generates more heat. For a full breakdown of power levels and legal limits, see our VTX Power Output Explained guide.

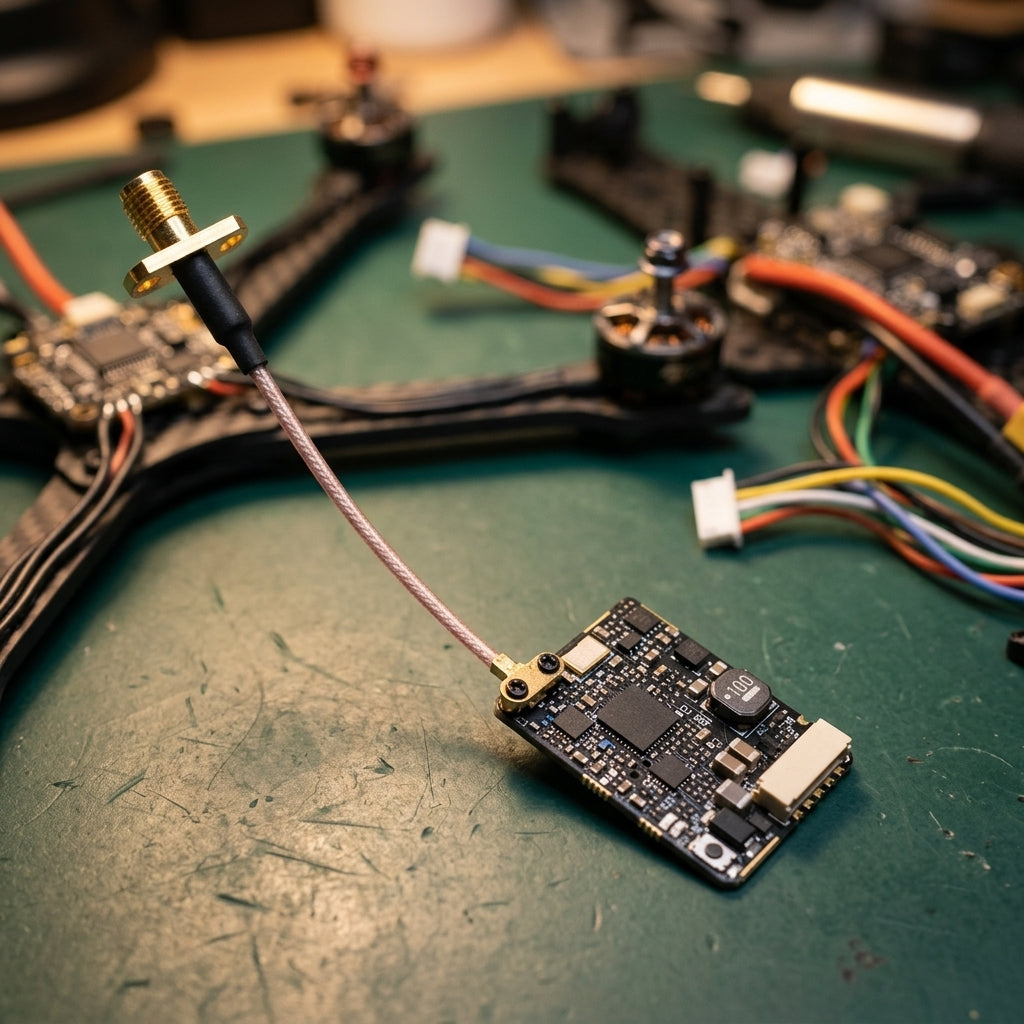

4. Examine cables and connectors. The coaxial cable between your VTX and antenna is fragile. A kinked or crushed cable degrades signal quality dramatically. Check the SMA or RP-SMA connection on your VTX. A loose or cross-threaded connector creates high SWR (standing wave ratio), which reduces transmitted power and can damage your VTX over time. The TBS Unify Pro 5G8 HV SMA is a popular VTX choice because of its reliable SMA connector and robust power filtering.
Environmental and Interference Factors
Even with perfect hardware, your environment can introduce static. Flying near metal structures, reinforced concrete, or high-power radio transmitters causes multipath interference, where the signal bounces off surfaces and arrives at your goggles out of phase. Wet weather and dense tree canopies also attenuate 5.8GHz signals.
At busy flying sites, check that nobody is on an adjacent channel. A high-power VTX on a neighbouring channel can bleed into yours. Using Raceband and spreading pilots across non-adjacent channels is the standard fix. For more on polarisation and signal quality, see our VTX Antenna Polarisation: RHCP vs LHCP Explained article.
When to Replace Components
If every check passes and static persists, a component is likely faulty. The most common failure is the VTX antenna, followed by the coaxial pigtail. Swap parts one at a time to isolate the issue. Your FPV camera can also affect image quality, though this usually looks dark or washed out rather than snowy. Cameras like the RunCam Phoenix 2 Night offer excellent low-light performance and adjustable WDR.
Browse replacement parts in our Antennas and FPV Video Transmitters and Receivers collections.
FAQ
Q: Why does my FPV video get static only when I fly far away?
A: This is normal signal attenuation. Your VTX has a finite range based on its power output and antenna gain. Increase VTX power, upgrade to a higher-gain receiving antenna (like a patch antenna on your goggles), or fly closer to yourself.
Q: Can a damaged antenna damage my VTX?
A: Yes. A severely damaged or missing antenna creates high SWR, reflecting power back into the VTX output stage. Prolonged transmission without a proper antenna load can overheat and destroy the RF amplifier. Always power up with an antenna connected.
Q: Why is my video snowy even at close range?
A: Check your channel match first. If the VTX and goggles are on the same channel, inspect your antenna connectors and coaxial cables. A loose U.FL connector or damaged pigtail is the most common close-range static cause.
