TBS Unify Pro 5G8 HV (SMA) - Crystal Clear FPV, Seriously
Tired of your FPV feed looking like a badly tuned TV from the stone age? Enter the TBS Unify Pro 5G8 HV (SMA) , the "bigger brother" in the legendary Unify Pro video transmitter lineup, now ready to take your FPV experience from "meh" to "magnificent!" This isn't just any 5.8GHz VTX; it's your ticket to cleaner video, more robust signals, and fewer "What was that?!" moments. Designed for serious FPV pilots, whether you're tearing up the race track or exploring the great unknown, this VTX brings the power and the smarts. Find the best FPV Video Transmitter for your drone right here!
Directly connect it to up to 6S battery power and let its pristine 5V output keep your FPV camera happy and your video feed sparkling, thanks to its superb power filtering. No TBS CORE or PowerCube required for clean video here, though they play nice too! We've even packed in an active output power monitor, so you're always race-legal and image-perfect. This is the 6S VTX you've been searching for.
Why Your Quad Needs This VTX (Like, Yesterday)
🚀 PitMode: Race Day Savior
Ever been *that* pilot who powers up in the pits and accidentally nukes everyone else's video feed? Yeah, let's not do that. With TBS PitMode , you can power up your quad for repairs or tweaks with output power so low (we're talking way less than single-digit mW's) you won't bother a fly, let alone another pilot. Test your setup, see your image, and keep the peace - genius! A must-have for any Racing VTX .
🧠 SmartAudio: Control Freak Approved
Remember fumbling with tiny dipswitches and hoping you got the channel right? Those days are over! TBS SmartAudio technology puts you in full command. Adjust output power, bands, channels, and frequency remotely from your smart device (TBS Crossfire, Bluetooth/Wi-Fi module needed), your radio (TBS Crossfire with Tango or compatible OpenTX), or directly from your OSD. It's like having a SmartAudio VTX with its own remote control - simple, intuitive, and no more accidental channel-stomping.
✨ CleanSwitch: Power On Without the Drama
TBS CleanSwitch is your new best friend for neighbour-friendly flying. This clever tech ensures your video transmitter is totally interference-free when powering on or changing channels. No more flickering screens or angry glares from fellow pilots. Power up, switch channels, and fly happy, knowing you're not causing digital mayhem. It's just good FPV etiquette, baked right in with this CleanSwitch VTX .
💪 Power Up Your Flight - Adjustable & Mighty
Don't let its tiny 7g weight and compact 31x22x6mm size fool you. This VTX is a beast! With adjustable output power from a race-friendly 25mW all the way up to a concrete-penetrating 800mW* (hello, Long Range VTX !), you get the flexibility you need. The 40CH coverage means you can fly almost anywhere, anytime, without VTX swapping headaches. Say NO! to dipswitches and YES! to easy, push-button or OSD control. The perfect Adjustable Power VTX .
*HAM license is required for operation on HAM channels, and HAM power levels! The VTx ships with only legal channels enabled, please consult the manual on unlocking procedure.
Specifications: The Nitty-Gritty
- Operating Voltage: 2S - 6S (Finally, direct LiPo power for your HV VTX !)
- Supply Current: up to 600mA (Efficient, for more air time)
- Operating Temperature: Keep it cool with normal airflow
- Audio Carrier Frequency: 6.5 MHz
- Video Input Impedance: 75 Ohm
- Weight: Just 7g (with SMA, without antenna) - practically a feather!
- Dimensions: 31 x 22 x 6mm
- Input Connector: JST GH 7pin (standard after July 2018)

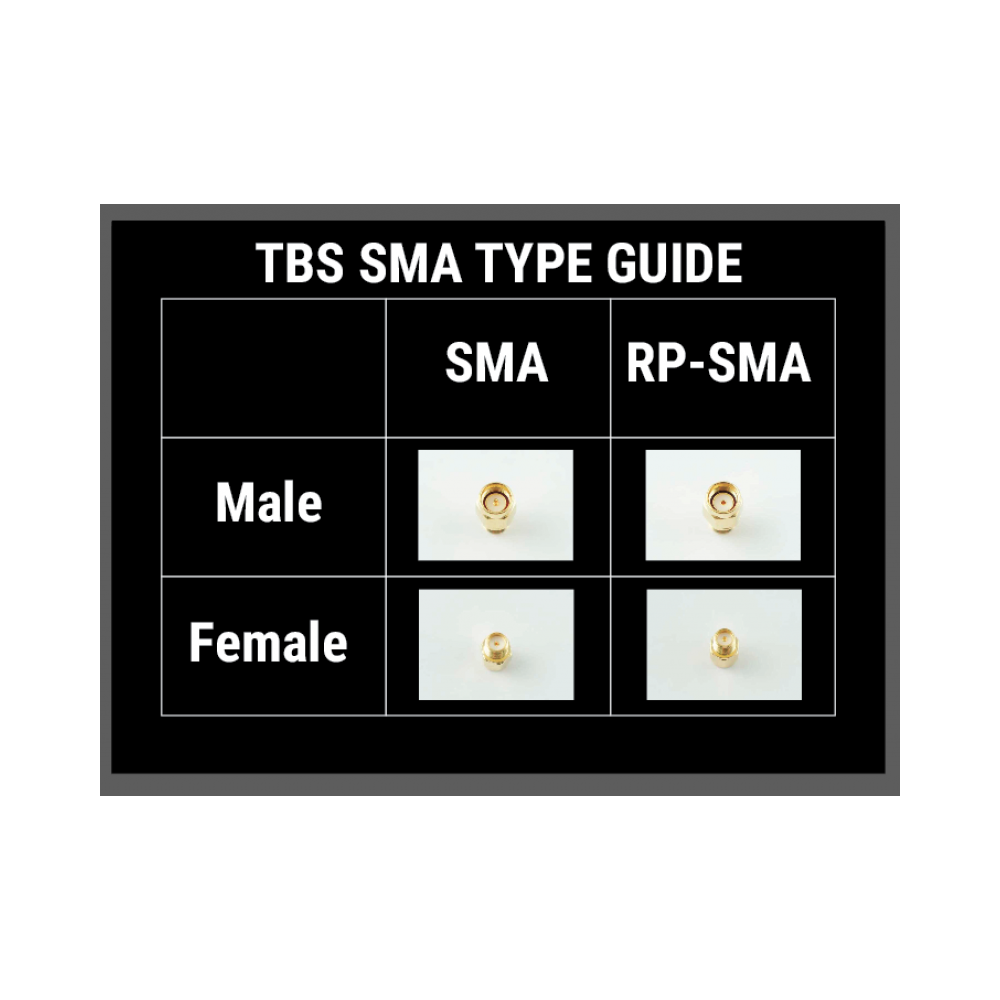

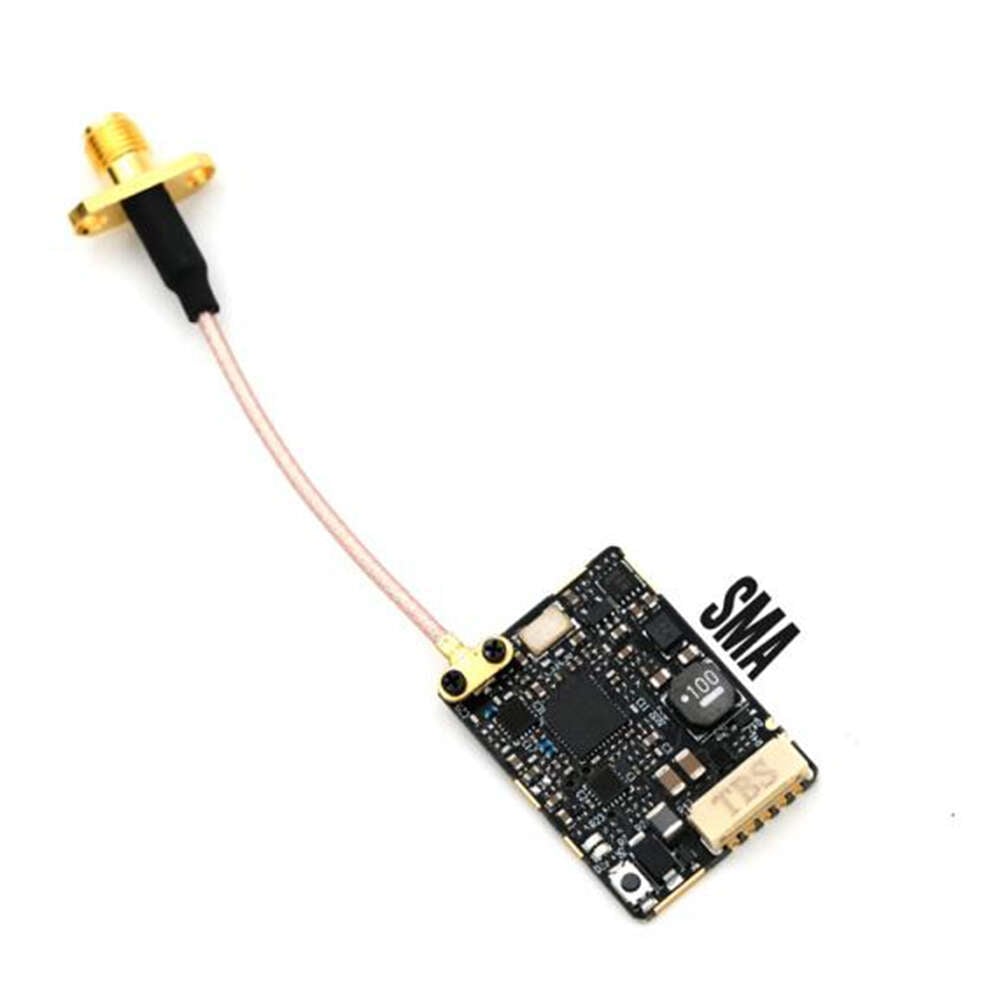

- Antenna Connector: SMA Female Socket (with trusty screw mounting holes for your SMA VTX )
- Video Format: NTSC/PAL (Plays well with others)
-
Output Power Settings:
- 13dBm (25mW)
- 23dBm (200mW)
- 27dBm (500mW)
- 29dBm (800mW*)

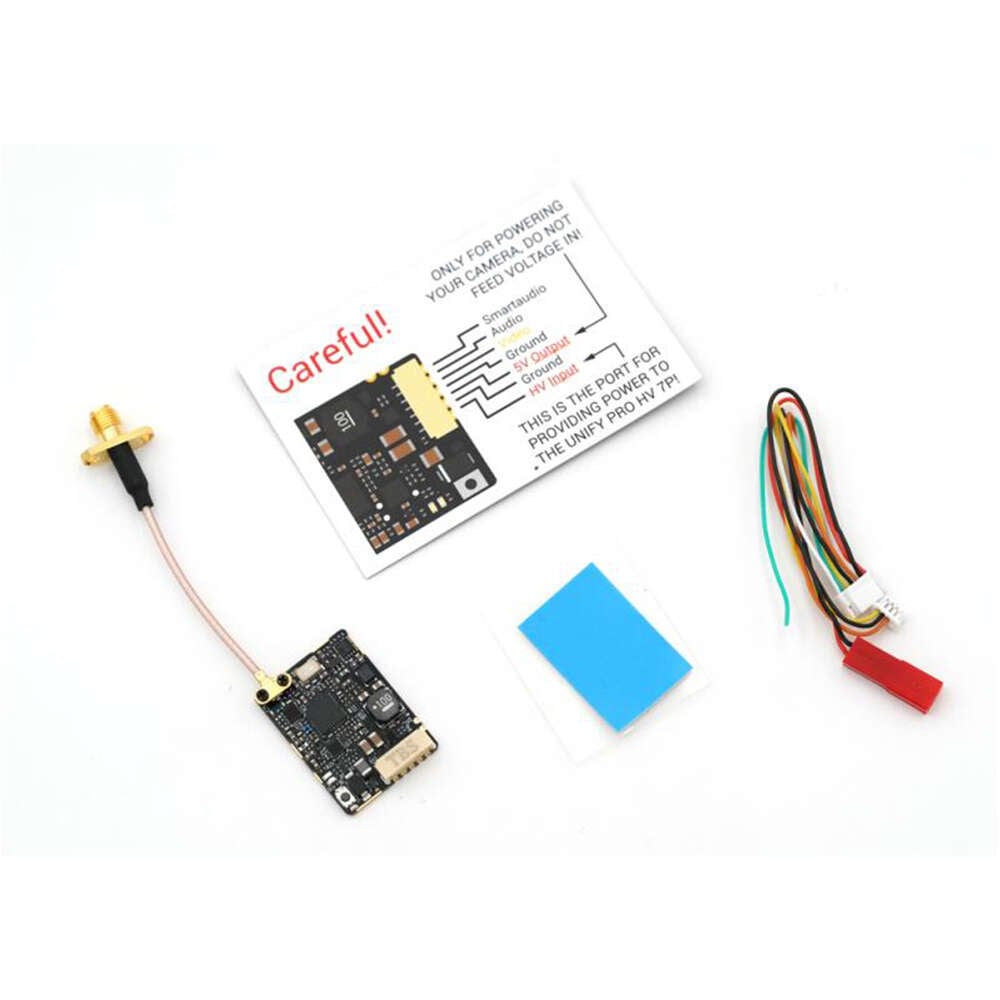

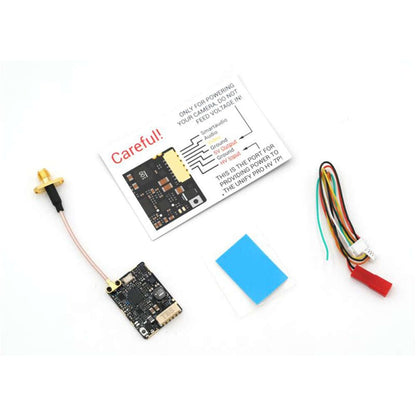

What's In The Box: Open Me!
- TBS UNIFY PRO 5G8 HV Video transmitter
- Video Transmitter / Camera / Power cable
Heads Up! While we try our best to keep this list as accurate as a laser beam, please note that included accessories can sometimes vary based on supply from the manufacturer. Consider it a little surprise from the FPV gods (hopefully the good kind!).
