Quick Answer
If your flight controller is not showing up in Betaflight, the problem is almost always one of three things: a charge-only USB cable, a missing or wrong driver, or the board being stuck in DFU bootloader mode. We see this in a quarter of support emails from new builders, and nine times out of ten it takes under five minutes to fix once you know where to look. The troubleshooting table below maps the exact symptom you are seeing to its cause and fix.
Why Your Flight Controller Won't Connect
When you plug a flight controller into your computer via USB, it should appear as a serial device that Betaflight can detect. If the top right corner of Betaflight stays blank or shows "No Serial Port Available," the computer is not recognising the board at all. This is different from your drone not arming, which is a separate issue that happens after connection works.

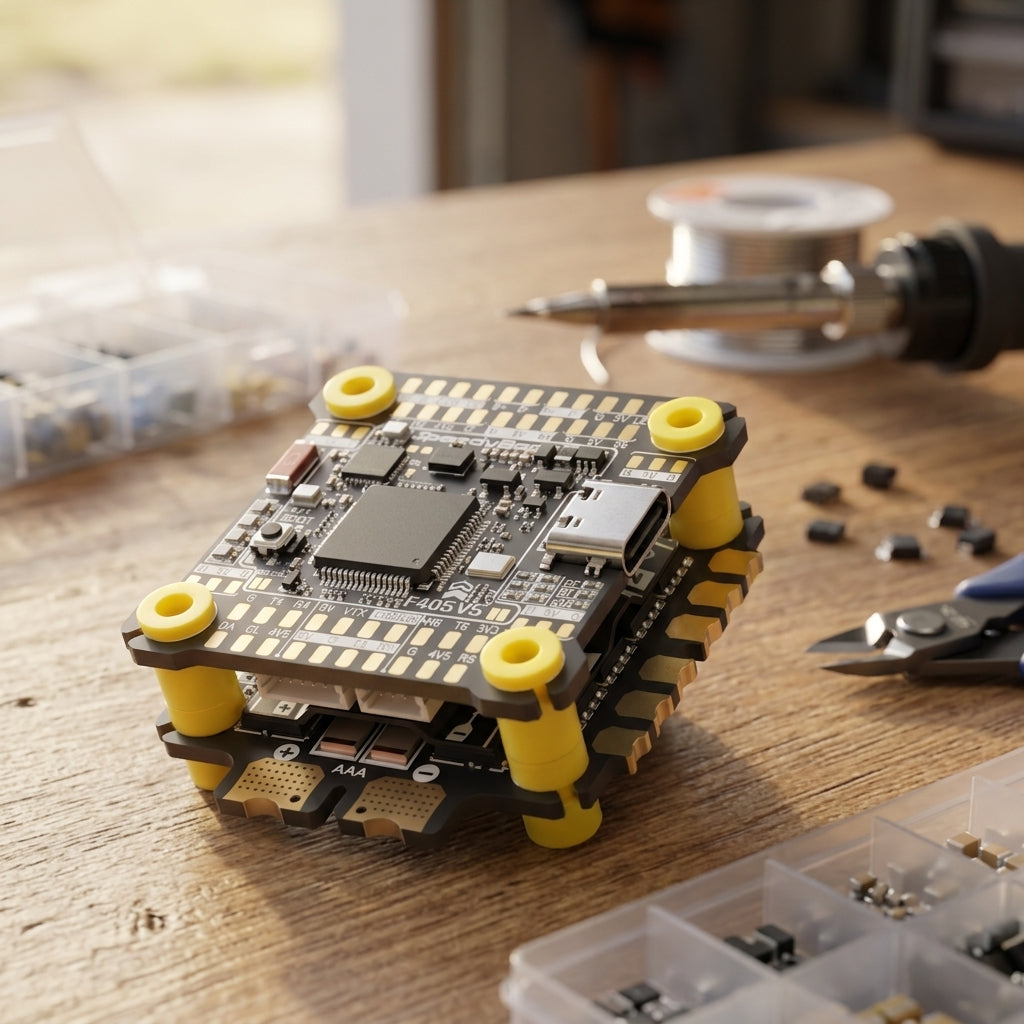

In our workshop we have plugged in hundreds of flight controllers from our flight controller range. The SpeedyBee F405 V5 uses an STM32 virtual COM port, while boards like the Axisflying Argus use a CP210x chip. Both need the correct driver installed before Betaflight will see them.
Symptom-to-Fix Troubleshooting Table
The fastest way to solve this is to match what you are seeing to the right fix. We built this table from the support emails and error reports we receive most often:
| What You See | Most Likely Cause | Fix |
|---|---|---|
| No serial port in Betaflight dropdown | Charge-only USB cable (no data lines) | Swap to a known data-sync cable. Test with a phone or flash drive first. |
| Yellow warning triangle in Device Manager | Missing or incorrect USB driver | Install the correct driver for your chip (see table below) or run ImpulseRC Driver Fixer. |
| "Serial port successfully opened, but not showing up" | FC firmware mismatch or wrong COM port selected | Select the correct COM port manually in Betaflight. If that fails, reflash firmware in DFU mode. |
| "Failed to open USB device" | Another app has the COM port open, or USB hub interference | Close Cleanflight, BLHeli Suite, or any serial monitor. Plug directly into the PC, not a hub. |
| "No compatible devices found" | Board stuck in DFU mode, or driver not installed at all | Hold BOOT, plug in USB. If it shows as "STM32 BOOTLOADER," use Zadig to install WinUSB, then reflash. |
| Board shows as "STM32 BOOTLOADER" in Device Manager | Firmware lost or bootloader stuck after failed flash | Reflash firmware using DFU mode (see section below). |
| Connects briefly then disconnects | Power fluctuation from unpowered USB hub or bad cable | Plug directly into the motherboard USB port. Try a shorter cable. |
The USB Cable Check (Do This First)
Before anything else, swap your USB cable. We are not joking. Roughly 40% of the "my FC won't connect" emails we receive are solved by using a different cable. Many USB-C cables that come with phones and other devices are charge-only cables with no data lines. If you plug in your SpeedyBee F405 V5 and nothing happens, grab a cable you know works for transferring files, not just charging. A proper data cable costs about three pounds. We keep a bin of known-good cables at every workbench in the shop for exactly this reason.
Installing the Right Drivers
If the cable is good and the board still does not appear, you need to install the right USB driver. We stock the SpeedyBee and Axisflying stacks partly because their driver support is reliable, but Windows does not always load the correct driver automatically. Open Device Manager and look under "Ports (COM and LPT)." A yellow warning triangle means the driver is missing.
| FC Chip | Common Boards | Driver Needed |
|---|---|---|
| STM32 VCP | SpeedyBee F405/F7, most H7 boards | STM32 Virtual COM Port (from ST website) |
| CP210x | Axisflying Argus, many F4 stacks | Silicon Labs CP210x UART bridge |
| CH340 | Budget FCs, some older boards | WCH CH340 serial driver |
On macOS, remove the ST driver if previously installed and rely on native CDC support. macOS Big Sur and later handle STM32 VCP natively without extra drivers.
The ImpulseRC Driver Fixer: One-Click Driver Install
If manually hunting for the right driver sounds tedious, there is a one-click tool that does it for you. The ImpulseRC Driver Fixer (free, from the ImpulseRC downloads page or their GitHub) automatically detects STM32-based flight controllers and installs the correct serial port and DFU drivers on Windows. It covers F3, F4, and F7 chips in a single run.
We recommend running it before touching Zadig or digging through Device Manager. Close Betaflight first, plug in your flight controller, then run the tool. It will swap the incorrect Windows driver for the right one in a few seconds. This resolves the majority of "betaflight driver fixer" searches that land on our site, and it is genuinely the fastest path if you are on Windows.
If the Driver Fixer reports "unexpected number of devices detected," unplug everything except the flight controller from your PC and try again. Other USB devices with STM32 chips can confuse the tool.
DFU Mode and Bootloader Problems
If your flight controller shows up in Device Manager as "STM32 BOOTLOADER" or "DFU device" instead of a COM port, the board has lost its firmware or the bootloader is stuck. This happens most often after a failed flash or a power interruption during a firmware update.
To fix this, you need to reflash the firmware using DFU mode. On Windows, use the Zadig utility to replace the DFU driver with WinUSB, then use Betaflight's firmware flasher to reinstall the correct firmware for your board. After flashing, the board should reconnect as a normal COM port.
Hold the boot button while plugging in USB to enter DFU deliberately. Most boards have a tiny "BOOT" or "BL" button near the USB port.
Common Mistakes We See
The single biggest mistake is using a USB hub. Flight controllers need a direct connection to the computer. USB hubs, especially unpowered ones, introduce enough latency and power fluctuation to cause dropouts. Plug directly into your laptop or desktop.
Second: having the wrong board selected in Betaflight. Even if the COM port appears, select the correct target (e.g., "SPEEDYBEEF405V5") before clicking Connect. Third: running an outdated Betaflight Configurator version. Always update to the latest release from our flight stacks collection.
FAQ
Q: Betaflight says "serial port successfully opened" but nothing shows up. What is wrong?
A: This means the serial connection is open but Betaflight is not receiving valid data. First, check you have the correct COM port selected in the dropdown. Second, ensure no other application (Cleanflight, BLHeli Suite, a serial monitor) is holding the port open. If both are fine, the firmware on the board may be corrupt. Reflash it using DFU mode.
Q: Betaflight says "failed to open USB device." How do I fix it?
A: Close any other program that might be using the COM port (Cleanflight, Arduino IDE, BLHeli), then unplug and replug the FC. If the error persists, try a different USB port directly on the computer, not a hub. As a last resort, reinstall the USB driver using the ImpulseRC Driver Fixer.
Q: My flight controller shows in Device Manager but not in Betaflight?
A: This usually means the correct driver is not installed, or you need to select the COM port manually from the dropdown in Betaflight's top right corner. Also check that you are using a data USB cable, not a charge-only one.
Q: Do I need to install drivers on Linux?
A: Most Linux distributions recognise STM32 and CP210x devices automatically. If not, you may need to add your user to the "dialout" group with the command sudo usermod -aG dialout \$USER, then log out and back in.
Q: What does DFU mode mean?
A: DFU stands for Device Firmware Upgrade. It is a low-level programming mode used to flash new firmware to the STM32 chip on your flight controller. You only need it for initial flashing or recovering a board that has lost its firmware.
Q: Can a bad USB-C adapter cause connection problems?
A: Yes. Some USB-C to USB-A adapters do not pass data correctly. If you are using an adapter between your FC's USB-C port and your computer, try a direct cable or a different adapter first.
