Quick Answer
The Eachine EV800D is a 5.8GHz analogue box goggle with true-diversity reception, a built-in DVR and a separable 5-inch screen that doubles as a ground-station monitor. For under £90 it is one of the goggles we sell most often to first-timers, and it is genuinely good value, as long as you understand you are buying into analogue video.
What the EV800D Actually Is

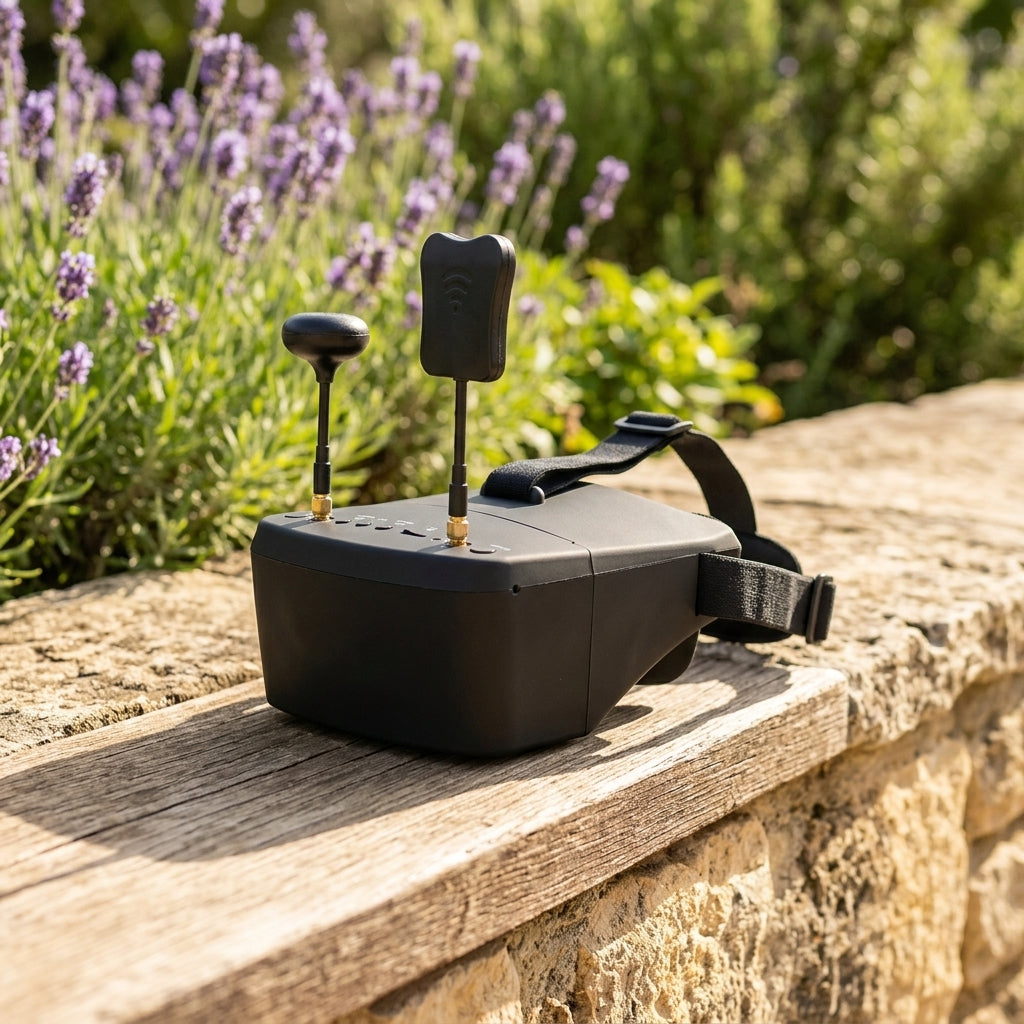

The EV800D is a box goggle: a single 5-inch 800x480 LCD mounted in a foam-padded housing, rather than the twin tiny screens you get on pricier goggle-style headsets. The "D" means true diversity. There are two independent 5.8GHz 40-channel receivers inside, and the goggle constantly compares both and shows whichever has the cleaner picture. Cheaper analogue goggles fake diversity with two antennas on one receiver. This one does not.
It covers the full RaceBand plus bands A through E, so it will lock onto almost any analogue VTX you fly against. A built-in DVR records your flights to a MicroSD card, and a separate chipset handles the recording so it never drops frames from the live view. Power comes from an internal battery that runs for around two hours. On our scales the unit weighs about 744g, which is heavier than a slim pair of Fat Sharks but perfectly fine for learning.
Our honest take: if your budget is tight, this is the right first goggle. We sell the EV800D to more beginners than almost anything else, and most are still happily flying months later. The catch is that it only receives analogue. If you already know you want digital, skip ahead to our goggle buying guide.
The Modular Antenna Bay (Where Beginners Go Wrong)
The EV800D takes two standard SMA antennas, and this is where new pilots waste the most range. The stock antennas are fine for garden flying, but the moment you fly further than a field or two the picture falls apart. The fix is cheap: fit a pair of circular-polarised cloverleafs and make sure the polarisation matches your VTX antenna. RHCP on the goggles needs RHCP on the quad.
We usually swap the stocks for an Osprey RHCP or a classic 4-lobe cloverleaf. Browse the full antennas range for more. Two matched antennas cost less than a tenner and will add serious range before you ever touch the VTX.
The Ground-Station Trick Nobody Tells You
The front screen detaches from the headset. Pop it off, stand it on a tripod or clip it to your radio, and it becomes a standalone 5.8GHz analogue monitor. We use this constantly at fly-ins so a mate can watch your feed, and it is brilliant for bench-testing a VTX without strapping goggles on. Few sub-£100 goggles do this, and it is the feature that punches the EV800D well above its price.
When the EV800D Stops Being Enough
Most pilots who outgrow the EV800D do so for one of two reasons. Either they want a lighter, more comfortable goggle for long sessions, or they are moving to digital. For analogue flyers who want a step up in comfort and range, the EV200D adds quad diversity and a larger screen. If you prefer the EV800D form factor but want a higher-spec build, the Foxeer EV800D uses the same proven receiver with better optics. See every option in our FPV goggles collection, and read our walkthrough on getting goggles sharp before your first flight.
FAQ
Q: Is the EV800D a good first FPV goggle?
Yes. For the price, true diversity, a built-in DVR and a separable screen are hard to beat. It is the goggle we recommend most to budget-conscious beginners.
Q: Does the EV800D work with DJI, Walksnail or HDZero?
No. It is a 5.8GHz analogue receiver only. Digital VTX systems each need their own matching goggles or a dedicated digital receiver module.
Q: Do I need to buy antennas separately?
It ships with two basic antennas that are fine to start. For anything beyond garden range, fit a matched pair of circular-polarised antennas in the same polarisation as your VTX.
