Quick Answer
The best way to record FPV footage depends on your build. For most pilots, a lightweight action camera like the RunCam Thumb 2 on a vibration-isolated mount delivers smooth HD without killing flight performance. Here is how we set up recording on every build in our workshop.
Why We Record Every Flight
We started recording every flight after losing three quads in a month with zero footage to show for it. Not for YouTube, but for reviewing flying technique, spotting setup problems, and because crashing looks incredible in slow motion.
The problem: slapping a camera on your quad ruins how it flies. A 60g GoPro on a 250g build adds 25% weight. That is the difference between snappy rolls and wallowing through corners. The solution comes down to three things: camera weight, mounting method, and vibration isolation.
Action Cameras: What We Actually Mount on Our Quads

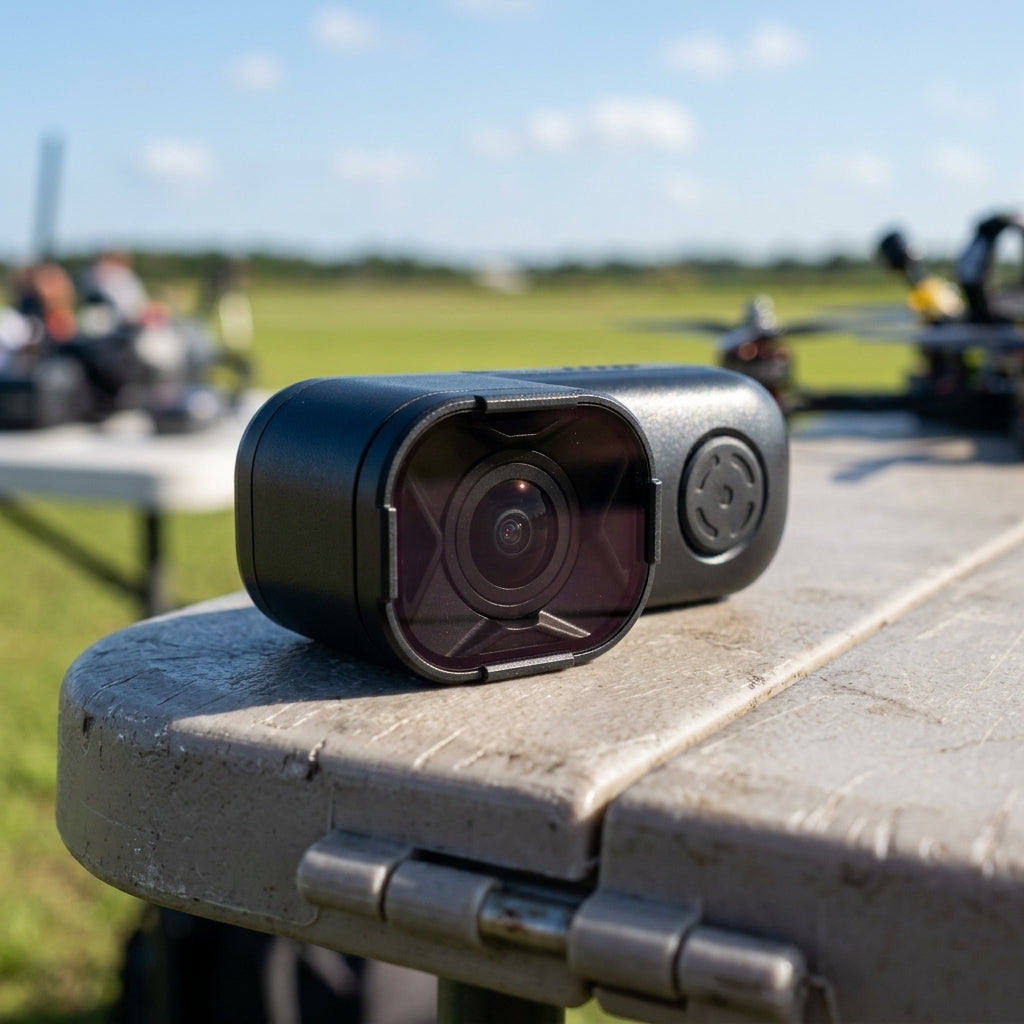

The RunCam Thumb Pro W is our go-to for 5-inch freestyle. Under 20g with 4K, negligible on a 600g+ build. We have sold more Thumb cameras in the last six months than all other action cameras combined, and the reason is simple: they are the lightest camera that records footage you would actually want to watch. For micro whoops, the RunCam Thumb 2 at 8g is the only option that does not murder flight time. The SMO 4K ultralight is the lightest 4K option we stock, ideal for toothpick builds.
For cinelifter builds, the Naked GoPro Hero 8 works as a secondary angle camera. On anything under 6 inches, naked GoPros are too heavy. We made that mistake on a 3.5-inch build and it flew like a brick.
Mounting: The Difference Between Smooth Footage and Jelly
Camera mounting is where most pilots ruin their footage. A nice camera bolted directly to the frame with zero isolation gives you wobbly jelly that no post-processing can fix.
Camera mounts fall into two camps. Soft mounts use silicone or foam dampers between camera and frame. The Shendrones Thicc Universal Cam Mount with silicone is what we use on test bench builds. For budget isolation, 3M mounting foam squares between camera and frame work well on smaller builds.
Hard mounts (TPU prints, direct bolt-on) are fine for digital FPV systems where the camera is part of the VTX. For any action camera over 10g, soft mounting is non-negotiable.
Camera Settings That Actually Matter
Three settings make or break FPV footage: shutter speed, ISO, and white balance. Set shutter speed to double your frame rate (60fps = 1/120 shutter). This creates natural motion blur that smooths rapid direction changes. Auto shutter in bright conditions picks 1/1000+, giving stuttery footage. ND filters help, and the RunCam Thumb series supports screw-on filters.
Lock white balance. Auto shifts between sun and shade mid-flight, creating colour temperature jumps. Pick 5500K for cloudy, 6500K for sun. Lock ISO to 100-800 for daylight to prevent grain.
Onboard DVR vs Action Camera: Do You Need Both?
Most FPV cameras and digital VTX units include built-in DVR. This records your actual FPV feed, useful for reviewing flying but not footage worth sharing. An action camera records independently at full resolution. We use onboard DVR to spot problems (throttle wobbles, prop wash). The action camera captures the footage worth keeping. On workshop builds, both run simultaneously.
Common Mistakes We See
Biggest mistake: forgetting to press record. See our vibration checklist for the pre-flight routine that catches this. Second: mounting the camera too far forward, putting weight outside the centre of gravity. Mount close to the FC stack. Third: recording 4K unnecessarily. 4K at 60fps writes roughly 400MB per minute. Use 1080p for practice, save 4K for flights worth keeping.
FAQ
Q: Do I need a separate action camera if I have a digital FPV system?
A: Not strictly. DJI O4 and Walksnail record onboard at decent quality. But an action camera gives you independent recording with better dynamic range, manual settings, and no dropped frames from VTX bandwidth limits. For casual flying, the built-in DVR is fine. For footage you want to edit and share, a dedicated camera wins.
Q: How do I stop jelly in my FPV footage?
A: Jelly comes from high-frequency vibration reaching the camera sensor. Soft mount the camera with silicone dampers or foam, balance your props, and check motor screws are tight. Our full jello fix checklist walks through every cause.
Q: What is the lightest 4K camera for FPV?
A: The SMO 4K ultralight at around 12g. The RunCam Thumb 2 records at 1080p for only 8g. For most pilots, 1080p at 60fps from a Thumb 2 is plenty and saves significant weight.
Q: Can I use a full-size GoPro on a 5-inch FPV drone?
A: Not for freestyle. A full GoPro weighs around 150g, a 25% weight increase on a 600g build that kills responsiveness. For cinematic cruising it works, but stick to a Thumb Pro W or Thumb 2 for freestyle. See our cinelifter build guide for setups designed to carry heavier cameras.
Q: What is the best way to mount a RunCam Thumb 2?
A: TPU-printed mount specific to your frame, with mounting foam between camera and mount. The Thumb 2 has a built-in tab that fits most standard TPU mounts. Avoid hard-mounting directly to carbon fibre.
