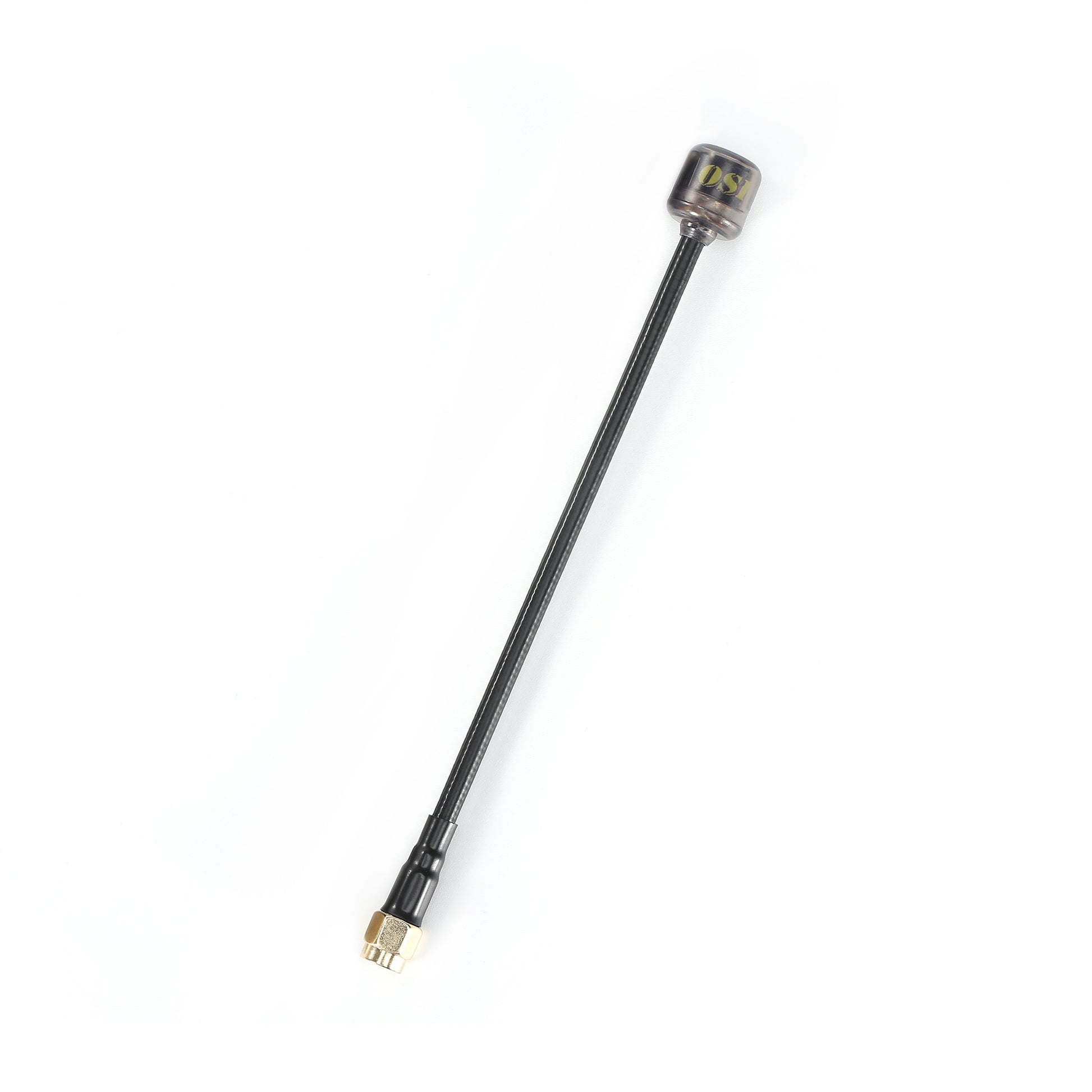

The FlyFishRC Osprey: Because Your Signal Shouldn't Be As Patchy As Your Facial Hair

Look, we get it. You spent four hours soldering a flight controller just to have your video feed look like a 1990s scrambled cable channel. Enter the FlyFishRC Osprey. It’s a 5.8GHz antenna that actually does its job, unlike that 'bargain' mushroom you bought off a site that also sells knock-off massage guns. With a 150mm stem, it stands tall enough to clear your quad's battery, frame, and your own questionable life choices.

Why You Want It

Most antennas are just wire wrapped in hope. The Osprey uses a 4-leaf construction and a unique hybrid network that offers 99% radiation efficiency. That means more of your signal goes into the air and less gets turned into useless heat. It’s small, it’s light, and it’s transparent—because if you can’t see the engineering, did it even happen? (Yes, it did. We're looking at you, spec-sheet skimmers.)

Specs

• Gain: 2.82dBi (More reach, less 'where did my quad go?')
• Frequency Range: 5.6GHz-6.0GHz (The mainstream FPV sweet spot)
• V.S.W.R: ≤1.2:1 (Lower is better, but you knew that, didn't you?)
• Radiation Efficiency: 99% (Basically magic, but with physics)
• Polarization: RHCP or LHCP

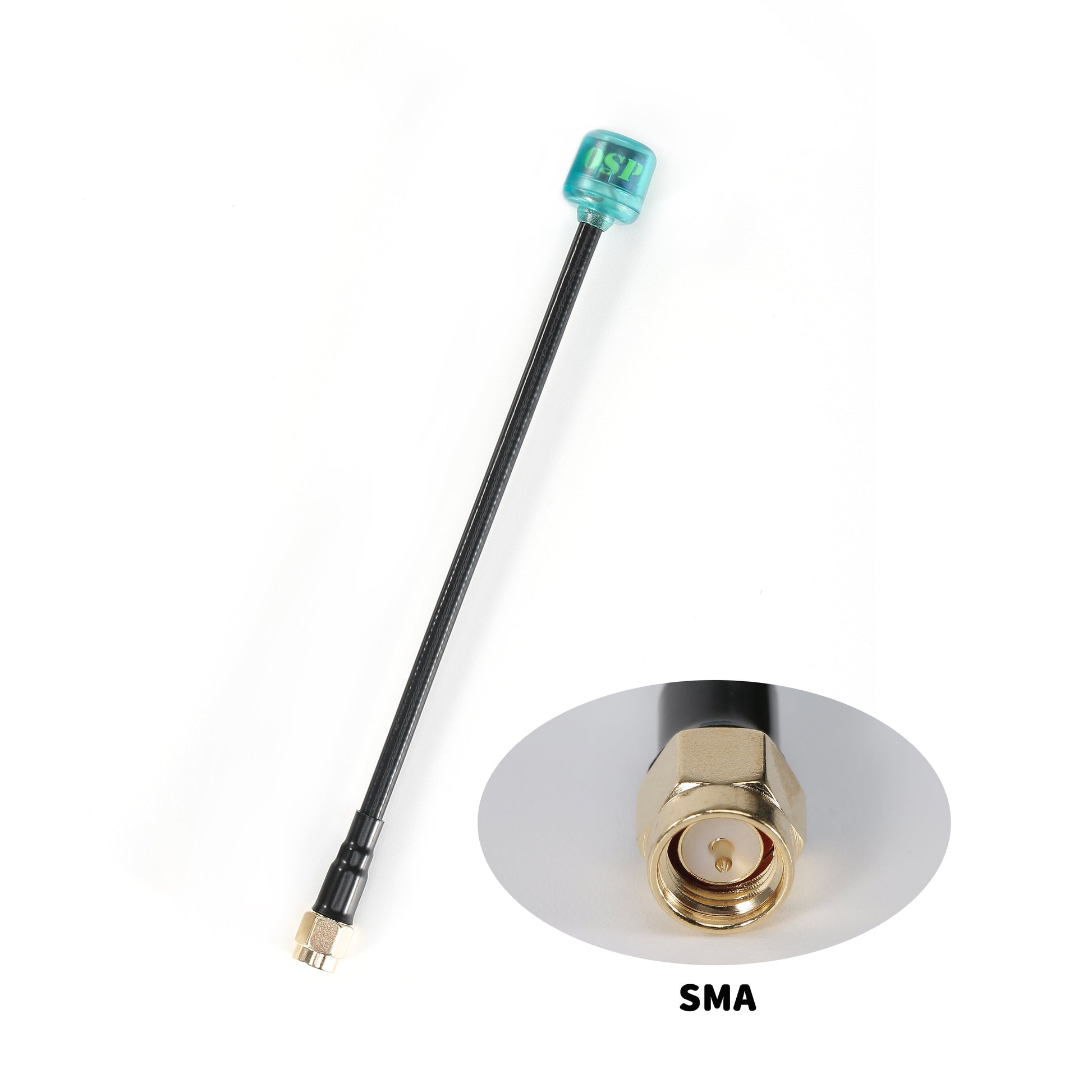

• Connector: Gold plated SMA (Because you're fancy)
• Dimensions (Head): 14.1mm dia. X 14mm height (Tiny but mighty)
• Length: 150mm (Total height for maximum clearance)
• Cable: Resilient RG141 coax (Tougher than your last landing)
• Weight: 11.29g (Lighter than a pound coin)

In the Box

• 1x FlyFishRC Osprey 5.8Ghz SMA Antenna -150mm

Compatibility

Compatible with any 5.8GHz video transmitter or receiver using an SMA jack. If you have an RP-SMA port, you'll need an adapter or a better sense of planning.

Highlights

• Polycarbonate Shield: Hermetically sealed because moisture is the enemy of fun.
• Impact Resistant: Designed to survive the inevitable meeting between your drone and a tree.
• Near-Perfect Circularity: Better penetration for when you decide to fly behind that one damp brick wall.

Disclaimer

Does not actually prevent crashes. If you fly into a lake, that’s on you, not the antenna. Warranty void if used as a toothpick.

Still Here?

If you've read this far, you're either a bot or very dedicated to your signal quality. Treat your VTX to the Osprey and stop blaming 'solar flares' for your failsafes. Add to cart and let's get you back in the air
