Quick Answer
Before your first flight, use a smoke stopper to power on, verify motor spin direction in Betaflight, check all control surfaces respond correctly, confirm video signal, and do a brief hover test at low throttle. Skip any of these and your build could be damaged in seconds.
The First Power-On That Goes Wrong
We have seen more builds destroyed on maiden flights than in months of regular flying. Not because the pilot crashed, but because something was wired backwards, a motor was spinning the wrong way, or the flight controller was oriented incorrectly. The difference between a successful maiden and a burnt-out ESC is usually a ten-minute bench check.
Here is the exact sequence we run on every new build before the props go on. Follow it and your first flight will be boring in the best possible way.

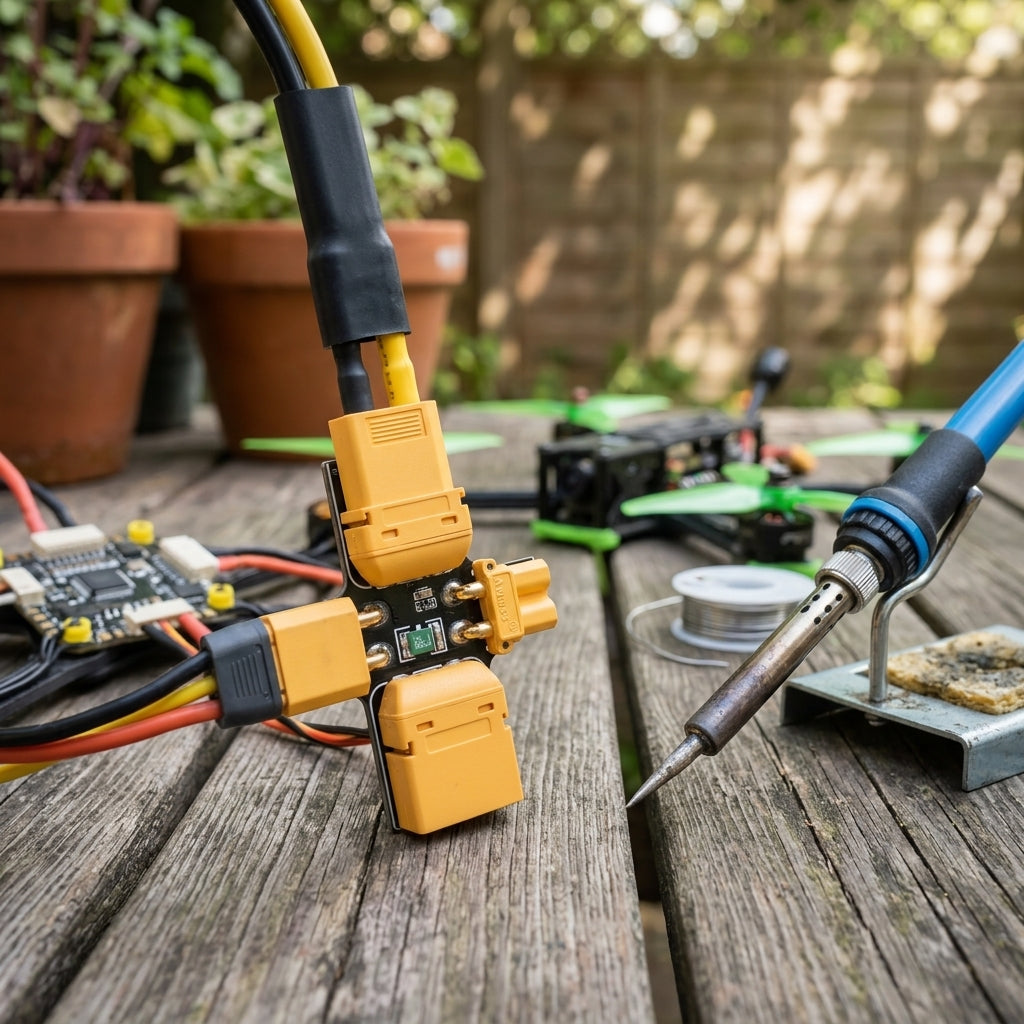

Step One: Smoke Stopper Power-On
Never plug a freshly built quad directly into a battery. A smoke stopper limits current so a short circuit will not fry your components. Plug the smoke stopper between the battery and your quad, then power on.
If the LED on the smoke stopper lights up and nothing else happens, you are good. If the stopper gets hot or the LED does not come on, disconnect immediately and check for shorts with a multimeter. The most common culprits: solder bridges on the ESC pads, reversed polarity on the XT60, or a stray strand of wire bridging two pads.
Step Two: Betaflight Configuration Check
Connect to Betaflight via USB and verify:
- Board orientation matches how the FC sits in the frame.
- Receiver tab shows sticks moving correctly. If Channel 1 moves when you push throttle, your channel map is wrong.
- Motor tab shows all four motors at correct positions. Use the slider at low power (no props). Motor 1 is front-right, Motor 2 front-left, Motor 3 back-right, Motor 4 back-left.
- OSD shows battery voltage, timer, and warnings.
Step Three: Motor Direction and Props
In the Motors tab, verify each motor spins in the correct direction. On a standard quad, front-left and back-right spin clockwise. Front-right and back-left spin counter-clockwise. If a motor is reversed, swap any two of the three motor wires or change the direction in BLHeli/AM32.
Only install props after confirming motor direction. Prop-on tests with incorrect motor direction will result in the quad flipping on takeoff. We have seen it happen. It is not pretty.
Step Four: Ground Range Check
Walk 20 metres from the quad with your radio and verify solid LQ (link quality). If it drops below 90% at that range, your antenna placement needs fixing. Our build mistakes article covers the common antenna errors we see.
Check video signal on your goggles at the same distance. If the picture breaks up, your VTX antenna is disconnected, damaged, or the wrong polarisation.
Step Five: The Maiden Hover
Take the quad outside to clear, open space. No people, no cars, no trees within 10 metres. Follow our pre-flight checklist, confirm your wiring is correct, and then:
- Arm the quad (no props if this is your absolute first test)
- Advance throttle slowly. The quad should lift evenly
- Hover at knee height for 10 seconds. Listen for unusual motor sounds
- If the quad drifts hard in one direction, land and check CG or motor tilt
- If everything feels stable, land and install the props (if you tested without)
If the quad will not arm, do not force it. See our won't-arm troubleshooting guide.
FAQ
Q: Do I need a smoke stopper for every new build?
A: Yes. The cost of a smoke stopper is a fraction of a single ESC. One short circuit without one can destroy your entire flight stack.
Q: Can I test motor direction with props on?
A: Never. Test motor direction with props removed. A spinning prop on a bench can cause serious injury and will pull the quad into whatever is nearby.
Q: What if my quad flips on takeoff?
A: This almost always means motor direction is wrong or props are on the wrong motors. Land, remove props, and recheck spin direction in Betaflight.
Q: Should I do my maiden flight in Acro mode?
A: For your very first build, start in Angle mode. It is more forgiving and will not let the quad invert. Switch to Acro once you have confirmed the quad flies straight.
Q: How long should the first flight be?
A: Under one minute. Just a hover, a gentle circuit, and land. Check motor temperatures, battery voltage, and look for loose components before flying again.
