Product Details

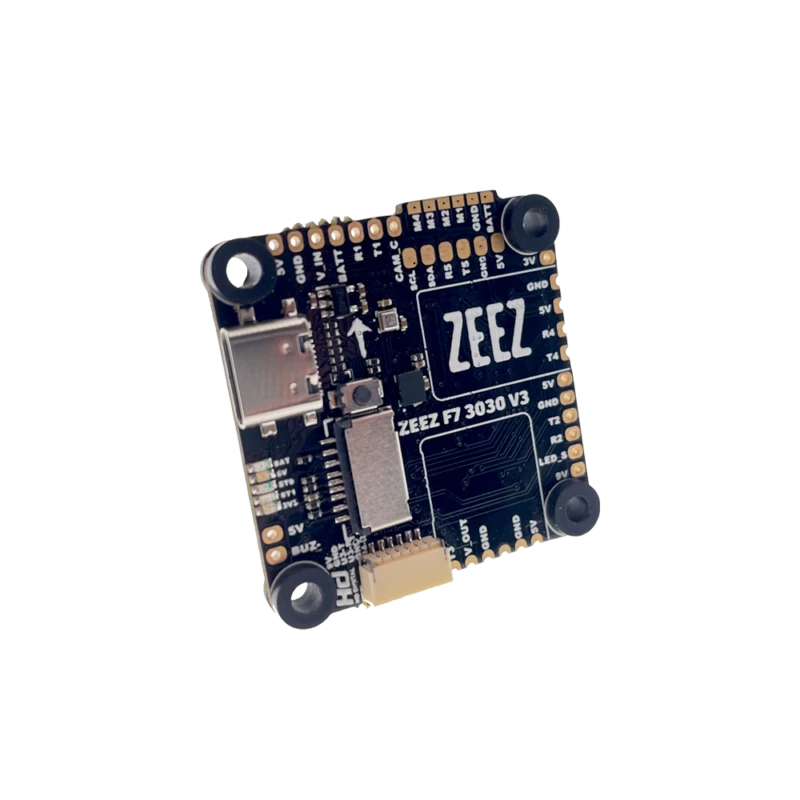

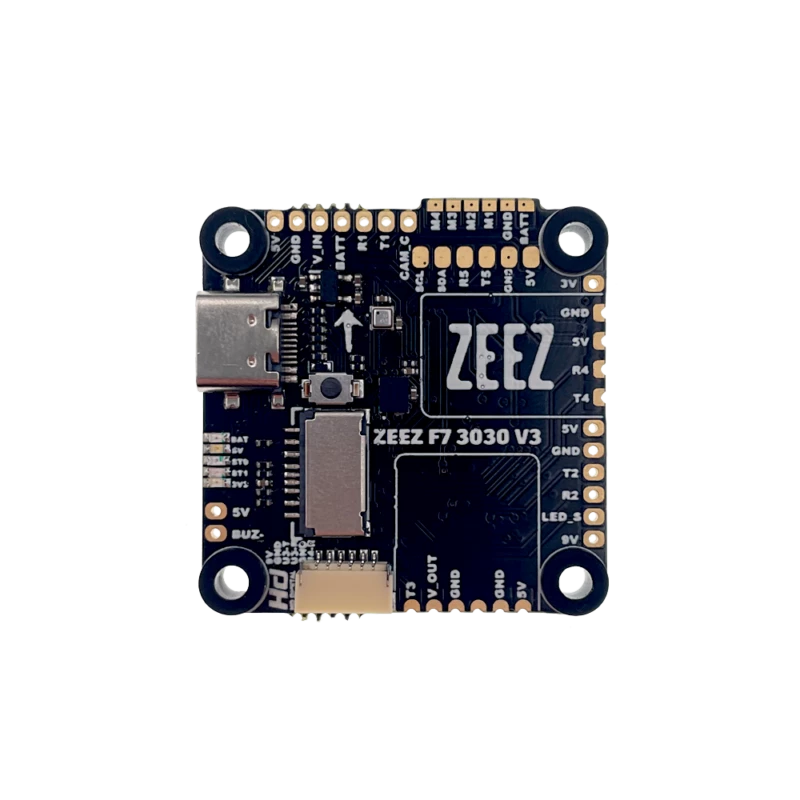

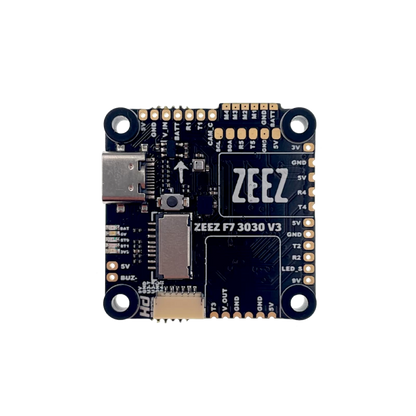

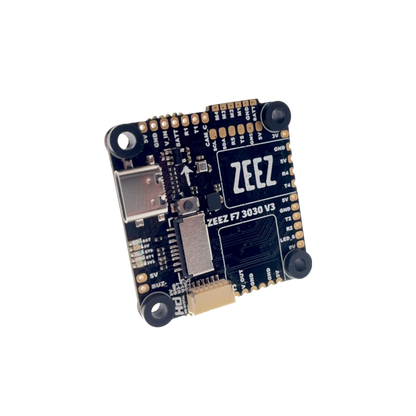

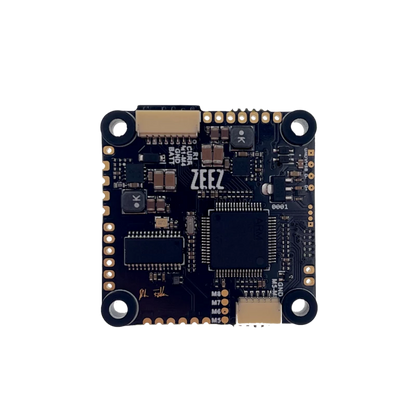

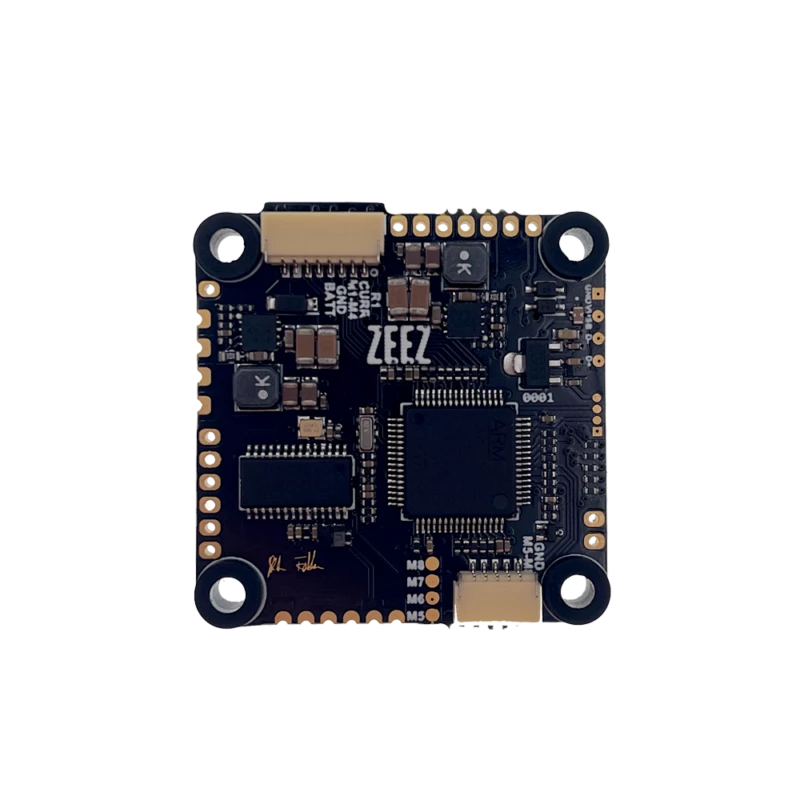

Introducing the ZEEZ F7 V3 3030 Flight Controller - the ultimate powerhouse for all your aerial escapades. DJI HD System Ready with 8 motor outputs, it boasts an on-board 9V@3A regulator to power the DJI Air Unit and a 5V@3A regulator to keep all your peripherals running like a dream.
Featuring a powerful F7 processor, ICM42688P gyro, and BMP388 barometer, this flight controller takes your drone to new heights with the cleanest data and top-of-the-line hardware. Plus, with spaces and pads for TBS Crossfire and TBS Unify Nano32, you can achieve a clean, low-profile assembly that'll make all the other drones green with envy.
Building an X8 has never been easier thanks to the added connector for a 2nd ESC, and with 5 UARTS available, an I2C port, and SD card for Blackbox data record, you'll have all the tools you need to dominate the skies.
Key product highlights:
- DJI HD System Ready with 8 motor outputs for the ultimate aerial experience
- On-board 9V@3A regulator to power the DJI Air Unit and 5V@3A regulator for all your peripherals
- Powerful F7 processor, ICM42688P gyro, and BMP388 barometer for the cleanest data and top-of-the-line hardware
- Spaces and pads for TBS Crossfire and TBS Unify Nano32 for a clean, low-profile assembly

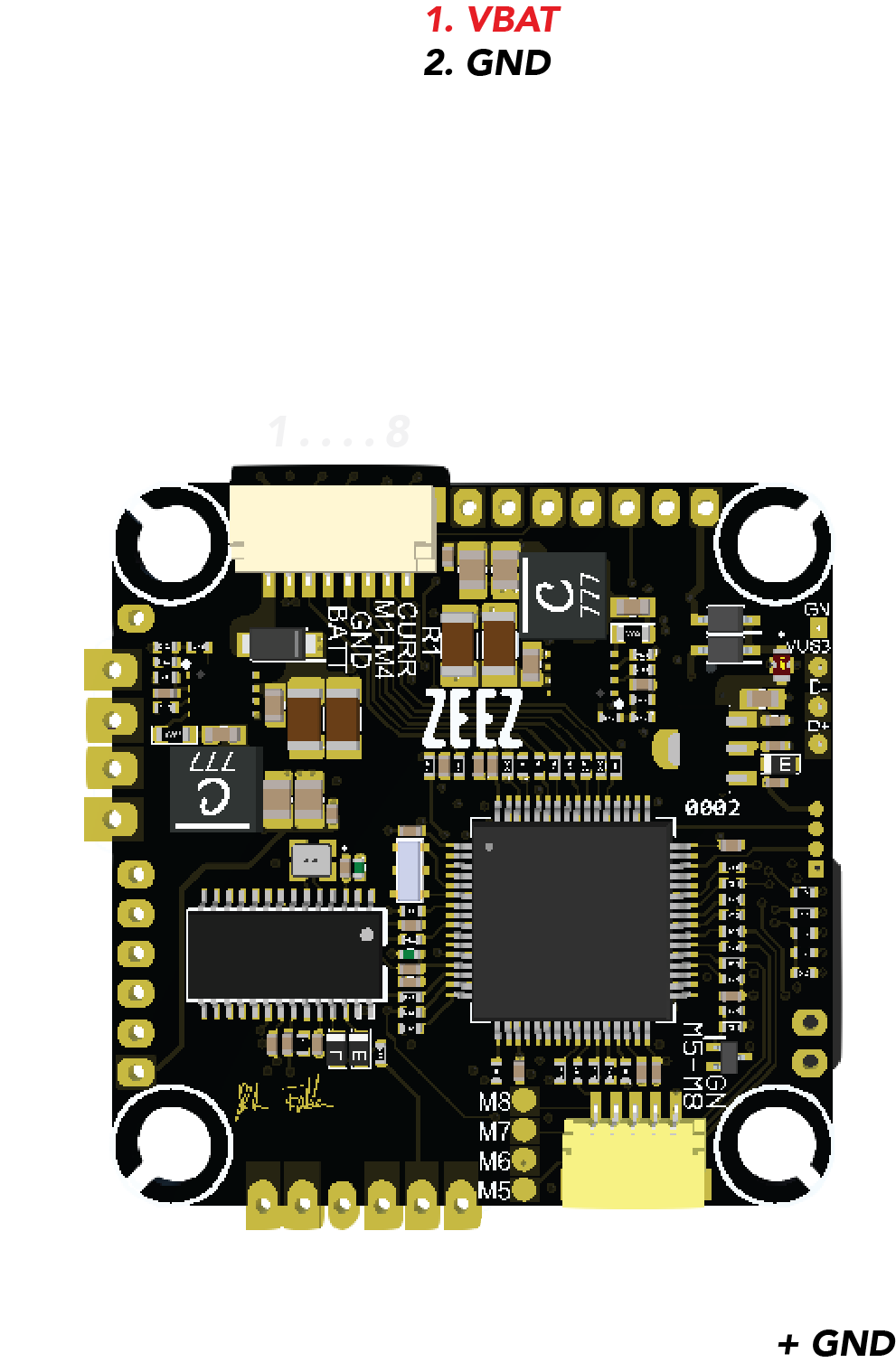

- Connector for a 2nd ESC for easy X8 builds, 5 UARTS available, an I2C port, and SD card for Blackbox data record - everything you need to dominate the skies!
Features

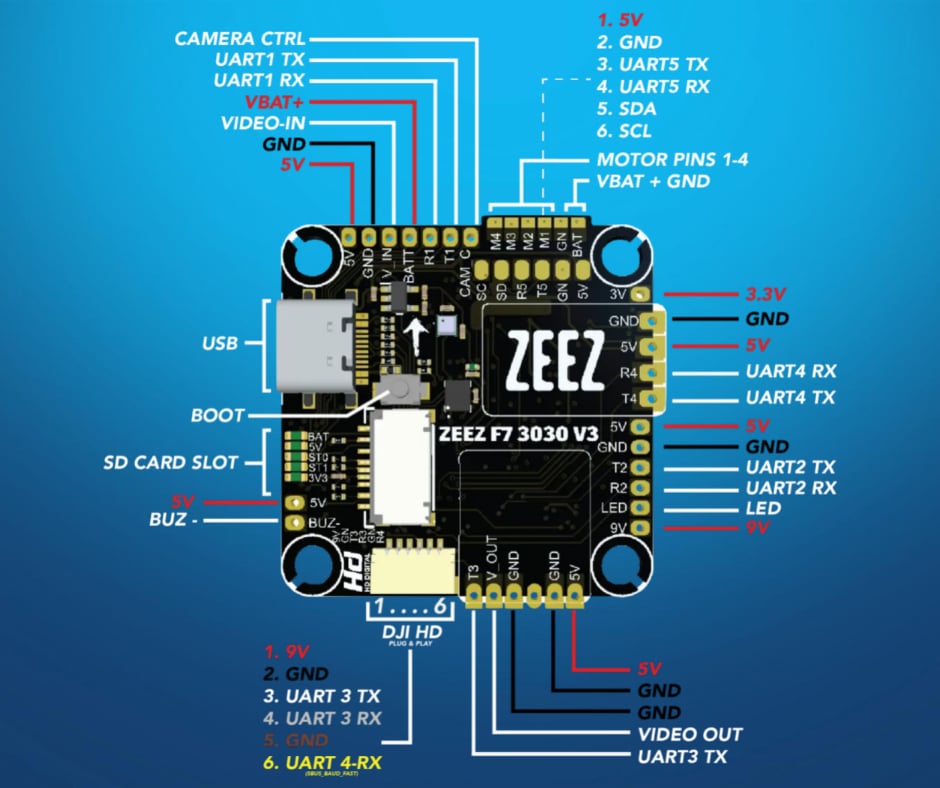

- Mounting holes: 30.5x30.5mm
- LiPo Power input: 3S-6S
- 8 Motor output
- BEC 5V-3A / 9V-3A
- STM32F722 MCU (216MHz max frequency)
- ICM42688P Gyro/ACC
- BMP388 Barometer
- OSD chip Onboard
- 5 available UARTs / I2C bus

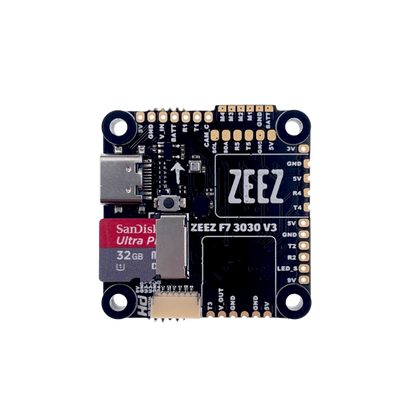

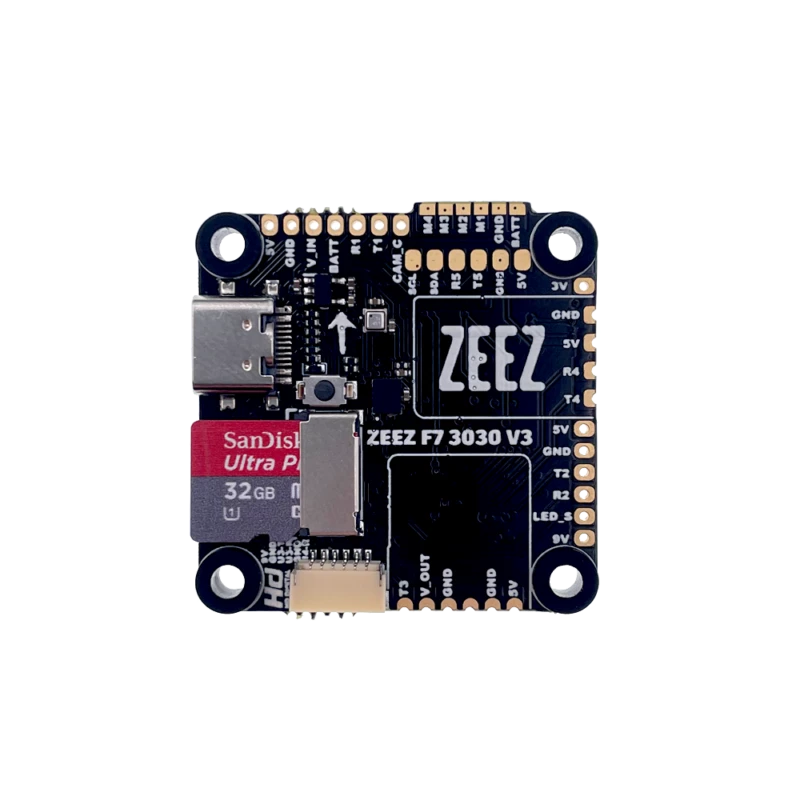

- SD Card Reader
- HD Plug for DJI Air Unit or Caddx Vista or Walksnail VTX
- USB Type C connector
- Direct solder connection and board space for TBS Nano RX and TBS Unify Pro32 Nano providing the ultimate in clean stack installation
Included

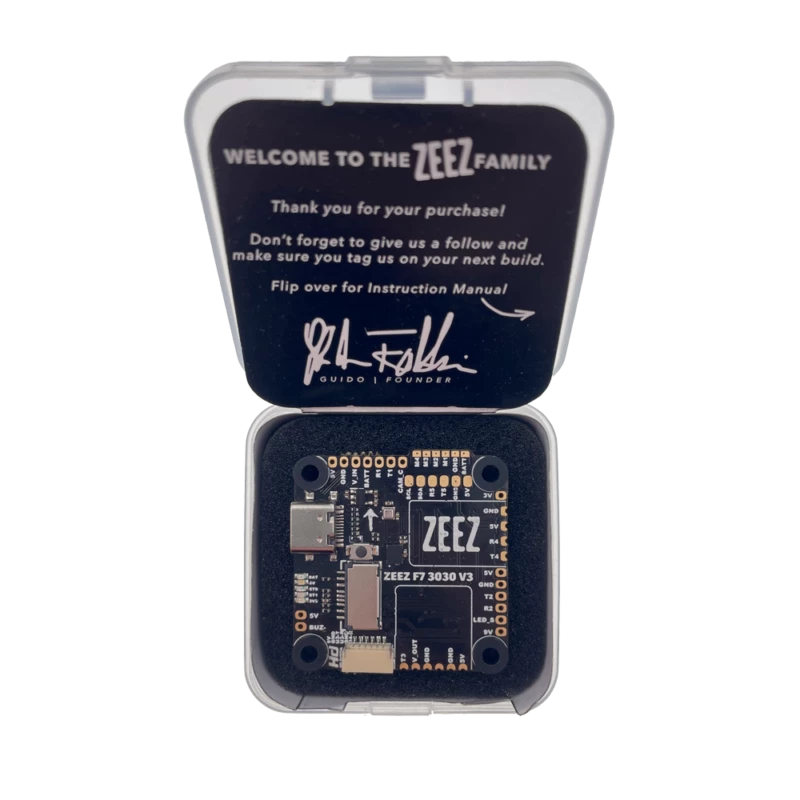

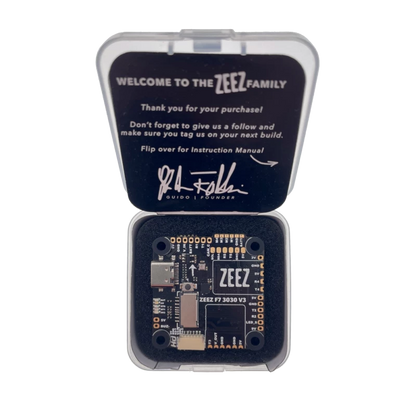

- 1x Zeez F7 V3 3030 Flight Controller
- 1x Connector Cable Pack
Please note MicroSD card not included
