Product Details

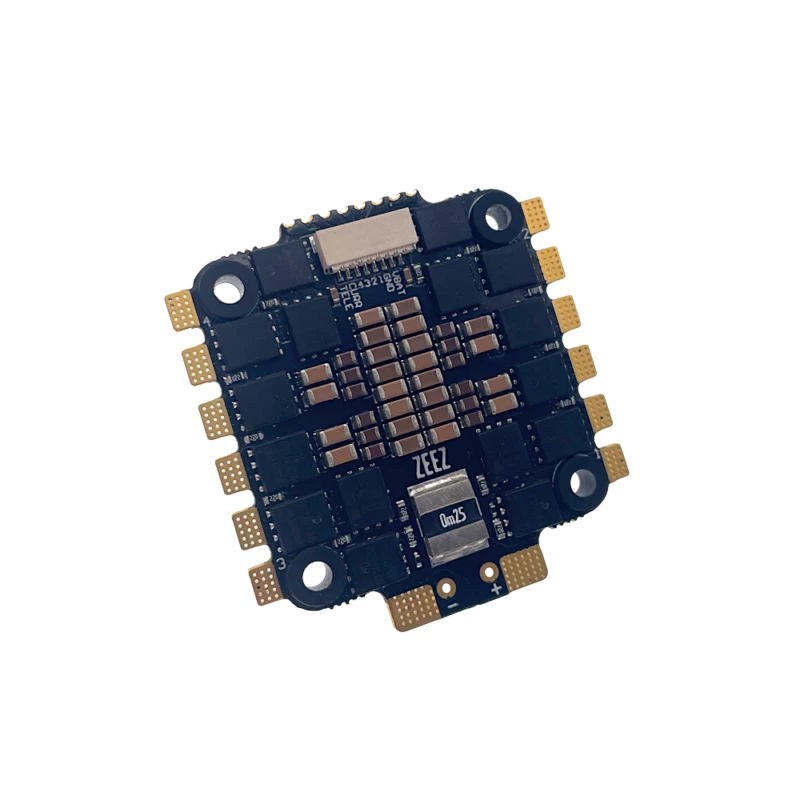

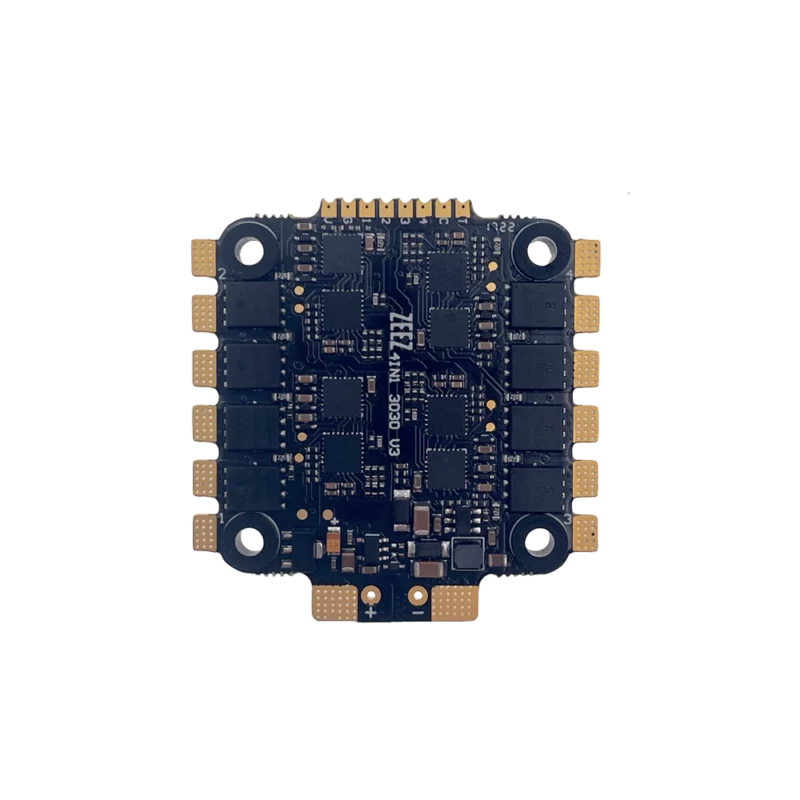

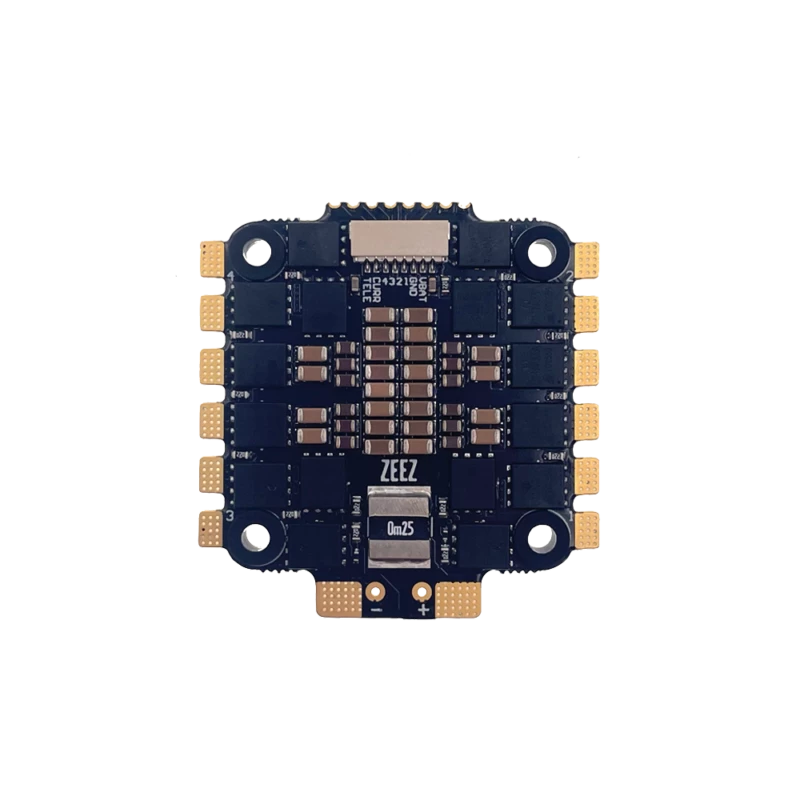

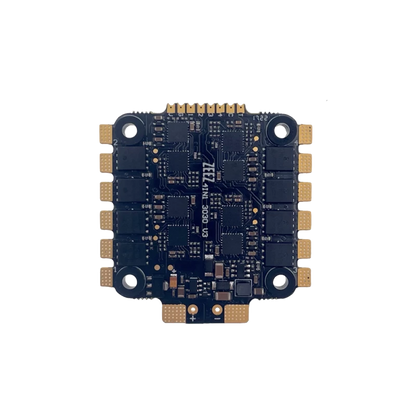

Introducing the ZEEZ 55A 3030 V3 - the king of all electronic speed controllers! We took all the best features from last year's 3030 ESC and combined it with the latest technology to create the ultimate upgrade.
Equipped with the fastest MCU available - the STM32G0 fully supported by BLHELI32 - the ZEEZ 55A 3030 V3 offers bi-directional DSHOT and all digital protocols (DSHOT150, DSHOT300, DSHOT600) straight out of the box. With support for 96KHz PWM drive frequency to the MOSFET and all analog protocols (PWM, OneShot125, OneShot42, Multishot), it's the most versatile ESC on the market.
But that's not all - we listened to our customers and added more clearance to the solder pads, making assembly a breeze. Plus, we beefed up the copper around the pads for greater strength.
With 30 x 30 mounting holes, a 3S-6S battery input, and a continuous and peak draw of 55A-75A, this ESC means business. And with a high-quality RDS(on) 0.75 mΩ 30V rated MOSFET, high capacitance onboard and external capacitor holes, and a current sensor scale of 250, the ZEEZ 55A 3030 V3 is simply unmatched.
Key product highlights:
- Fastest MCU available with BLHELI32 support for unmatched performance and versatility
- Bi-directional DSHOT and all digital protocols (DSHOT150, DSHOT300, DSHOT600) out of the box, with support for 96KHz PWM drive frequency to the MOSFET and all analog protocols (PWM, OneShot125, OneShot42, Multishot) for ultimate flexibility
- More clearance and beefed-up copper around the solder pads for easy assembly and greater strength
- High-quality RDS(on) 0.75 mΩ 30V rated MOSFET, high capacitance onboard and external capacitor holes, and a current sensor scale of 250 for unbeatable performance and reliability.
Specifications
- LiPo Power input: 3S-6S
- Continuous Current: 55Amps x 4
- Burst Current: 75Amps x 4
- Input wires: 12AWG-130mm* (Red/Black)

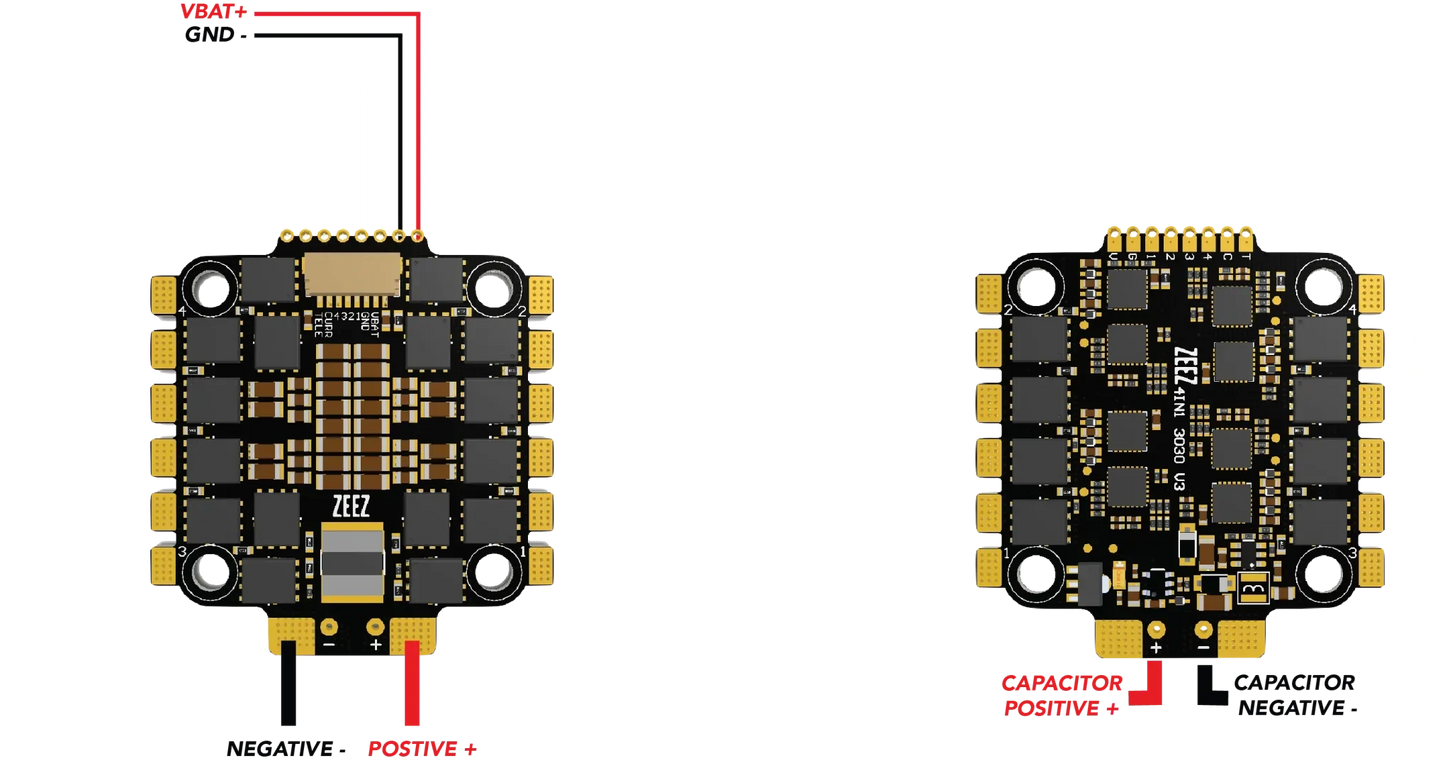

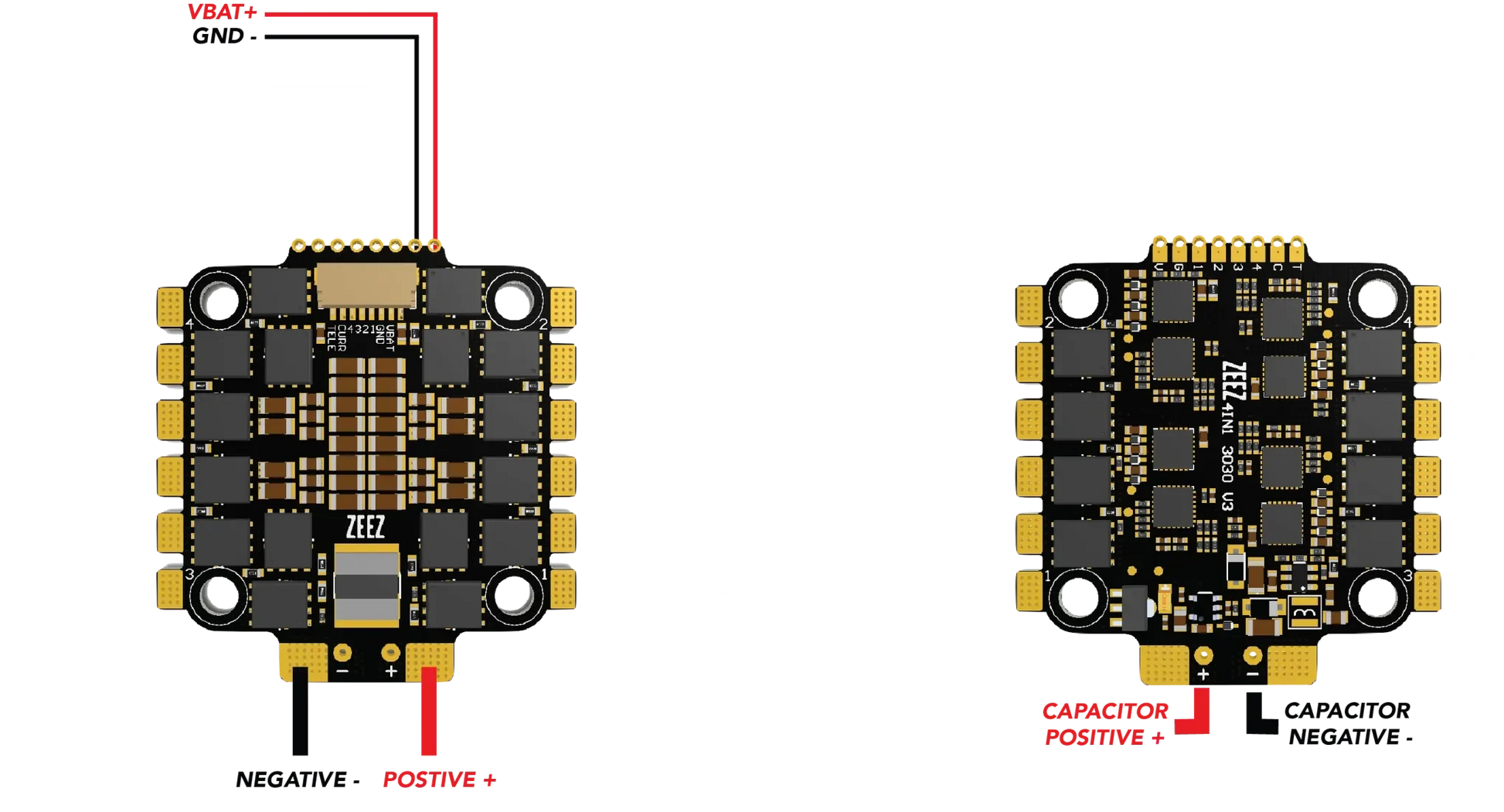

- Output Wire: solder pads and 8P connector
- Mounting holes: 30.5x30.5mm
- High-quality MOSFET with RDS(on) 0.75 mΩ 30V rated
- ESC Firmware: BLHeliSuite32
- Current Sensor Scale: 250

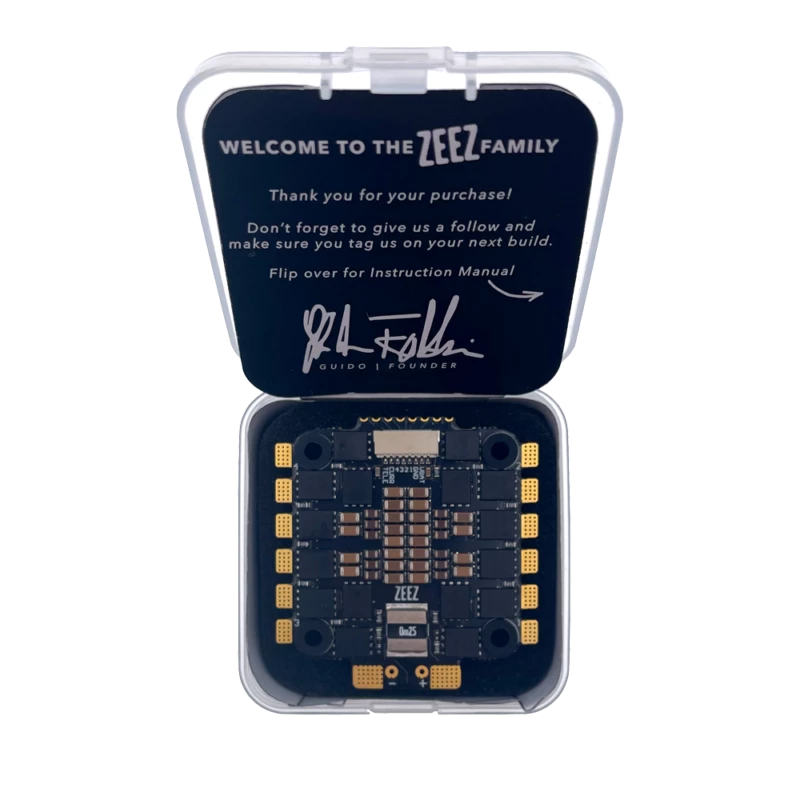

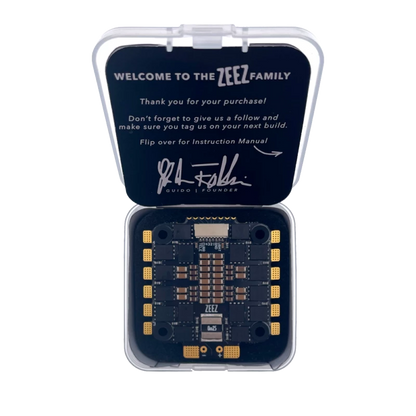

Includes
- 1x ZEEZ 55A 4-in-1 ESC
- 1x Cable Pack with XT60
