Product Details

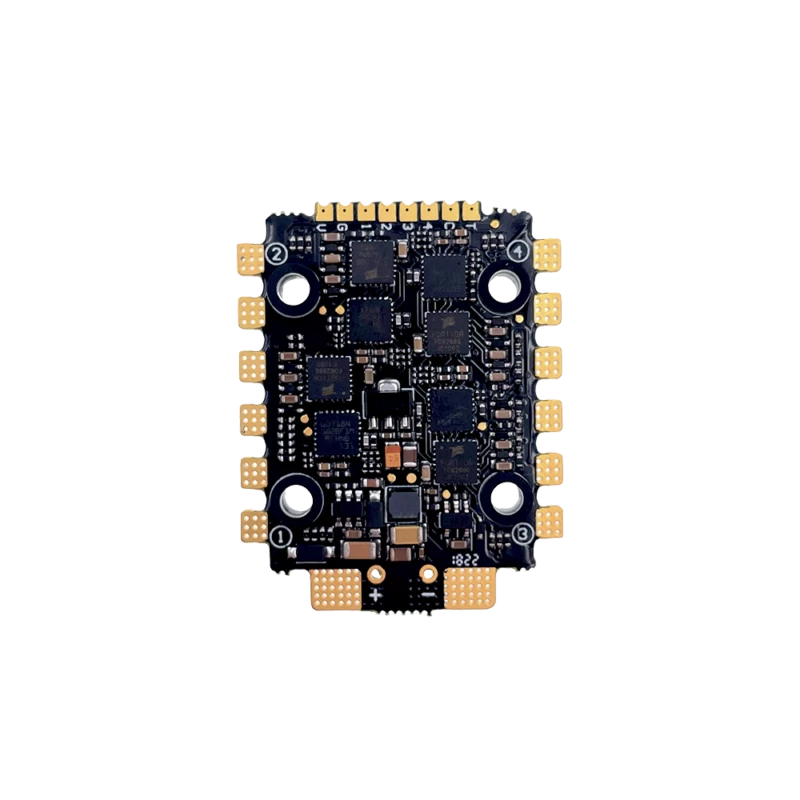

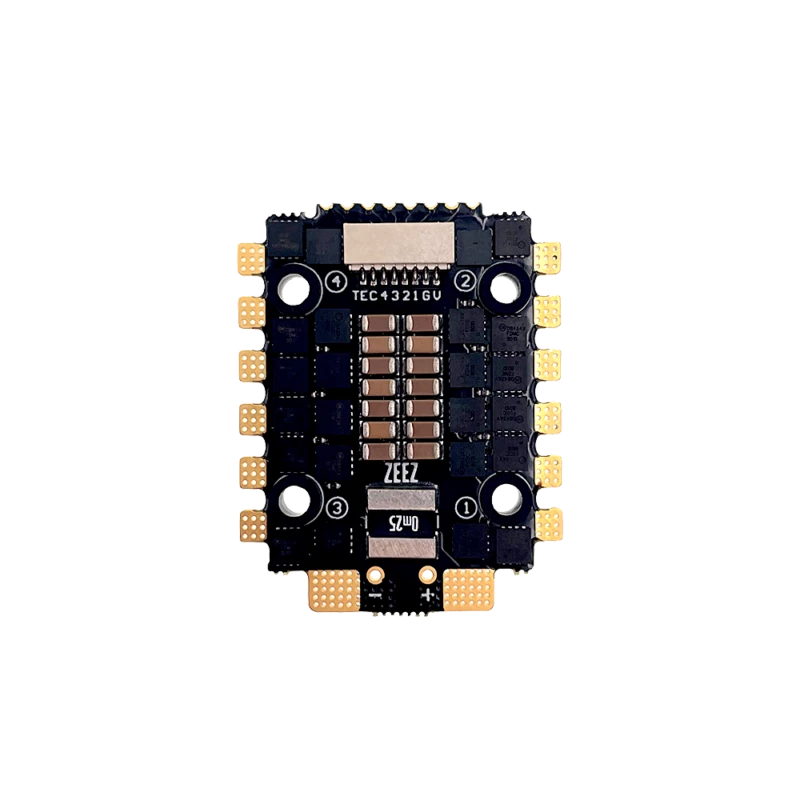

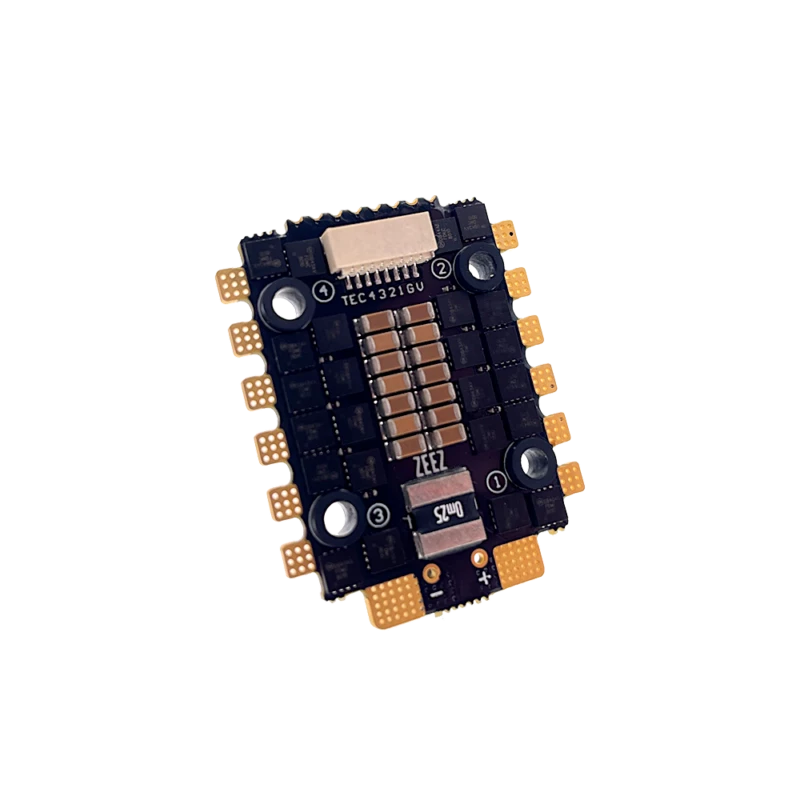

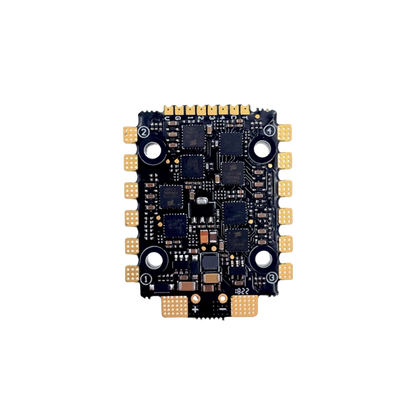

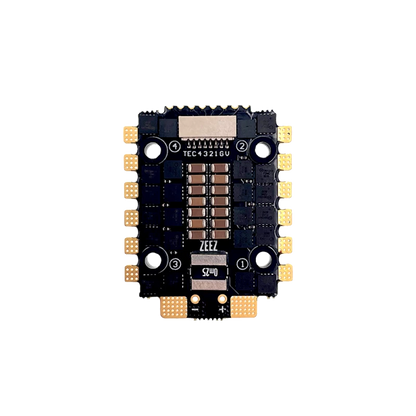

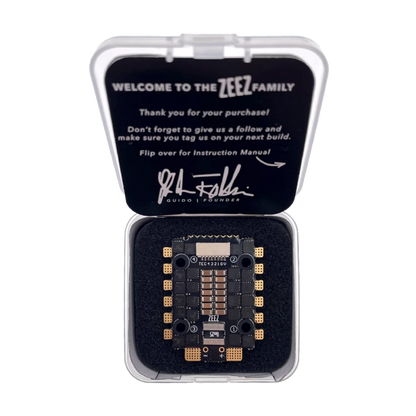

Introducing the latest upgrade to our electronic speed controller family - the ZEEZ 45A 2020 V3. We listened to our customers' feedback from all over the world and combined it with the latest technological advancements to take this baby to a whole new level!
What sets the ZEEZ 45A V3 apart is its lightning-fast MCU, the STM32G0, which is fully supported by BLHELI32. It boasts bi-directional DSHOT and all digital protocols (DSHOT150, DSHOT300, DSHOT600) straight out of the box, delivering unmatched performance and accuracy. Plus, with 96KHz PWM drive frequency to the MOSFET, it also supports all analog protocols (PWM, OneShot125, OneShot42, Multishot) - just in case you prefer to keep it old-school.
And as if that wasn't enough, we've even made some nifty improvements to the solder pads based on feedback from our newer pilots. More clearance means more peace of mind and a smoother, hassle-free experience.
Key product highlights:
- Fastest MCU available with BLHELI32 support for lightning-fast performance and precision
- Bi-directional DSHOT and all digital protocols (DSHOT150, DSHOT300, DSHOT600) out of the box for unmatched versatility
- Supports 96KHz PWM drive frequency to the MOSFET, as well as all analog protocols (PWM, OneShot125, OneShot42, Multishot) for ultimate flexibility
Specifications
- LiPo Power input: 3S-6S
- Continuous Current: 45Ax4
- Burst Current: 55Ax4
- Input wires: 14AWG-130mm* (Red/Black)
- Output Wire: solder pads and 8P connector
- High-Quality MOSFET 30V rated with RDS(on) 1.3 mΩ
- Mounting holes: 20x20mm
- ESC Firmware: BLHeliSuite32
- Firmware: BLHeli_32
- Current Sensor Scale: 250
Includes

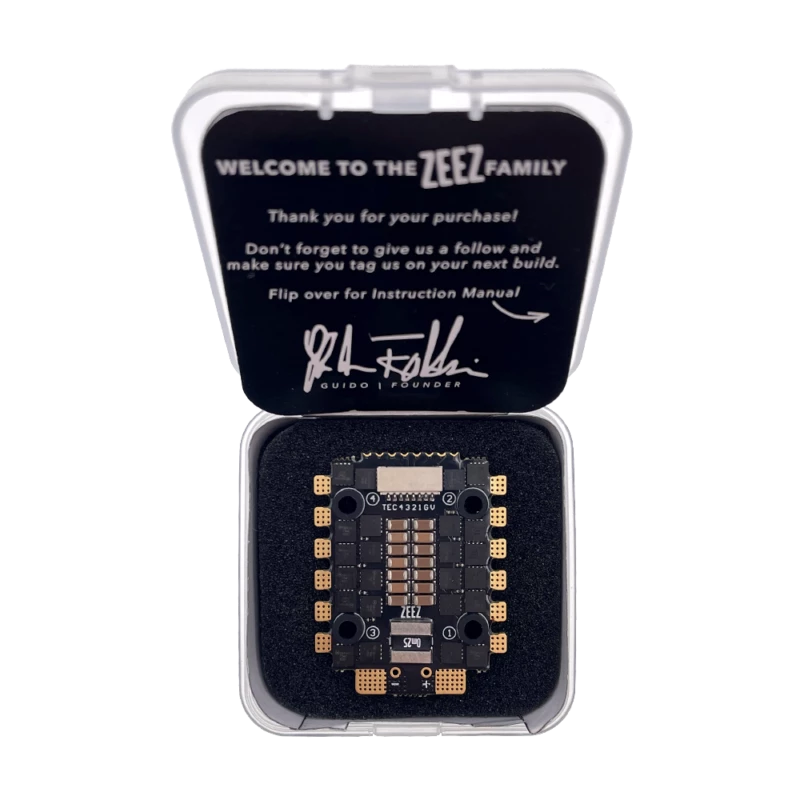

- 1x ZEEZ 45A 4-in-1 ESC
- 1x Cable Pack with XT60
