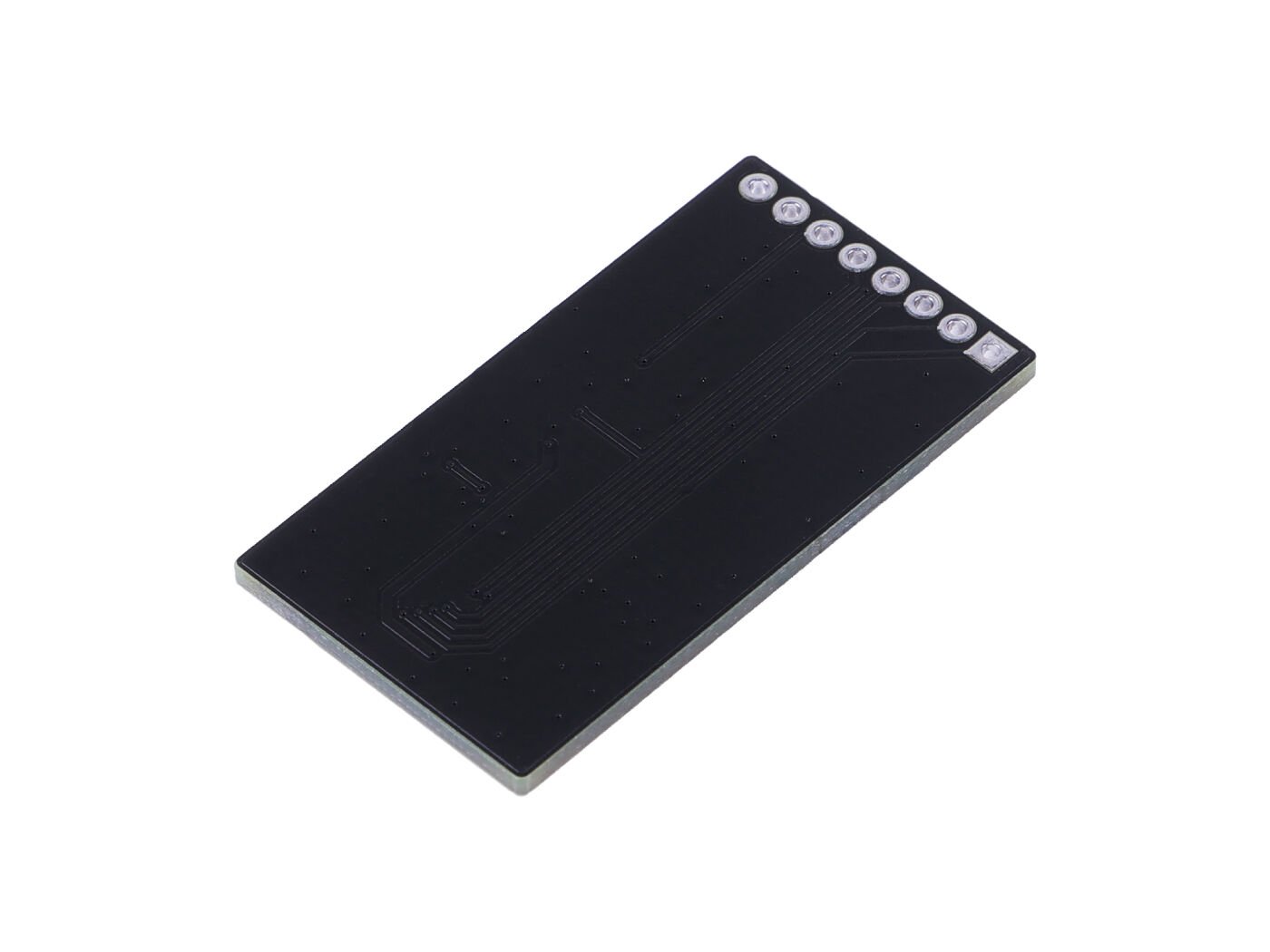

ePaper Breakout Board - Seamless ePaper Integration for Seeed Studio XIAO

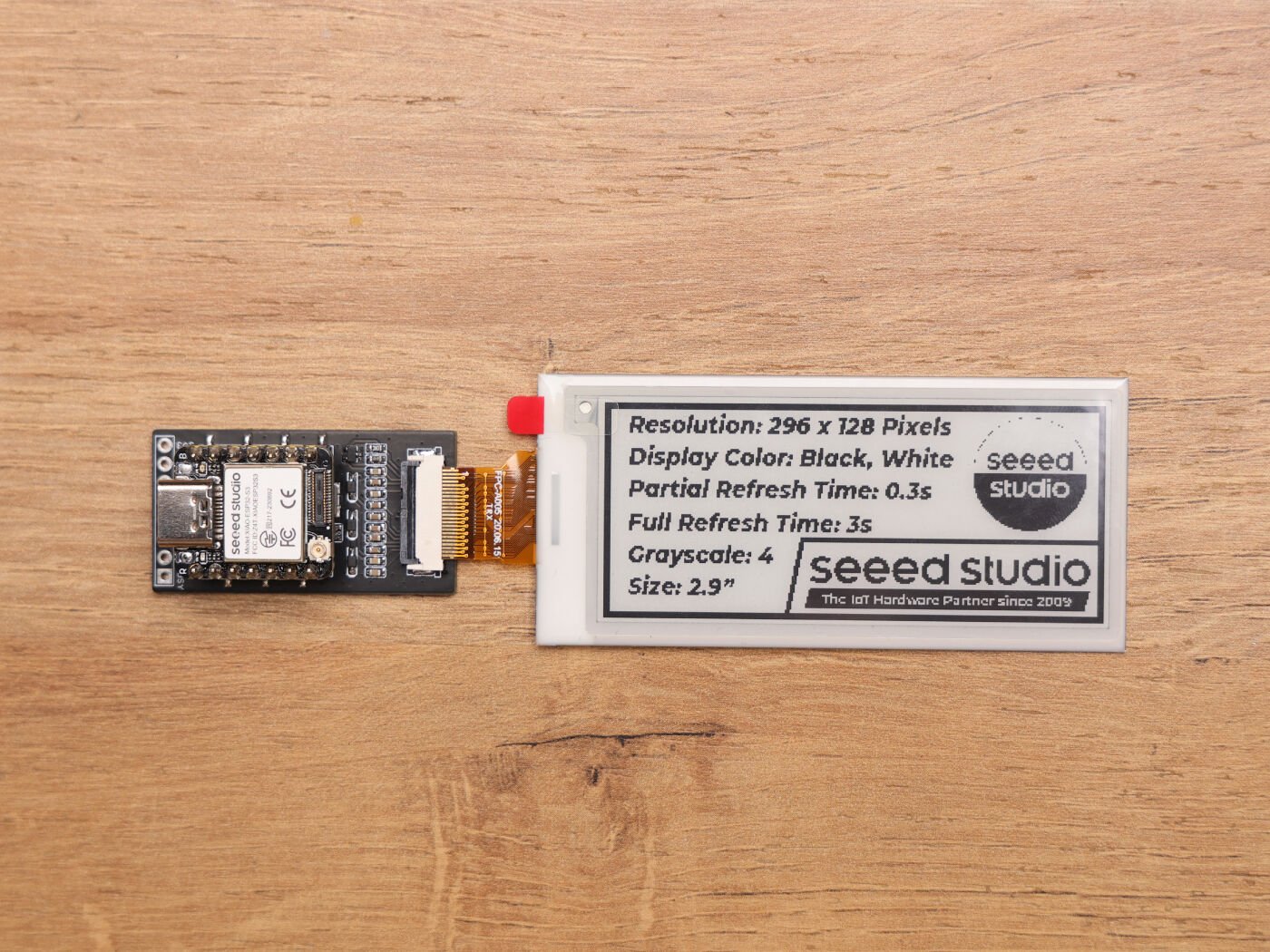

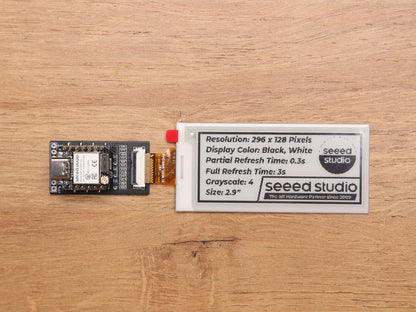

Meet the ePaper Breakout Board , a must-have for Seeed Studio XIAO developers looking to drive ePaper displays with ease. This versatile breakout board features a 24-pin FPC connection for seamless ePaper integration and an additional 8-pin 2.54mm header for broader microcontroller compatibility. Whether you're designing an e-reader or a smart home interface, this plug-and-play solution simplifies your project without compromising flexibility.
Key Features
- Effortless ePaper Display Integration: Features a 24-pin FPC connector designed to drive 2.13-inch ePaper displays.
- Broad Compatibility: Includes an 8-pin 2.54mm header for easy connection to microcontrollers like Arduino UNO or Raspberry Pi.
- Plug-and-Play Design: All pins are broken out, eliminating the need for soldering. Perfect for rapid prototyping.
- Optimized for Seeed Studio XIAO: The dedicated socket ensures compatibility with all XIAO series boards.

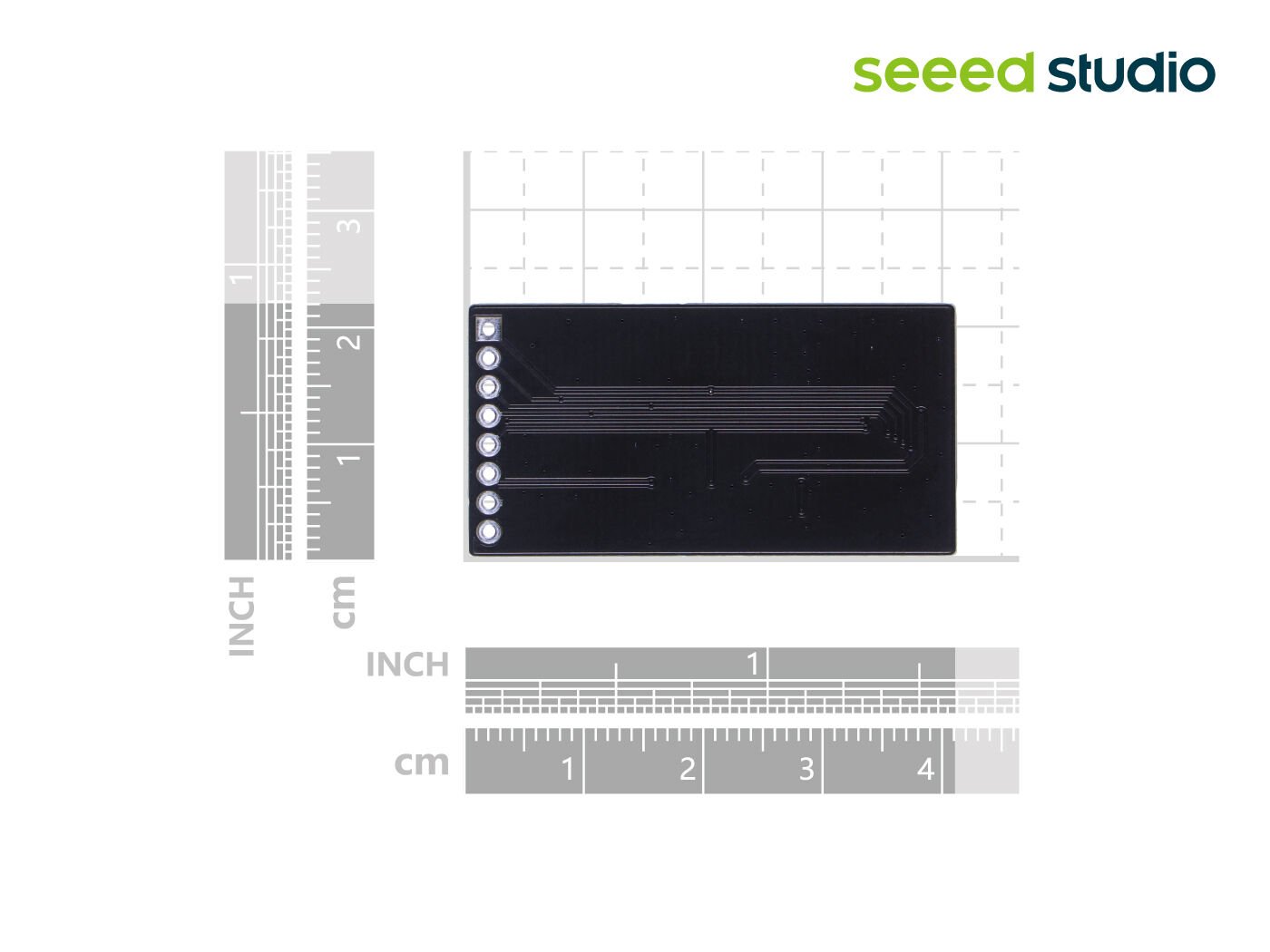

Hardware Overview
| Component | Function |
|---|---|

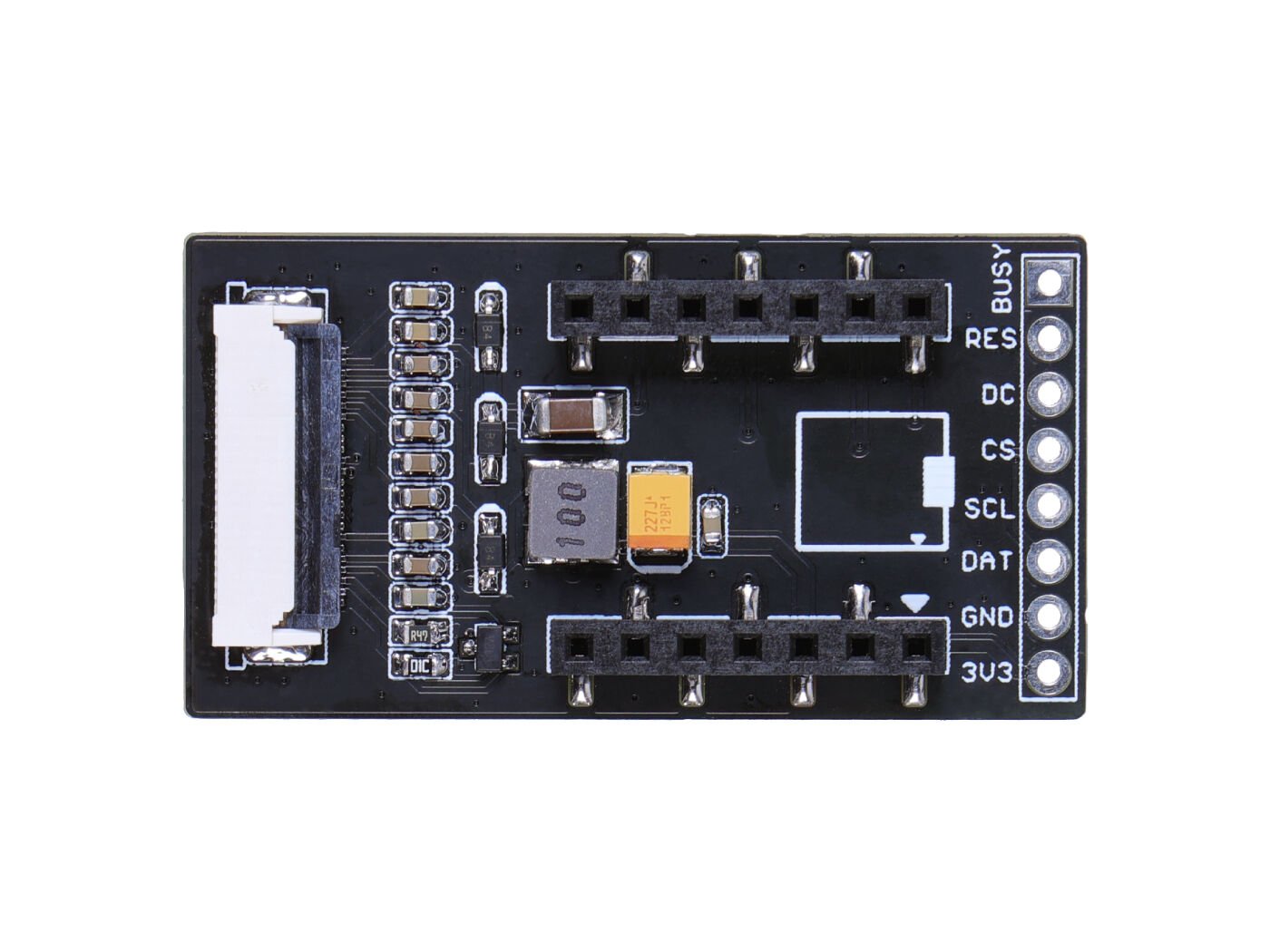

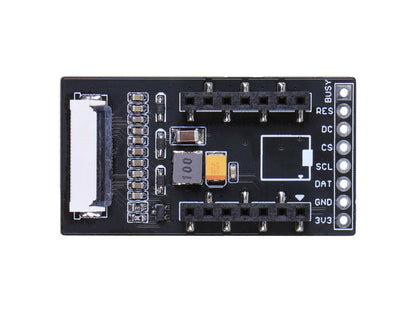

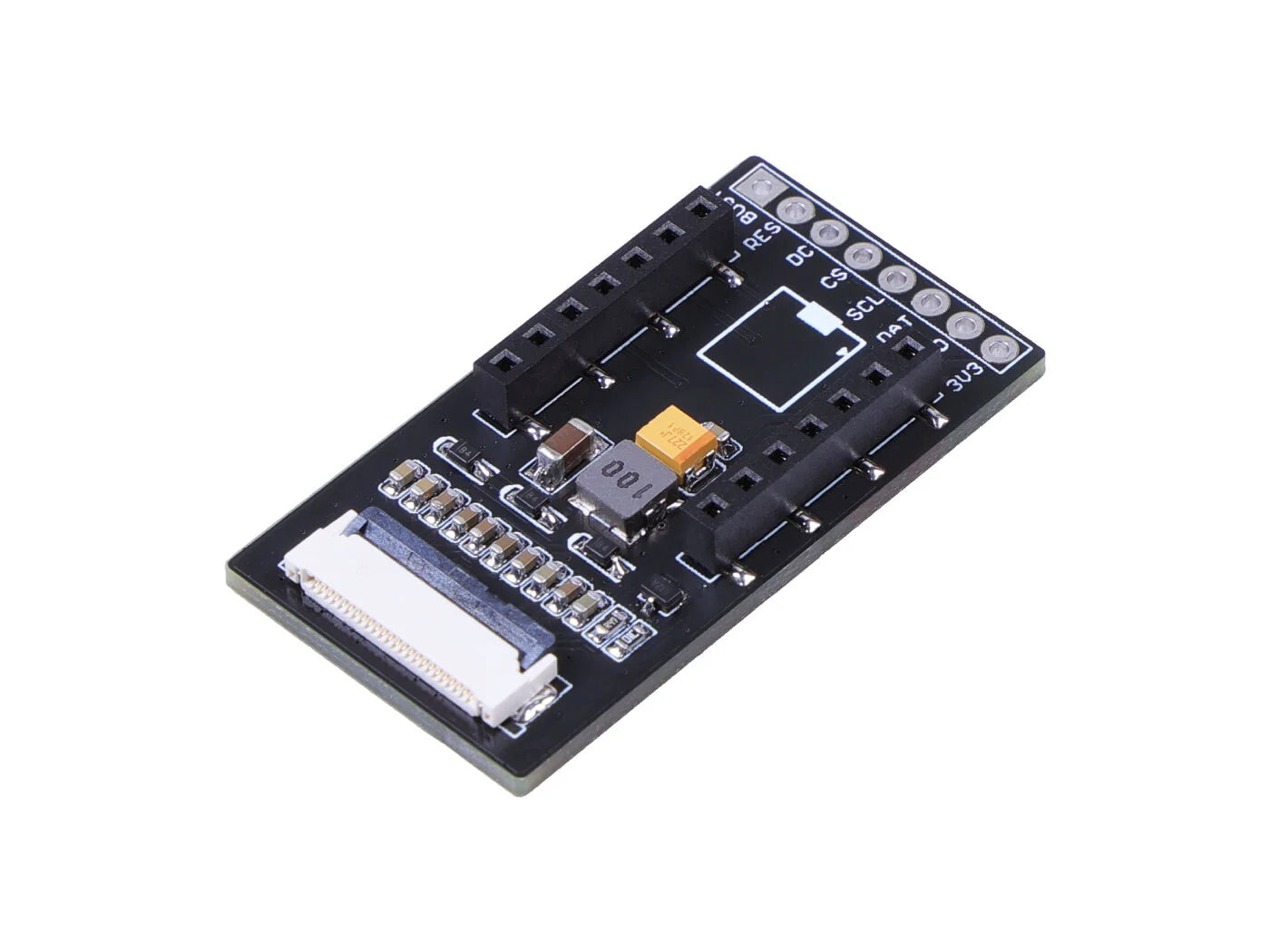

| 24-pin FPC Connector | For connecting 2.13-inch ePaper displays. |
| XIAO Socket | Dedicated slot for Seeed Studio XIAO boards. |
| 8-Pin Header | Supports additional microcontrollers or devices. |
Pin Definitions
| ePaper | XIAO |
|---|---|
| RST | D0 |
| CS | D1 |
| DC | D3 |
| BUSY | D5 |
| SCK | D8 |
| MOSI | D10 |
Applications
- Digital Signage: Create energy-efficient, dynamic digital signs.
- E-Readers: Build custom e-readers tailored to your needs.
- Smart Home Control Panels: Add modern, low-power displays to your smart home setup.
- Retail Price Tags: Design eco-friendly, reusable electronic pricing solutions.
- Educational Tools: Develop interactive, updateable teaching aids.
What's in the Box?
- 1 x ePaper Breakout Board
Disclaimer: Accessories or additional components may vary based on supply.
