XIAO 60GHz mm Wave Human Breathing and Heartbeat Sensor

Advanced 60GHz mmWave Human Presence, Breathing & Heartbeat Sensor Kit for Home Assistant

Elevate your smart home automation with our cutting-edge 60GHz mmWave Sensor Kit , designed for precise human presence detection, breathing monitoring, and heartbeat sensing . This all-in-one solution features the advanced MR60BHA2 mmWave module, capable of detecting static human presence up to 6 meters away and accurately monitoring the breathing and heartbeat of a single stationary person within a 1.5-meter range ( tested in empty deployment environments ).

Seamless integration with your smart home ecosystem is a breeze. The kit includes a Seeed Studio XIAO ESP32C6 pre-flashed with ESPHome firmware , enabling plug-and-play setup with Home Assistant in just 1-2 minutes - no coding required! Easily configure detection zones and access insightful analytics directly from Home Assistant to pinpoint target locations and refine your automations.

Beyond presence and vital signs, this kit incorporates a BH1750 ambient light sensor , allowing for precise light detection (1-65,535 lux, adjustable up to 100,000 lux). This empowers you to create highly responsive automations that adapt to environmental changes, with light readings available as frequently as every second via ESPHome or Arduino IDE. Customize your device's visual feedback with the on-board WS2812 RGB LED .

Expandability is key. An additional Grove connector on the mmWave module allows for easy integration with over 300 compatible Grove sensors and actuators (like PIR sensors or relays) for extended sensing or automation capabilities. To help you get started quickly, we provide an open-source 3D printed enclosure design available for free download, offering a solid foundation for your custom casing. For those with unique application needs, the kit is fully open for customization , with Seeed offering one-stop R&D and manufacturing services for projects requiring 3D point cloud data generation or specific interference zone configurations (contact us at iot@seeed.cc ).

Feature 1: Advanced mmWave Sensing for Breathing, Heartbeat and Human Presence Detection

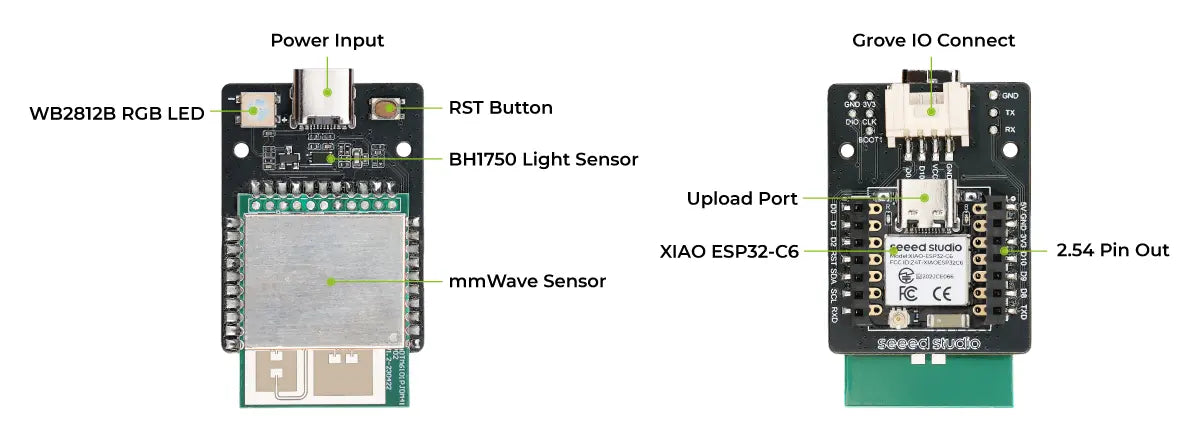

The MR60BHA2 60GHz mmWave Sensor Module excels in detecting breathing and heartbeat with pre-set algorithms, and also includes human static presence functionality.

• • • Human Static Presence: Measures effectively up to 6 meters.
    • Breathing & Heartbeat Detection: Accurate for a single person at 1.5 meters with the device stationary.

*The above parameters have been tested in the empty deployment environments.

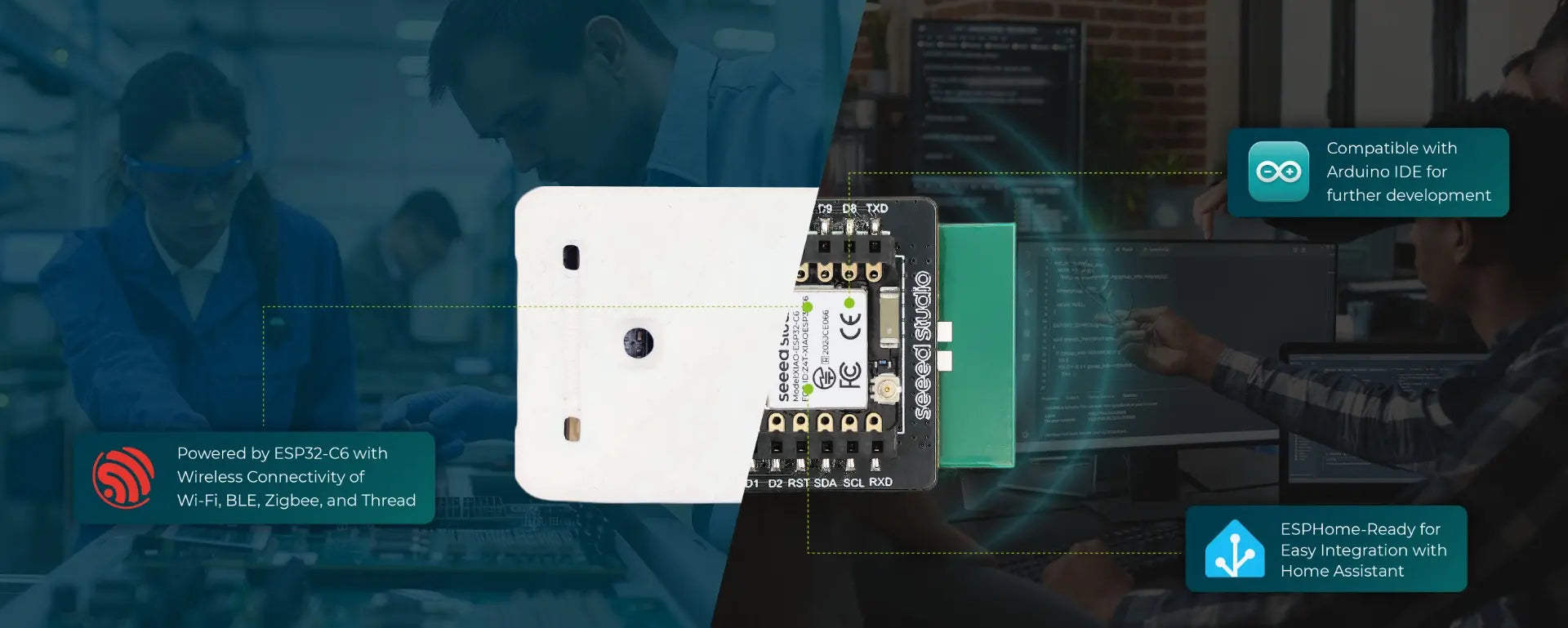

Feature 2: Powered by ESP32 & ESPHome & No-Code Integration with Home Assistant

The kit features a Seeed Studio XIAO ESP32C6 with pre-flashed ESPHome firmware, enabling seamless plug-and-play integration with Home Assistant . Configure the device in ESPHome, and n o-code setup for Home Assistant in 1-2 minutes. Thanks to the integration, you can customize detection zones and access analytics to pinpoint target locations efficiently from Home Assistant.

Feature 3 : Ambient Light Sensing for R esponsive Automation

The mmWave sensor module includes a BH1750 light sensor, offering precise ambient light detection from 1 to 65,535 lux, with adjustable measurements up to 100,000 lux. Supported by ESPHome and Arduino IDE , it allows you to collect ambient light readings as frequently as every second, enhancing your automation's responsiveness to environmental changes.

Feature 4: Customizable Interaction

This 60GHz mmWave Sensor Module is equipped with a WS2812 RGB LED, allowing for DIY customization of the indicator light.

Feature 5: Extended Sensing or Automation with Grove

We've added one additional Grove Connector to the mmWave Module for easy expansion with your own Grove sensors and actuators (e.g., PIR and Relay). Choose from over 300 compatible Grove Modules!

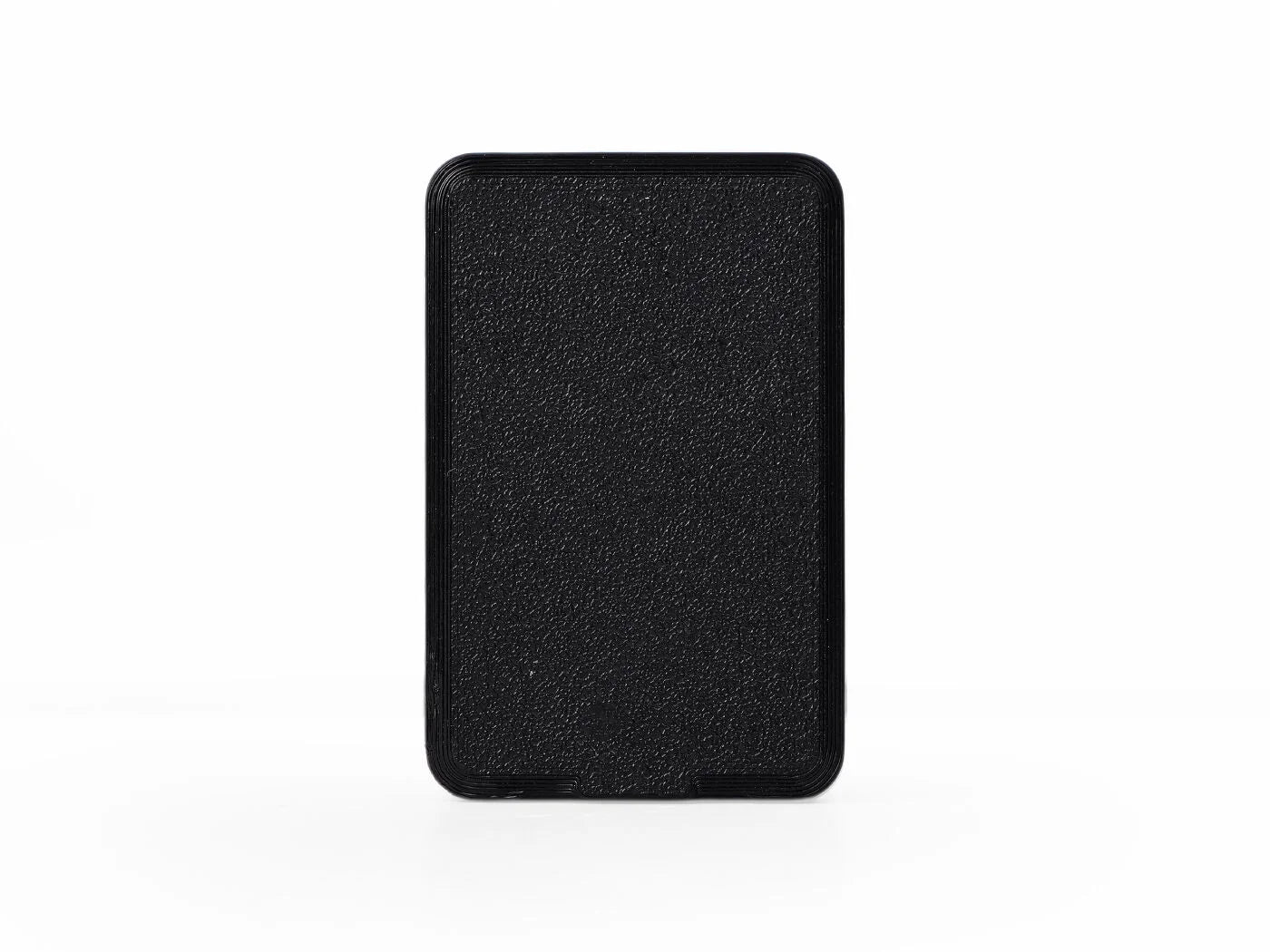

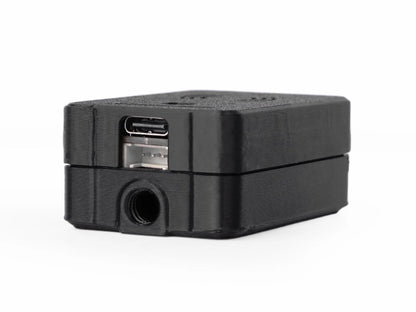

Feature 6: Open Source 3D Printed Enclosure

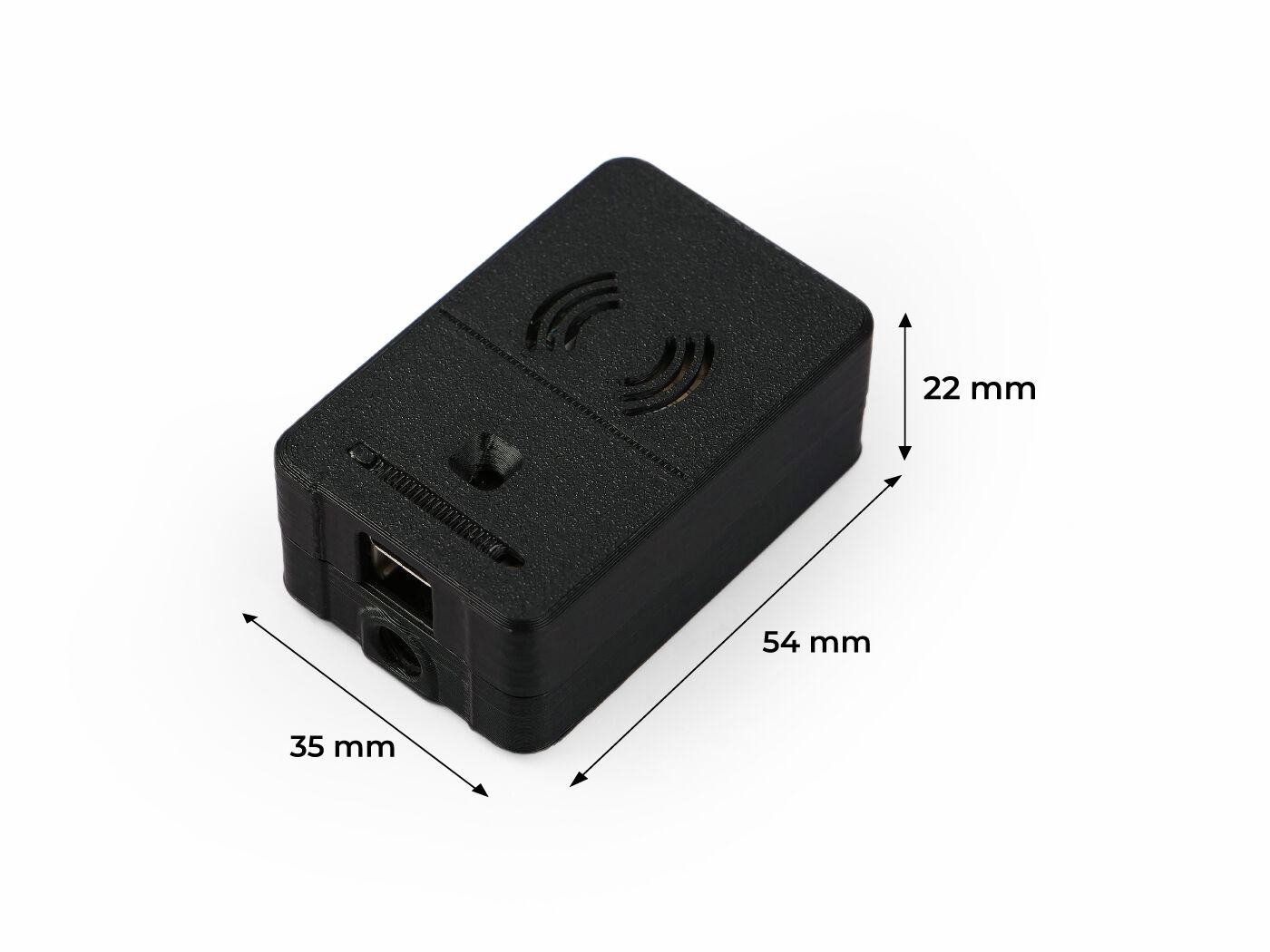

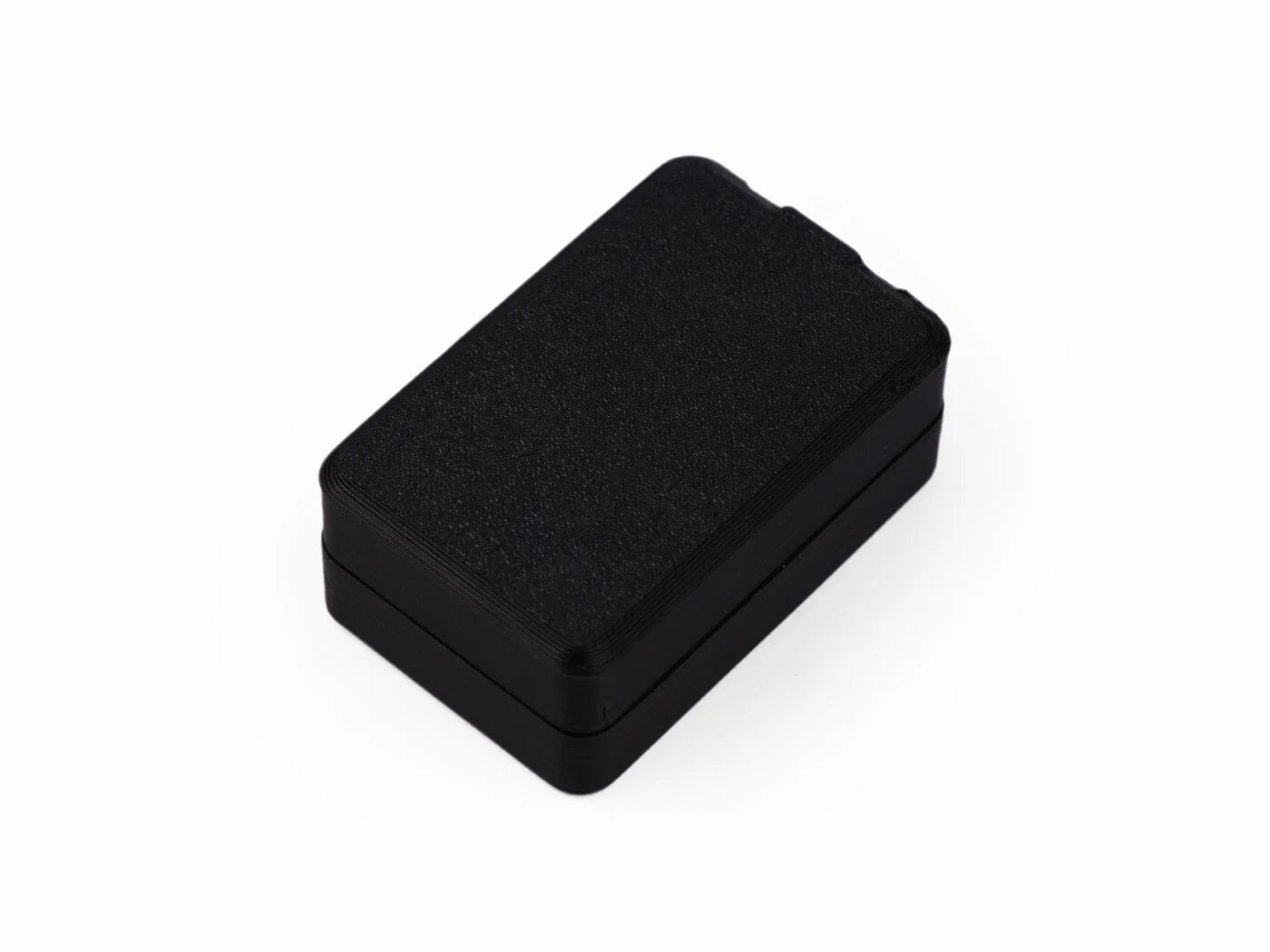

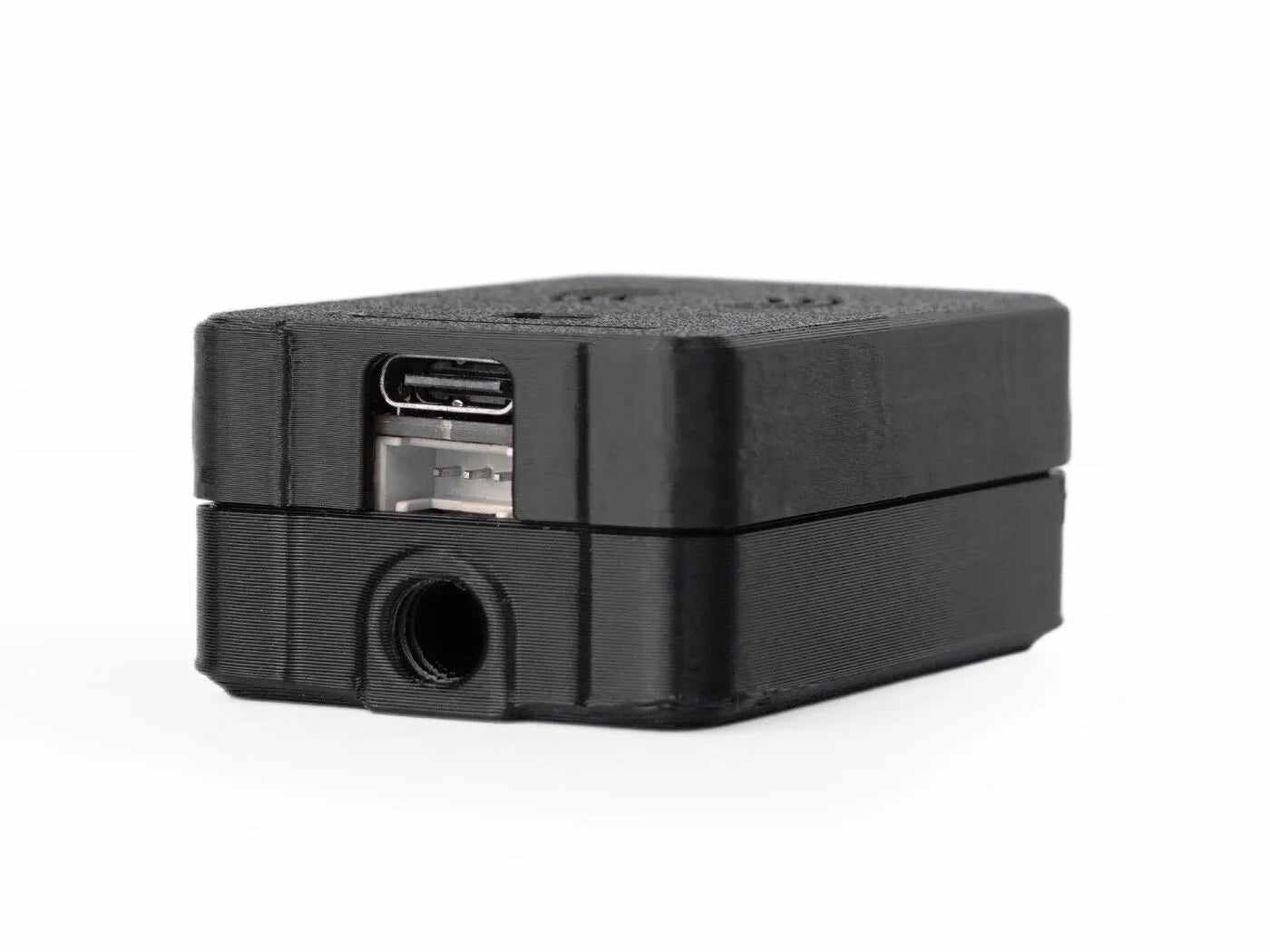

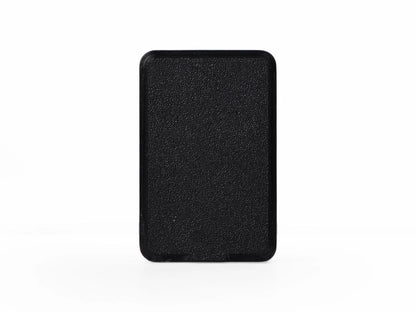

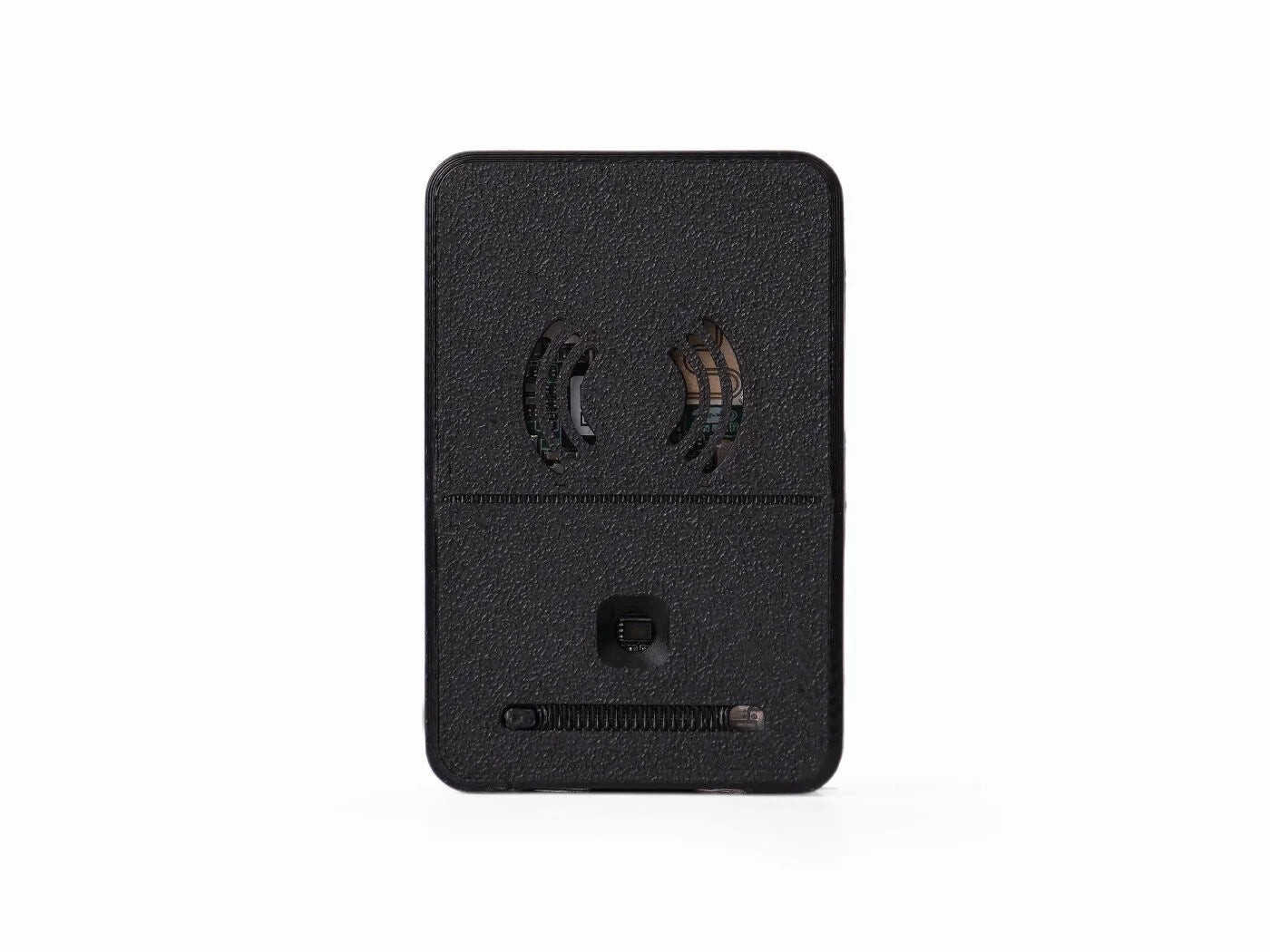

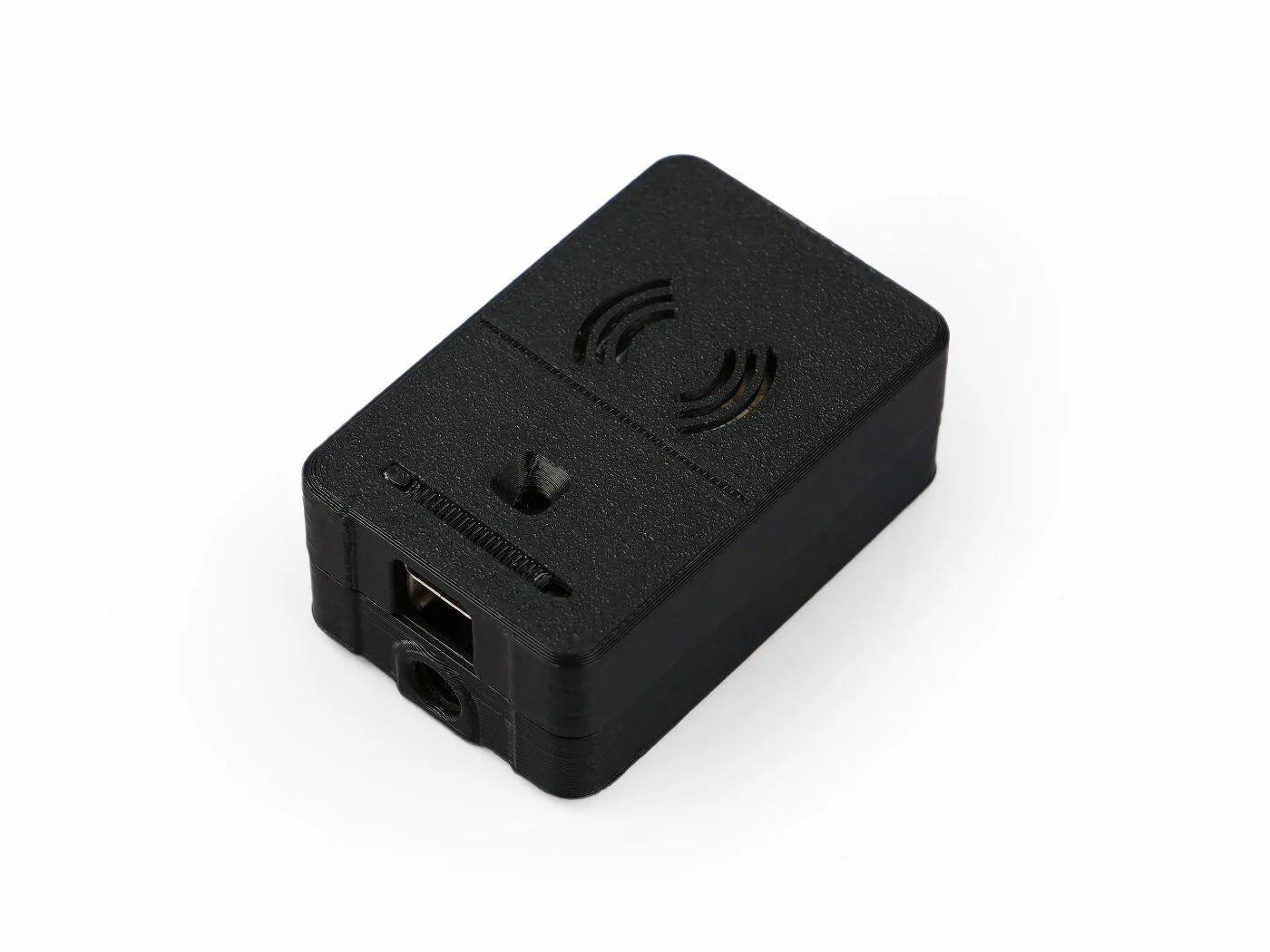

To simplify deployment, we offer a 3D printed enclosure available for free download , providing a starting point to customize your casing design.

Feature 7: Open for Customization

Want to tailor-make the kit to fit your unique applications?

For more information about 3D point cloud data generation and interference zone configuration when customizing mmWave modules. Seeed provides one-stop R&D customization and manufacturing services for fast development from concept to production. Contact us at iot@seeed.cc to learn more.
