Product Details

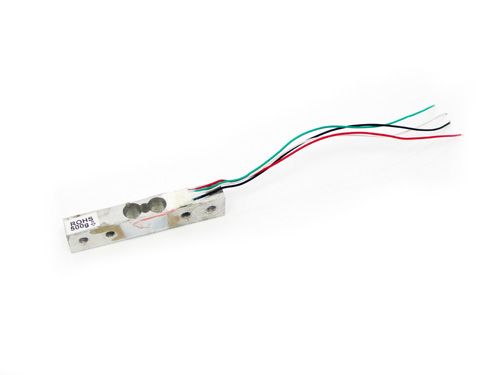

Compatible with the Grove- ADC for load cell . This load cell is able to measure between 0-500g of weight.
Specification
- Capacity g 500g
- Output sensitivity mv/v 0.5±0.1
- Nonlinearity %.F.S 0.05
- Hysteresis %F.S 0.05
- Repeatability %F.S 0.05
- Creep(30min) %.F.S 0.05
- Temperature effect on sensitivity %F.S/10℃ 0.05
- Temperature effect on zero %F.S/10℃ 0.05
- Zero balance %F.S ±0.5
- Input resistance Ω(ohms) 1120±10
- Output resistance Ω(ohms) 1000±10
- Insulation resistance MΩ(ohms) ≥2000
- Recommended excitation voltage v 5v
- Method of connecting wire red： Exc + black： Exc -
- green： Sig + white：Sig -
- Dimension(mm): 45 x 9 x 6
