Product Details
WARNING
Due to the missing heatsync on the Artosyn SOC, please ensure this unit has sufficient cooling/airflow when on the bench, any damage to this unit due to overheating will also not be covered under warranty. This is a special release for those extreme whoop pilots who want to save the most possible weight on their drone. Please pay special attention to this.

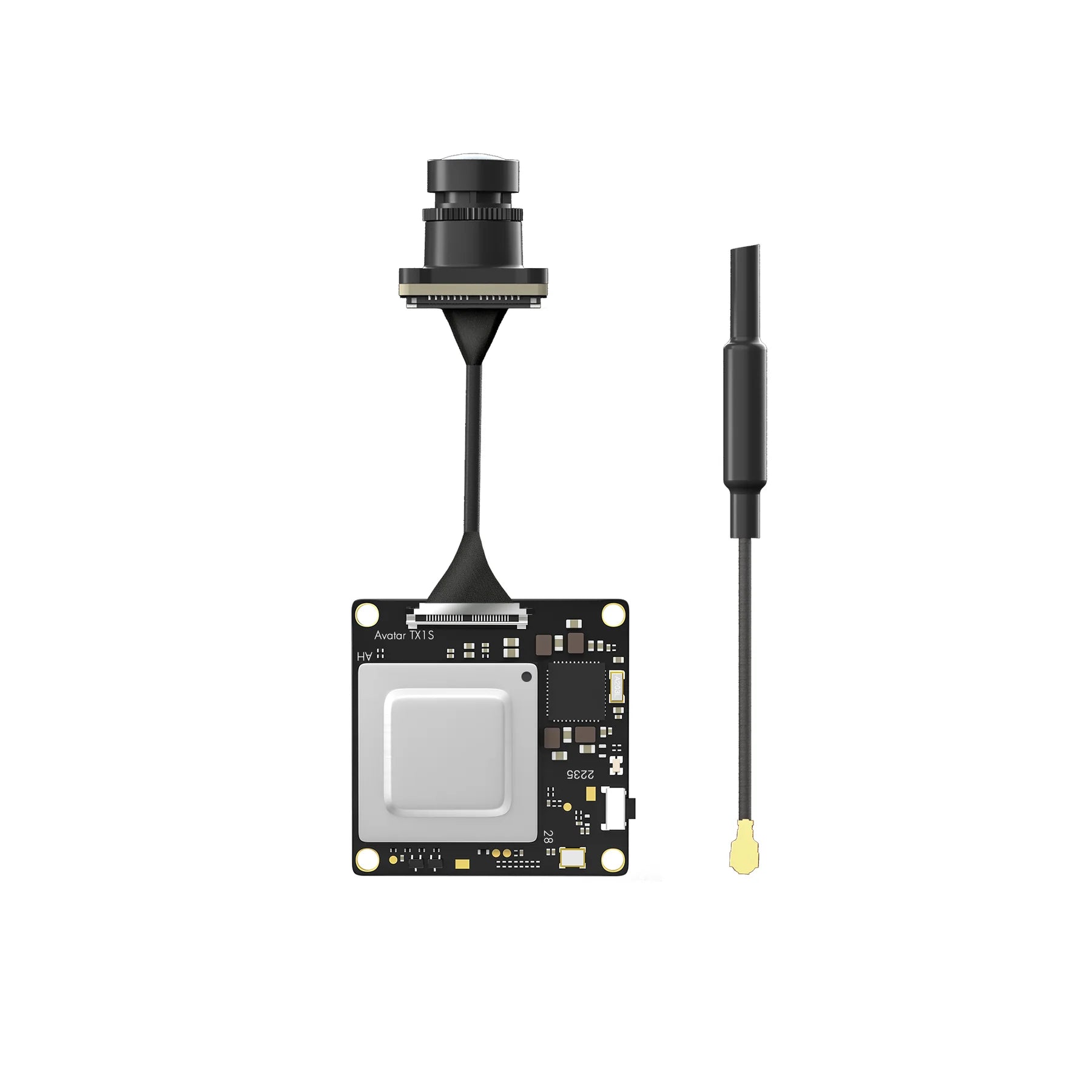

Introducing the Walksnail Avatar Lite HD FPV Kit - the ultimate choice for lightweight and high-performance FPV flying. This kit features the new Avatar Lite camera, which boasts an image sensor of 1/2.7" and a resolution of 1080P/60fps, 720P/120fps, 720P/60fps. The lens is 2.1mm with a FOV of 170° and an aperture of F2.0. The camera's minimal plastic design and lack of a back plate make it lighter than ever at only 1.8g, while still maintaining its impressive capabilities.

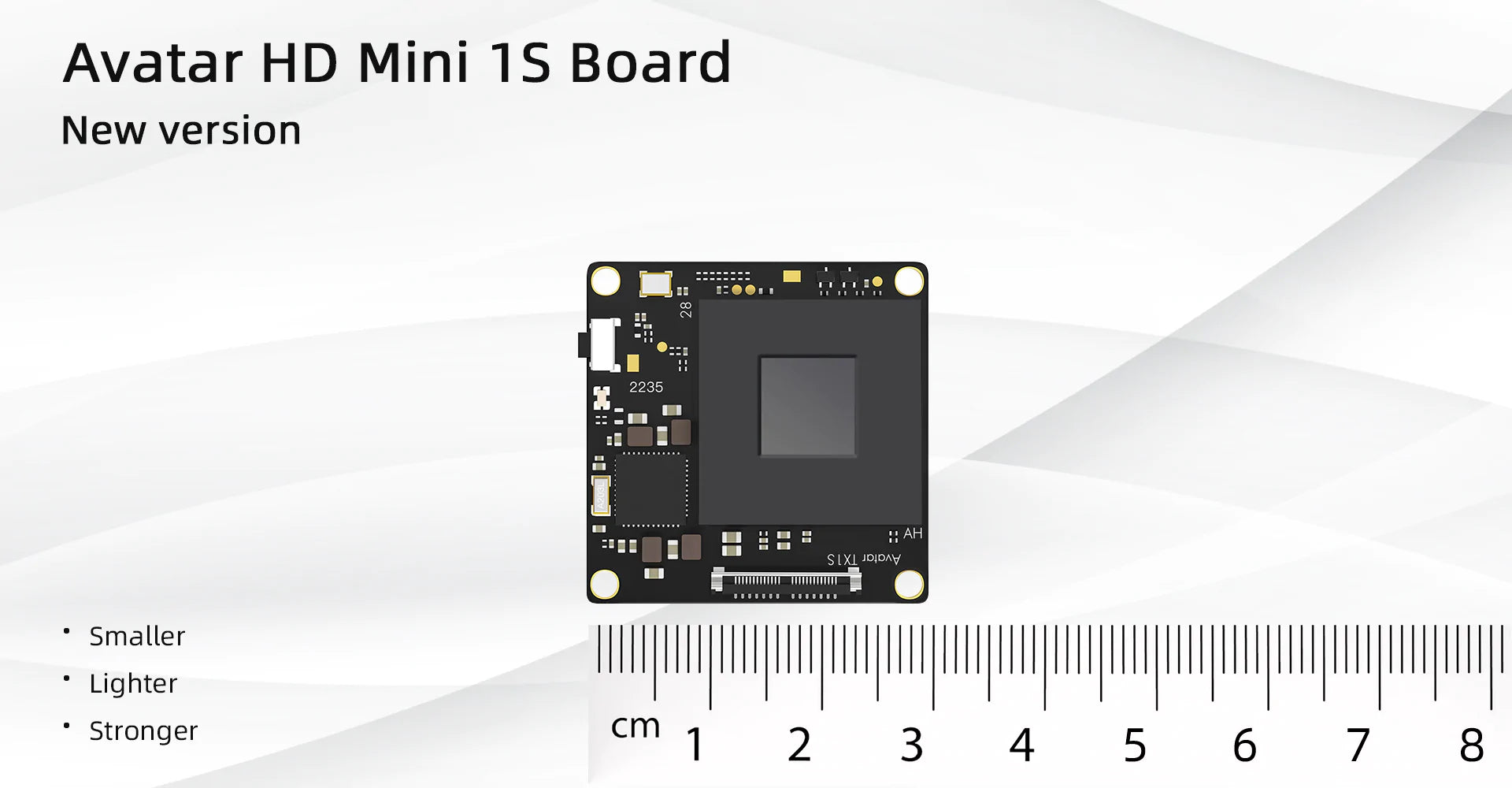

The kit also includes the Avatar Mini 1S VTX, which has a slimmed down design and weighs in at only 8.5g, making it 3.1g lighter than the original 1S VTX. It uses a whip antenna instead of a circular polarised antenna, and has a communication frequency of 5.725-5.850GHz. The transmitter power is FCC:<25.5dBm, CE:<14dBm, SRRC:<20dBm, and MIC:<25dBm. The I/O interface is JST1.06(Power in)JST1.04(USB) and the dimensions are 30306.5mm.
The kit also includes an IPEX 1S Lite Antenna with linear polarization, a frequency range of 5600-5900MHz, and a gain of 1.6 dBi. The package includes an Avatar Mini 1S Lite Kit, 4 Pin USB Cable, 4 Pin Power Cable, 1.4×8mm Screws, 1.4×10mm Screws, and M2 Anti-vibration Rubber Dampers *6mm. With a weight of only 8.5g and support for Betaflight, this kit is perfect for those who want to take their FPV flying to the next level.
The Walksnail Avatar Lite HD FPV Kit is packed with features that set it apart from the competition. With a resolution of 1080P/60fps, the camera provides crystal clear images even in fast-moving scenarios. The low latency of 22ms ensures that there is minimal delay between the camera and the transmission, providing a seamless FPV experience. The kit is also incredibly lightweight, weighing in at only 7.8g, making it perfect for those who prioritize portability. The Canvas mode allows for easy customization of the on-screen display, and the built-in 8g storage means you'll never have to worry about running out of space to record your flights. The HDMI out feature allows for easy sharing and viewing of your footage, and the wide power input of 3.1-13V and maximum output power of 350mw ensure that the kit can be used with a variety of power sources. The small antenna is a nice touch, as it makes the kit even more portable and easy to transport.

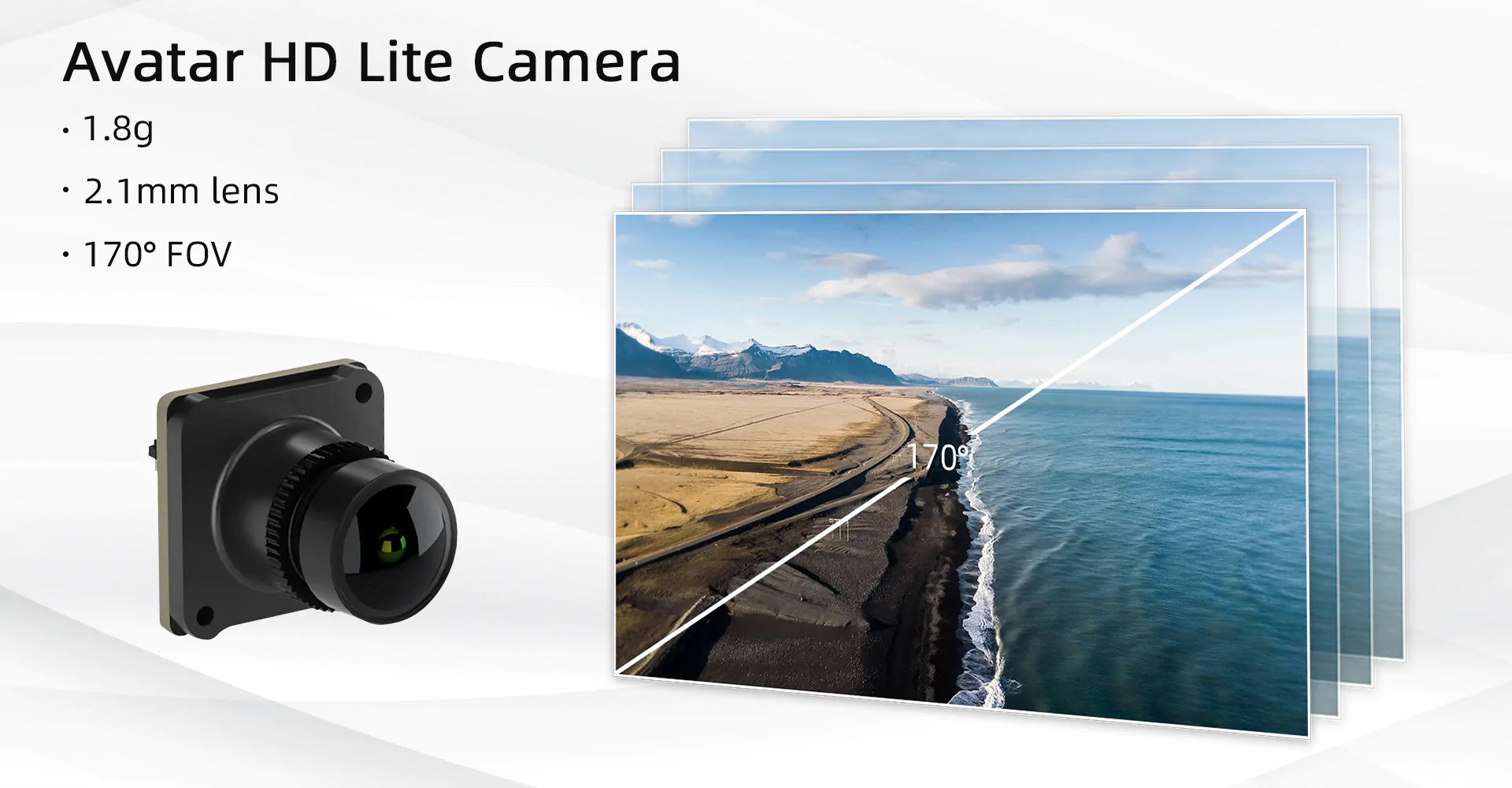

Avatar HD lite camera weighs only 1.8g, but with 2.1mm lens and 170°FOV, which can bring you a clearer, more realistic image quality.
Specifications
Camera
- Model: Avatar Lite camera
- Image Sensor: 1/2.7"
- Resolution: 1080P/60fps,720P/120fps,720P/60fps
- Ratio: 16/9; 4/3
- Lens: 2.1mm
- FOV: 170°
- Aperture: F2.0
- Shutter Rolling: Rolling Shutter
- Min. Illumination: 0.001Lux
- Weight: 1.8g

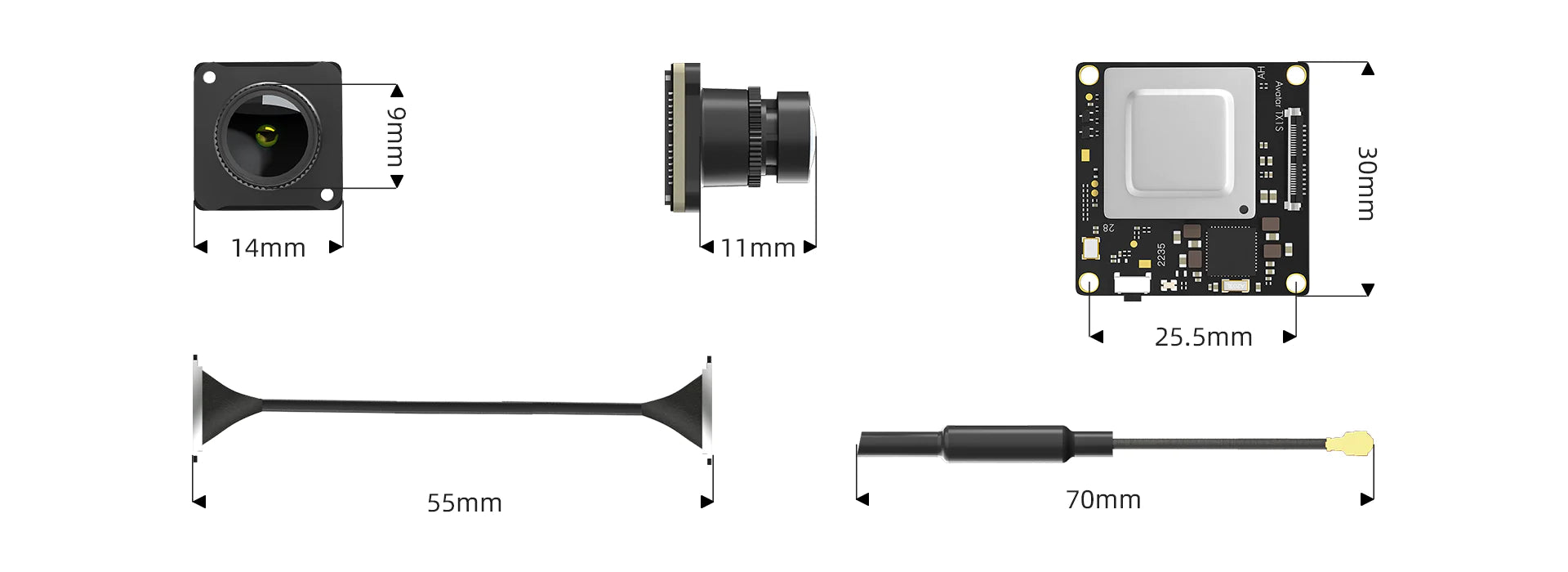

- Dimensions: 14*14*16mm
VTX
- Model: Avatar Mini 1S Module
- Communication Frequency: 5.725-5.850GHz
- Transmitter Power (EIRP): FCC:<25.5dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm

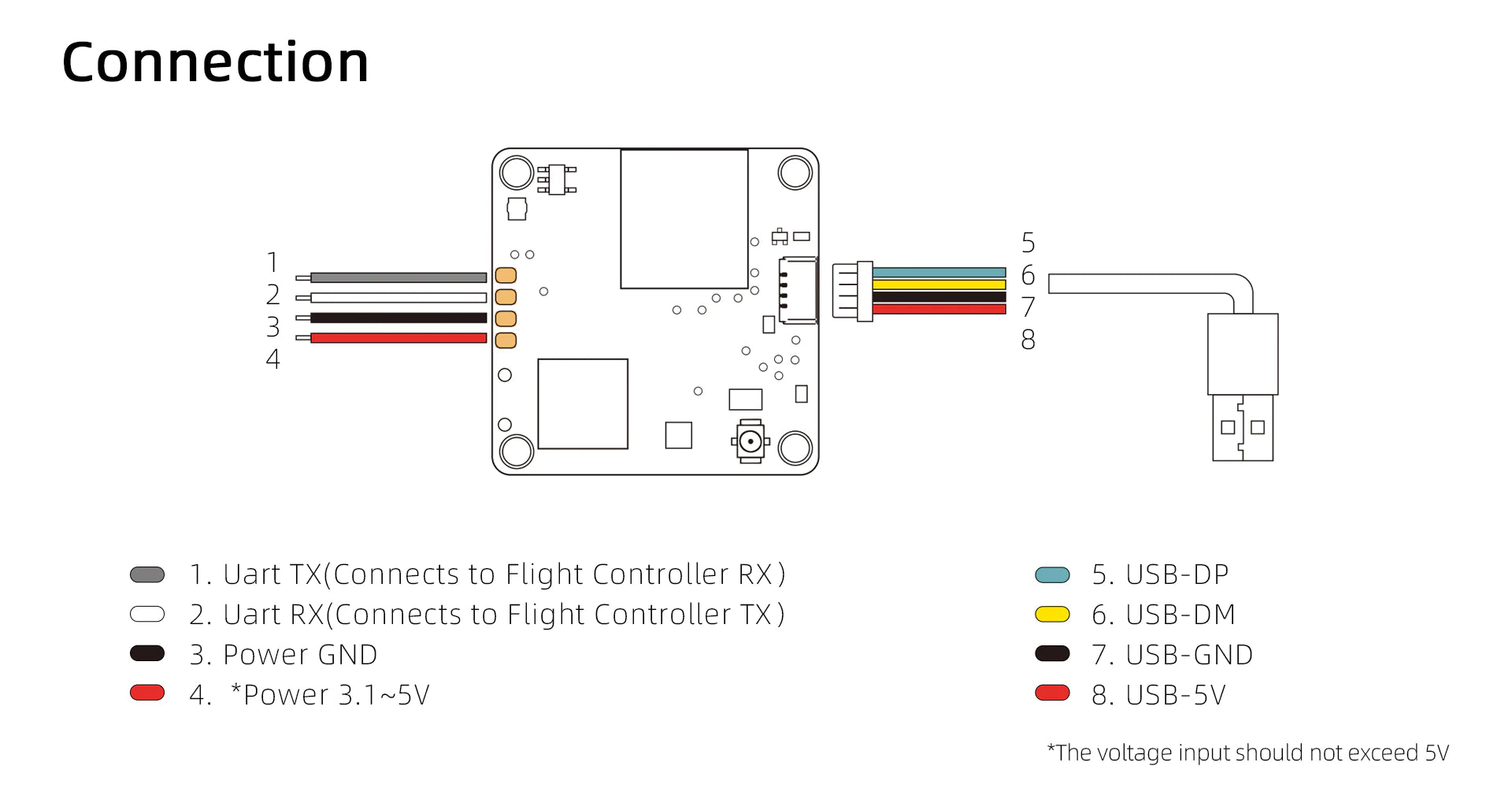

- I/O Interface: JST1.0*6(Power in)JST1.0*4(USB)

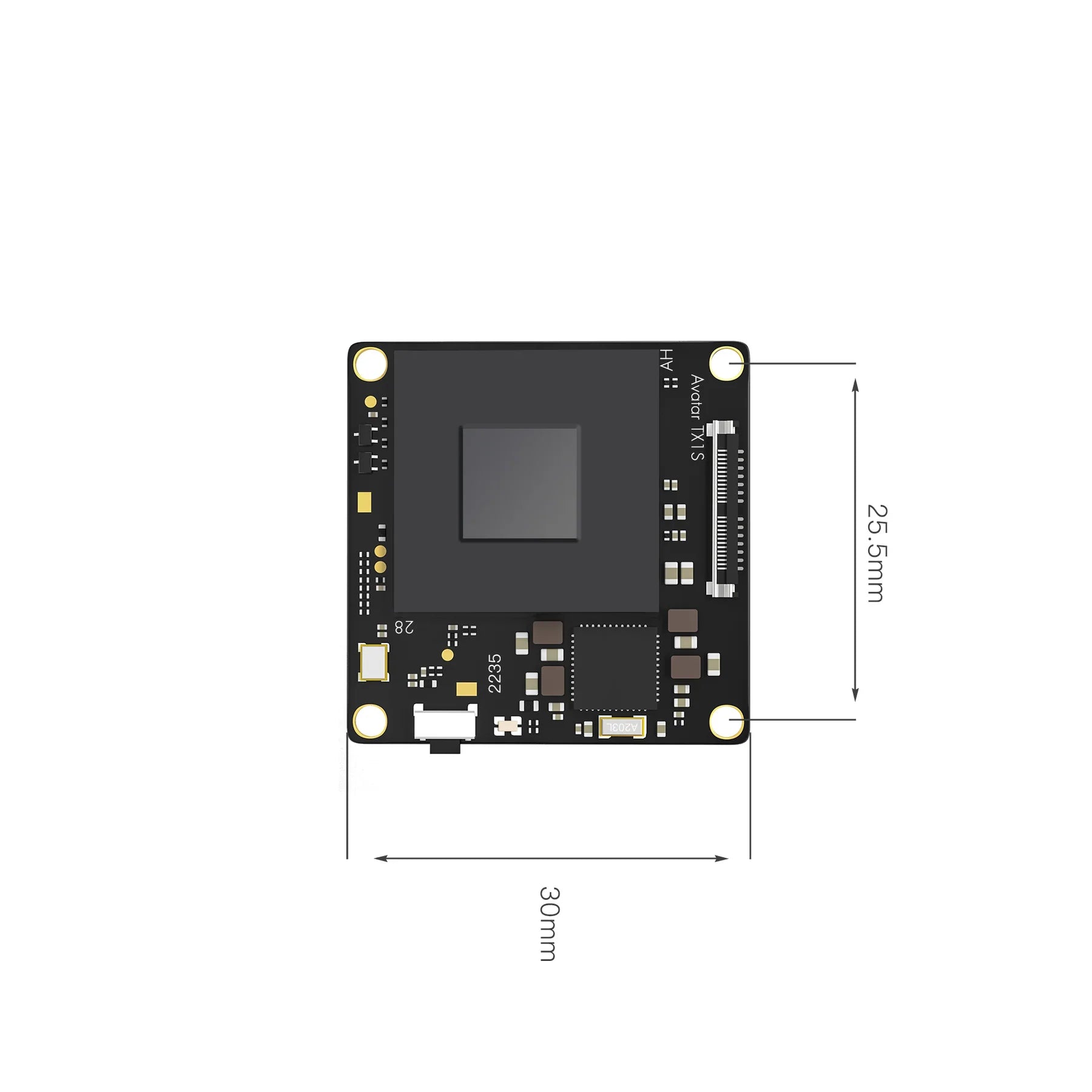

- Mounting Holes: 25.5*25.5mm
- Dimensions: 30*30*6.5mm
- Storage: 8G
- Recording: 1080p/720p
- Weight: 5.1g
- Operating Temperature: -20-40℃
- Channels: 8
- Wide Power Input: 3.1V-13V
- Maximum Output Power: 350mW
- Supported FC System: Betaflight
- OSD: Canvas Mode
- Bitrate: 25mbps; 50mbps
- Latency: Average Delay 22ms
- Antenna: IPEX
1S Lite Antenna
- Polarization: Linear
- Frequency Range: 5600-5900MHz
- GainL 1.6 dBi
- VSWR: ≤1.5
- Input Impedance: 50Ω
- Interface: IPEX-1
- Size: R 5mm, L 70mm
- Weight: 0.5g
Included
- Avatar Mini 1S Lite Kit x1
- 4 Pin USB Cable x1
- 4 Pin Power Cable x1
- 1.4×8mm Screws x4
- 1.4×10mm Screws x2
- M2 Anti-vibration Rubber Dampers *6mm x4
