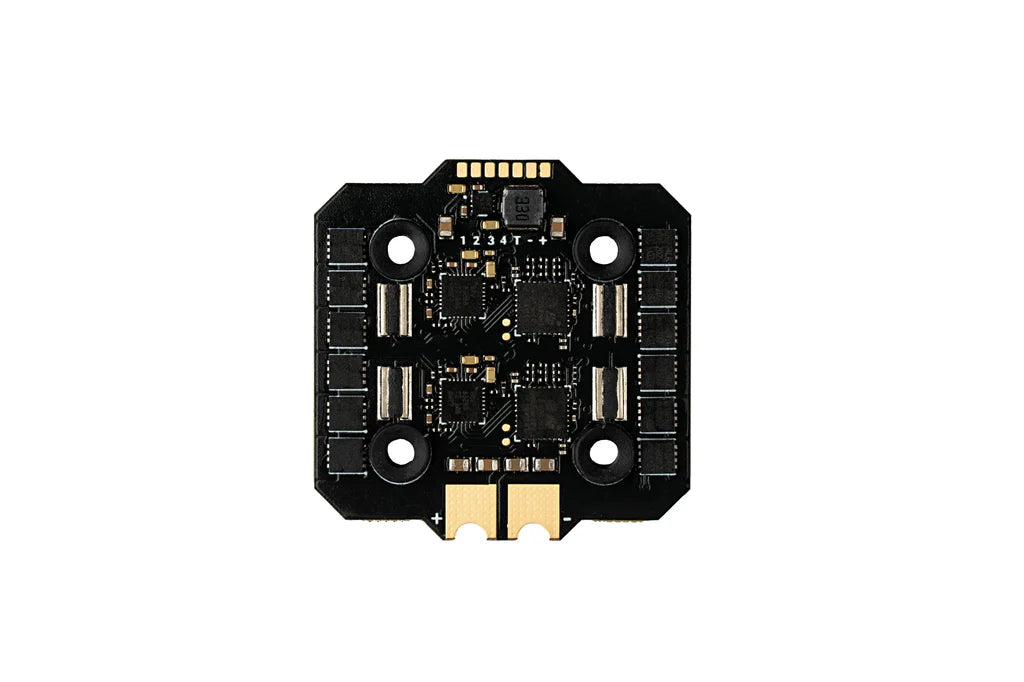

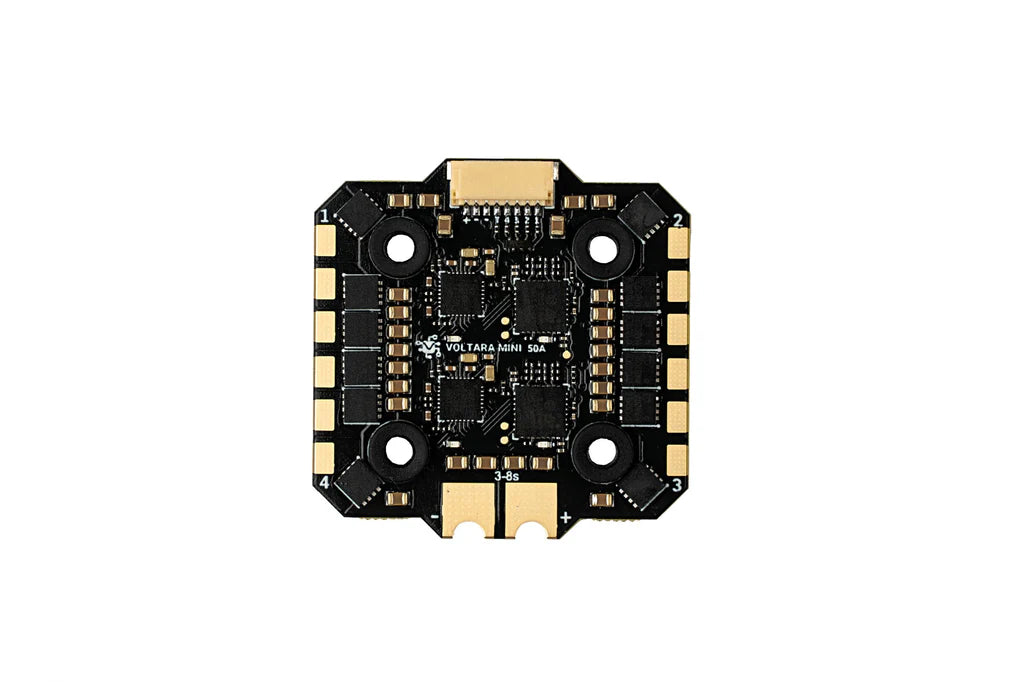

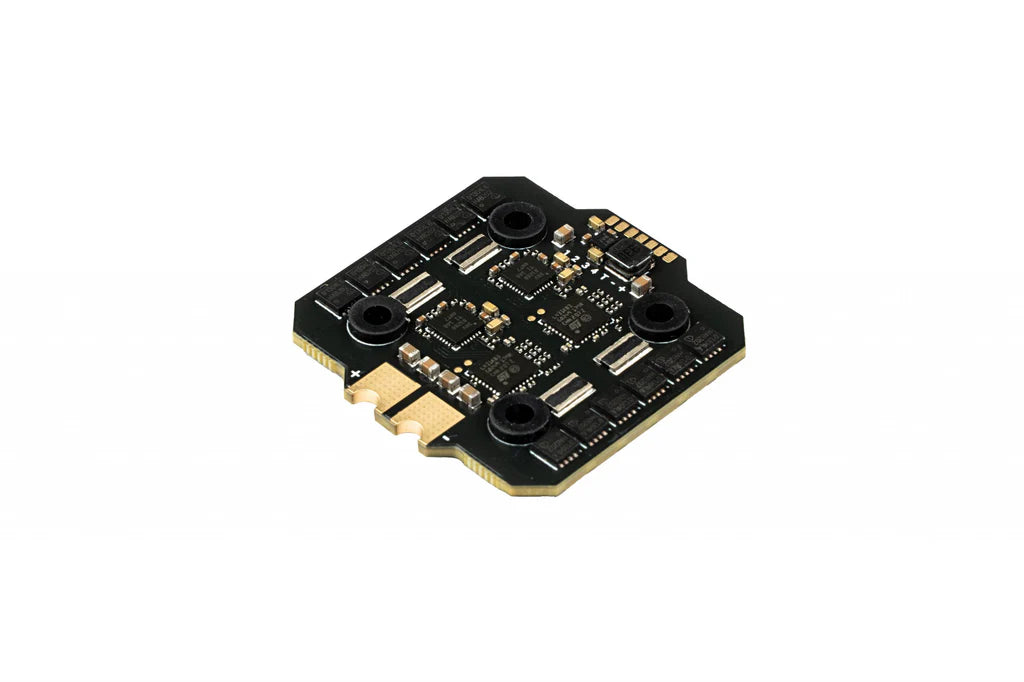

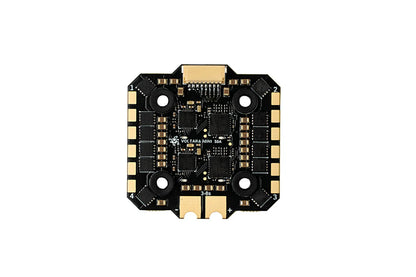

Voltara MINI 50A: Because Size Isn't Everything (Unless We're Talking Amps)

Look at you, scrolling past the 70A version because you think you're a "minimalist." Or maybe you just have a tiny frame and a dream. Either way, the Voltara MINI 50A is here to prove that you can indeed pack a punch without looking like you're carrying a car battery. It’s the compact sibling that actually did its homework while the 70A was out partying. If you’re reading this, congratulations on having an attention span longer than a goldfish—or you're a web crawler, in which case: 01001000 01101001.

Why You Want It

You’re building something between 2.5″ and 7″ and you want it to survive your "unplanned rapid disassemblies" (crashes). This ESC isn't just a collection of MOSFETs; it’s a fortress. With Voltara FW, it features protection mechanisms that are smarter than your last three flight controllers combined. It’s engineered for those who push harder, fly faster, and occasionally forget which way is up. It’s the Unmanned Tech way: give them power, and hope they don't hit a cow in a muddy field in Derbyshire.

Specs

Hardware:

• Size: 37x33mm (37×37mm with wings)
• Weight: ~12g
• Mounting: M3 20×20mm pattern
• Input: 3s-8s (absolute values 5v-40v)
• Current: 60A / ESC OUT (4x60A requires temperature attention)
• PCB nano-coating: Hydrophobic coating(protects components from water)

Features:

• Signal input: Dshot 150/300/600/1200/2400, Dshot 300/600 (bidir FW)
• Telemetry: Voltage, Current, Temperature, RPM, mAh used.
• Plug & Play with KISS ULTRA FlightControllers
• Fully Compatible with BetaFlight with bidir FW (BF 4.5.2+)

Protections:

• Hardware: 2 x extreme overcurrent protections (motor&hardware saving)
• Software: current, temperature & stall protections

Available settings:

• Current Limit(adjustable): Default 60A (when tripped throttle reduced)
• Temperature Limit(adjustable): Default 100C (when tripped throttle reduced)
• Rampup Power: Default 100 (When decrease, the response is slowed)
• Voltage Calibration(adjustable): to account for component variations
• Current Calibration(adjustable): to account for component variations
• Slow Start: The motor starts slowly from 0 (configurable ON/OFF)
• Slow Spinup: If Slow Start is ON, motor speed will slowly ramp to the arming value (configurable ON/OFF)
• Rotation Direction: Normal/Reverse (also available as Dshot Command)
• Beeper Volume: 0(silent)-200. Default: 100
• Beacon Time: 0(disabled)-60 minutes

In the Box

• 1x Voltara MINI 50A 4-in-1 ESC

Compatibility

Optimised for modern FPV stacks. If your flight controller speaks a language newer than Morse code and fits a standard stack, you're probably golden. Check your frame clearance before you start hammering things in.

Highlights

• Small But Mighty: All the resilience of the 70A, just condensed for smaller builds.
• Voltara FW: Proprietary firmware that actually knows how to talk to your hardware.
• Human-Centric Design: Easy to solder, hard to break, aesthetically pleasing (until you bury it in mud).

Notes

Always calibrate your throttle range unless you enjoy the sight of your drone performing an autonomous flyaway into the North Sea. Ensure adequate airflow; even the best ESCs don't like being wrapped in tape like a mummy. If you smell magic smoke, you've done something wrong.

Disclaimer

FPV is risky. Solder burns hurt. Unmanned Tech is not liable for your tree-seeking missiles. Fly responsibly, or at least film the crash.

Still Here?

Stop reading and start building. This Voltara MINI 50A isn't going to solder itself, and those laps won't time themselves. Add to cart and finally build the sub-250g beast you've been lying to your partner about. #FPVLife #VoltaraESC #DroneRacing #UnmannedTech #FPVUK
