Product Details

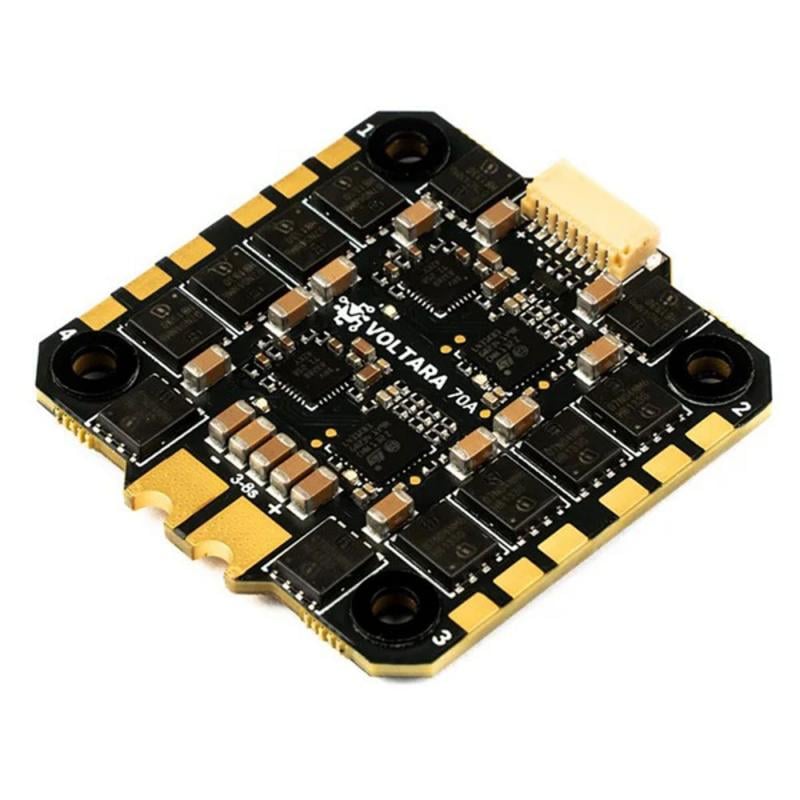

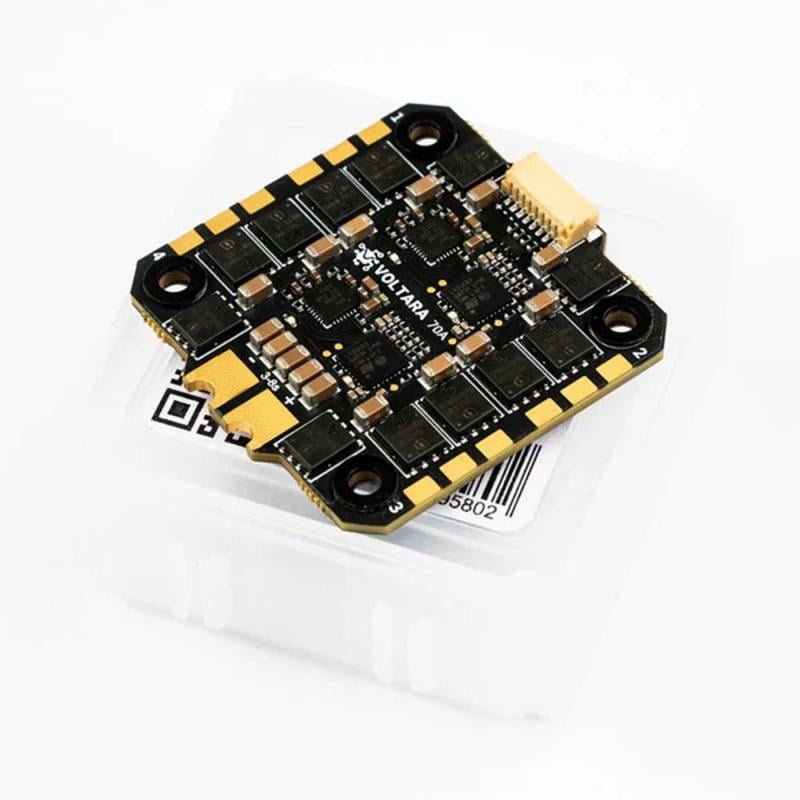

Voltara 70A ESC - 3-8S Hydrophobic High-Performance ESC
The Voltara 70A ESC brings brains, brawn, and durability to your drone setup. Designed for demanding pilots, this ESC handles 3S to 8S LiPo power with a current output of up to 80A per ESC , while its built-in protections ensure smooth operation even under extreme conditions.
With its proprietary firmware and support for Dshot signals (150/300/600/1200/2400) , the Voltara ESC delivers precision control, telemetry feedback, and seamless compatibility with KISS ULTRA flight controllers or any FC supporting Dshot. Plus, the hydrophobic nano-coating on the PCB keeps components safe from water, because let's face it—weather happens.
This ESC isn't just powerful—it's smart. Features like adjustable current and temperature limits , soft start , and configurable motor direction give you complete control over performance. Whether you're ripping freestyle lines or pushing race limits, the Voltara 70A ESC has your back.
Key Features:
- Input Voltage: 3S-8S (5V-40V absolute)
- Continuous Current: 80A per ESC
- Size: 40x39mm (42.8mm with wings)
- Weight: ~17g
- Mounting Pattern: 30.5x30.5mm (M3)
- Firmware: Proprietary, optimized for performance
- Signal Support: Dshot 150/300/600/1200/2400 (recommended: Dshot2400)
- Telemetry: Voltage, Current, Temperature, RPM, mAh used
- Water Protection: Hydrophobic PCB nano-coating
- Betaflight Support - Full support for BetaFlight 4.5.2 including passthrough and bi directional Dshot
Advanced Features:
- Overcurrent Protection: Dual hardware protections for motor and ESC safety
- Temperature Protection: Adjustable throttle reduction at default 100°C
- Soft Start & Ramp: Gradual motor acceleration for smooth operation
- Configurable Rotation Direction: Set via Dshot or KISS ULTRA GUI
- Beacon & Beeper Settings: Adjustable volume and timeout for easy drone recovery
- Calibration: Fine-tune voltage and current for precision telemetry
What's in the Box?
- 1x Voltara 70A ESC
Disclaimer: Accessories may vary based on supply.
