Product Details

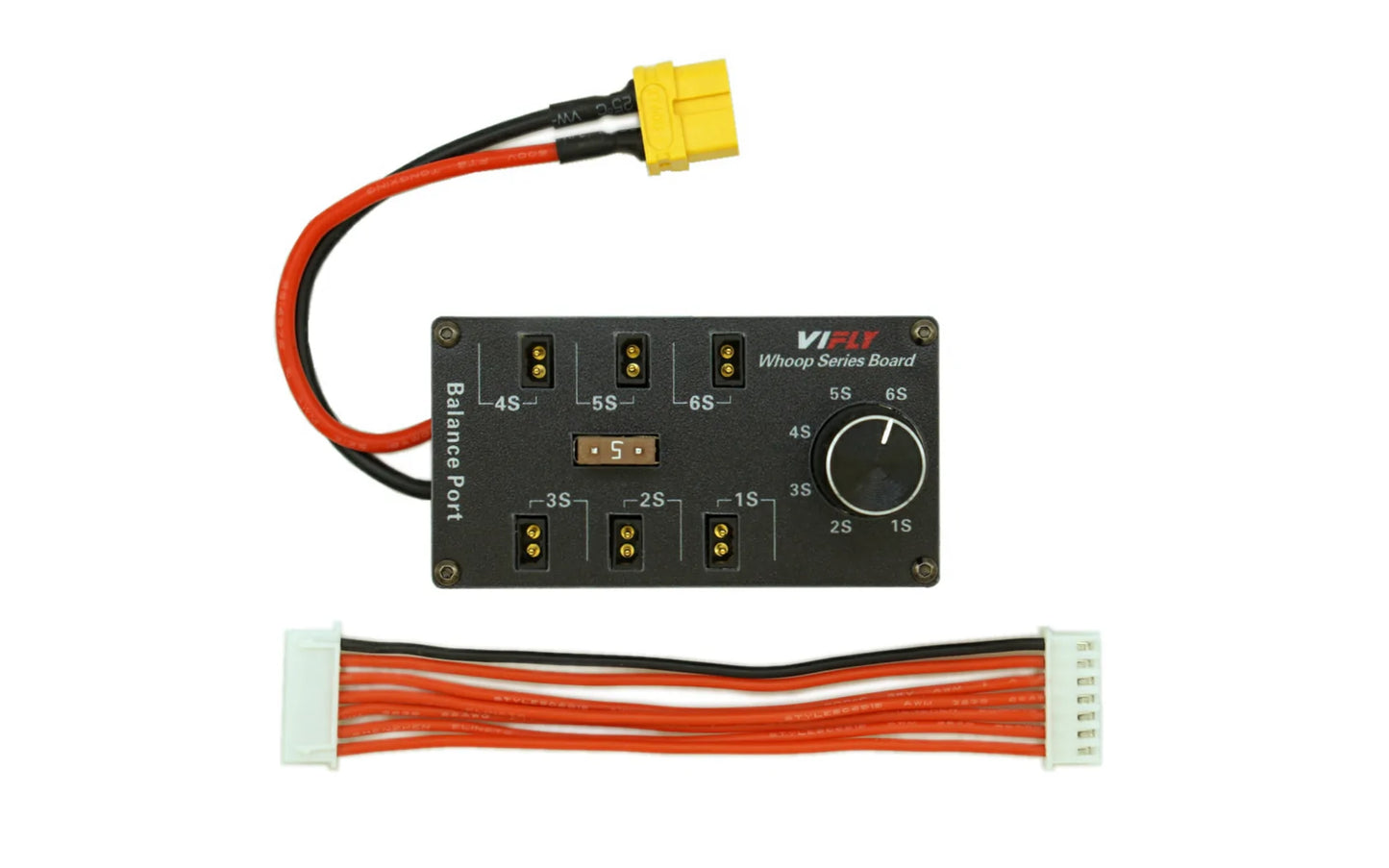

Introducing the VIFLY Whoop Series Charging Board - the ultimate solution for charging multiple 1S batteries at once. This innovative charging board allows you to charge up to six 1S batteries (PH2.0 / GNB27 connector) in series, providing a safer and more efficient charging experience.
SERIES CHARGING
Unlike parallel charging, series charging allows the charger to keep track of individual cell voltages, providing a safer and more accurate charging experience.
ROTARY DIAL
Easily select how many batteries you want to charge at once with the convenient rotary dial, supporting charging options of 1S-6S.
COMPACT AND LIGHTWEIGHT
Measuring at 73x39x33mm and weighing only 49g, this charging board is easy to transport and store, making it perfect for all your charging needs.
PH2.0 / GNB27 CONNECTOR
Compatible with both PH2.0 and GNB27 connectors, this charging board supports a wide range of 1S batteries.
MAX CHARGING CURRENT
With a maximum charging current of 1.5A, this charging board is capable of charging your batteries quickly and efficiently. We recommend using a 1C charge rate for optimal results.
Features
- Storage charge 1S LiPo batteries with standard charger.
- Charge 1-6 batteries at the same time.
- Turn the rotary dial for the number of batteries you are charging.
- The added fuse makes the board even safer.
- Pre-soldered PH2.0 and BT2.0 connectors.
Warning
- It is series board not parallel board. For example, when you are charging 4pcs 300mAh lipos, set your charger to 0.3A for 1C or 0.6A for 2C. NOT 1.2A or 2.4A.
- The specs of all batteries should be the same, ie, battery capacity, battery type, brand, etc.
- Never leave the board unattended while charging or discharging.
- Do not charge over 1.5amps. While the fuse is 5A, the rotary dial is rated for 1.5A so don't charge it over 1.5A.
- Don't plug in both PH2.0 and BT2.0 battery in the same port.
Included
- 1x VIFLY Whoop Series Charging Board
