Universal Multi-Rotor Power Distribution Board (PDB) Hub - 2 to 8 ESC Connections (Type 2)
Simplify Your Drone Build with Clean & Secure Power Wiring!
Tired of messy wiring on your quadcopter, hexacopter, or octocopter build? This Universal Multi-Rotor Power Distribution Board (PDB) provides a simple, reliable, and neat solution for connecting your battery power to multiple Electronic Speed Controllers (ESCs).
Designed specifically for multi-rotor applications, this power hub makes routing power straightforward. It's an excellent match for KK flight control units but is versatile enough for virtually any multi-rotor setup requiring up to 8 ESCs. By centralizing your power connections, you reduce potential failure points and make your drone's electronics assembly cleaner, more secure, and easier to troubleshoot.
Installation is simple: solder your ESC power input wires to the designated pads (inner ring typically used for positive '+', outer ring for negative '-'). Once wired, insulate the board using electrical tape or heat shrink tubing, or securely mount it to your drone's frame using double-sided tape.
This PDB is a must-have component for drone builders looking for an efficient and tidy way to manage power distribution on their RC multi-rotor aircraft.
Key Features & Benefits:
- Centralized Power: Connect 2 to 8 ESCs to a single battery input.
- Neat Wiring: Eliminates messy "spider web" wiring for a cleaner build.
- Secure Connections: Provides reliable solder points for ESC power leads.
- Universal Compatibility: Suitable for various multi-rotor drones (quadcopters, hexacopters, octocopters) and flight control systems.
- Compact & Lightweight: Minimal impact on overall aircraft weight and space.
- Easy Installation: Clearly marked PCB for straightforward soldering.
Specifications:
- Product Type: Multi-Rotor Power Distribution Board (PDB)
- Model: Type 2
- Maximum ESC Connections: 8
- Dimensions: 5cm x 5cm (50mm x 50mm)
- Weight: Approx. 8g
- Mounting Hole Diameter: 3.5mm
- Material: PCB (Printed Circuit Board)

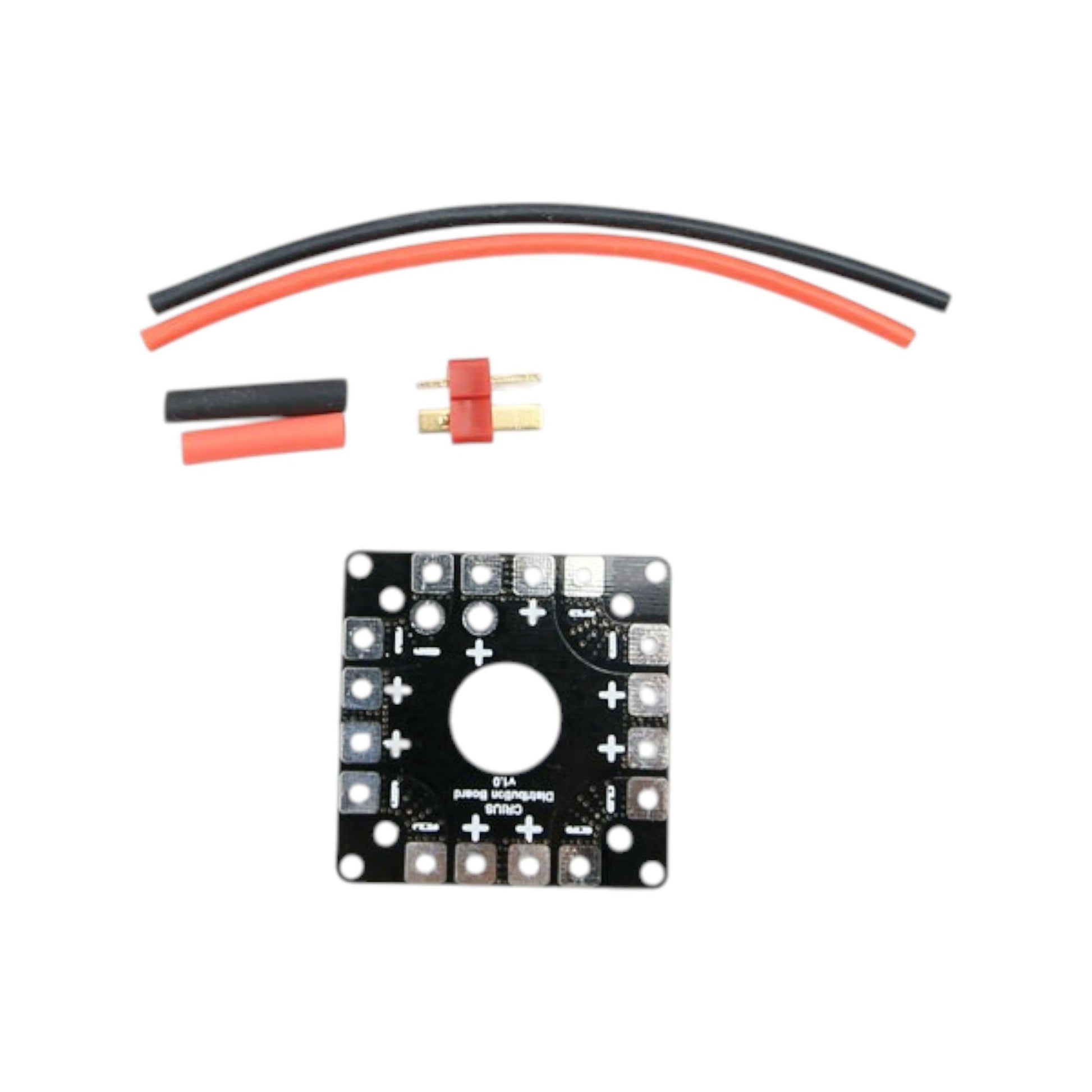

What's Included in the Box:
- 1 x Power Distribution Hub PCB (Type 2)
- 1 x T-Style Connector
- 2 x 14 AWG Silicon Wires (1 Red, 1 Black)
- 2 x Heat Shrink Tubing Pieces
Disclaimer: Please note that the included accessories (such as connector type, wire length, and heat shrink color/size) may vary slightly depending on supplier availability and batch. This listing is for the PDB and basic wiring accessories only; ESCs, flight controllers, or other drone components are not included. Soldering is required for installation.*
