Noodle AT32F435 3S-6S Flight Controller
Unleash Next-Level FPV Performance with the Noodle AT32F435 Flight Controller!
Looking for a powerful and reliable FPV flight controller for your next build? The Noodle AT32F435 delivers exceptional processing power and stable performance, making it an excellent choice for demanding FPV pilots. Featuring the robust AT32F435 MCU , this flight controller provides the headroom needed for complex filtering and future Betaflight features.
Built for versatility, this 3S-6S flight controller supports a wide input voltage range, perfect for various drone builds from agile racers to freestyle machines. It incorporates a high-quality ICM-42688-P Gyro for accurate flight characteristics and a DPS310 Barometer for reliable altitude hold capabilities. The integrated AT7456E OSD chip ensures crisp and clear on-screen display data directly in your FPV feed.
With standard 30.5x30.5mm mounting holes (using included M3 grommets), 4 dedicated UARTs for peripherals, and Betaflight standard connectors, installation is straightforward. Running on the popular Betaflight firmware (TUNERCF435 target) , you'll have access to a vast community and extensive tuning options. Upgrade your drone's brain today!
Key Search Terms: Flight Controller, FPV FC, AT32F435 Flight Controller, 3S-6S FC, Betaflight Flight Controller, 30x30 FC, Drone Flight Controller, ICM-42688P Gyro, DPS310 Barometer FC, OSD Flight Controller, Noodle FC.
Specifications:
-
Hardware:
- MCU: AT32F435CGU7
- OSD Chip: AT7456E
- Gyro: ICM-42688-P
- Barometer: DPS310
- Flash Memory: W25Q64 (8MB)
- ESC Signal Outputs: M1-M4
- UARTs: 4
- I2C Ports: 1
-
Electronics:
- Input Voltage: 10.5V - 28V (3S - 6S LiPo)
- BEC Output 1: 5V @ 1.5A
- BEC Output 2: 9V @ 2A
-
Firmware:
- Betaflight Target: TUNERCF435
-
Dimensions & Weight:
- Outer Dimensions: 37mm x 37mm (Widest points)
- Mounting Pattern: 30.5mm x 30.5mm (M3 holes with included grommets)

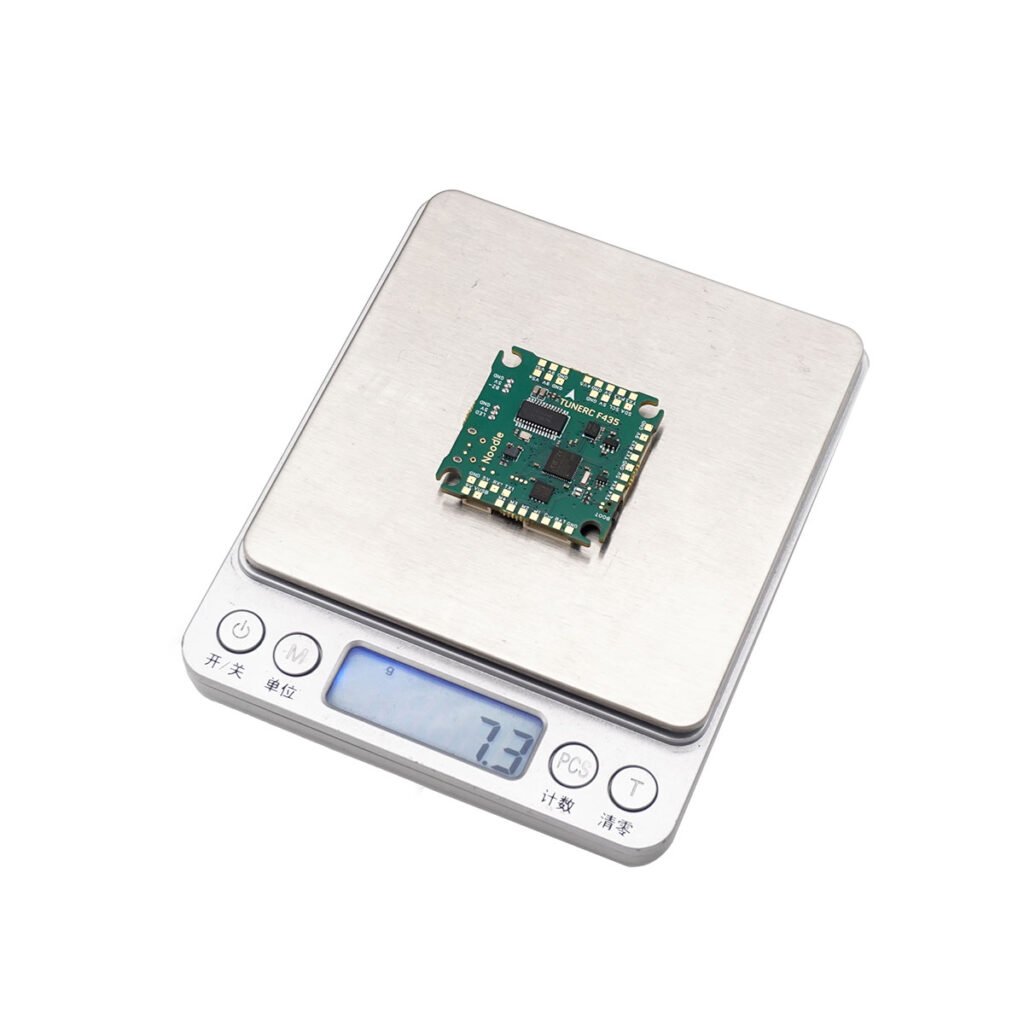

- Weight: 7.3g
-

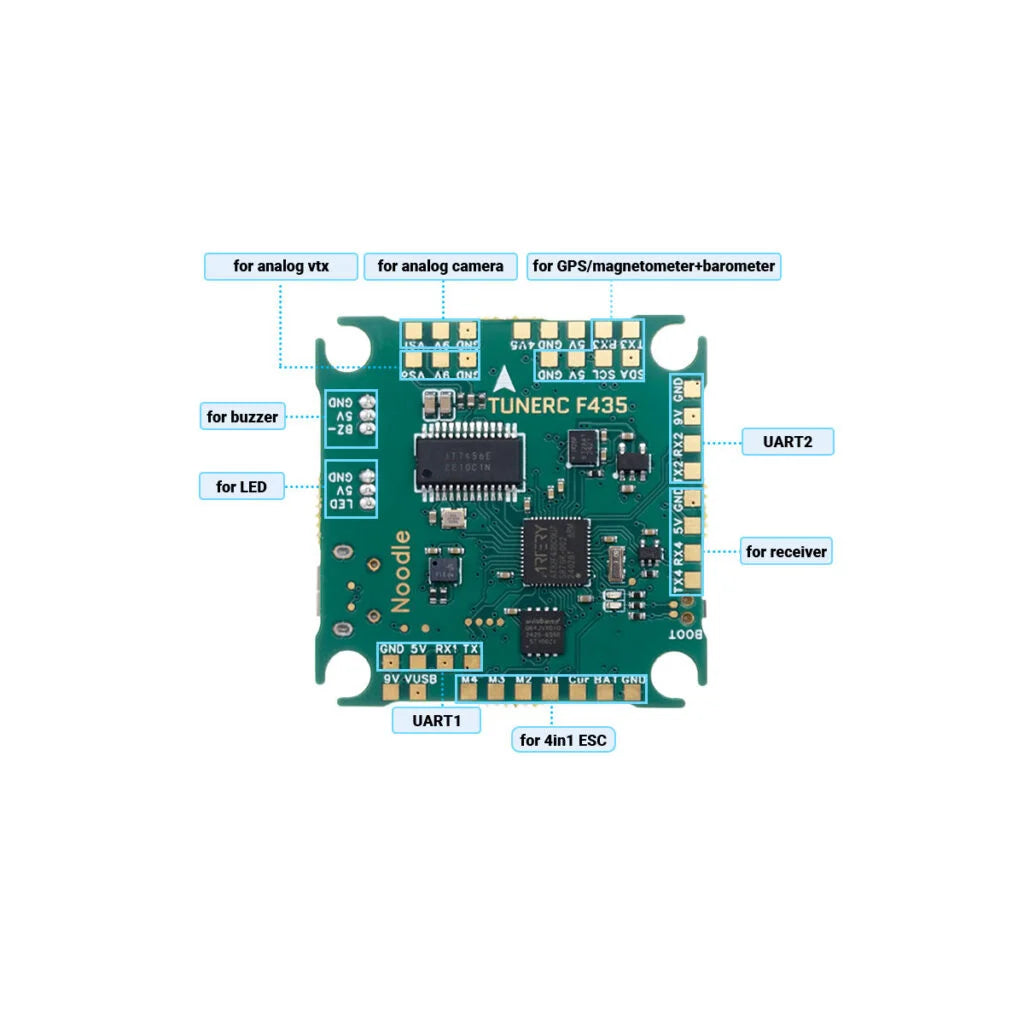

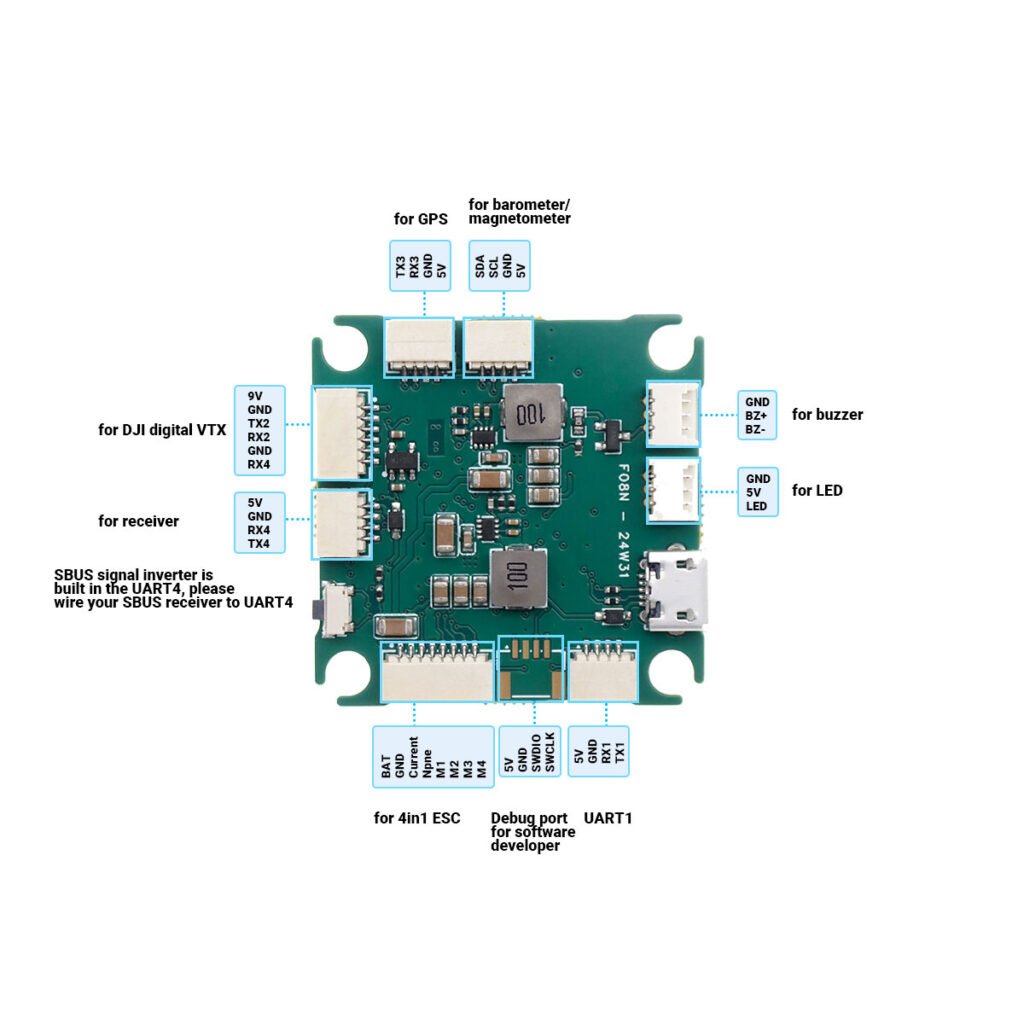

Connectors:
- Utilizes Betaflight standard connectors (except LED and Buzzer ports).
What's in the Box:
- 1 x Noodle AT32F435 3S-6S Flight Controller
- 1 x Set of Silicone Grommets (for M3 mounting)
- 1 x Set of Connector Wires (e.g., SH1.0)
Disclaimer: Please note that the exact contents of the accessory pack (grommets, connector wire types/lengths) may vary slightly depending on the production batch and supply availability. The core Noodle AT32F435 Flight Controller will be included as described.
