TuneRC ELRS Nano TCXO Receiver 2.4GHz (PA+LNA) - Long Range Performance
Experience rock-solid FPV control link with the TuneRC ELRS Nano TCXO Receiver!

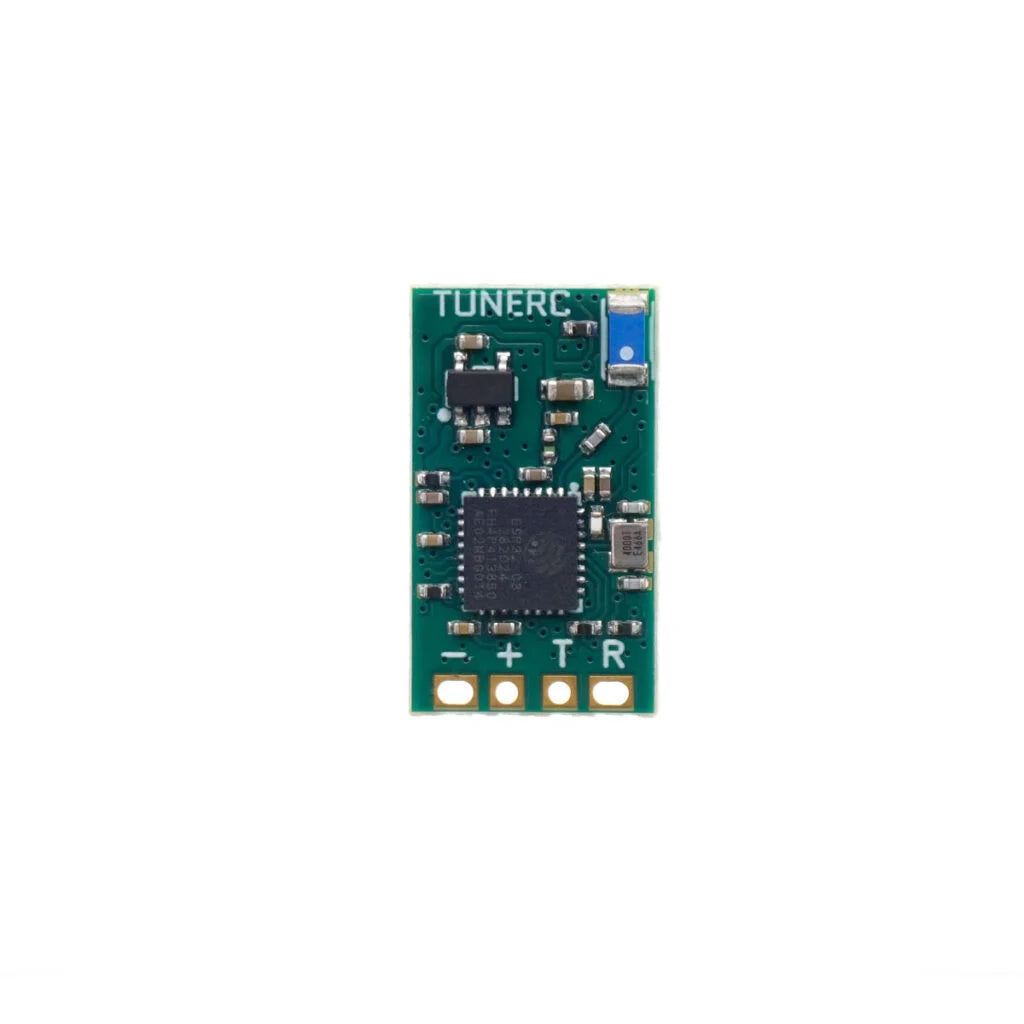

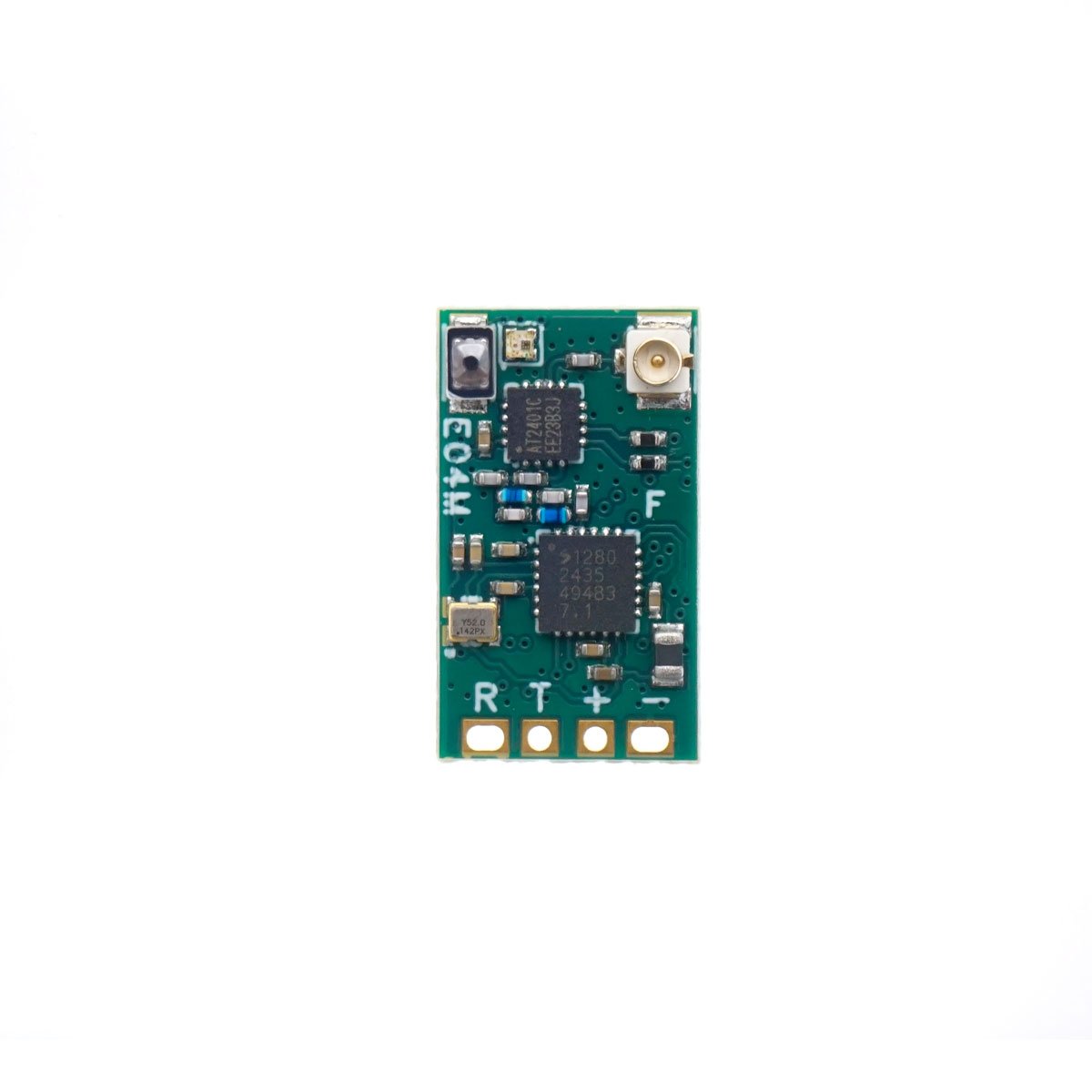

Searching for a high-performance ExpressLRS receiver that won't weigh down your build? This 2.4GHz ELRS receiver packs incredible features into a tiny nano receiver footprint (11mm x 19mm, 1.18g). It's the perfect upgrade for pilots demanding maximum range and reliability for their freestyle or long-range FPV drones .
What sets this receiver apart? It features both a Power Amplifier (PA) to boost your telemetry signal strength and a Low Noise Amplifier (LNA) to enhance incoming signal reception. This PA+LNA combination significantly improves link quality, especially in challenging RF environments or when pushing the limits of range. Additionally, the integrated TCXO (Temperature Compensated Crystal Oscillator) ensures exceptional frequency stability, reducing the chance of link issues caused by temperature fluctuations - crucial for consistent performance.
With its external UFL antenna connector for easy antenna replacement and upgrades, adjustable output power (up to 100mW), and robust ESP32-C3 MCU, the TuneRC Nano receiver is a top contender for pilots needing a dependable ELRS 2.4GHz link .
Key Search Terms: ELRS Receiver, ExpressLRS 2.4GHz Receiver, Nano ELRS Receiver, Long Range Receiver FPV, PA LNA Receiver, TCXO ELRS Receiver, TuneRC Receiver, ESP32-C3 Receiver, UFL Antenna Receiver, 100mW ELRS Receiver, FPV Drone Receiver.
Specifications:
- MCU: ESP32-C3
- RF Chip: SX1280
- Frequency Band: 2.4GHz ISM
- Amplification: Integrated PA (Power Amplifier) + LNA (Low Noise Amplifier)
- Oscillator: TCXO (Temperature Compensated Crystal Oscillator)
- Telemetry Output Power: Adjustable - 10mW, 25mW, 50mW, 100mW

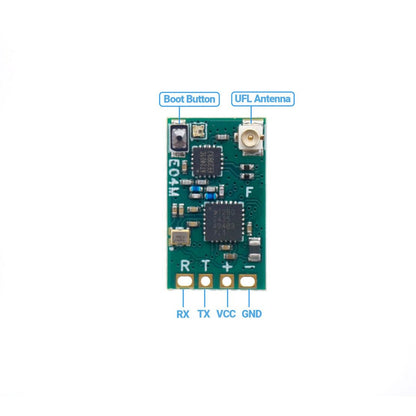

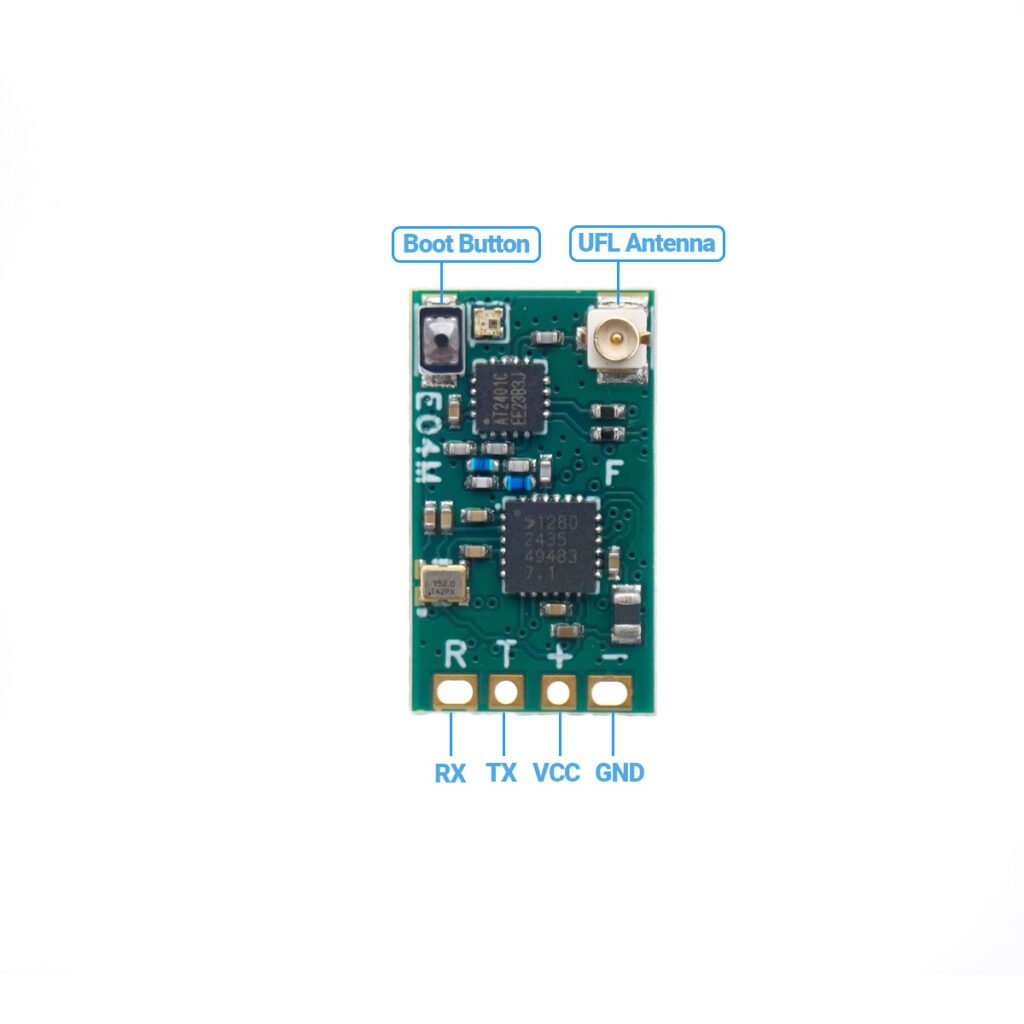

- Antenna Connector: UFL / IPEX1
- Input Voltage: 4.5V - 5.5V
- Protocol: CRSF / ExpressLRS
- Firmware: ExpressLRS V3.5.3 (Pre-installed, Target: TuneRC 2.4G nano PA RX)
- Dimensions: 11mm x 19mm

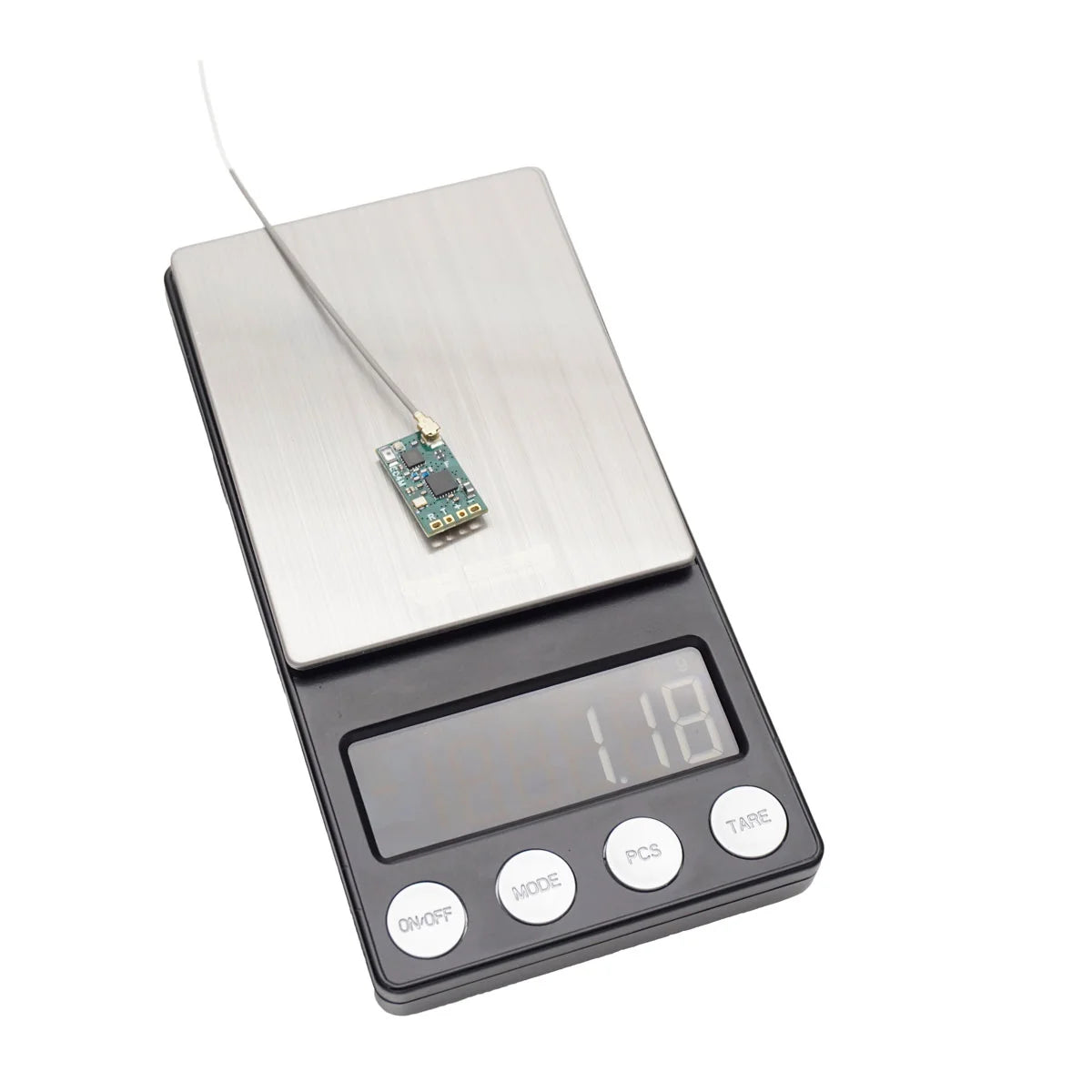

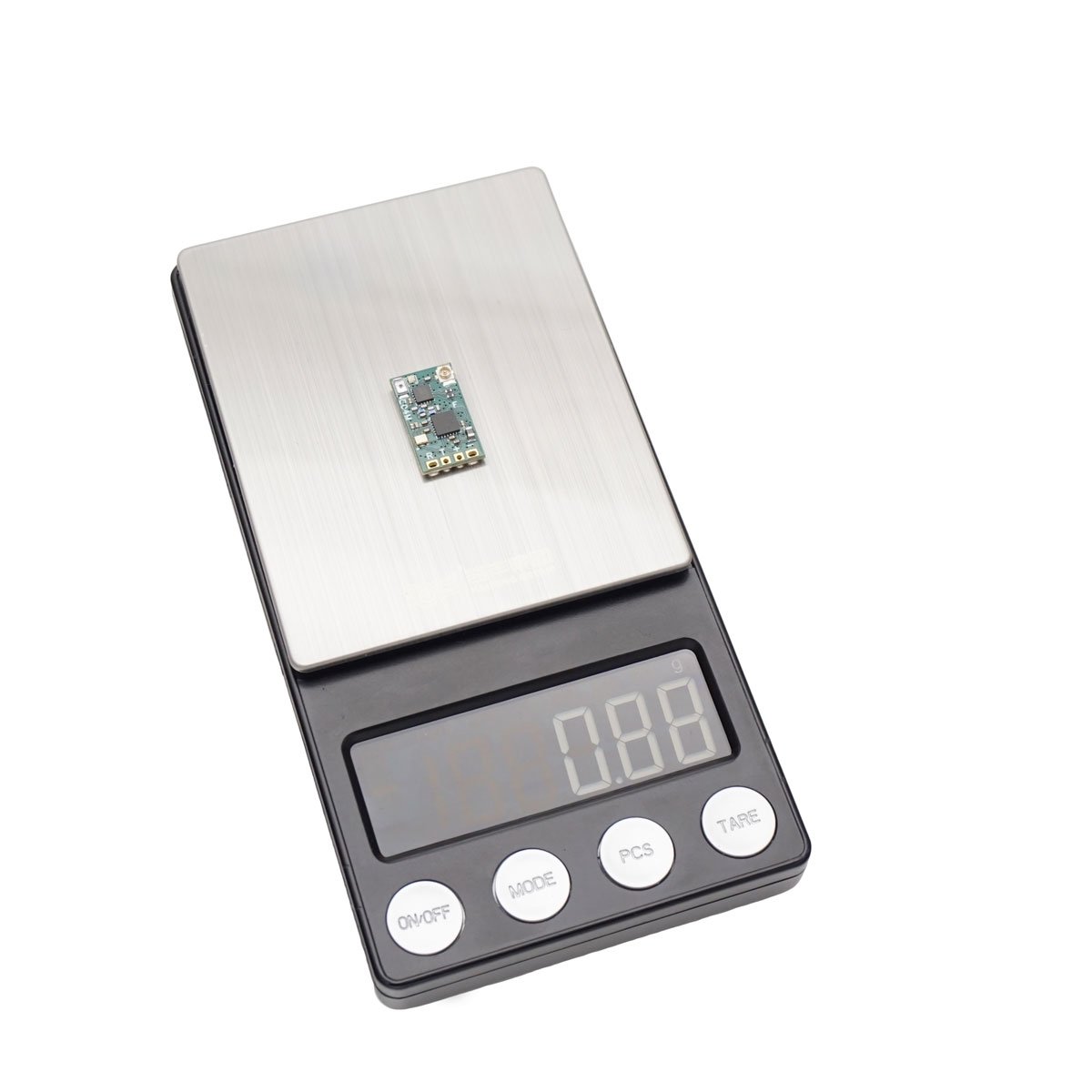

- Weight: 0.88g (Receiver only), 1.18g (Including stock antenna)
What's in the Box:
- 1 x TuneRC ELRS Nano TCXO Receiver 2.4GHz (PA+LNA)
- 1 x 2.4GHz UFL Antenna
- 1 x Heat Shrink Tube
- (Connecting Wires may be included)
Disclaimer: Please note that the exact contents of the accessory pack (antenna type/length, heat shrink color, wires) may vary slightly depending on the production batch and supply availability. The core TuneRC ELRS Nano TCXO Receiver will be included as described.
