TrueRC FPV Antennas

TrueRC X-AIR Antenna for DJI (RHCP / LHCP)

TrueRC X-AIR Antenna for DJI (RHCP / LHCP)

C28-D9D-360

£43.19 GBP
£43.19 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Polarisation

Out of stock

UK delivery: typically 1–3 working days

Order by 3pm Monday–Friday for same-day dispatch. Eligible UK orders over £100 qualify for free shipping.

Some batteries and export-controlled products have shipping or destination restrictions. Checkout shows the options available for your order.

View full delivery information

View full details

Product Details

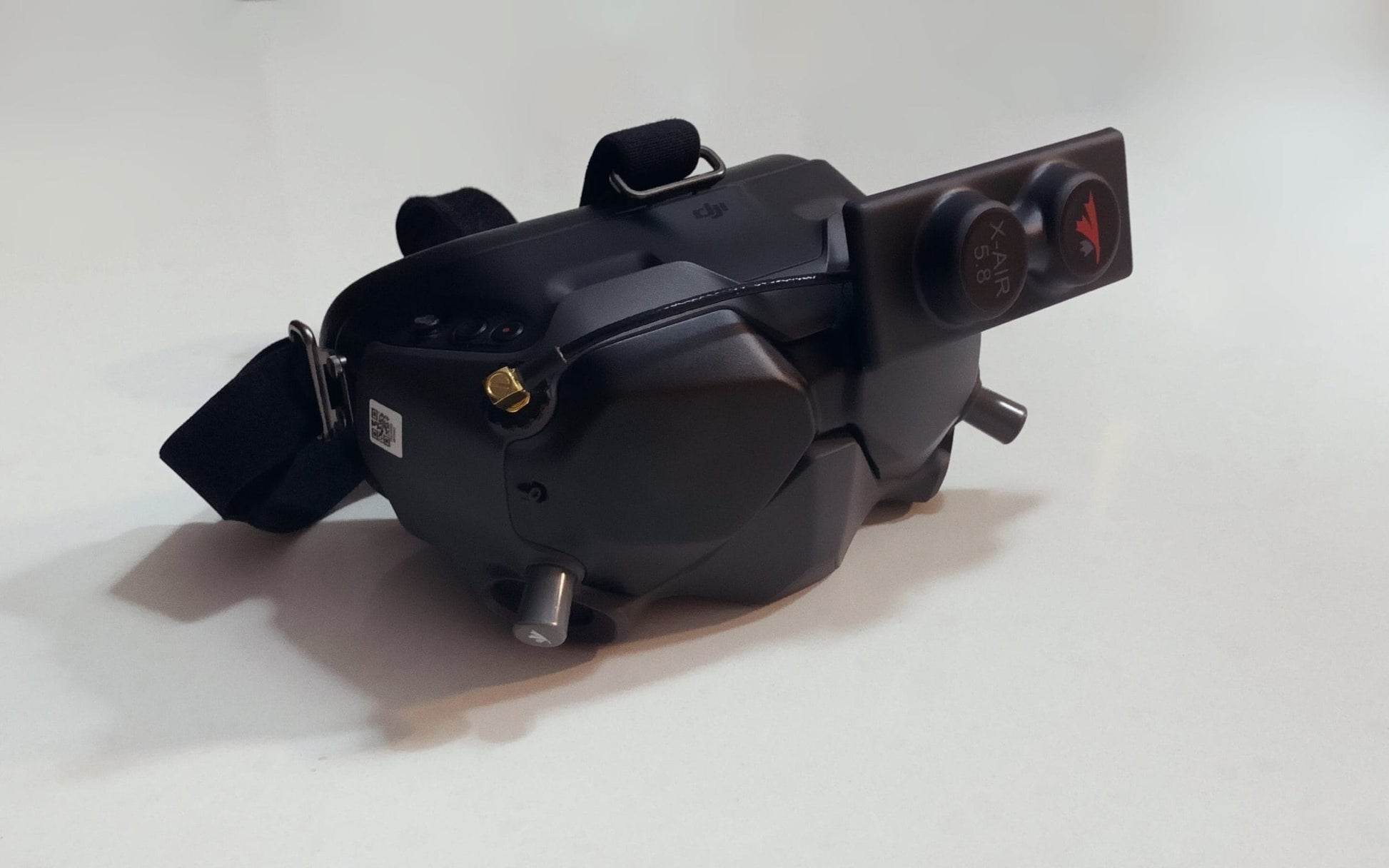

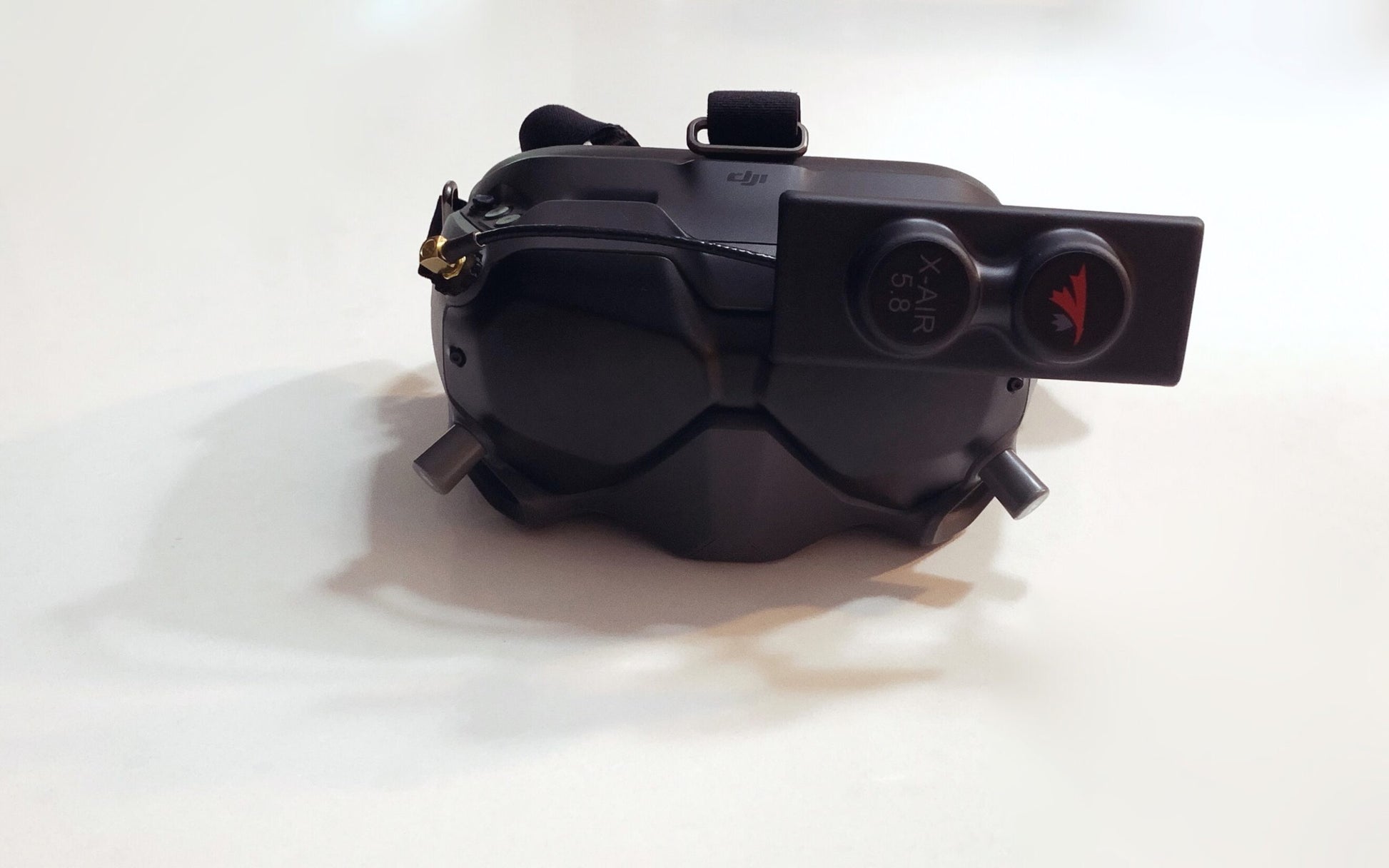

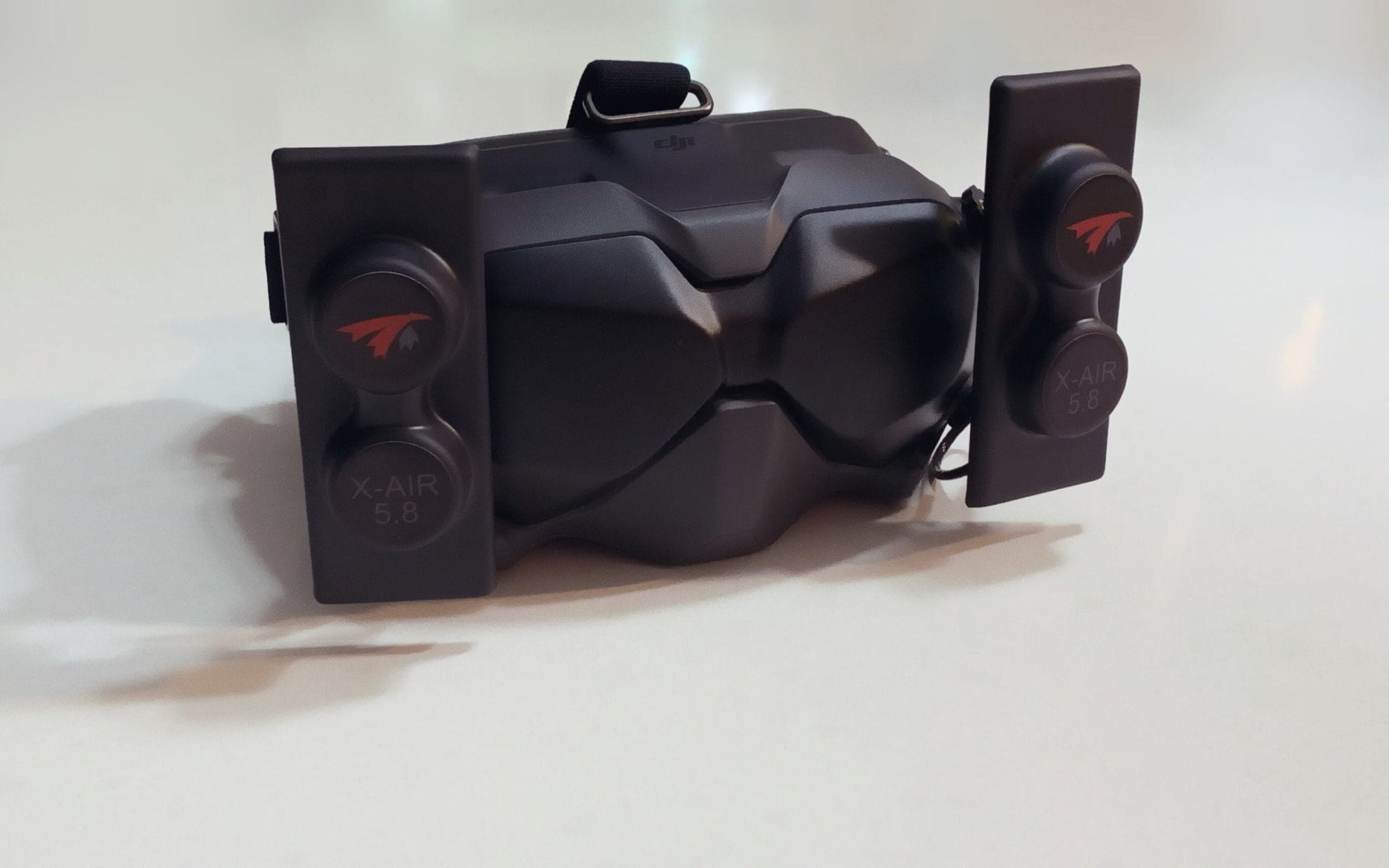

TrueRC did it again with this versatile directional antenna for the DJI FPV goggles. Thx to smart design, you can multiply the range of your system in style. It can be used alone, horizontally, connected to the two top SMA. Or it can be used in pair, flipped vertically and connected to the two SMA on each sides, for maximum video link resilience.

Specification

  • Bandwidth: 5.1GHz-6.0GHz
  • Gain: 10 dBic
  • Beam-width*: 120deg
  • Beam-width @-3dB**: 68deg.
  • Connector: 2x RP-SMA (direct + cable)
  • Dimension: 104mm x 41mm x 30mm
  • Weight 25g

*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.

Includes

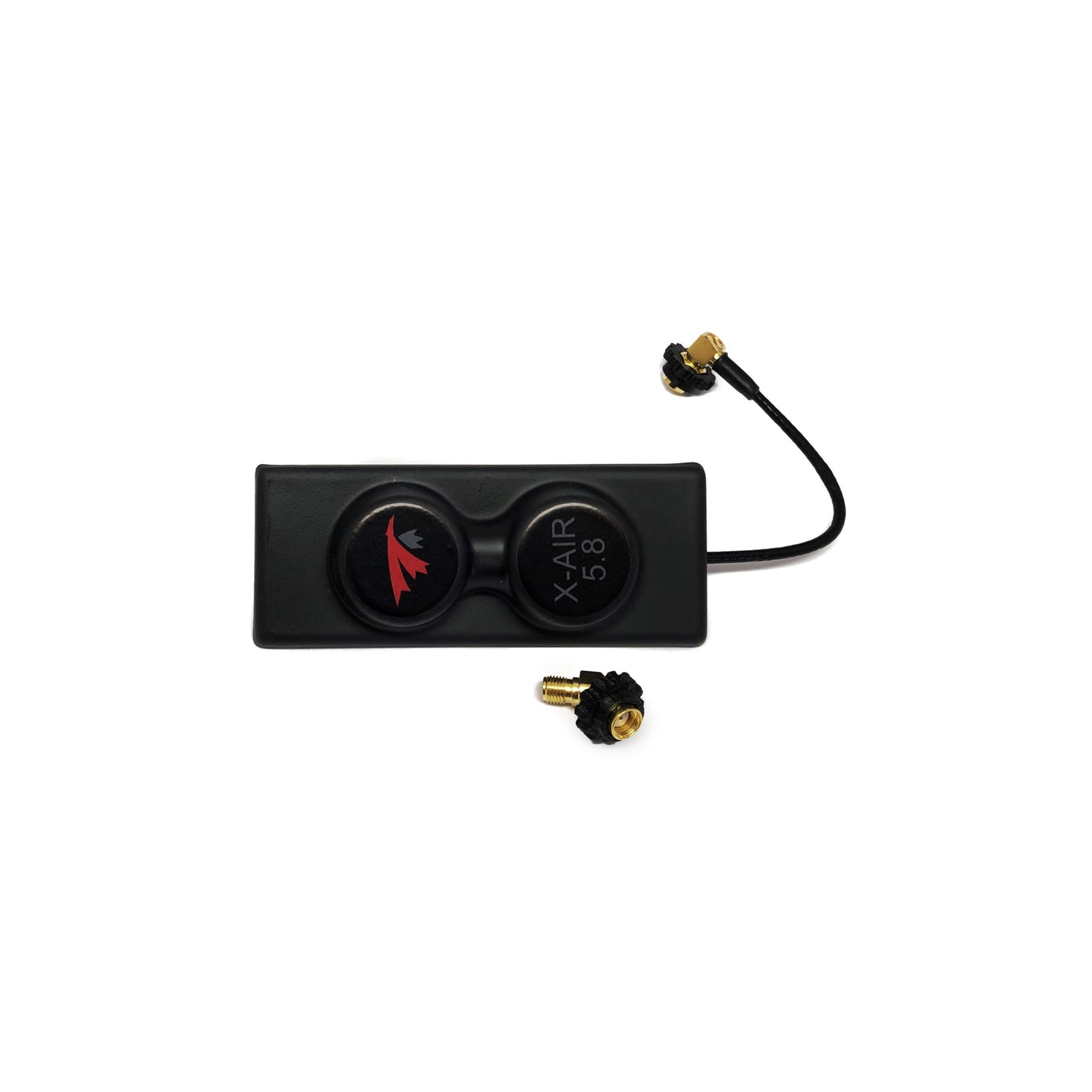

  • 1 x TrueRC X-Air antenna for DJI FPV goggles
  • Connector cables
