TrueRC FPV Antennas

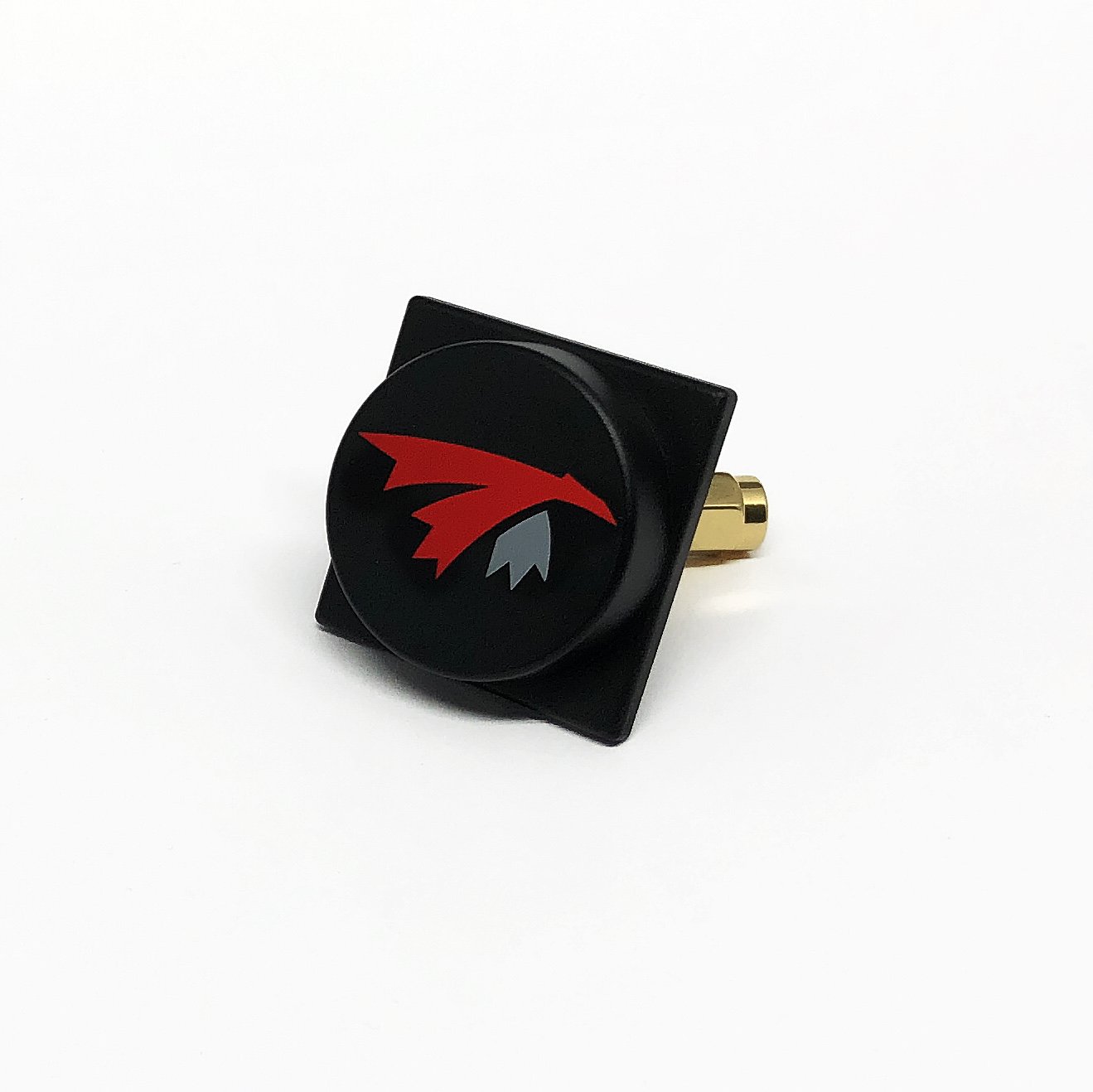

TrueRC 5.8GHz X-AIR MK2 Directional Antenna (RHCP / LHCP)

TrueRC 5.8GHz X-AIR MK2 Directional Antenna (RHCP / LHCP)

SKU:XAIR-L

Regular price £19.12 GBP
Regular price Sale price £19.12 GBP
Sale Sold out
Shipping calculated at checkout.
Antenna Polarisation
Quantity

In stock

UK delivery: typically 1–3 working days

Order by 3pm Monday–Friday for same-day dispatch. Eligible UK orders over £100 qualify for free shipping.

Some batteries and export-controlled products have shipping or destination restrictions. Checkout shows the options available for your order.

View full delivery information

View full details

Product Details

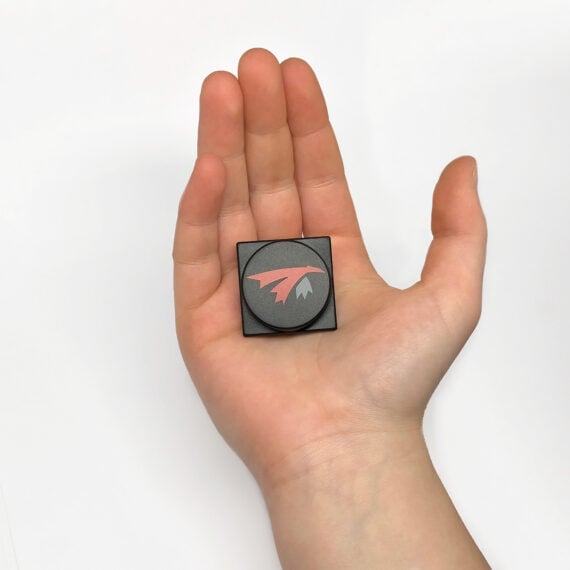

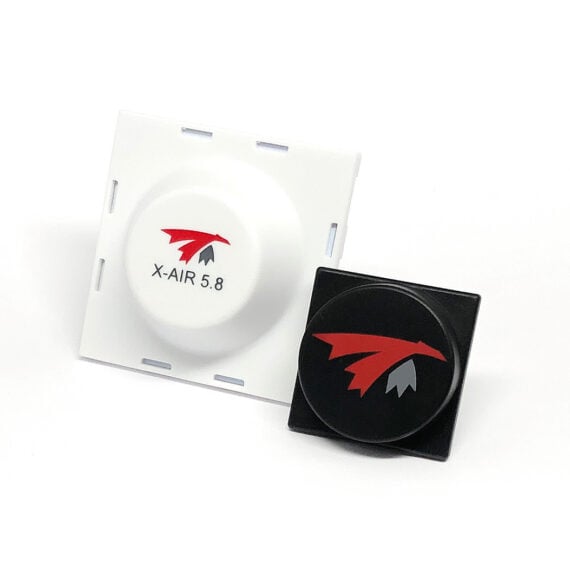

The X-AIR 5.8 Mk. II is our latest redesign of the X-AIR 5.8 antenna. Featuring aerospace grade PCB material and latest computer aided engineering, there's no compromise in beam width or gain and now size! Almost 1/4 of the footprint of the original, same wide coverage and high axial ratio make it perfect for far off venture without antenna aiming adjustment. The RHCP version is supplied without a 45-degree SMA adapter.

Specs

  • Bandwidth: 5.1GHz-6.7GHz
  • Gain: 9.5-10.5 dBic
  • Polarization: RHCP or LHCP
  • Beam-width*: 120deg
  • Beam-width @-3dB**: 68deg. ‘
  • Connector: SMA male
  • Dimension: 32 x 32 x 16mm

*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.
