Product Details

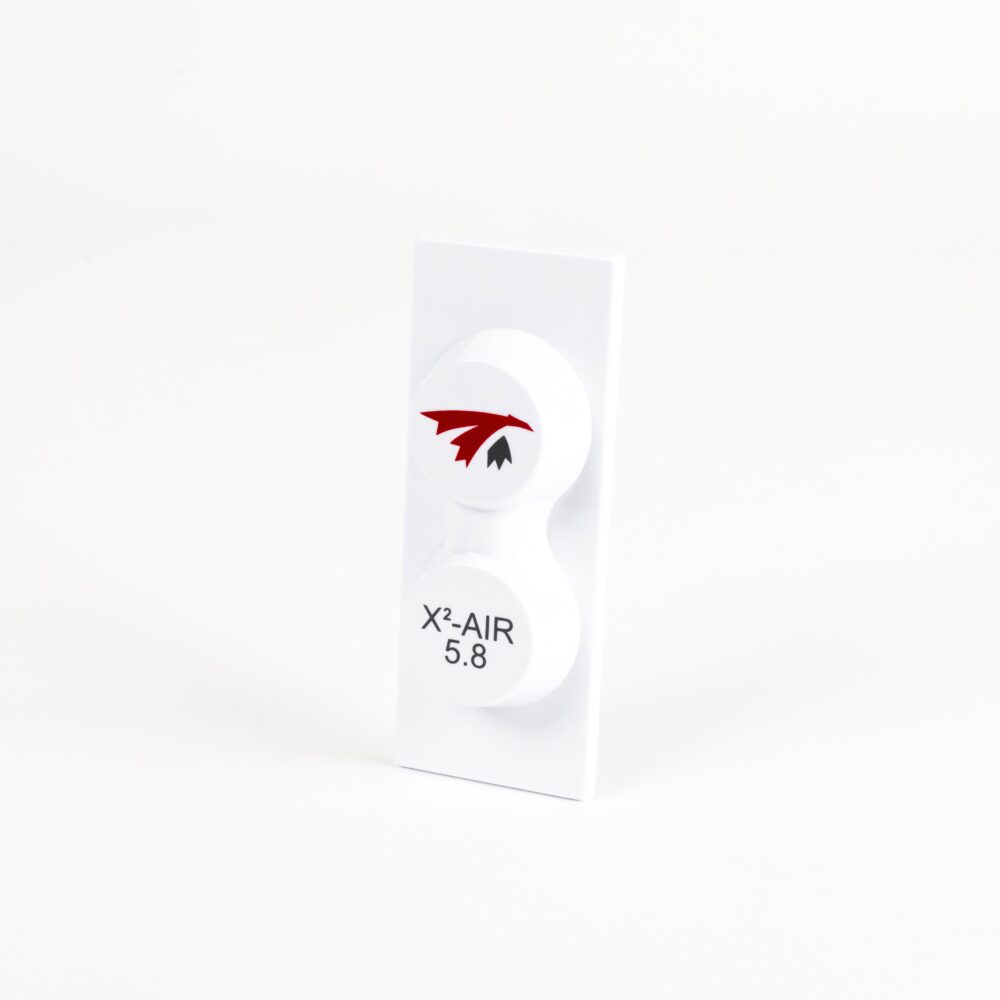

By pairing two of our famous X-AIR 5.8 you get more gain AND wider beam! Of course, there's a compromise which is reduced vertical beam width, but good FPV don't happen up high! A novel approach was taken to match the two antennas together and loose virtually no RF energy in the process. The result is an unmatched efficiency. Don't worry, at 32g only, you won't feel it on your goggles. Each unit is tested on professional antennas tester (agilent) for SWR, gain and circularity.
Specs
- Bandwidth: 5.1GHz-6.0GHz
- Gain: 13 dBic
- Beam-width Horizontal*: 150deg
- Beam-width Vertical*: 62deg
- Hor. beam @-3dB**: 74deg.
- Vert. beam @-3dB**: 34deg.
- Connector: SMA
- Dimension: 104mm x 41mm x 30mm
- Weight: 32g
*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained
