TrueRC 5.8GHz Sniper II Directional Antenna (RHCP / LHCP)

TrueRC 5.8GHz Sniper II Directional Antenna (RHCP / LHCP)

04A-55E-E92

£35.50 GBP
£35.50 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Antenna Polarisation

Out of stock

UK delivery: typically 1–3 working days

Order by 3pm Monday–Friday for same-day dispatch. Eligible UK orders over £100 qualify for free shipping.

Some batteries and export-controlled products have shipping or destination restrictions. Checkout shows the options available for your order.

View full delivery information

View full details

Product Details

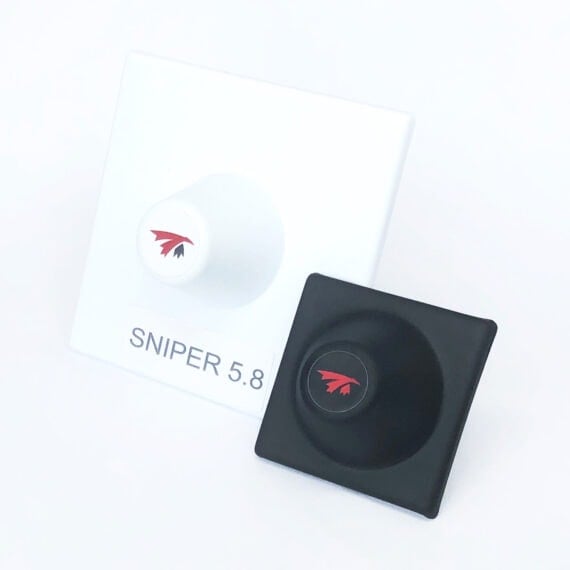

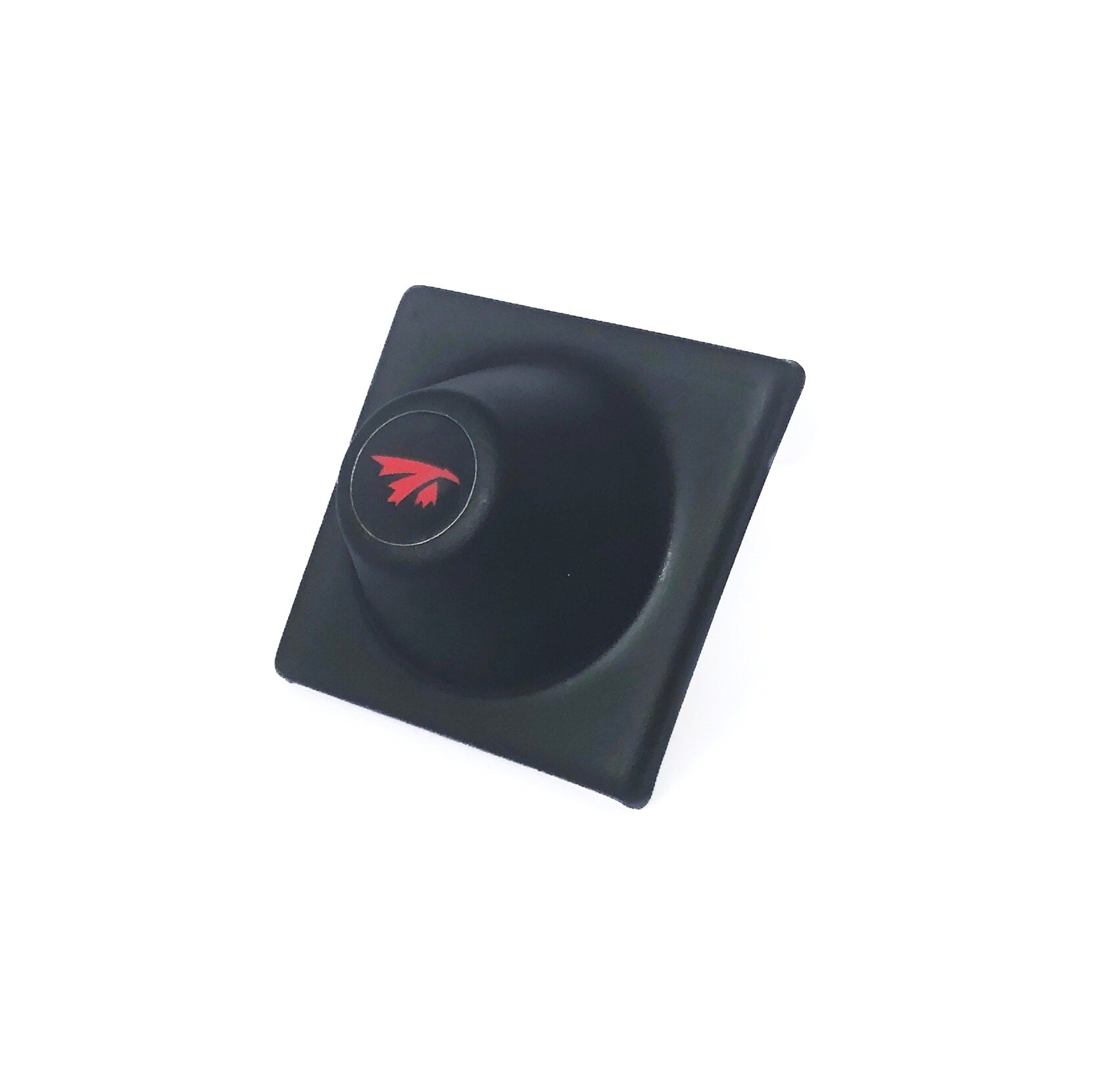

The new SNIPER 5.8 is TrueRC's latest redesign of the sniper antenna. Almost 1/4 of the size of the original, it put an end to the only downside of this type of antenna: their size. High gain and high axial ratio make it perfect for far off venture with or without base station.

Specifications

  • Frequency: 5.3-6.5GHz
  • Gain: 13.5 dBic
  • Polarization: RHCP or LHCP
  • Radiation efficiency : 98%
  • Beam-width*: 80deg
  • Beam-width @-3dB**: 45deg.
  • Connector: SMA male
  • Dimension: 52mm x 52mm x 37mm
  • Weight: 15.5g

*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.

Includes

  • 1x SNIPER 5.8 antenna
