Product Details
Features

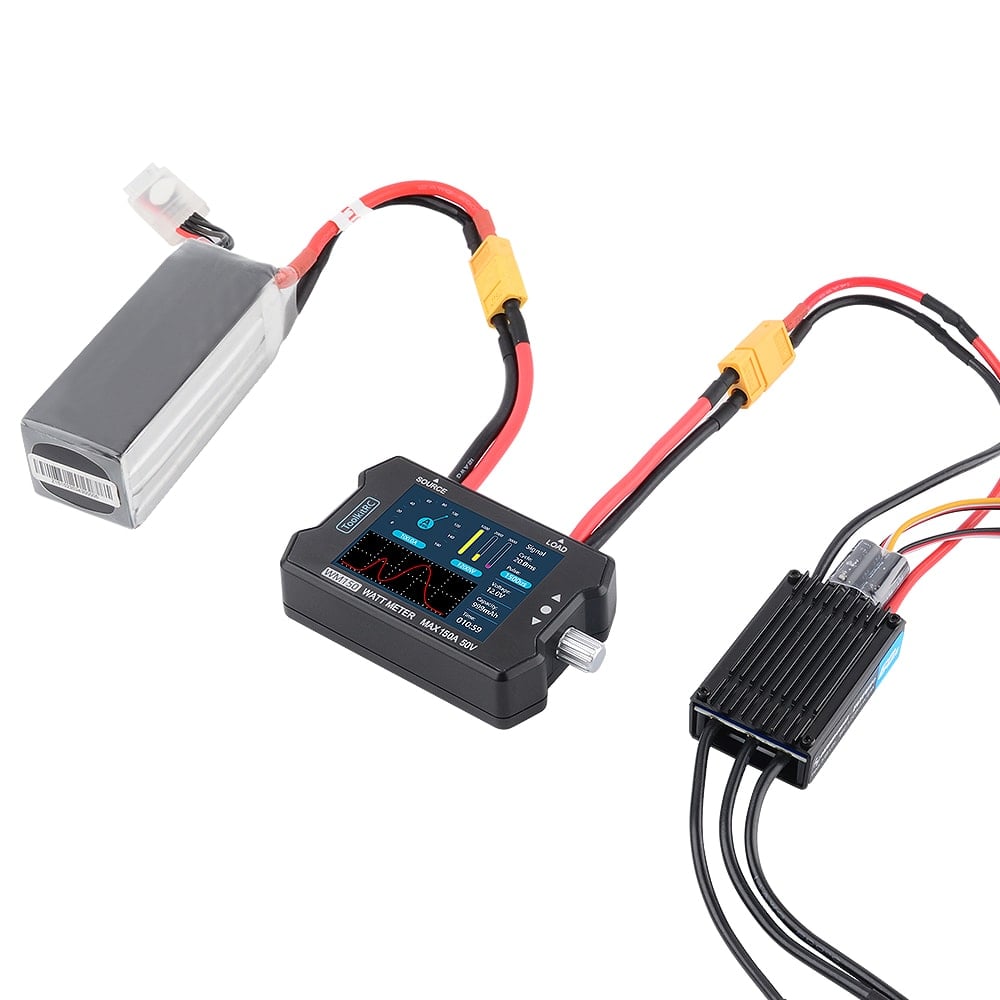

- ToolkitRC WM150 is a Watt Meter, which is capable to test voltage, power, current data of the electric equipment, like servo, ESC, battery, etc.
- 1-50V power supply, the max current is up to 150A, the precision is accurate to 10mA.

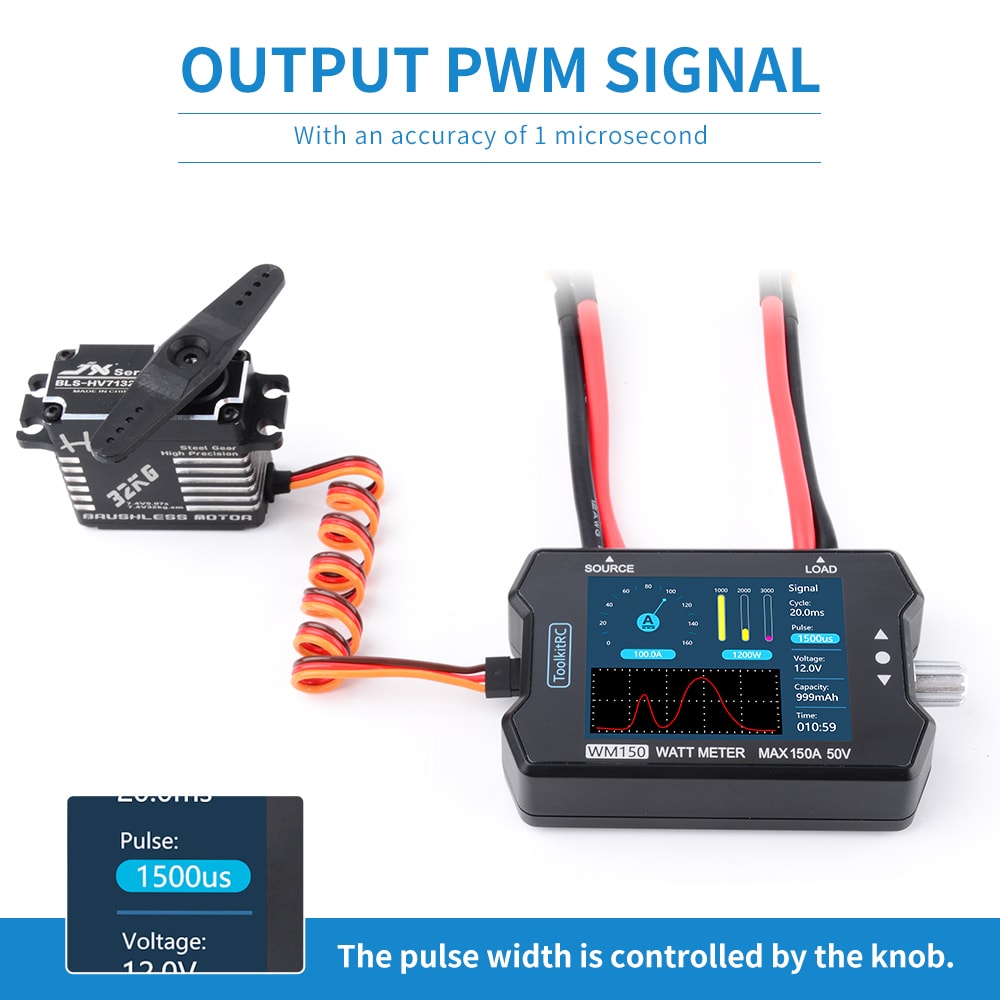

- Support PWM signal, 1us precision, the pulse width is changable by adjusting the button.
- Automaticly to change the unit of the capacity, when it is lower than 1A, the unit-display is MA, when it is higher than 1A, the unit-dispaly is changed to A.
- The watt meter is also supporting to display working hours.
- USB firmware update, easy to operate.
Usage

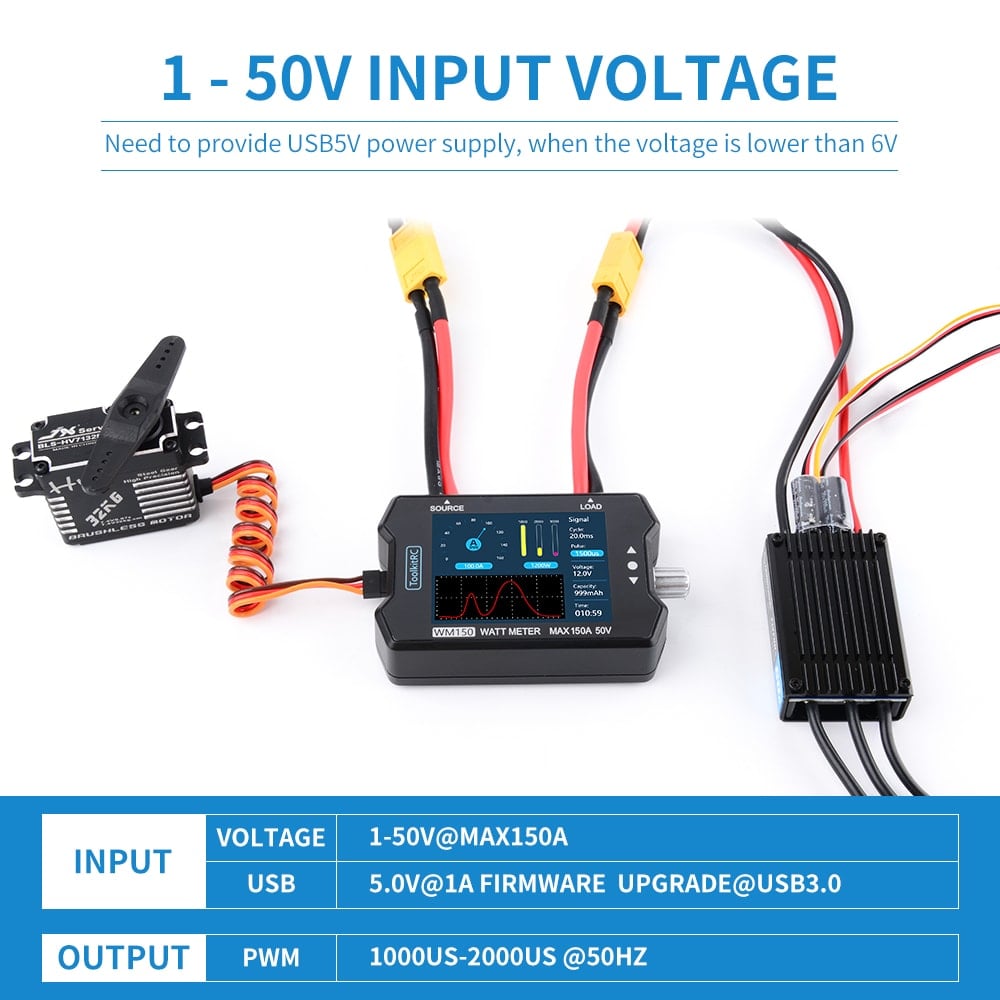

① Connect 1-50V power supply, when the voltage is lower than 6V, need to use USB 5V to provide power;

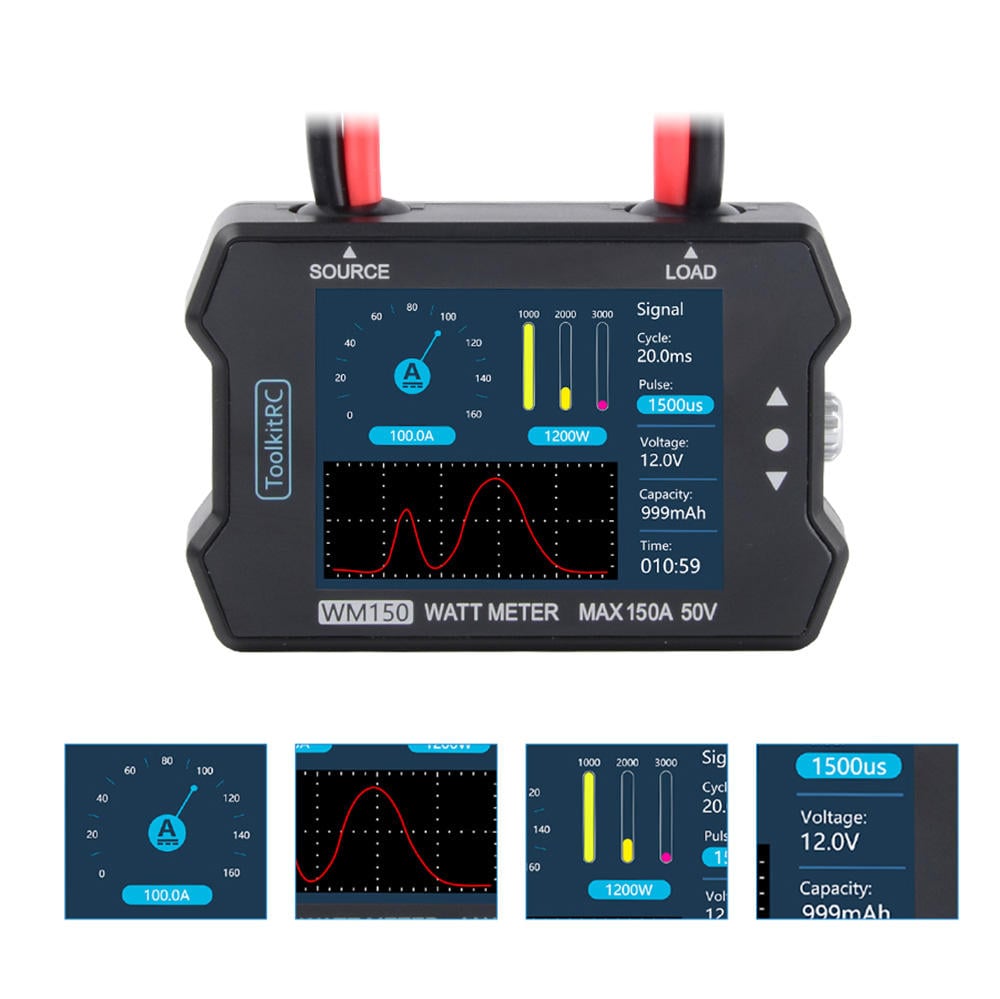

② After power-on, the LCD screen displays the logo and continues 2 seconds, with the starting music;
③ Adjust the button if the data in the displaying screen are not in minimum data position.
Specifications
- Input Voltage: 1-50V@MAX150A (1100W MAX)
- USB: 5.0V@1A Firmware upgrade@USB3.0
- Output PWM: 1000us-2000us @50Hz
- Display LCD: TFT 2.4 inch 320*240 resolution
- Product Size: 80mm*54mm*23mm
- Weight: 120g
- Packing Size: 87mm*87mm*28mm
- Weight 140g
