Product Details

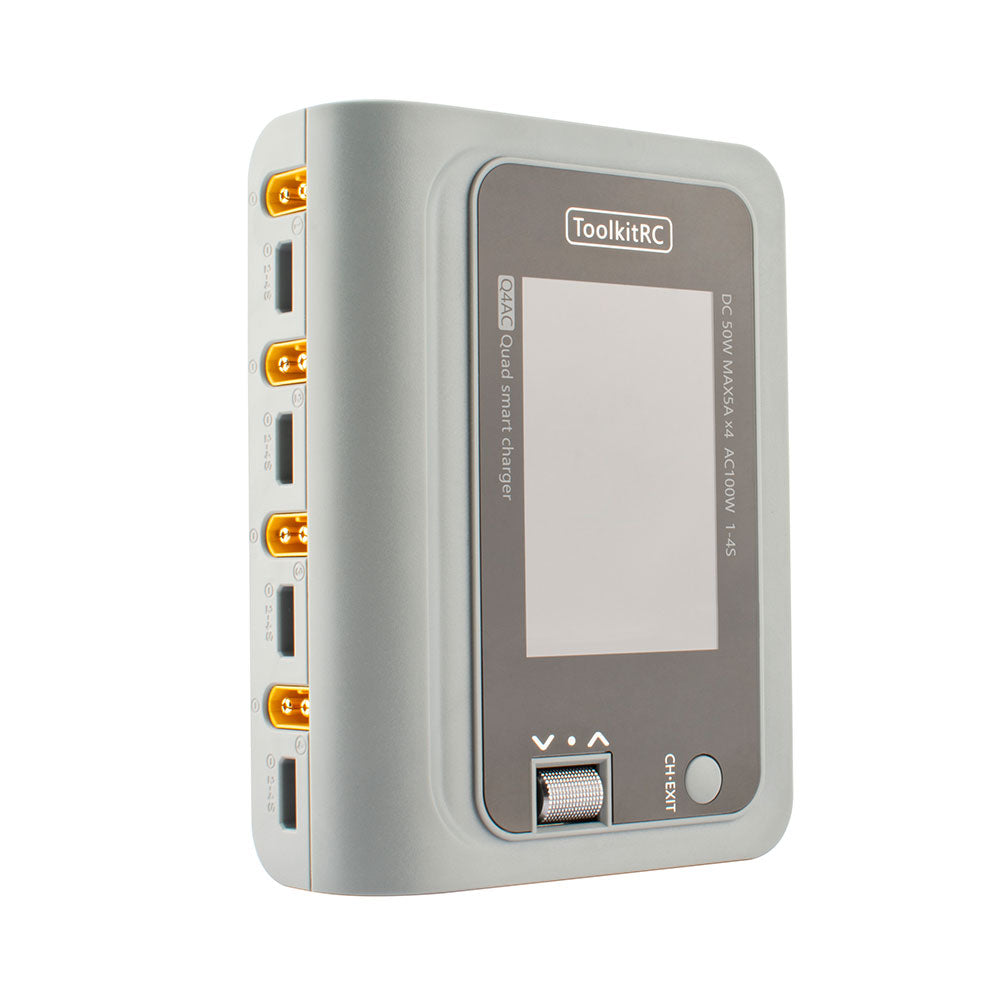

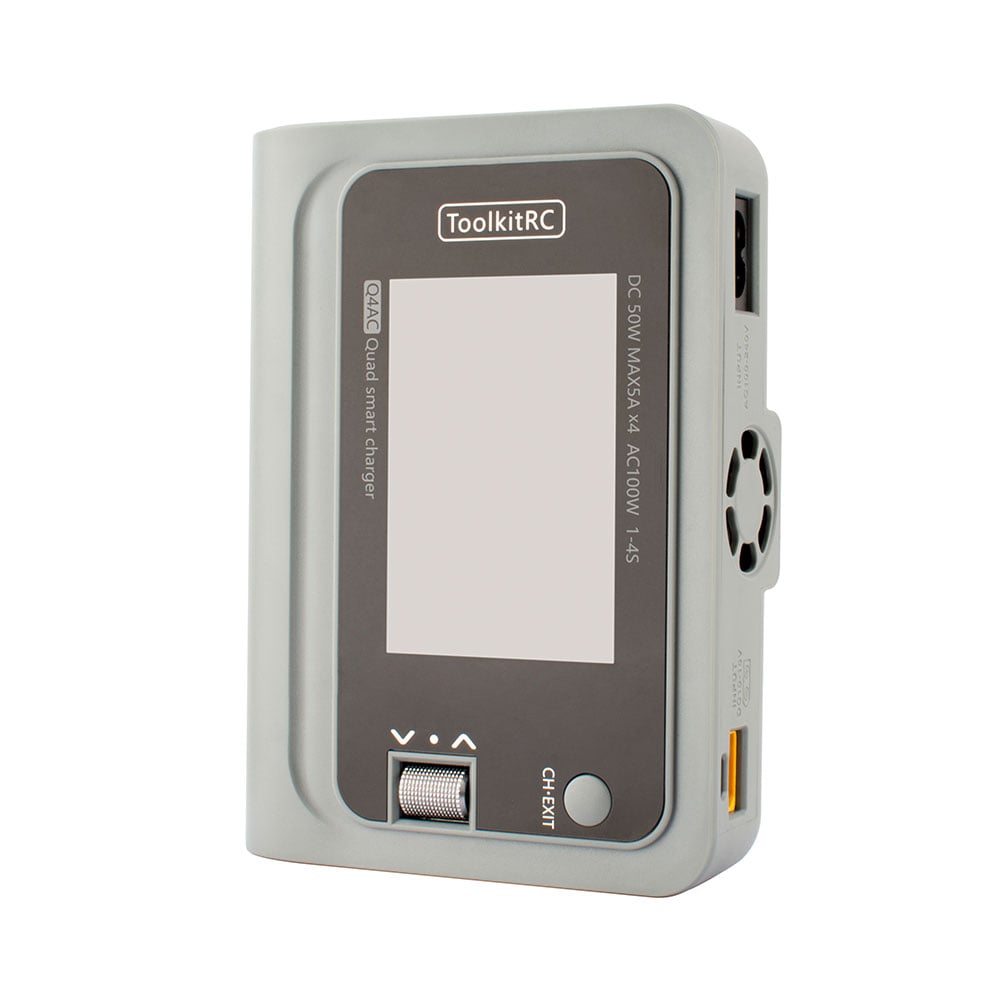

Introducing the ToolkitRC Q4AC, the upgraded version of the popular M4Q charger. This quad channel AC/DC smart charger features four independently operated charging outputs, making it perfect for charging multiple batteries at once. With a 32-bit ARM Processor, IPS wide-angle display, and 10 language options, it's user-friendly and easy to navigate.
The Q4AC offers a high-power output of AC100-240Vmax 100W and DC 10-18V max 200W and allows for maximum 5A @MAX50W charging current. It also has the ability to record 3 groups of commonly used power and 5 commonly used batteries for your convenience. The 3.5" IPS 480x320p LCD screen and USB2.0 MicroUSB upgrade option makes the Q4AC even more versatile.
With 240mA balancing current, the Q4AC promises a precise and safe charge every time. Upgrade your charging game with the ToolkitRC Q4AC today!
Please note that for Toolkit RC chargers, a voltage calibration may be required before use or after a firmware update. This calibration ensures accurate readings and optimal performance. For detailed instructions on how to perform a voltage calibration, please refer to the manual included with your charger. You can also find more information on this process at the following link: https://help.unmannedtech.co.uk/portal/en-gb/kb/articles/how-to-calibrate-toolkit-rc-voltage.
Specifications

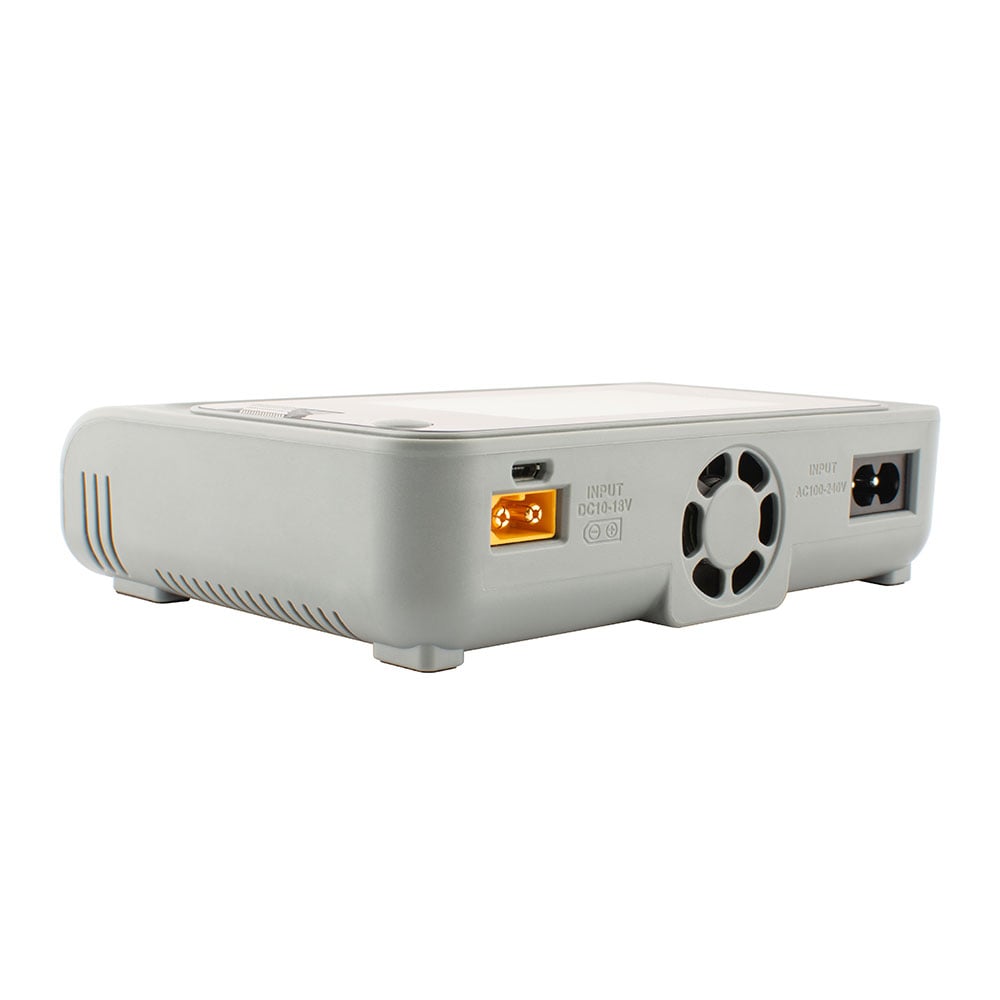

- Charging Input: AC100-240V@MAX1.5A DC10-18V@MAX20A
- Battery Type: LiPo LiHV LiFe Lion@1-4S NiMh @1-10S Pb @1-8S
- Bal Cur.: 240mA @2-4S
- Accuracy: <0.005V
-
Charging Power:
- 0.1-5A@50W*4 DC input
- 0.1-5A@50W*2 AC input
- 0.1-5A@25W*4 AC input
-
Discharge power:
- 0.1-2A@5W*4
- Firmware upgrade: USB
- Battery Voltage: 1.0V-5.0V @1-4S
- Battery Internal Resistance: 1-100mR @1-4S
- Display LCD IPS: 3.5" 480*320px
- Product Size: 150mm*112mm*36.5mm
- Weight: 450g
- Individual Packing Size 160mm*160mm*46mm
- Shipping Weight: 600g
Links

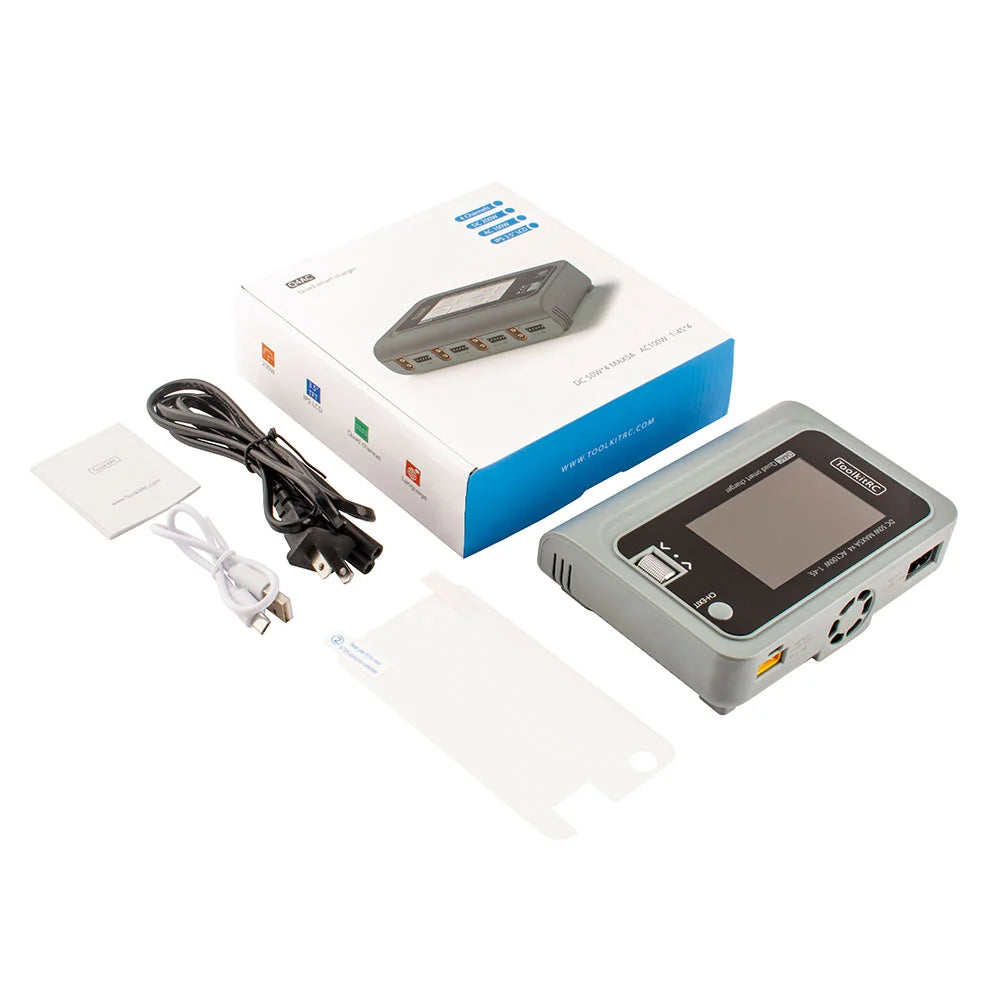

Includes
- 1x ToolkitRC Q4AC Quad Channel Charger
- 1x AC Cable - You will need your IEC C7 power cable for UK/EU wall sockets
