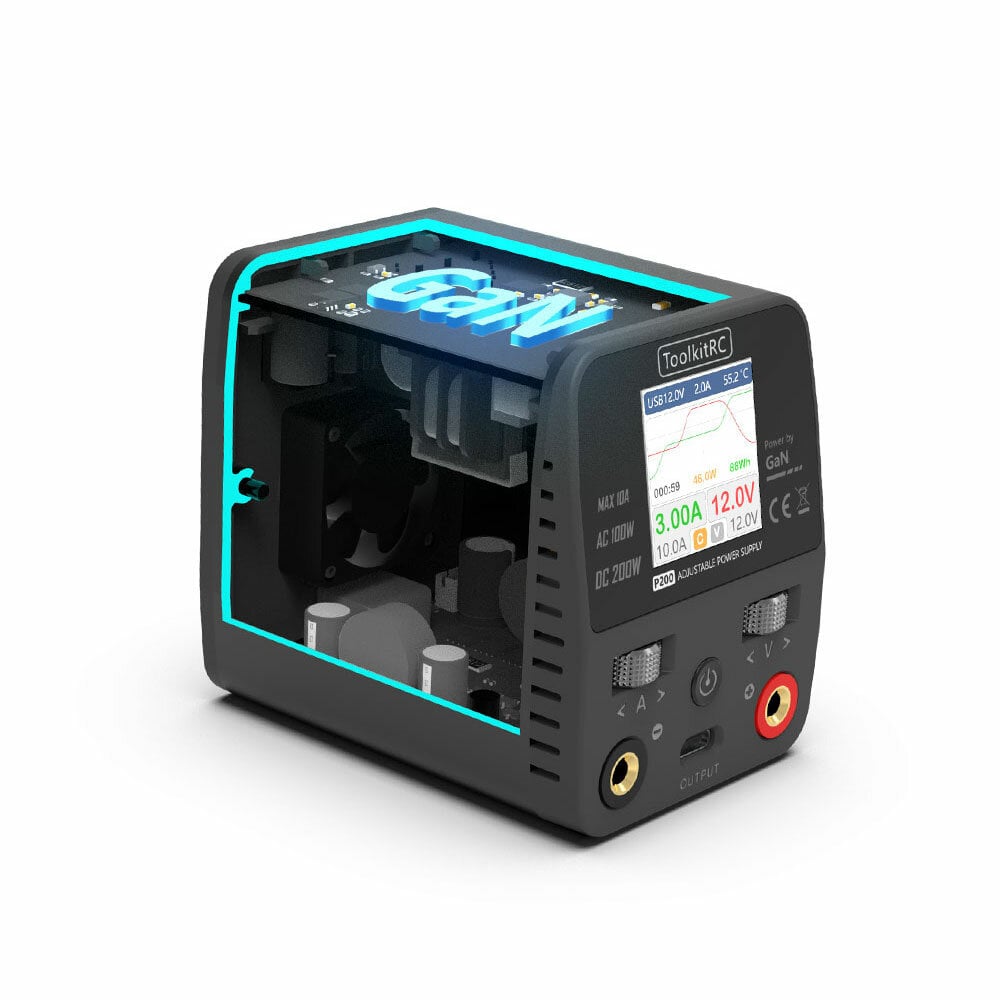

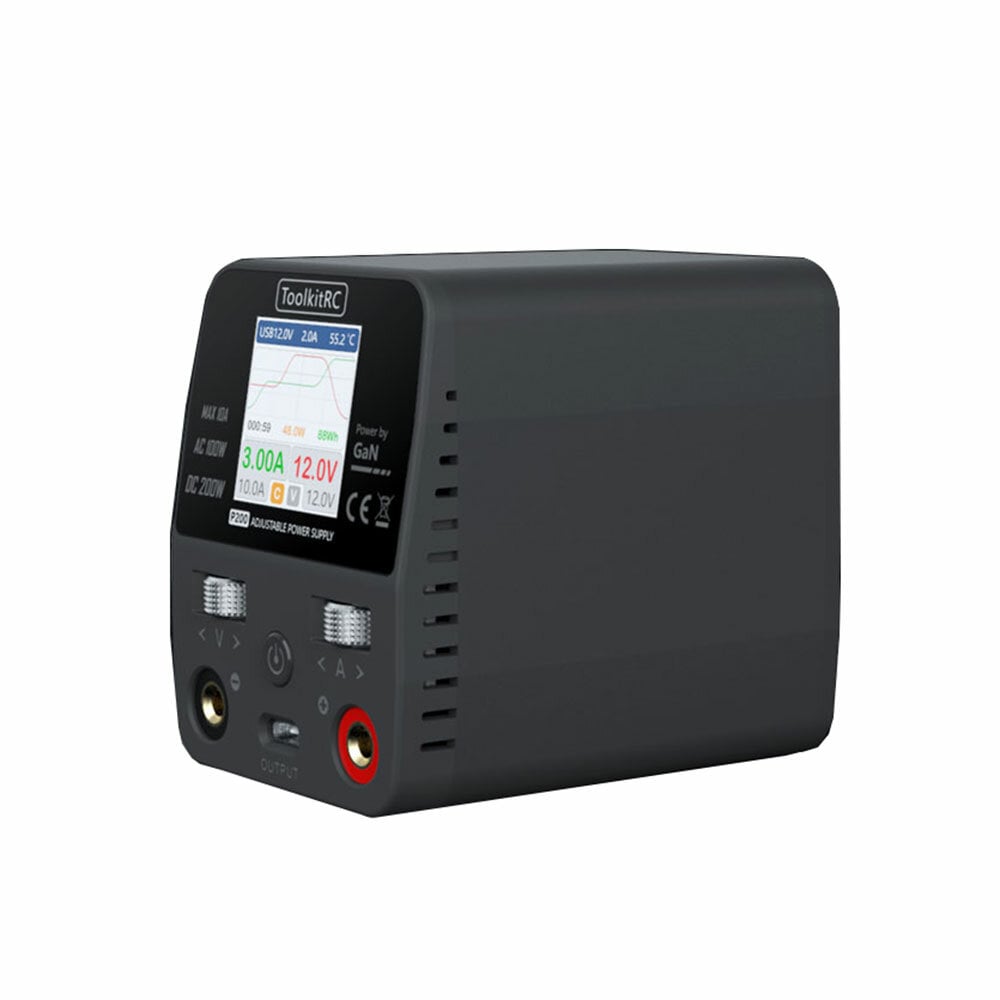

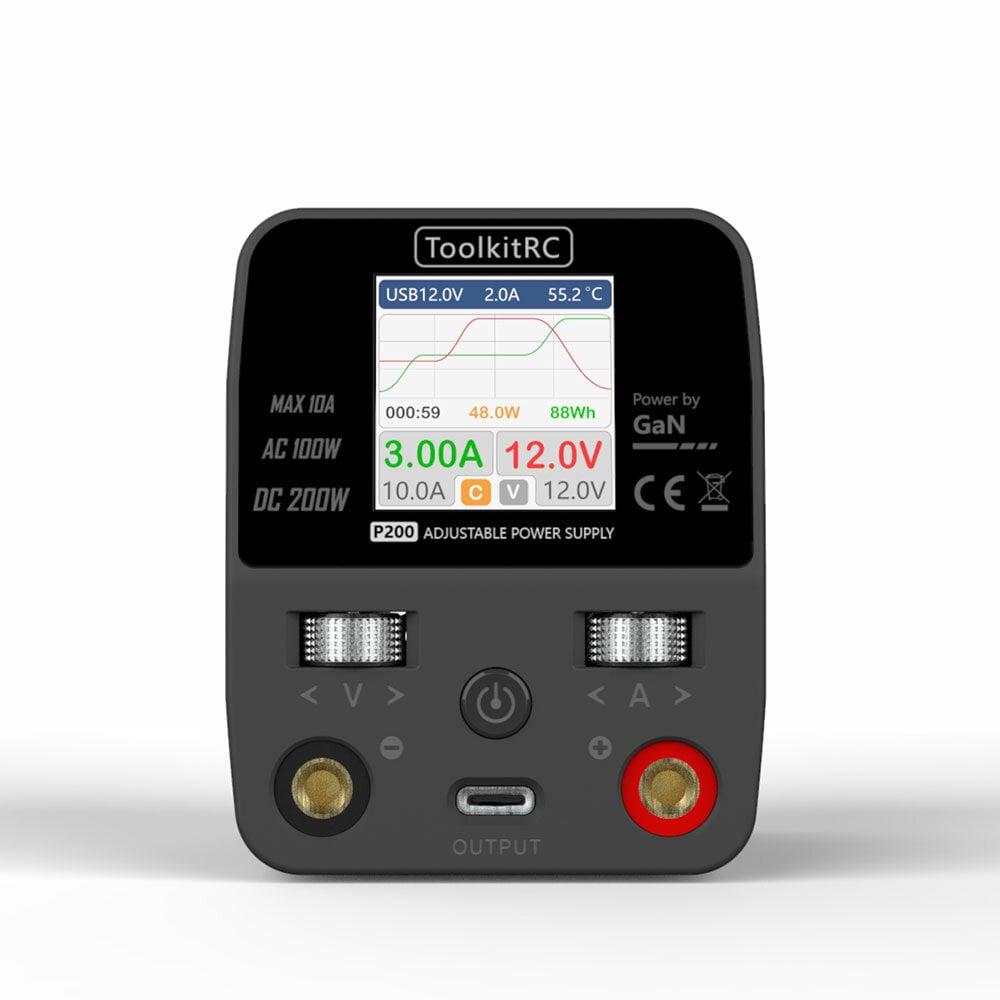

ToolkitRC P200 V2 Smart Desktop Power Supply

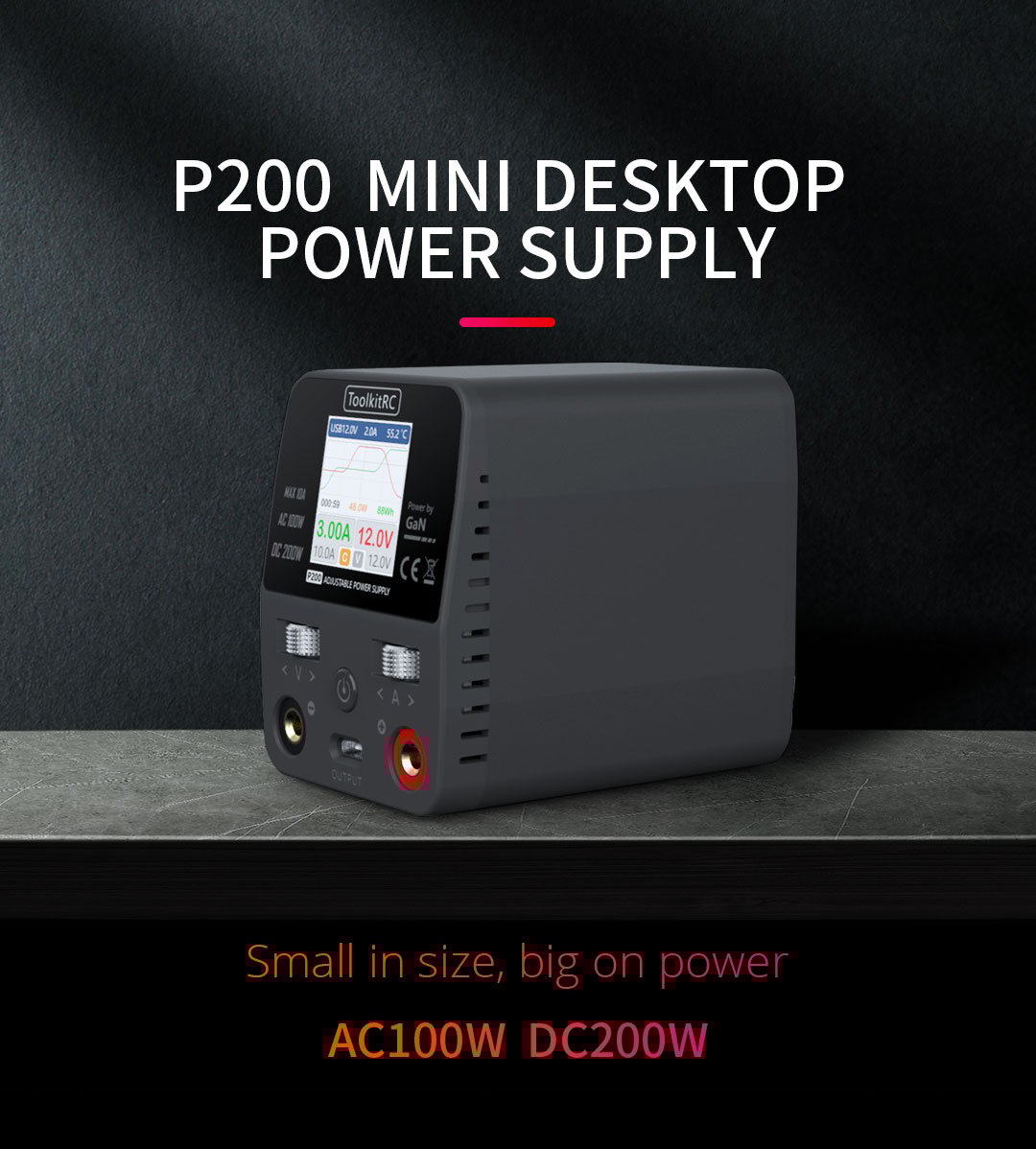

The P200 is a mini desktop variable power supply that can power just about any battery charger with high efficiency, but does more than that as it can also be used as your benchtop variable power supply to test and power equipment.

P200 Manual V1.0

Key Features / Functions

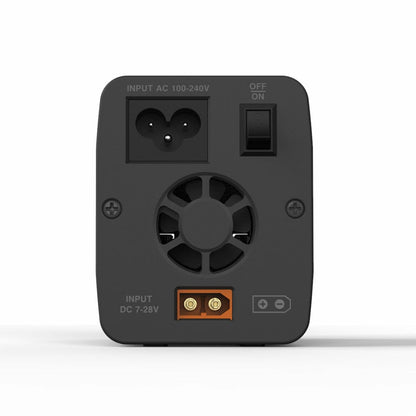

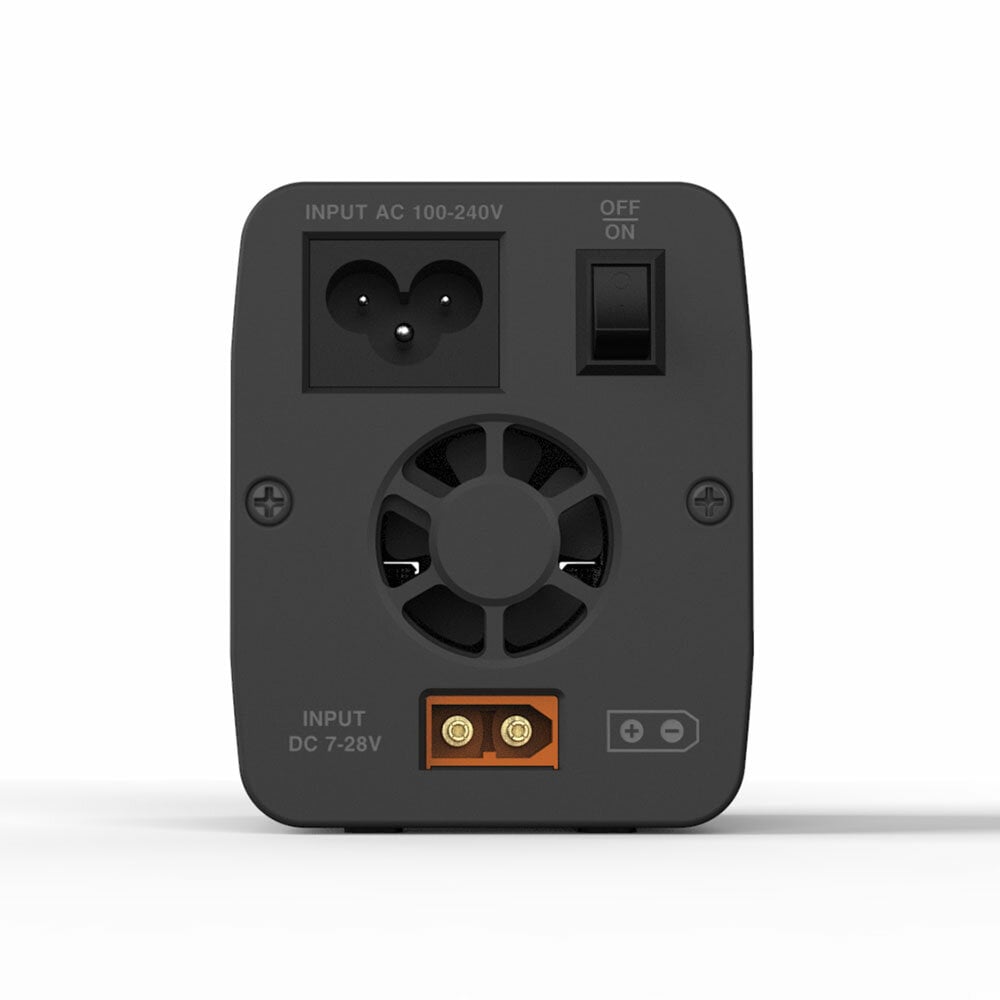

• Input voltage: AC 100-240V@MAX 100W
  DC 7-28V@MAX 10A 200W

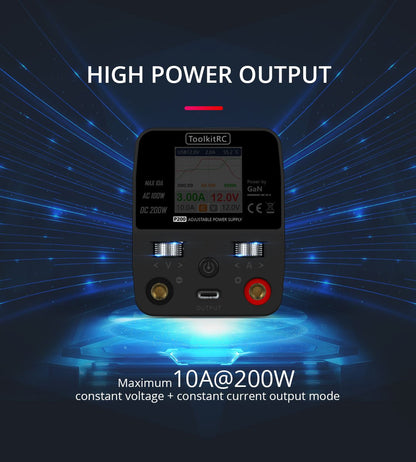

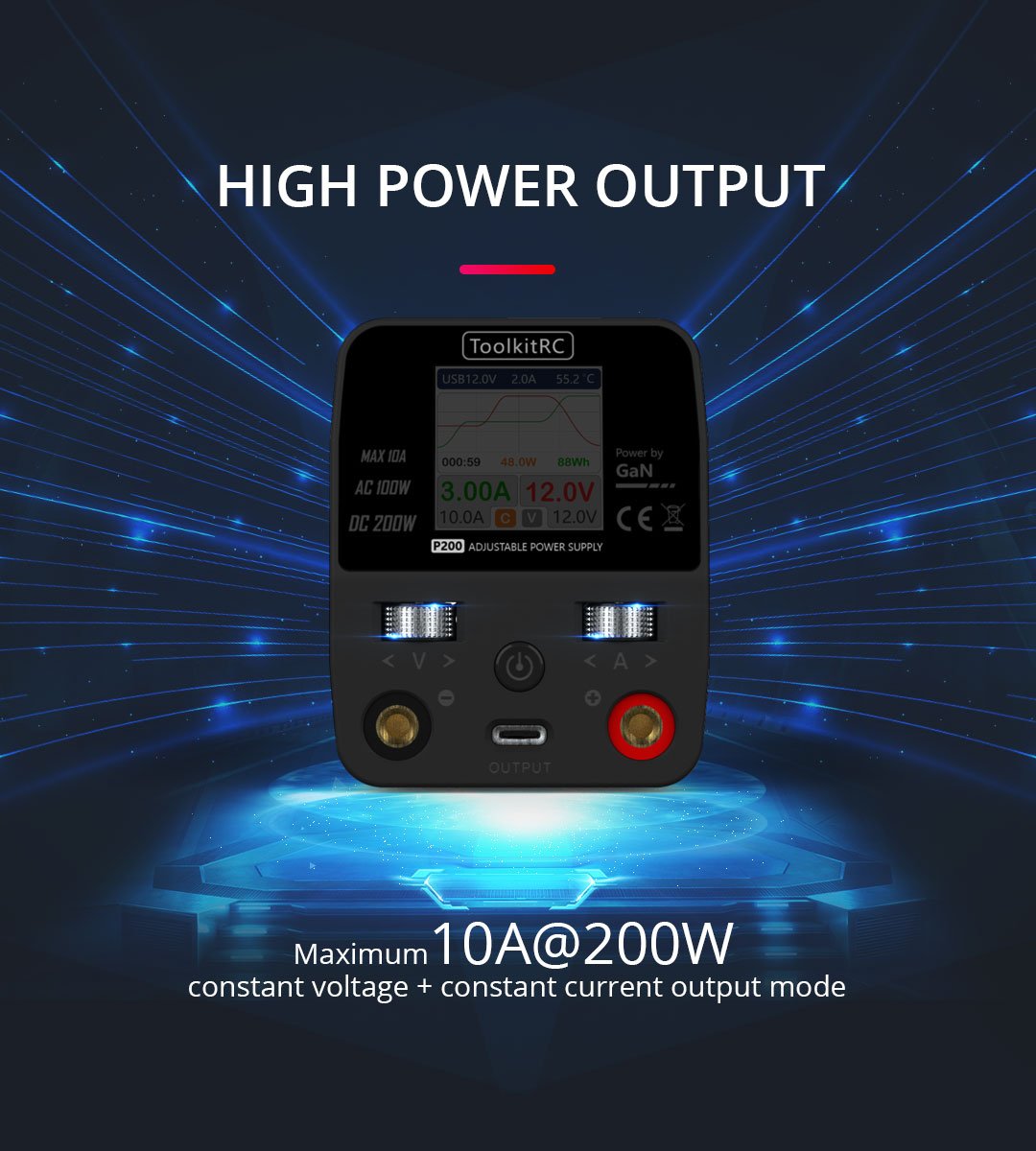

• Main output: 1.0-10.0A @MAX AC 100W / DC 200W
  1.0-30.0V @MAX AC 100W / DC 200W

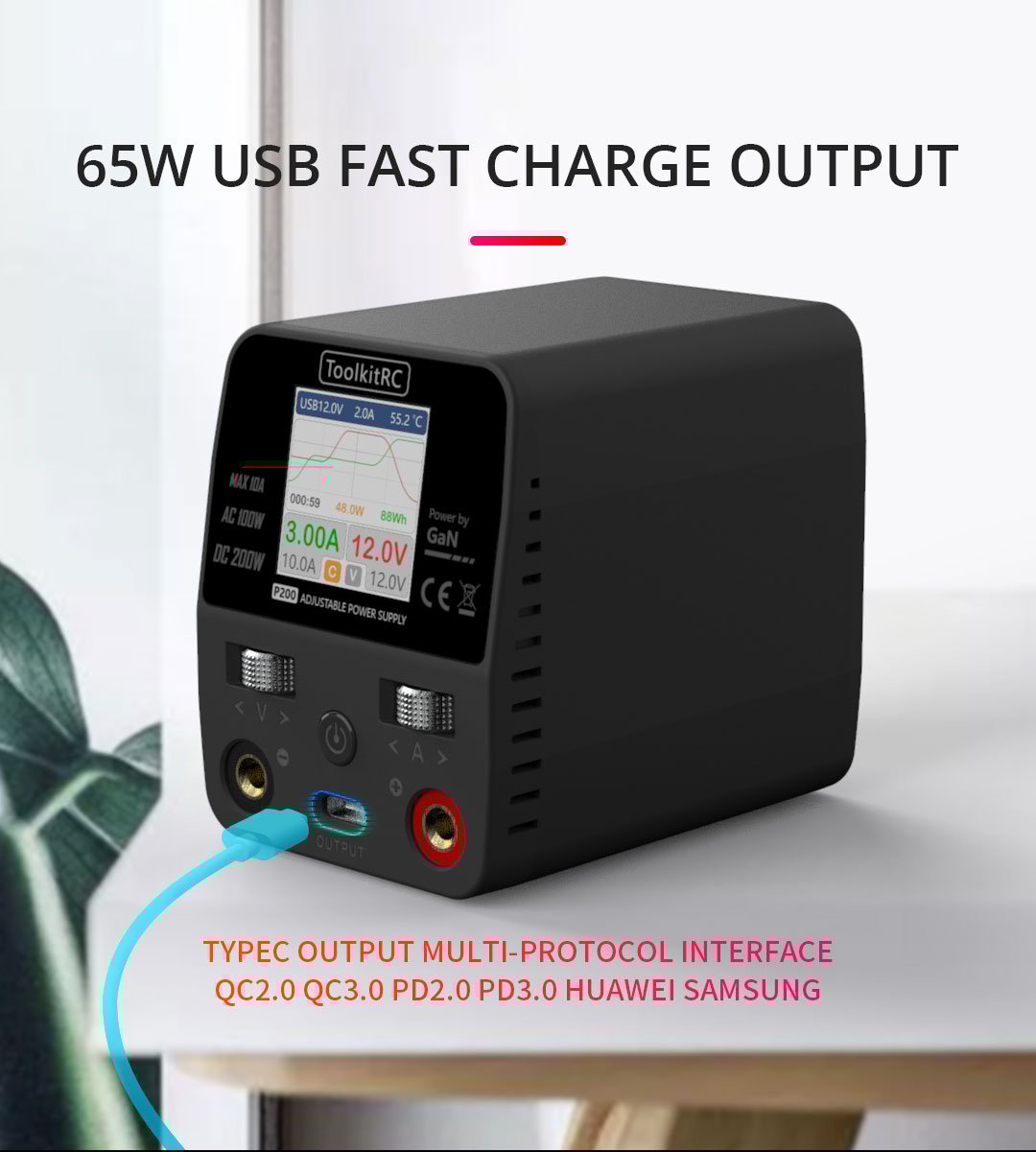

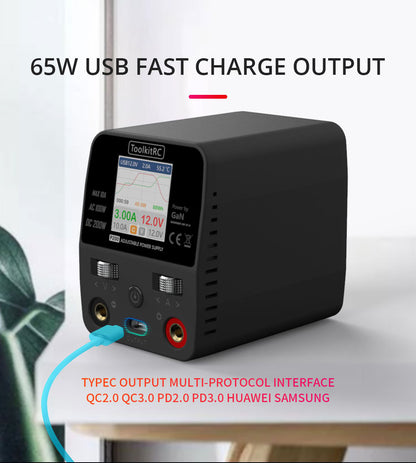

• USB output: 5.0-20.0V @MAX 65W
• USB protocol: PD 3.0/PD2.0/PPS/QC4/QC3.0/QC2.0
  AFC/FCP/SCP/PE2.0/PE1.1/SFCP/VOOC
• Protection time: <1ms (Short circuit, OC ,OV)
• Control cycle: 8ms
• Product size: 84*63*78 mm
• Product weight: 360g
• Pack size: 160*150*73 mm
• Pack weight: 670g

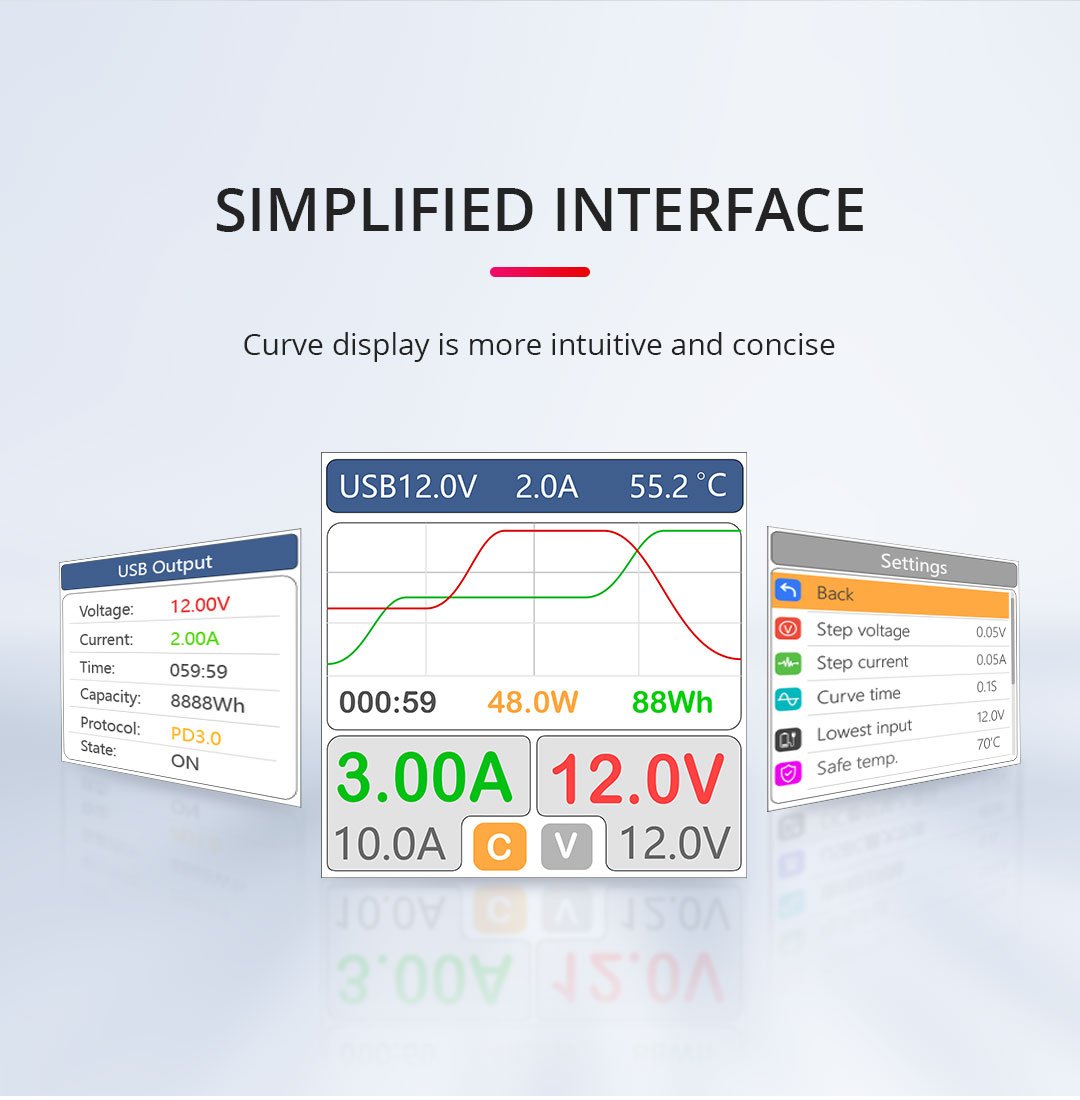

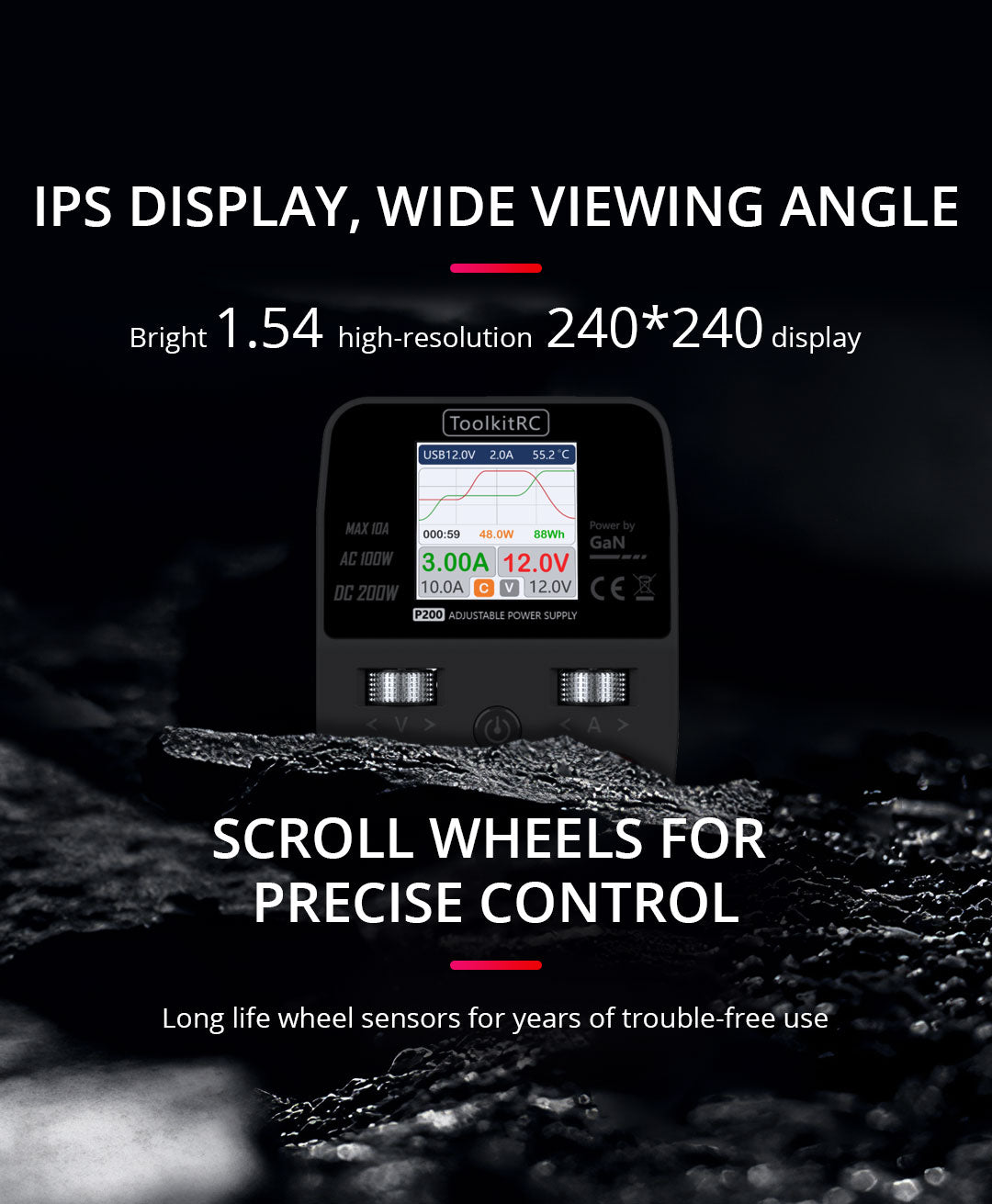

• LCD: IPS 1.54" 240*240 resolution
• Main port: 4.0mm banana female port
• USB port: TYPE-C Fast charge, upgrade

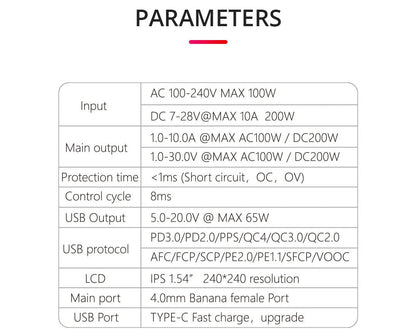

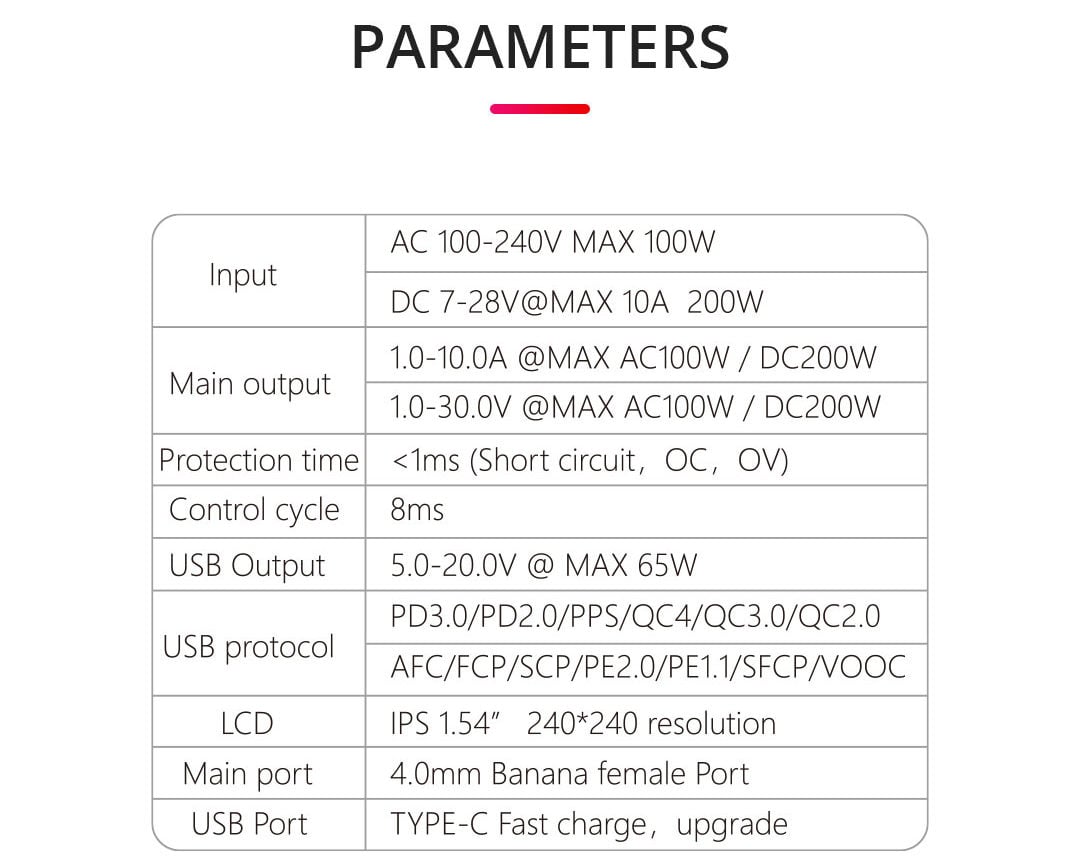

Specifications

Includes

• 1 x ToolkitRC P200 Power Supply
