Product Details
Please note that for Toolkit RC chargers, a voltage calibration may be required before use or after a firmware update. This calibration ensures accurate readings and optimal performance. For detailed instructions on how to perform a voltage calibration, please refer to the manual included with your charger. You can also find more information on this process at the following link: https://help.unmannedtech.co.uk/portal/en-gb/kb/articles/how-to-calibrate-toolkit-rc-voltage.
MC8 Manual V1.2
Key Features

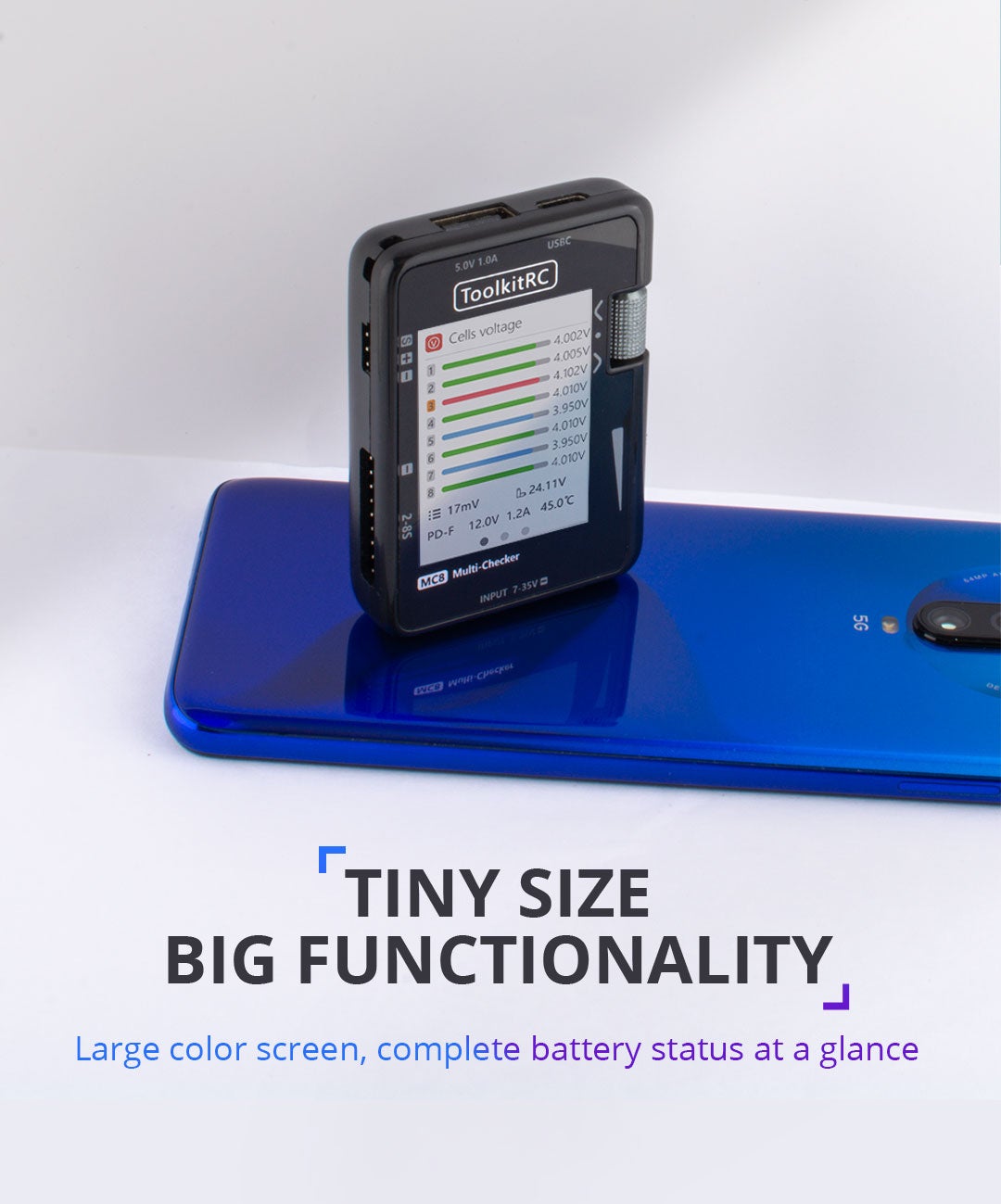

- Large colour screen

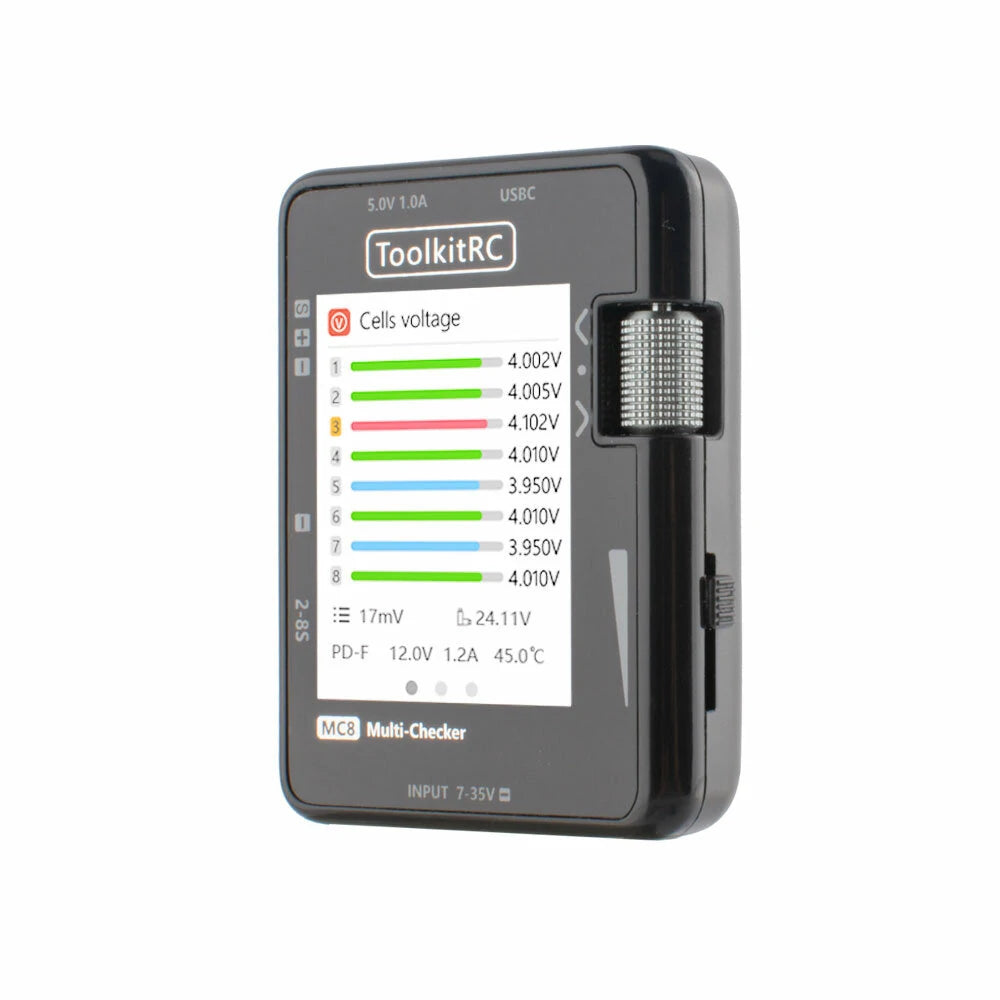

- Battery status display - cell voltage checker, supports 1S to 8S batteries

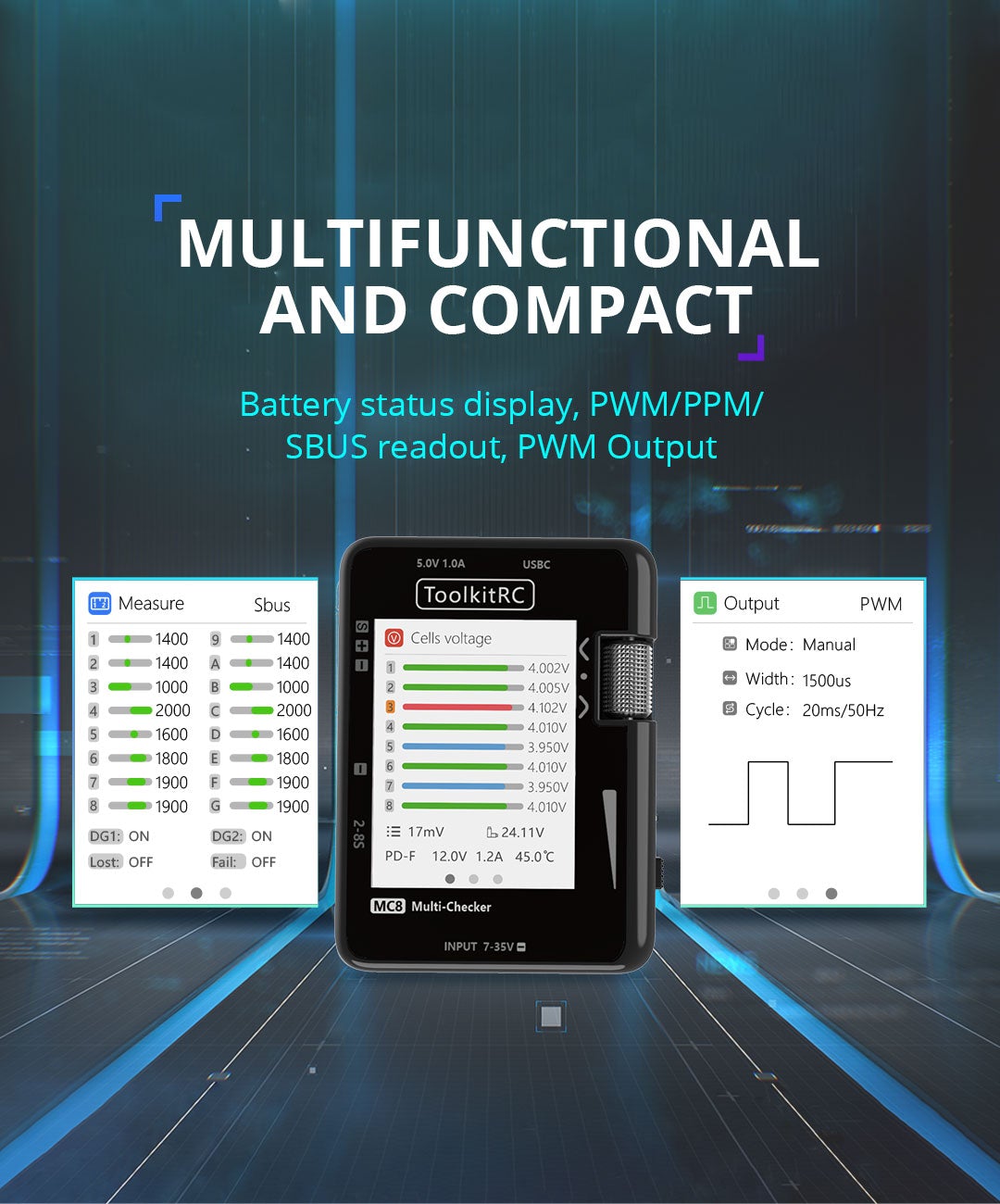

- Receiver signal readout: PWM, PPM & SBUS gives you the value of each channel
- PWM, PPM, SBUS signal generator output for driving servos, ESCs

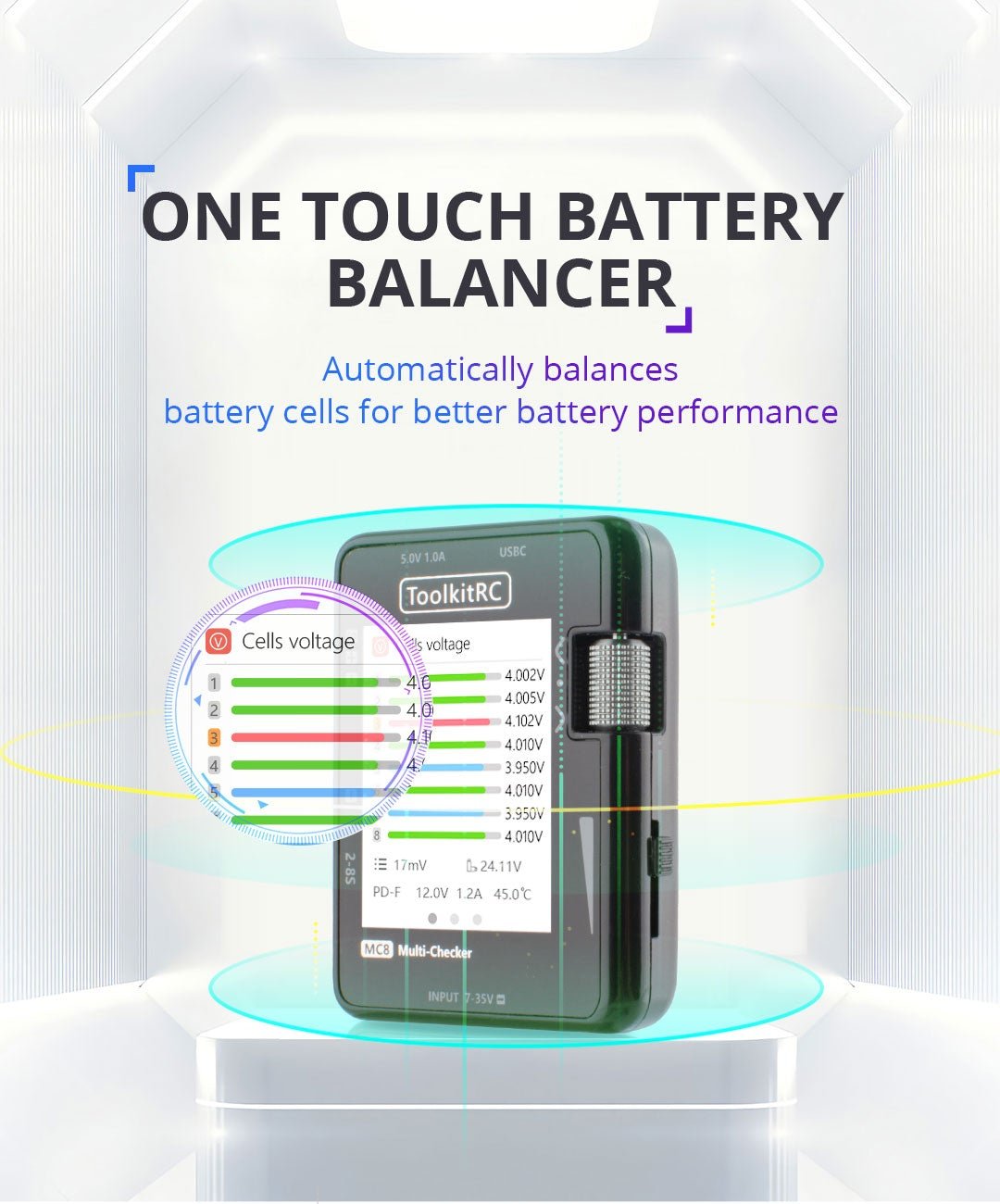

- High precision LiPo battery cell balancer 0.005V / 60mA

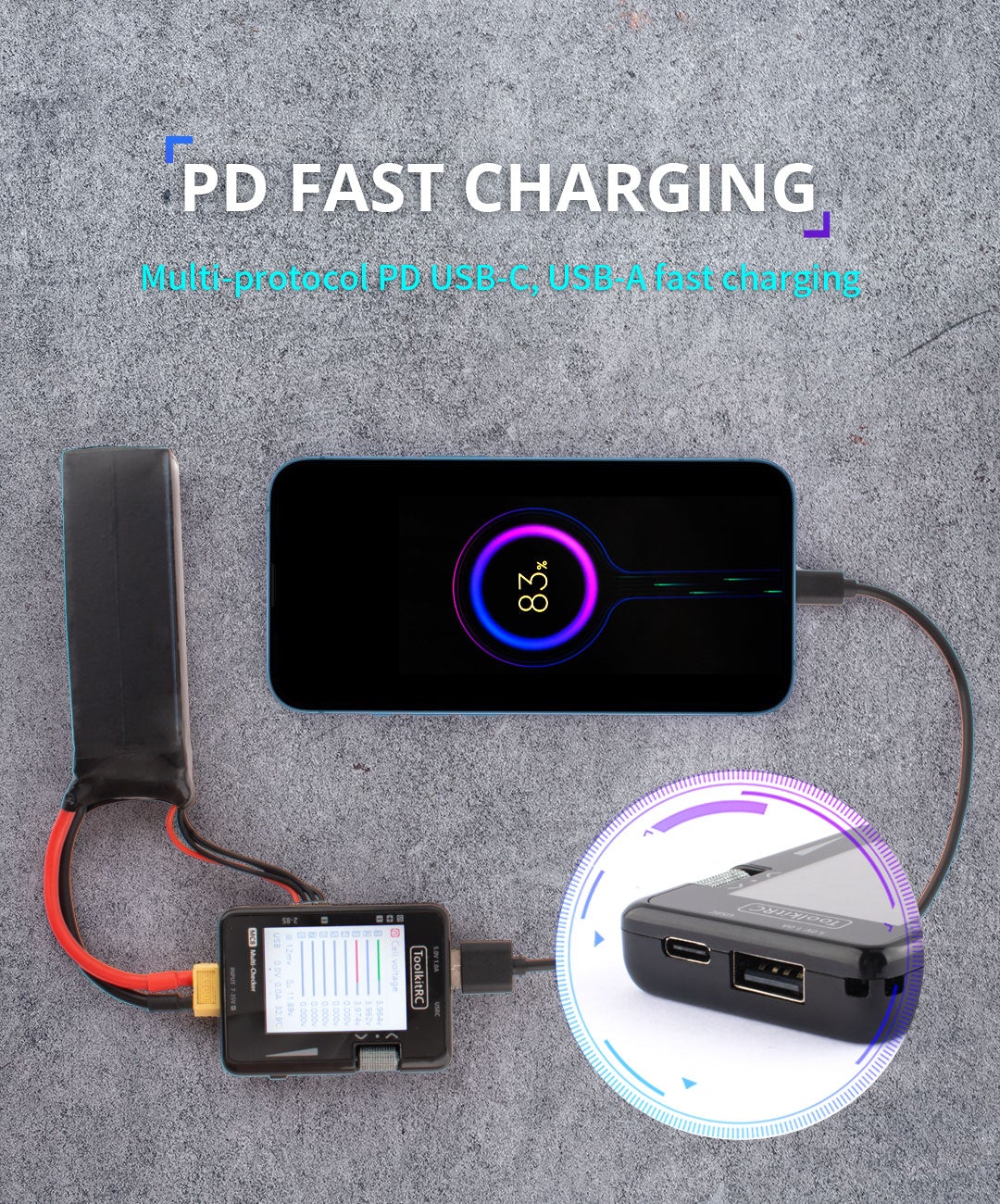

- USB-C 20W fast charging for phones & tablets etc (supported protocols PD3.0, QC3.0, AFC, SCP, FCP etc)
- USB-A 5V 1A output

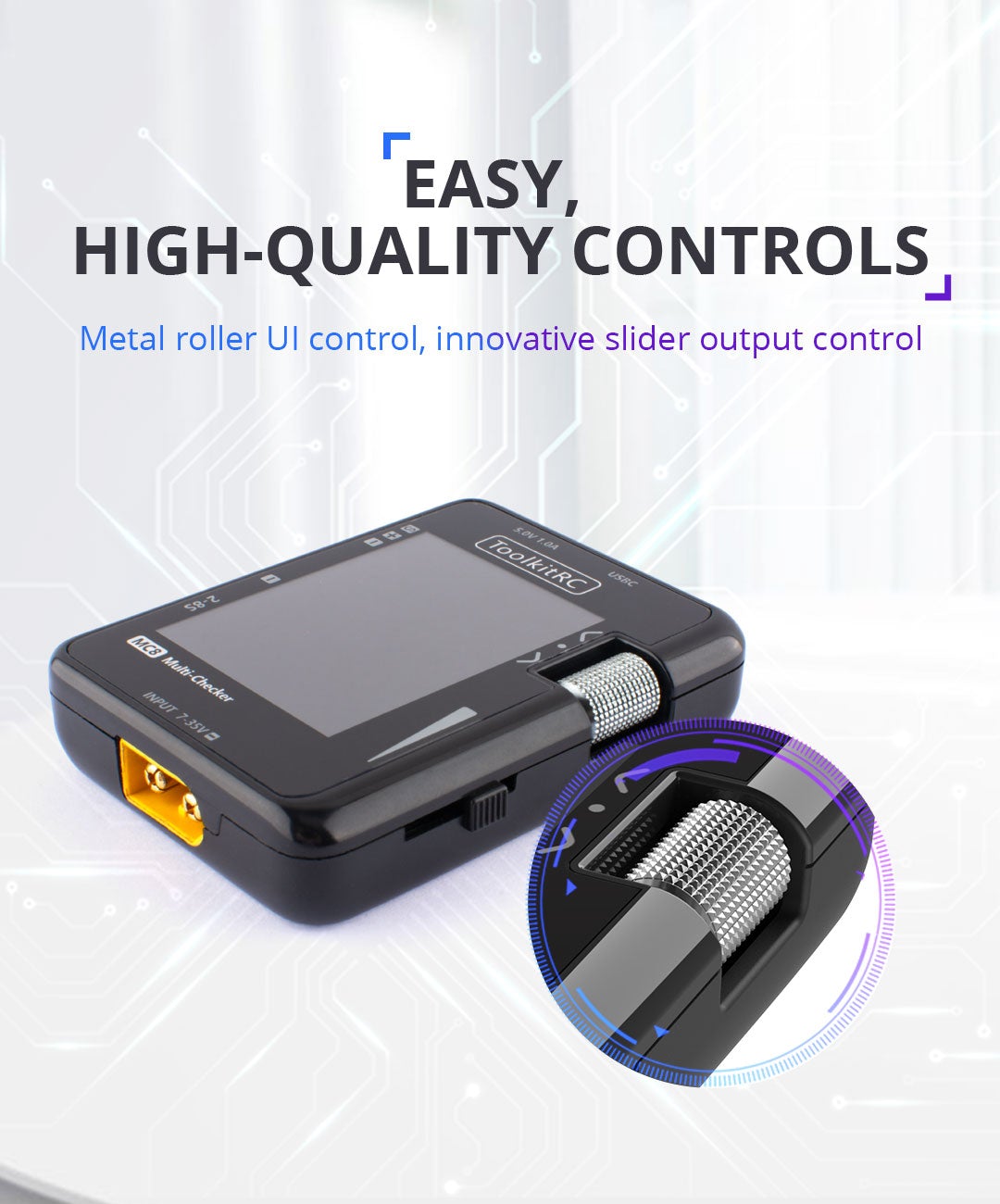

- Intuitive control
Specifications
- LCD: 2" IPS 320x240
- Dimensions: 68x50x15mm
- Weight: 50g
Checker

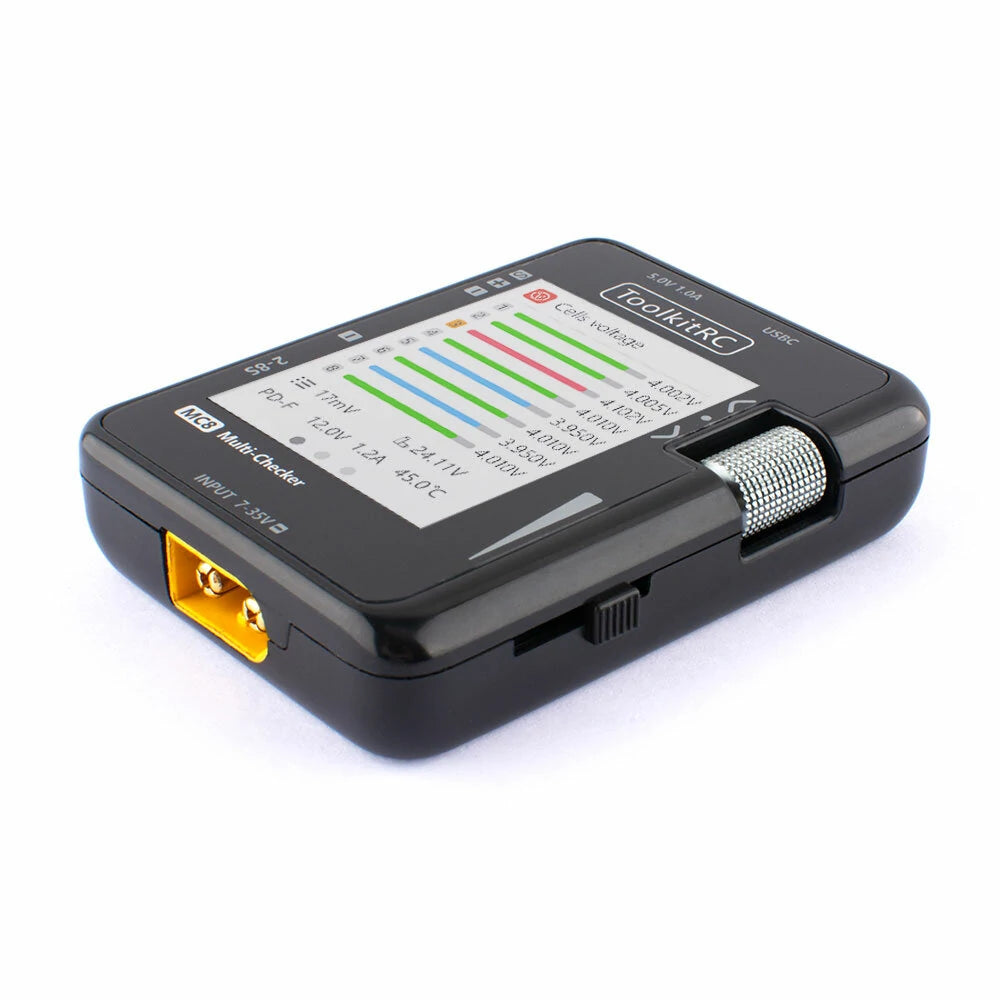

- Main Input port: XT60 7.0-35.0V
- Balance input: 0.5V-5.0V Lixx 2-8S
- Signal port input: <6.0V
- Balance current: MAX 60mA @2-8S

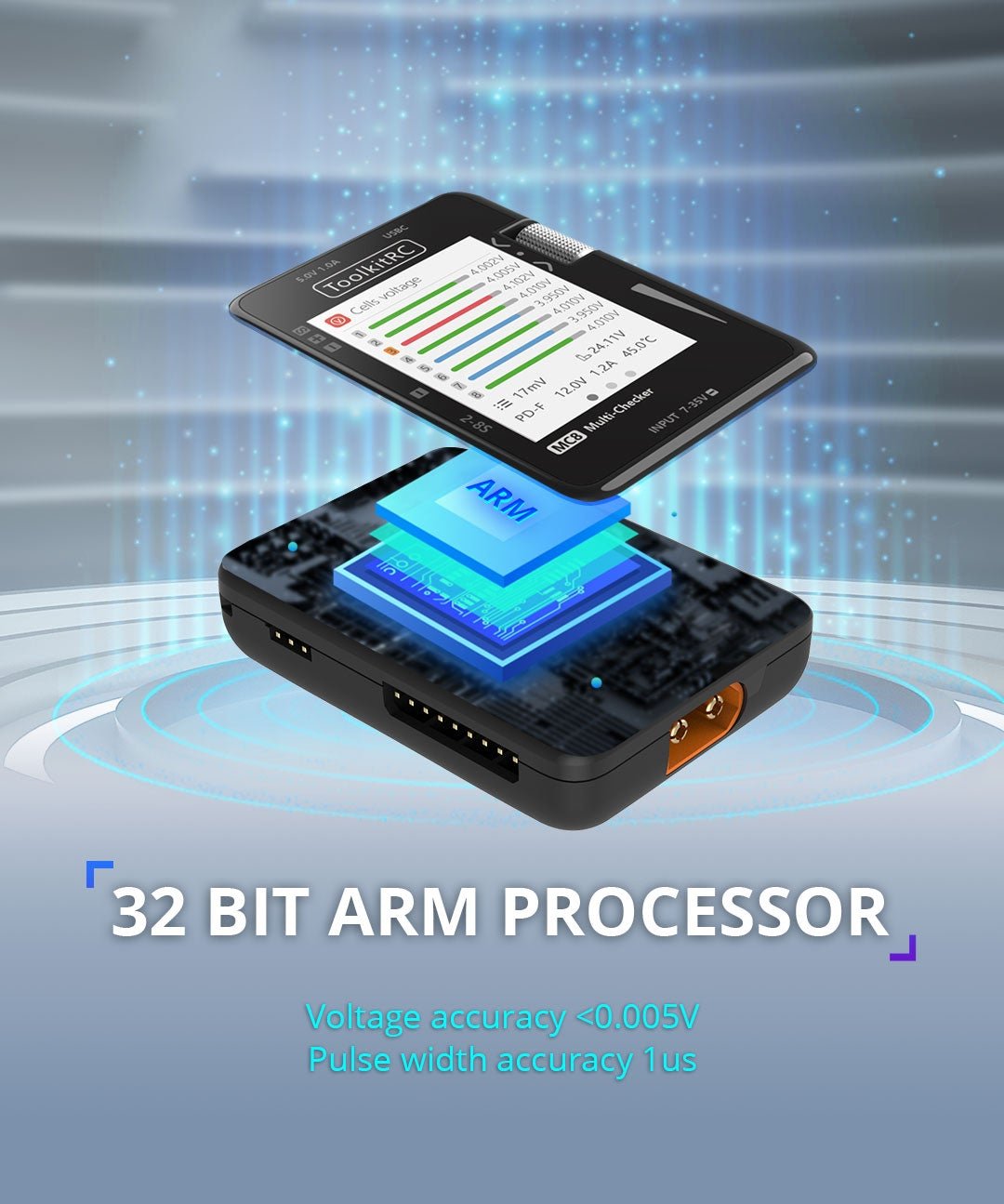

- Balance accuracy: <0.005V @ 4.2V

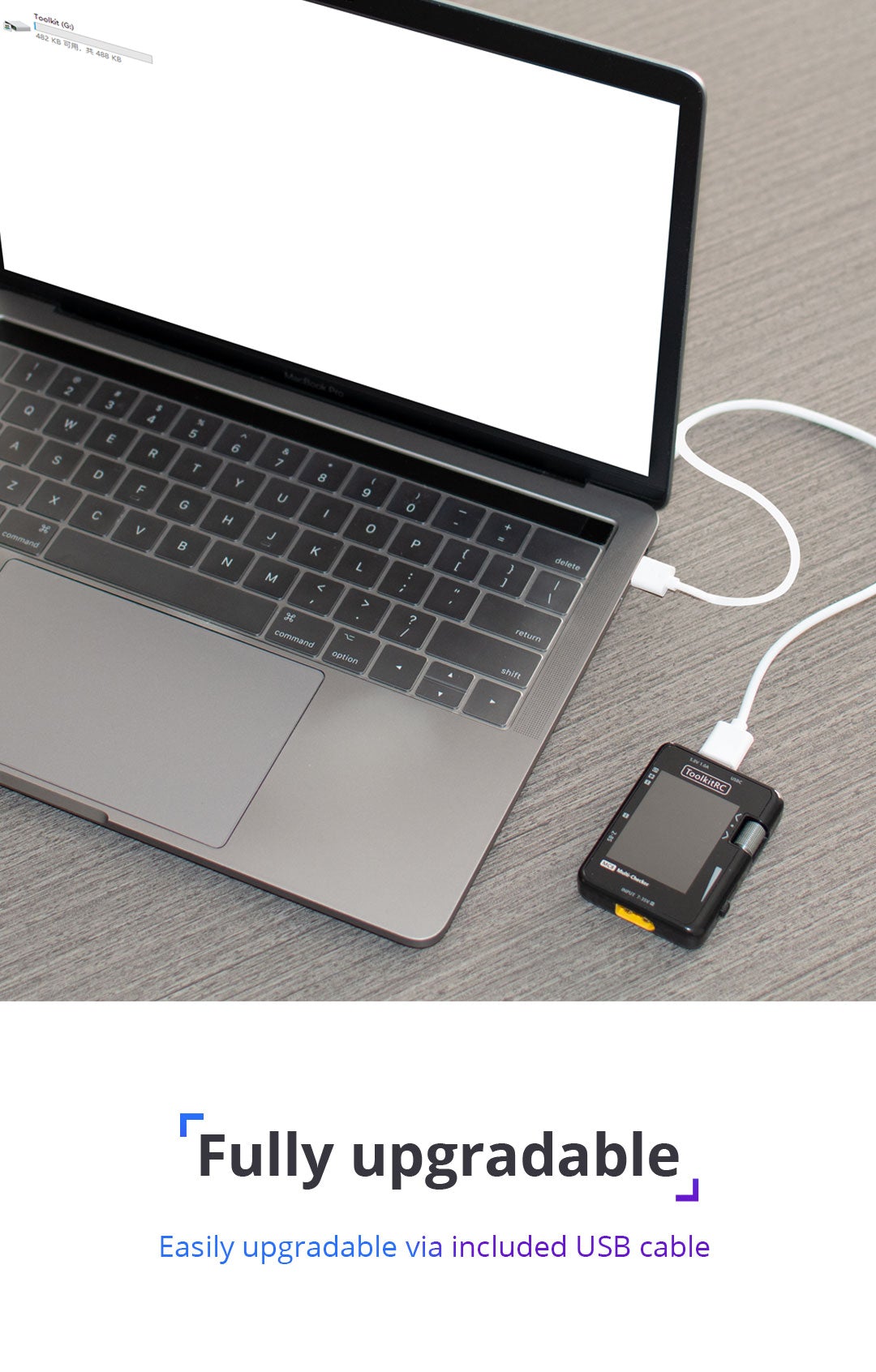

- USB-A output: 5.0V@1.0A firmware upgrade
- USB-C output: 5.0V-12.0V @MAX 20W
- USB-C protocol: PD3.0 QC3.0 AFC SCP FCP
Measurer
- PWM: 880-2200us @20-400Hz
- PPM: 880-2200us*8CH @20-50Hz
- SBUS: 880-2200us*16CH @20-100Hz
Output
- PWM: 1000-2000us @20-1000Hz
- PPM: 880-2200us*8CH @20-50Hz
- SBUS: 880-2200us*16CH @20-100Hz
Included
- 1x Toolkit RC MC 8 Multi-Functional 2-8S Battery Checker
