Product Details

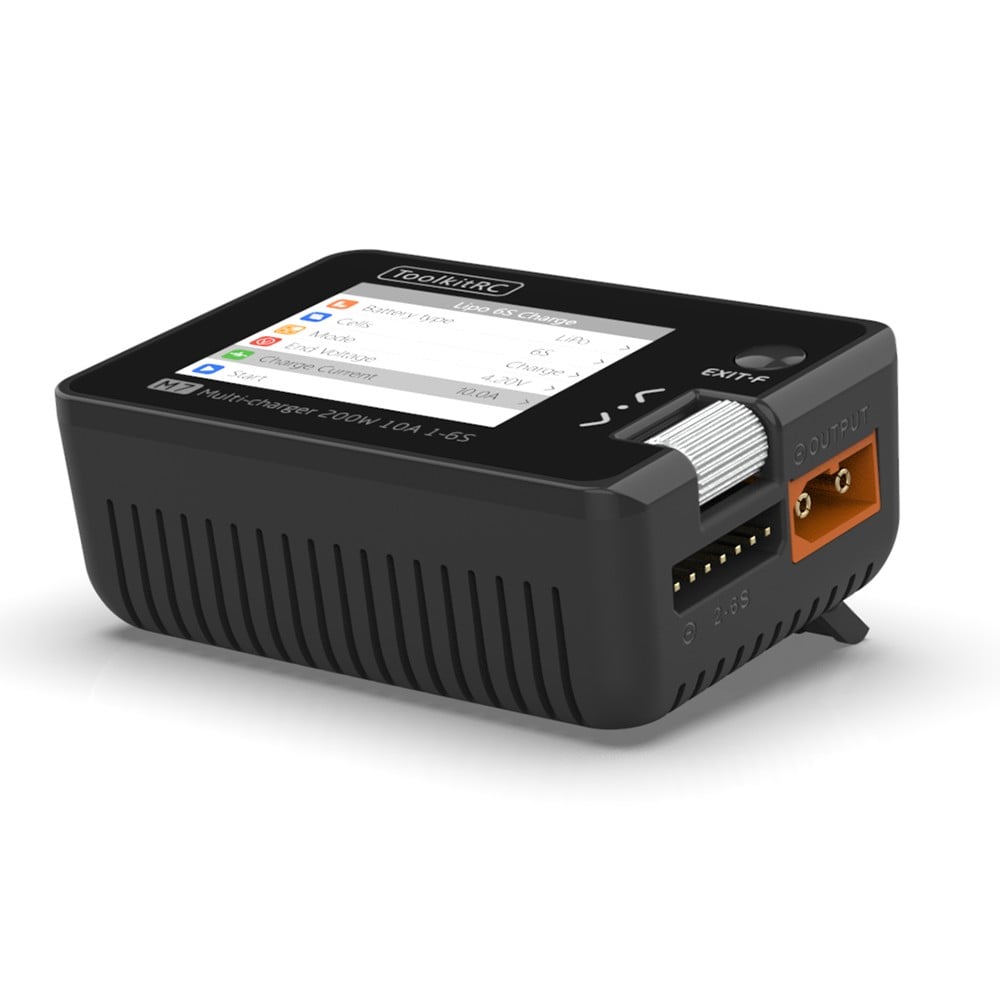

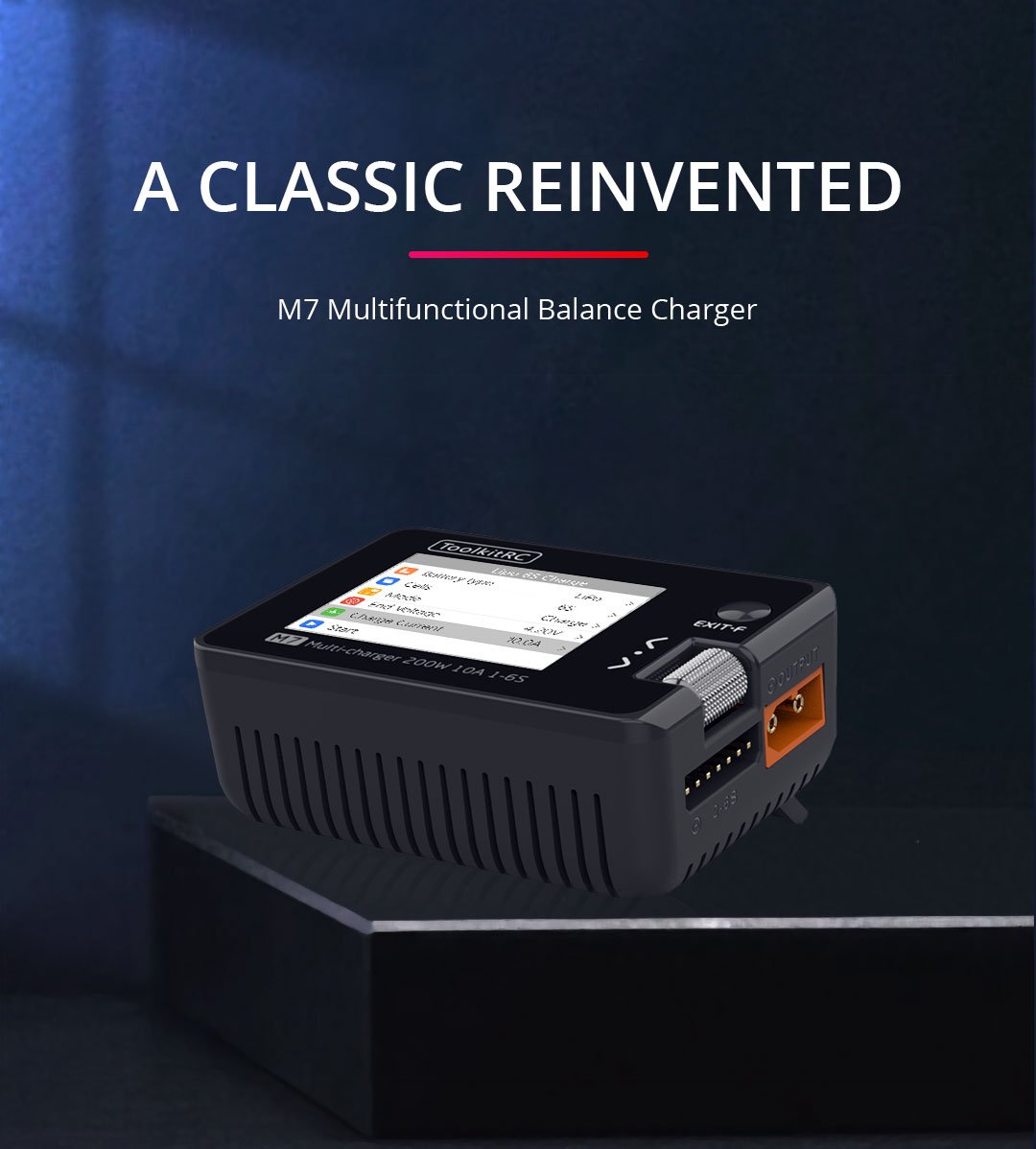

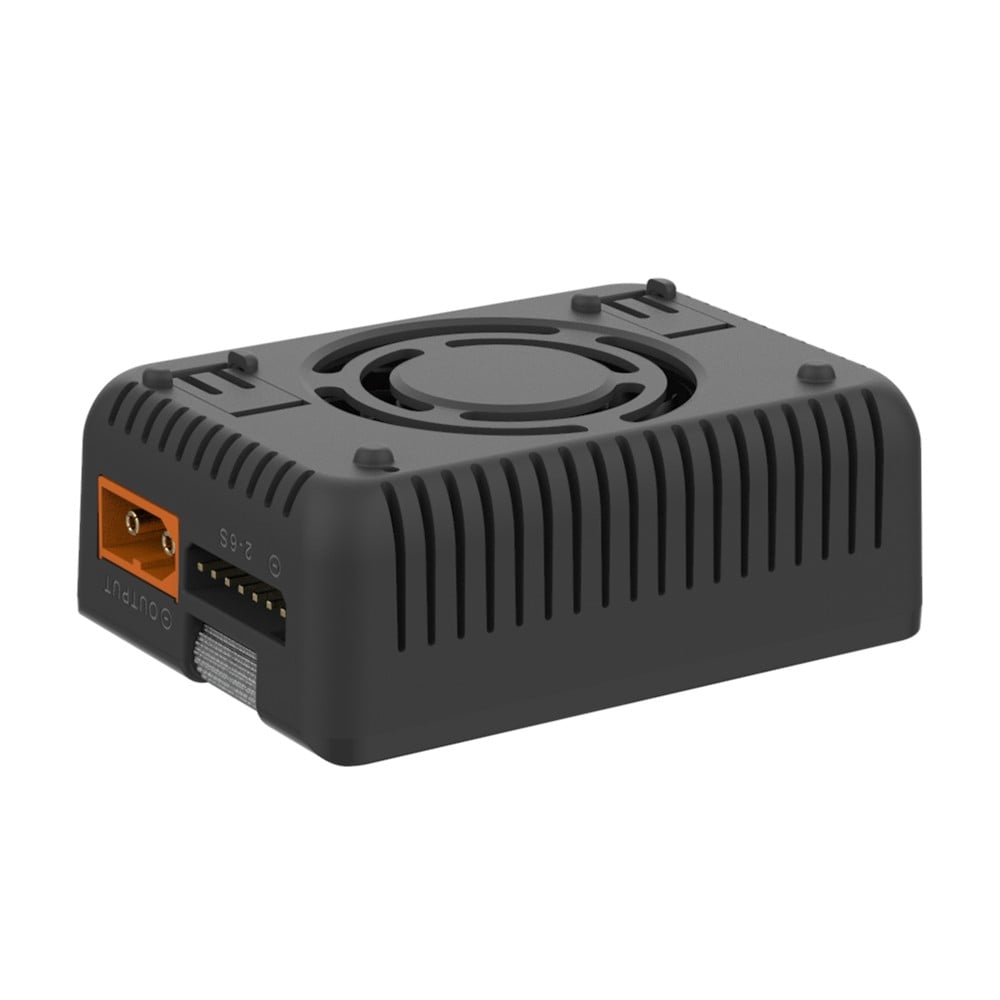

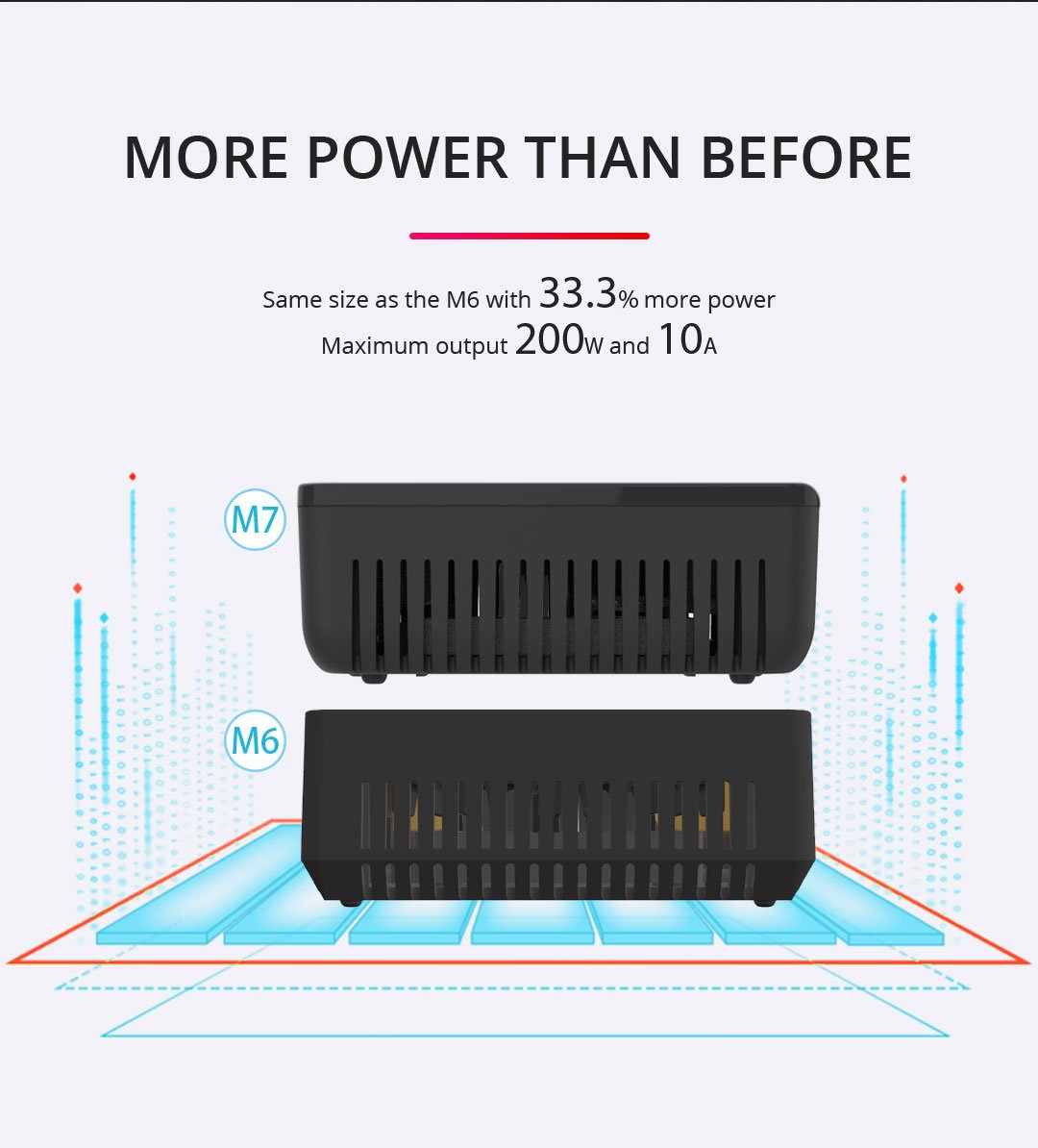

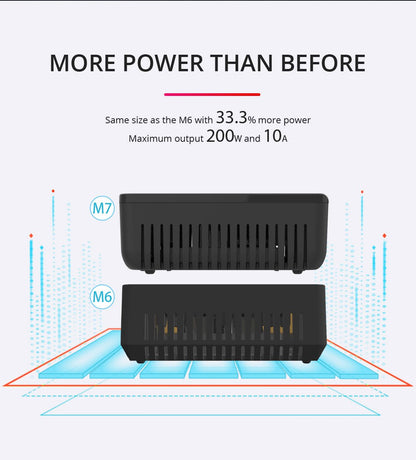

The M7 multi functional balance charger from Toolkit RC takes everything we love from the previous generation M6, to gives you 33% more power, along with several other improvements such as a simplified interface and a better display that can be used outdoors more easily.
We have found that out of the box (or after a firmware update) you will likely need to calibrate the voltage on the charger before use, it takes 3 minutes but you will need a voltmeter. We have a quick guide showing how to do that here - Toolkit RC voltage calibration guide.
ToolKit RC M7 Manual V1.0
Key Features / Functions
- 240 X 320 Screen Resolution

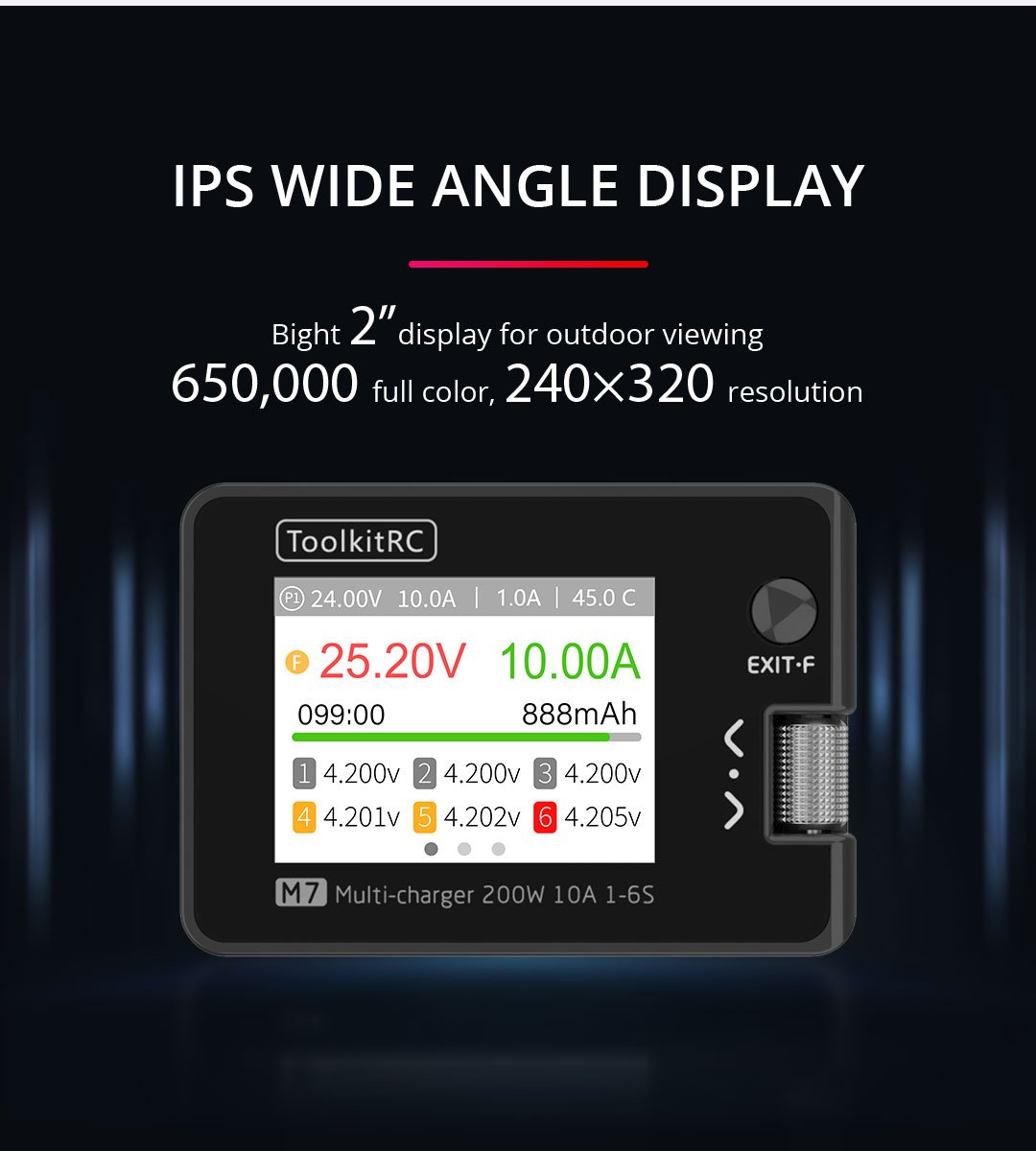

- IPS Wide-angle display

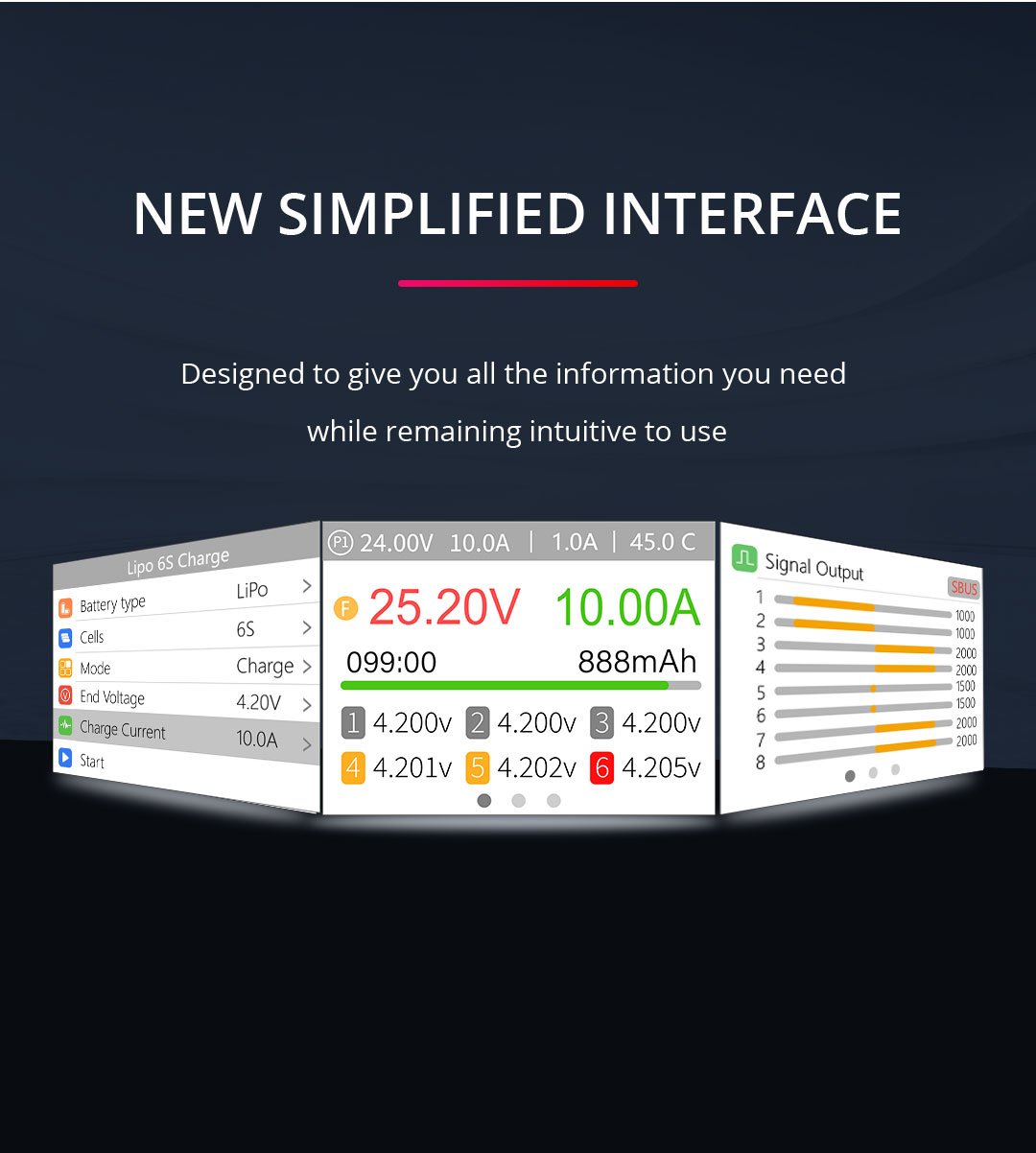

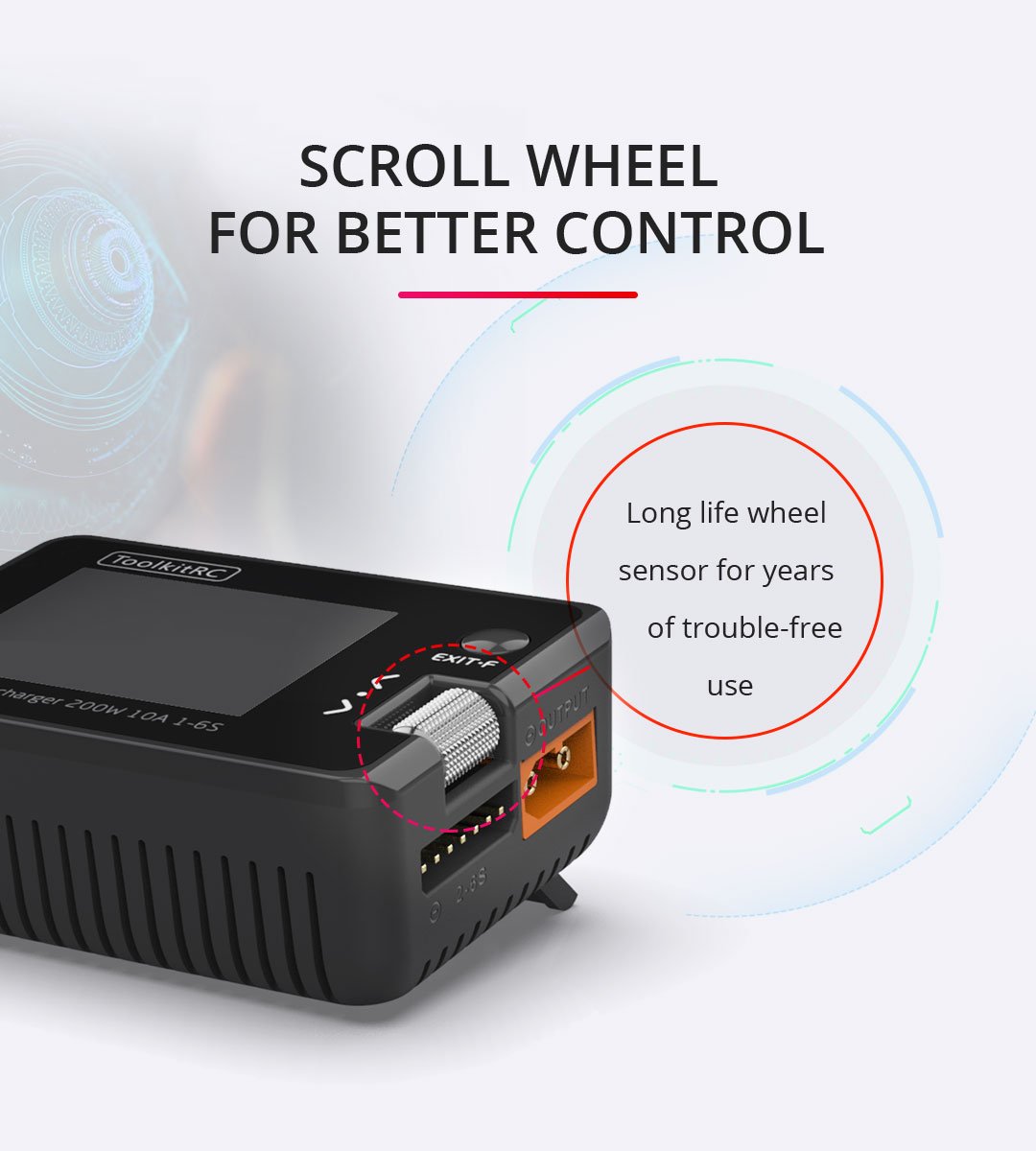

- Simplified Interface
- Electricity Measure

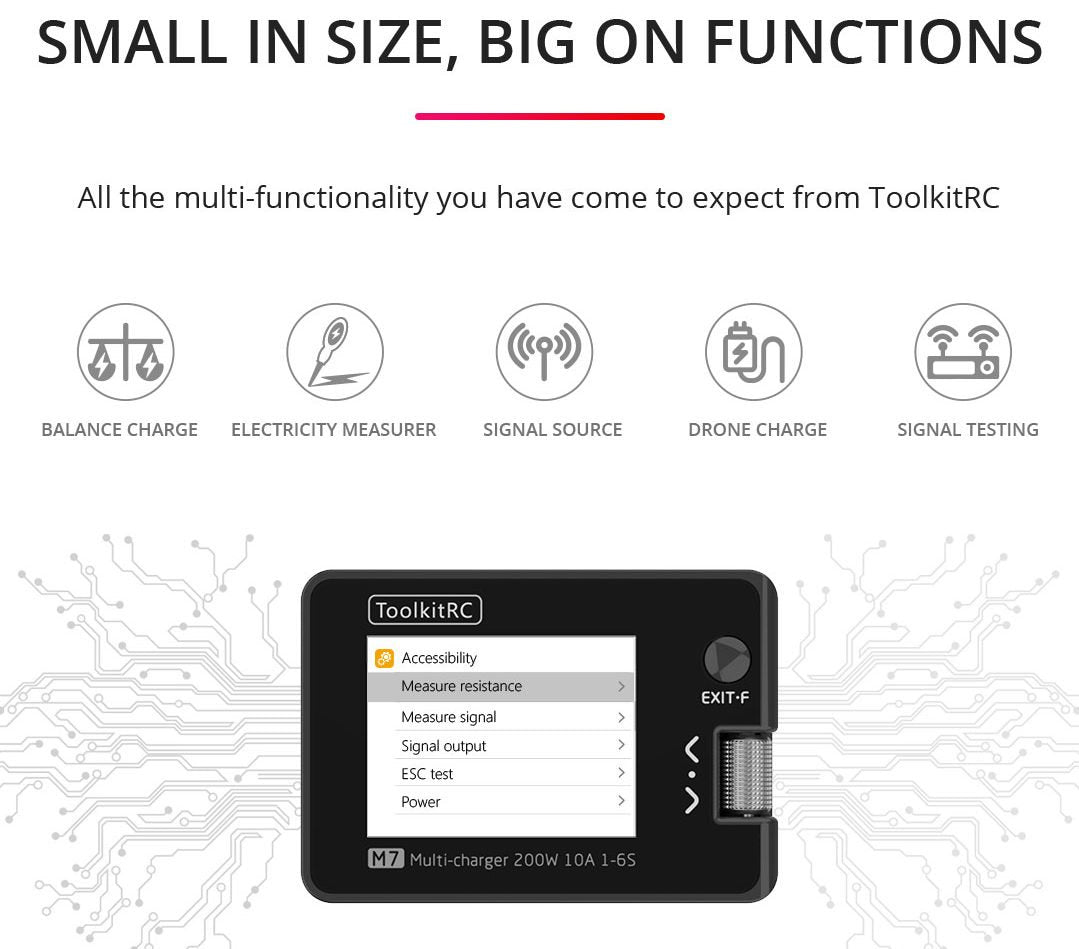

- Multi-functionality
- Balance Charge
- Multi-language
- Signal Source
- Drone Charge
- Signal Testing

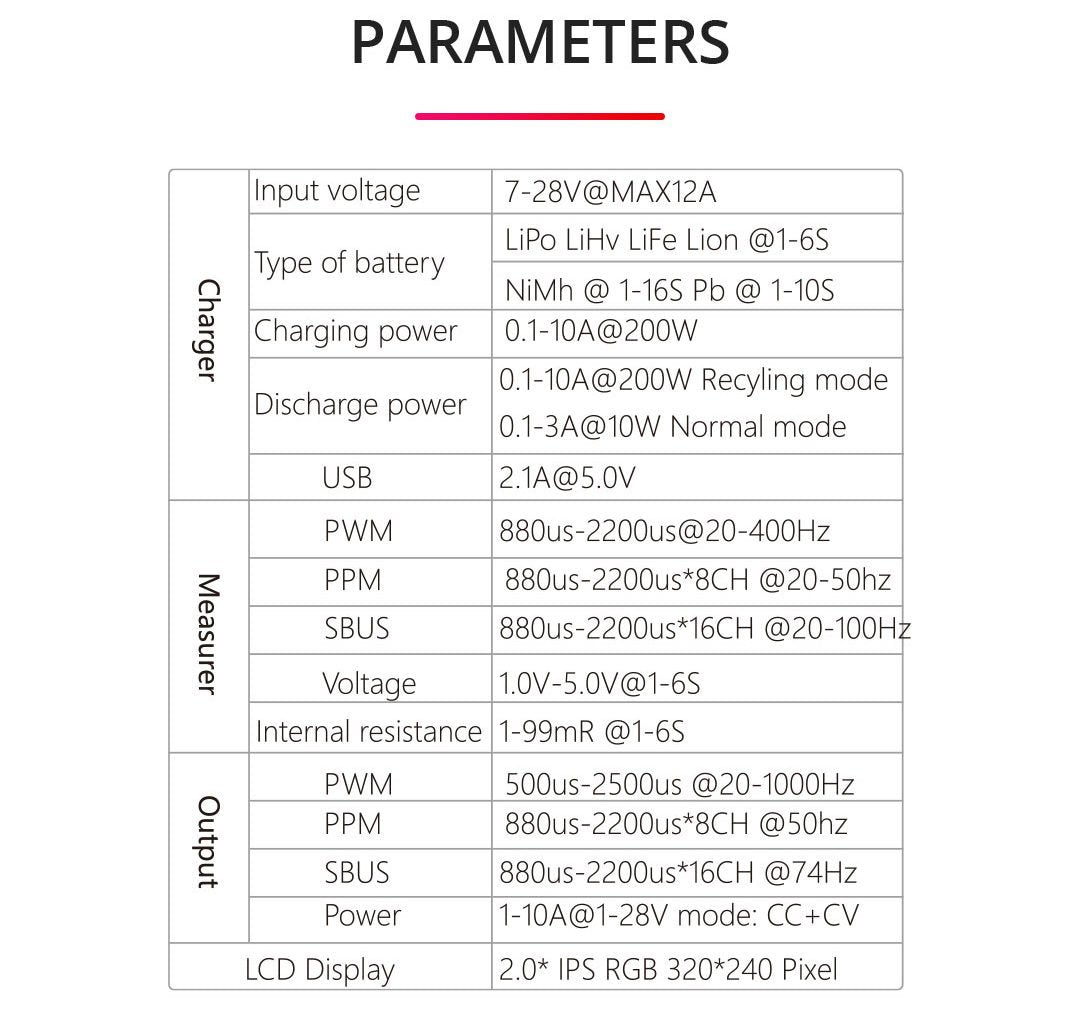

Specifications

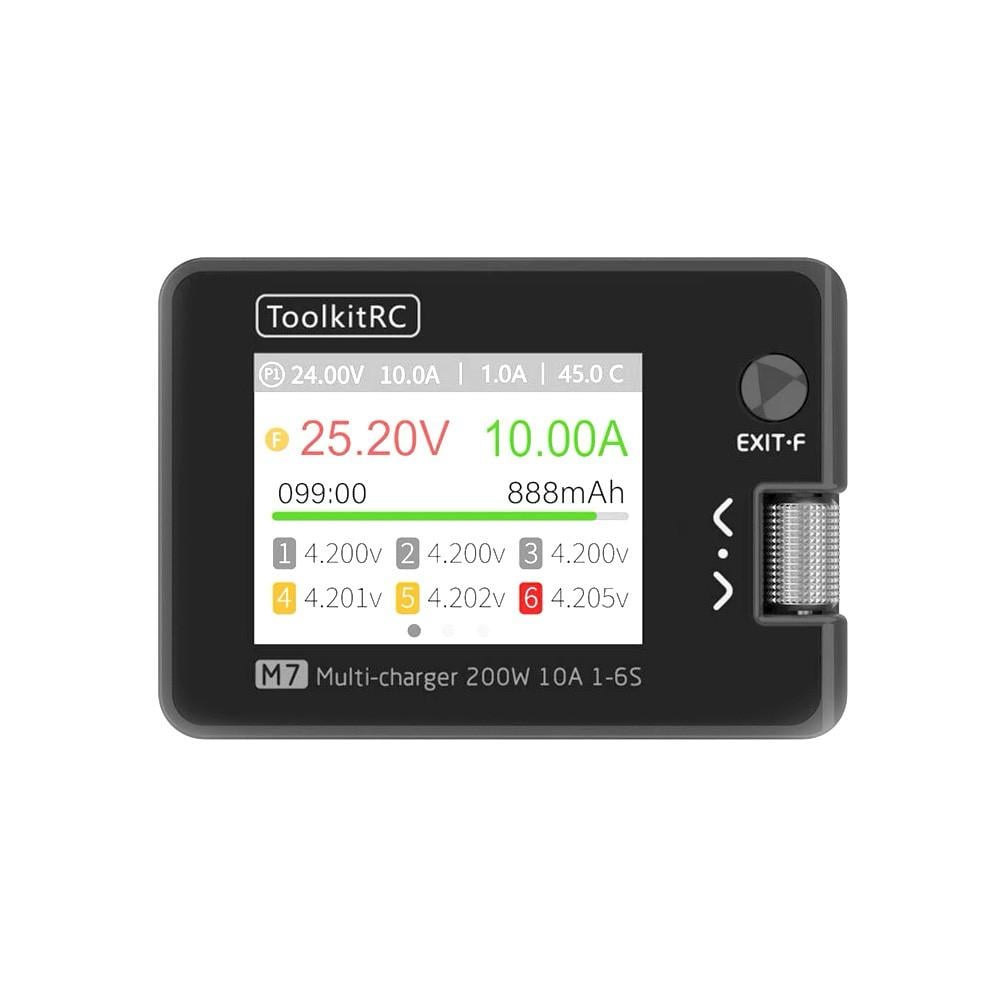

- LCD: IPS 2.0inch LCD 320*240 Pixel
- Product size: 73*51*27 mm
- Pack size: 84*79*39 mm
- Product weight: 90g
- Pack weight: 150g
Charger Specs
- Discharge power: 200W @MAX 10A Recycle mode / 10W@3A Normal mode
- Type of battery: Lipo LiHV LiFe Lion@1-6S / NiMh @1-16S Pb @1-10S

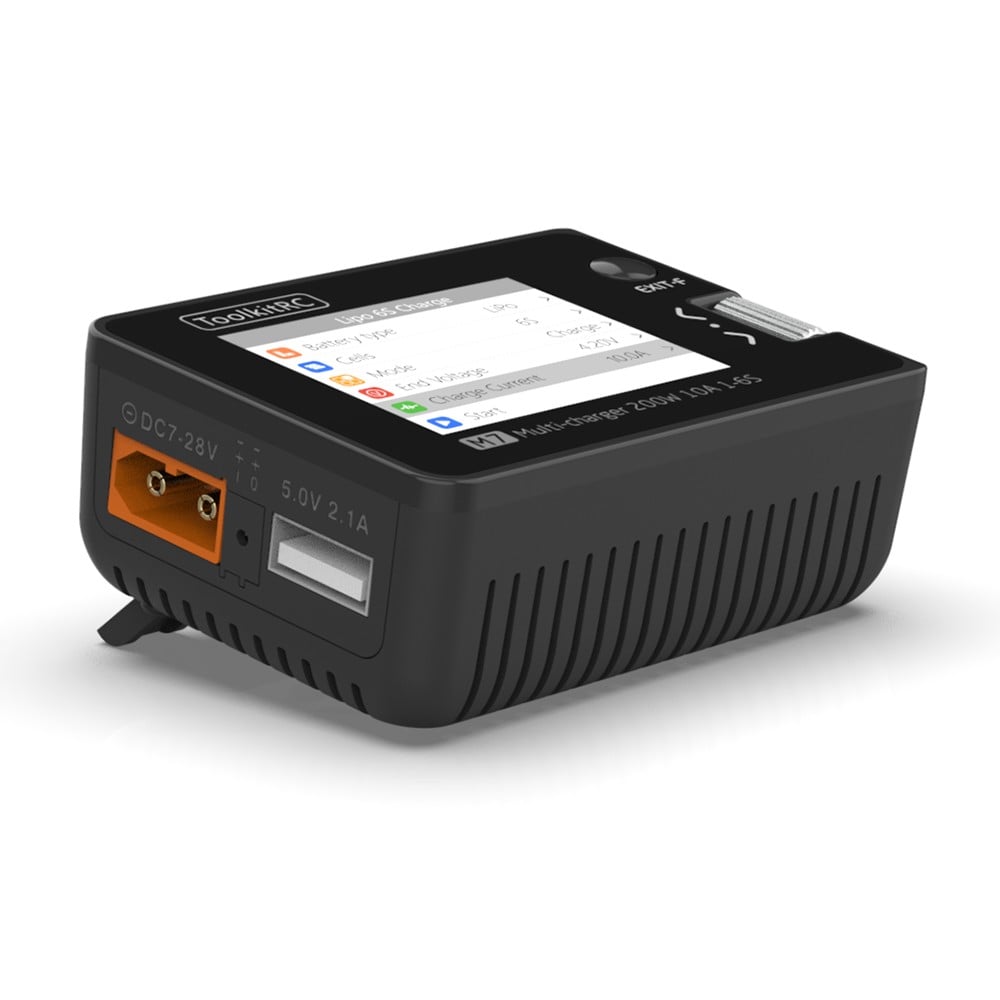

- Input voltage 7.0-28.0V @MAX 12A
- Charger power: 200W @MAX 10A
- Balance current400mA @2-6S
- USB: 2.1A @5.0V or Upgrade
Using as a power supply
- Power supply: 1.0-28.0V @1.0-10A mode:CC+CV
- SBUS: 880-2200us*16CH @20-100Hz
- PPM: 880-2200us*8CH @20-50Hz
- PWM: 500-2500us @20-1000Hz
- OverCurrent Cutoff time: <5ms
Using as a multimeter/measurer
- SBUS: 880-2200us*16CH @20-100Hz
- Internal resistance: 1-99mR @1-6S
- PPM: 880-2200us*8CH @20-50Hz
- ESC: 200W@10A PWM Output
- PWM: 880-2200us @20-400Hz
- Voltage:1.0-5.0V @1-6S
Includes
- 1 x ToolkitRC M4Q Charger
