Product Details

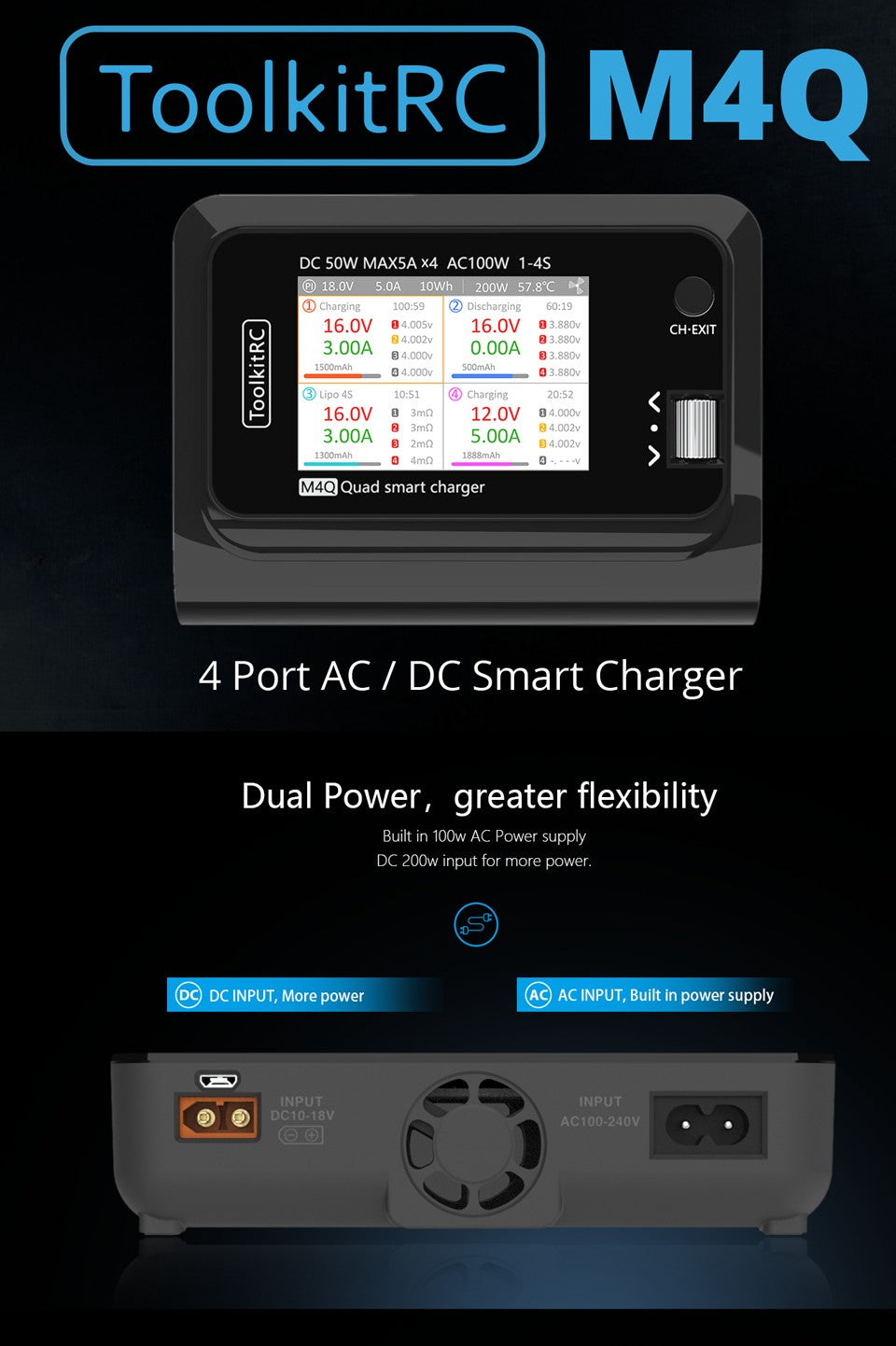

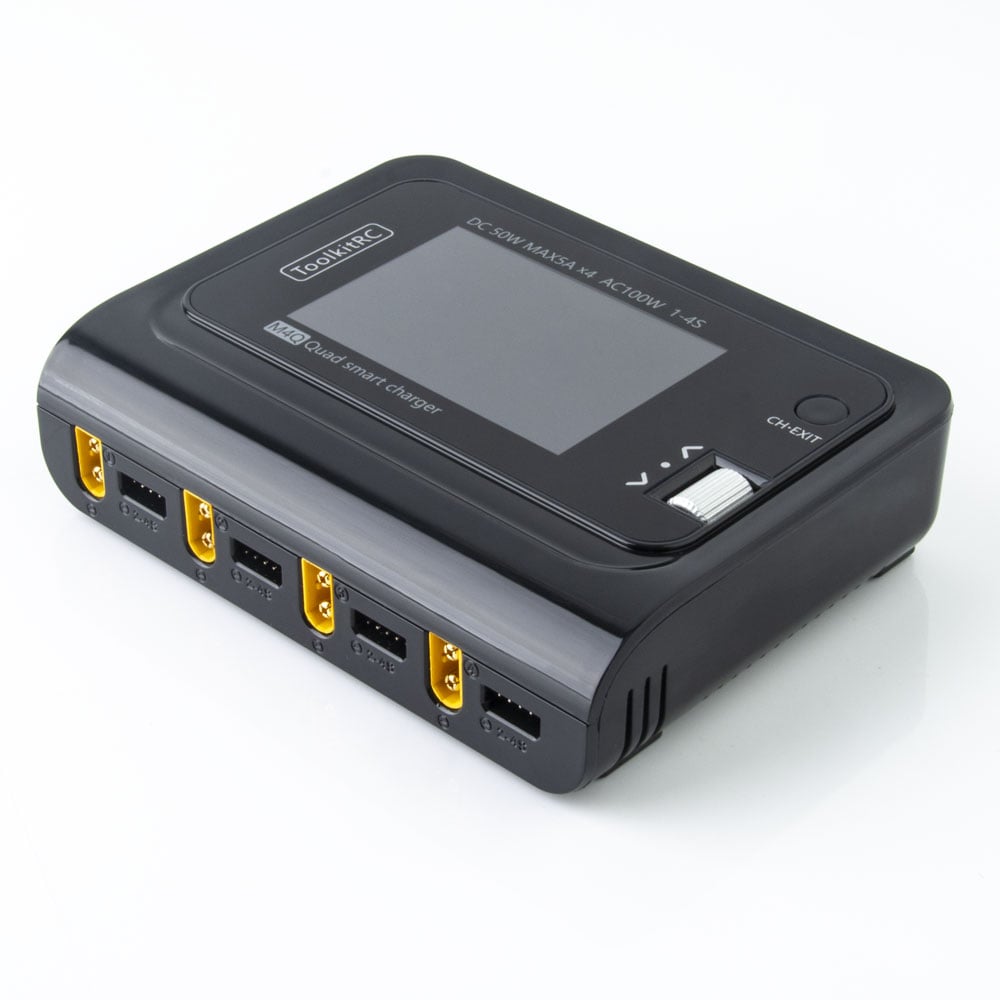

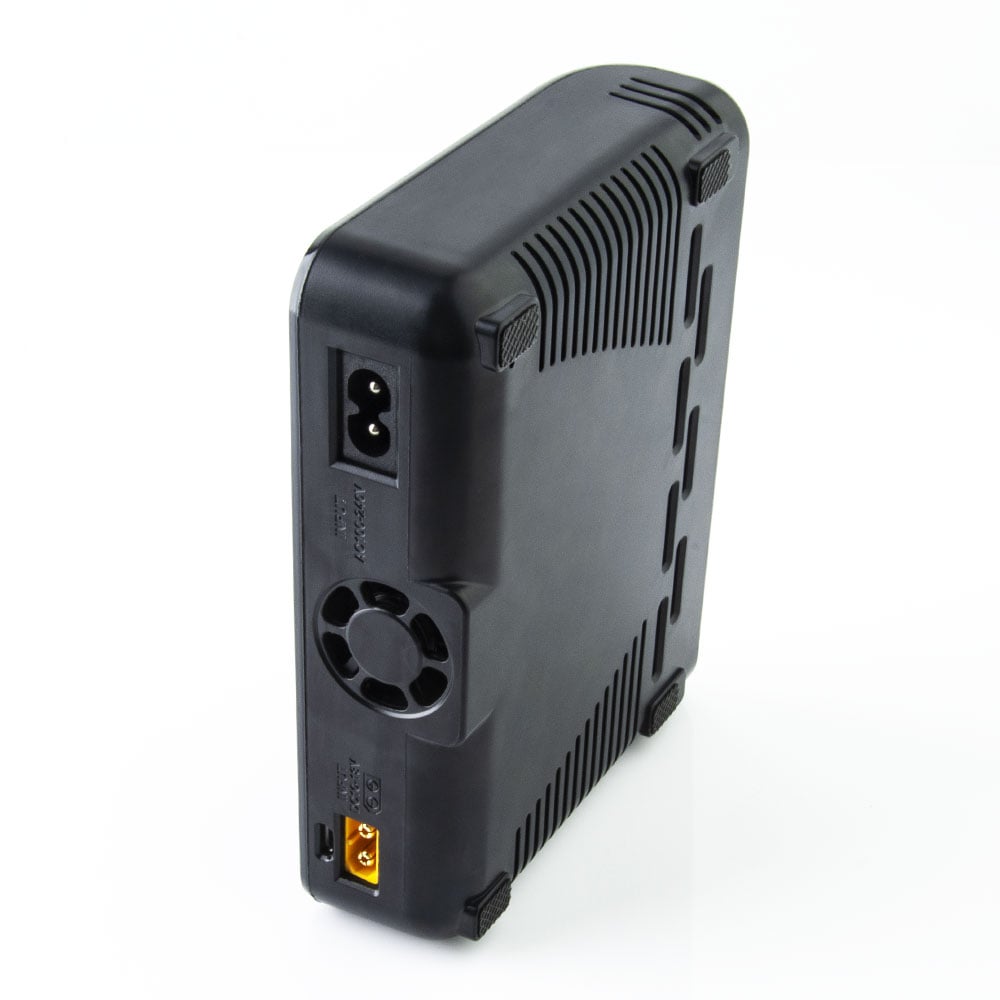

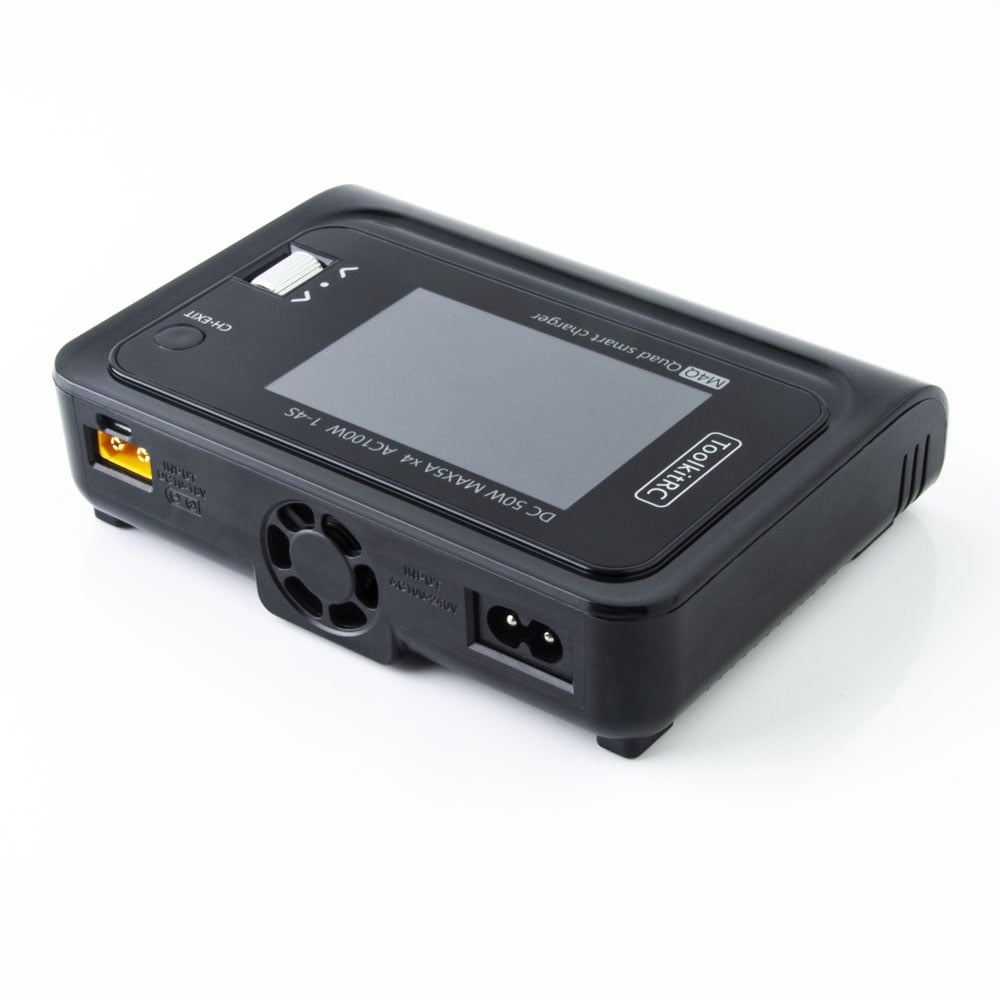

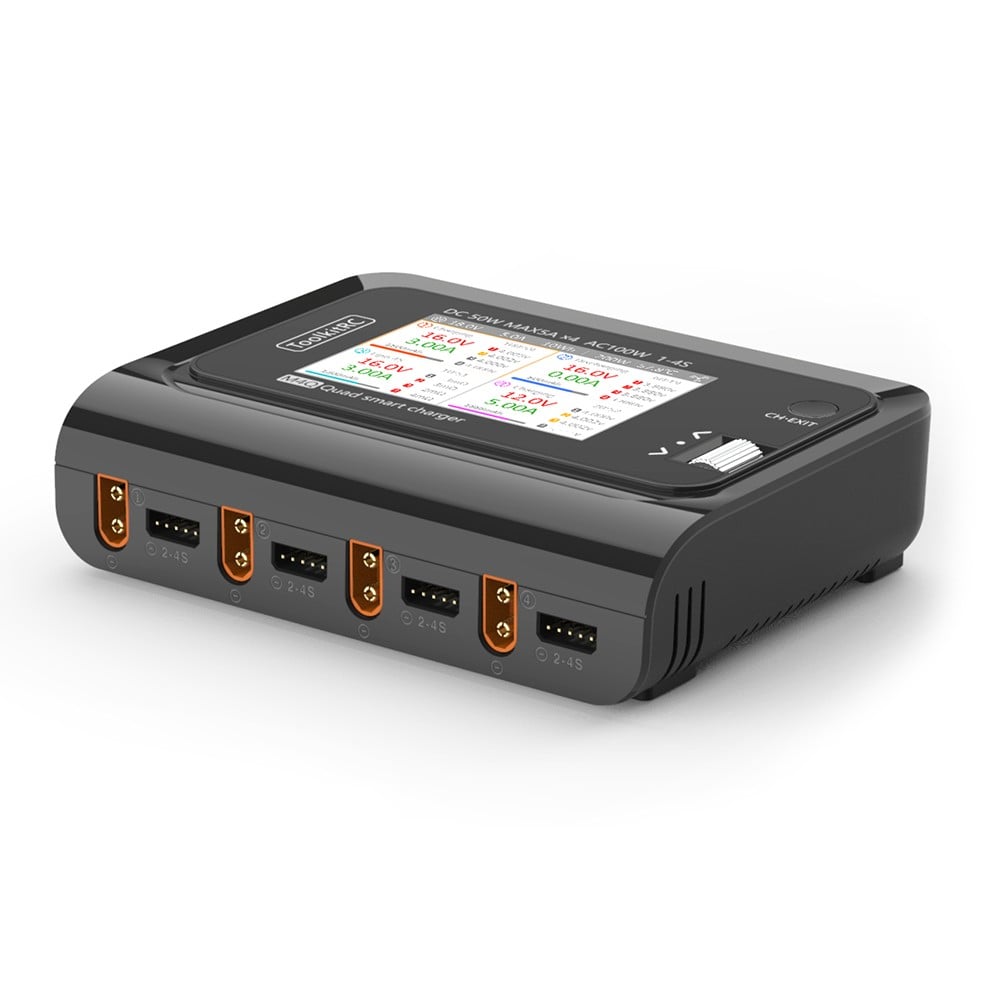

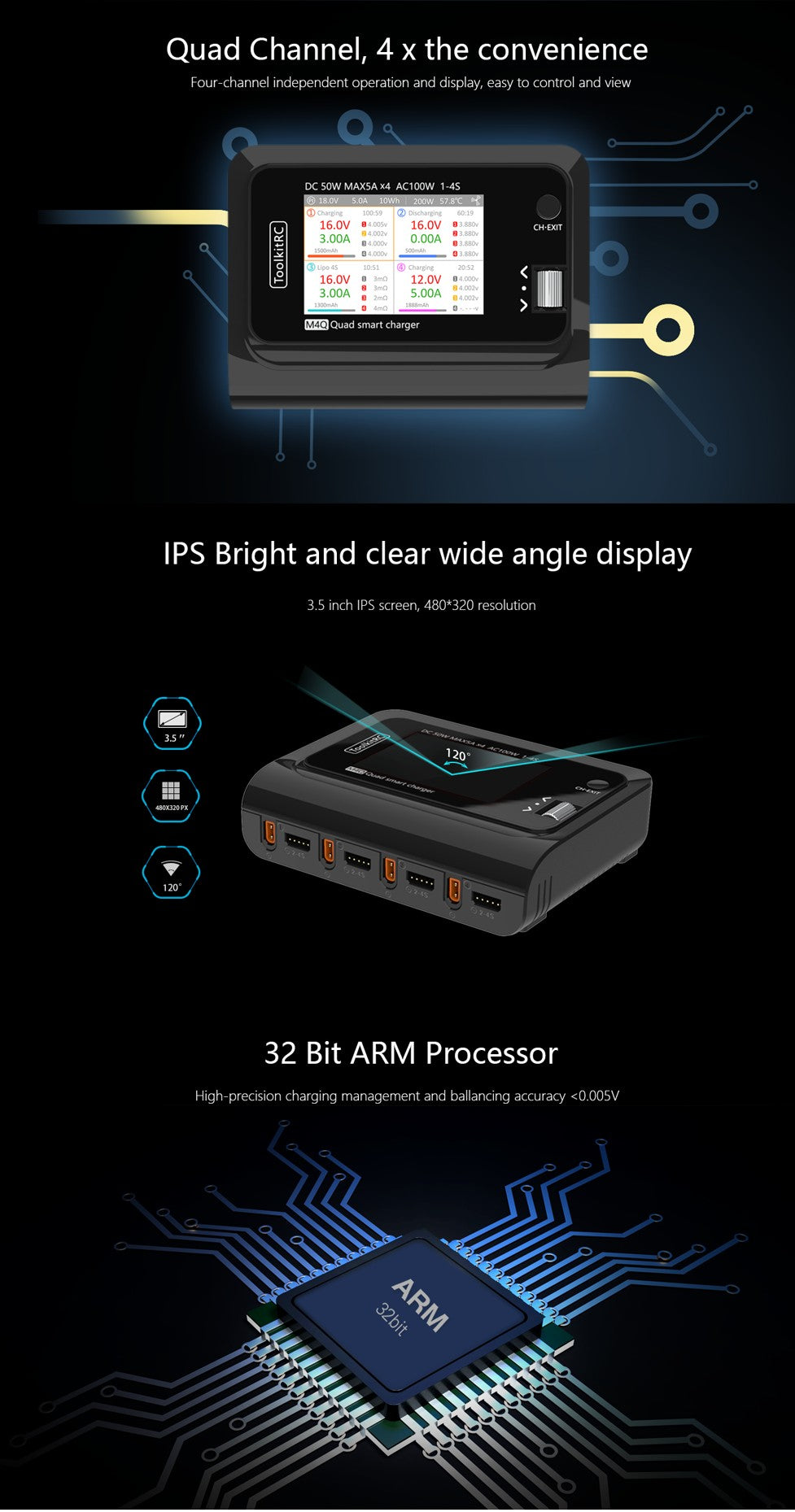

The ToolKitRC M4Q is a 4in1 charger that has 4x 50W charging circuits inside. This allow you to balance charge 4 batteries at the same time. This charger also features an integrated power supply so you can just plug it into your nearest wall socket. It also includes a XT60 input connector to enable in the field charging.
We have found that out of the box (or after a firmware update) you will likely need to calibrate the voltage on the charger before use, it takes 3 minutes but you will need a voltmeter. We have a quick guide showing how to do that here - Toolkit RC voltage calibration guide.

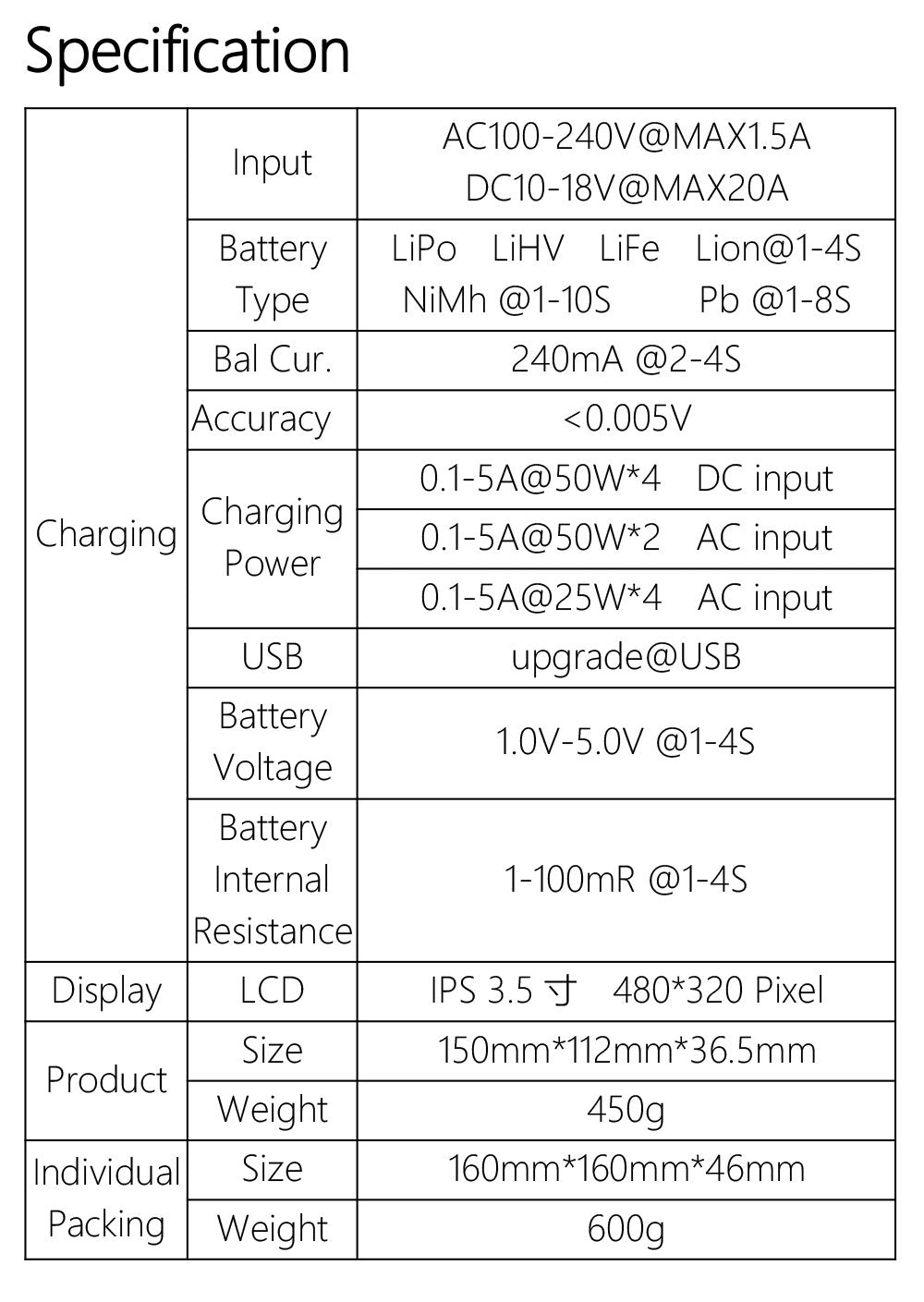

Specifications
- Input voltage:AC100-240V@MAX1.5A, DC10-18V@MAX20A
- Type of battery:LiPo LiHV LiFe Lion@1-4S NiMh @1-10S Pb @1-8S
- Balance current:240mA @2-4S
- Balance accuracy: < 0.005V
-
Charge power:
- 0.1-5A@50W*4 DC
- 0.1-5A@50W*2 AC
- 0.1-5A@25W*4 AC
- Voltage range:0.2V-5.0V @1-4S
- Internal resistance:1-100mR @1-4S
- MicroUSB:Upgrade@USB2.0
- Product size:150*112*36.5mm
- Product wight:450g
- Pack size:160*160*46mm
- Pack wight:600g

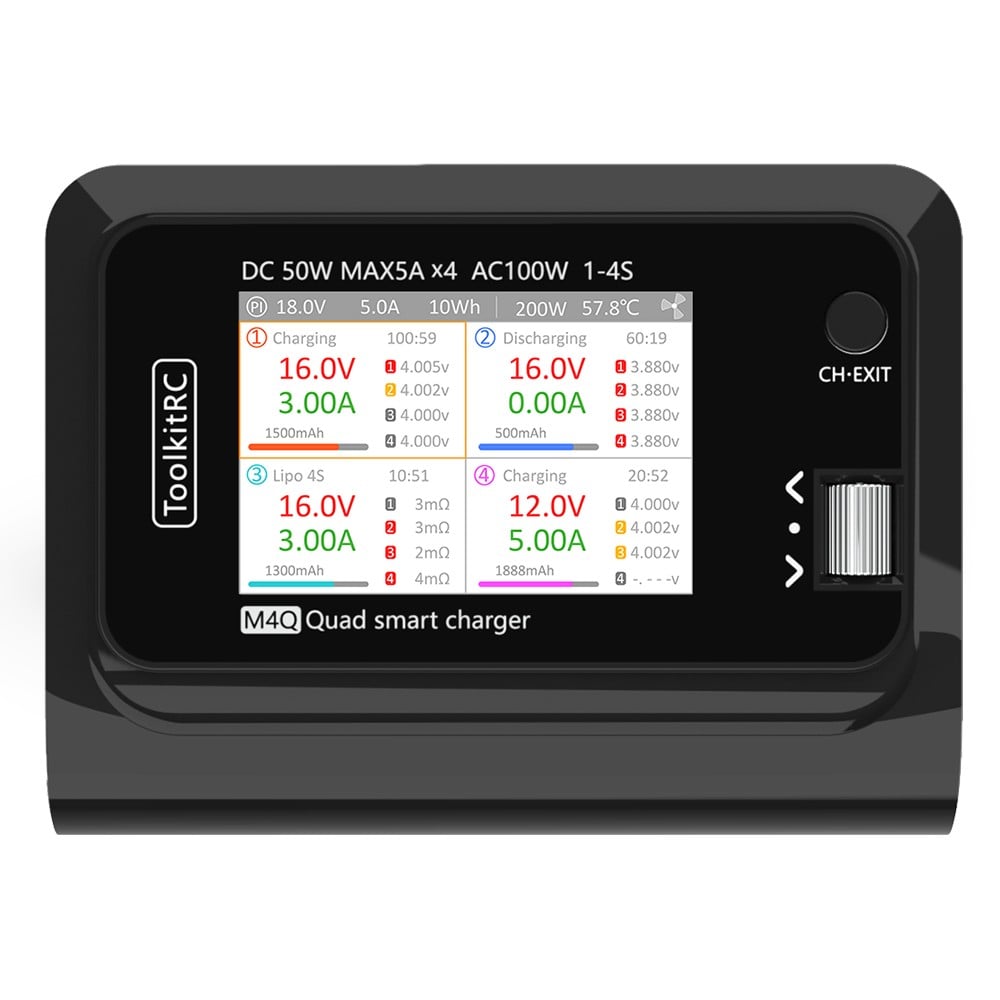

- LCD:IPS 3.5inch 480*320pixel
TookitRC M4Q Manual V1.0

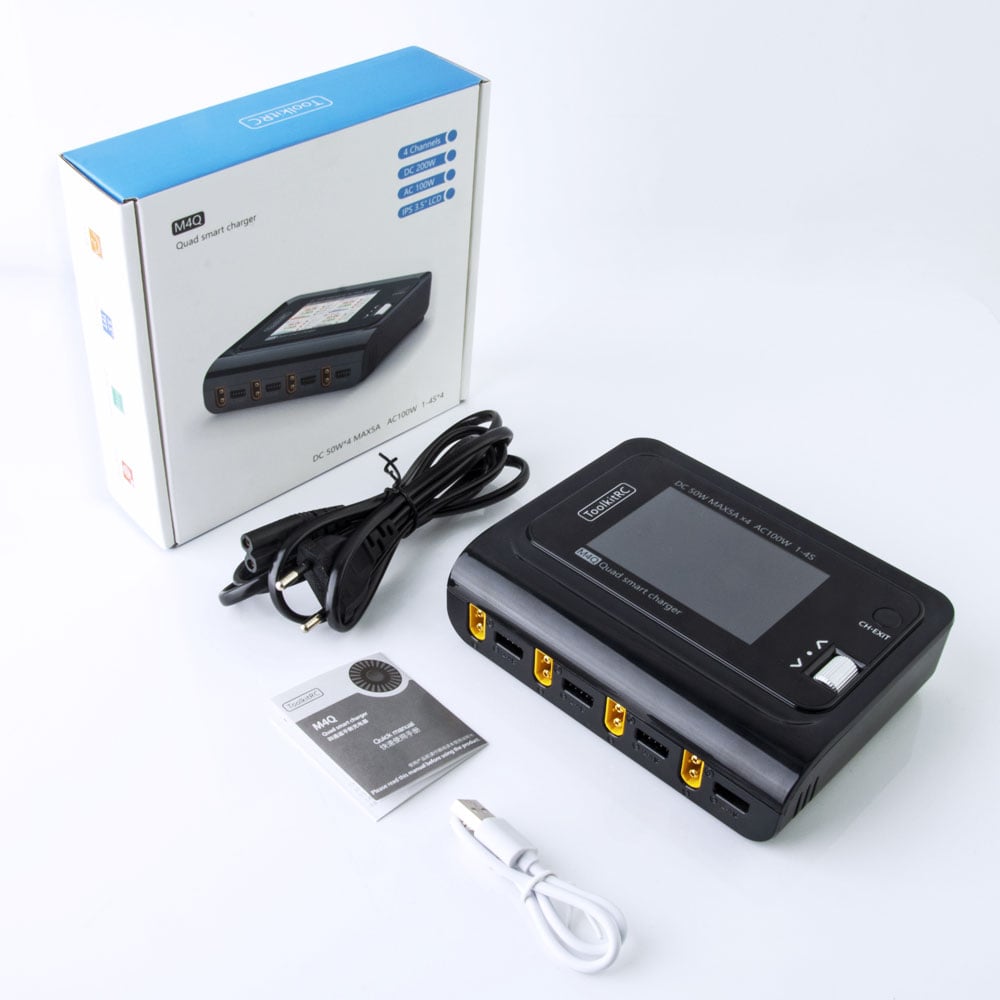

Includes
- 1 x ToolkitRC M4Q Charger
