Product Details
Features
- Dual Inputs - Type C and XT-60 DC

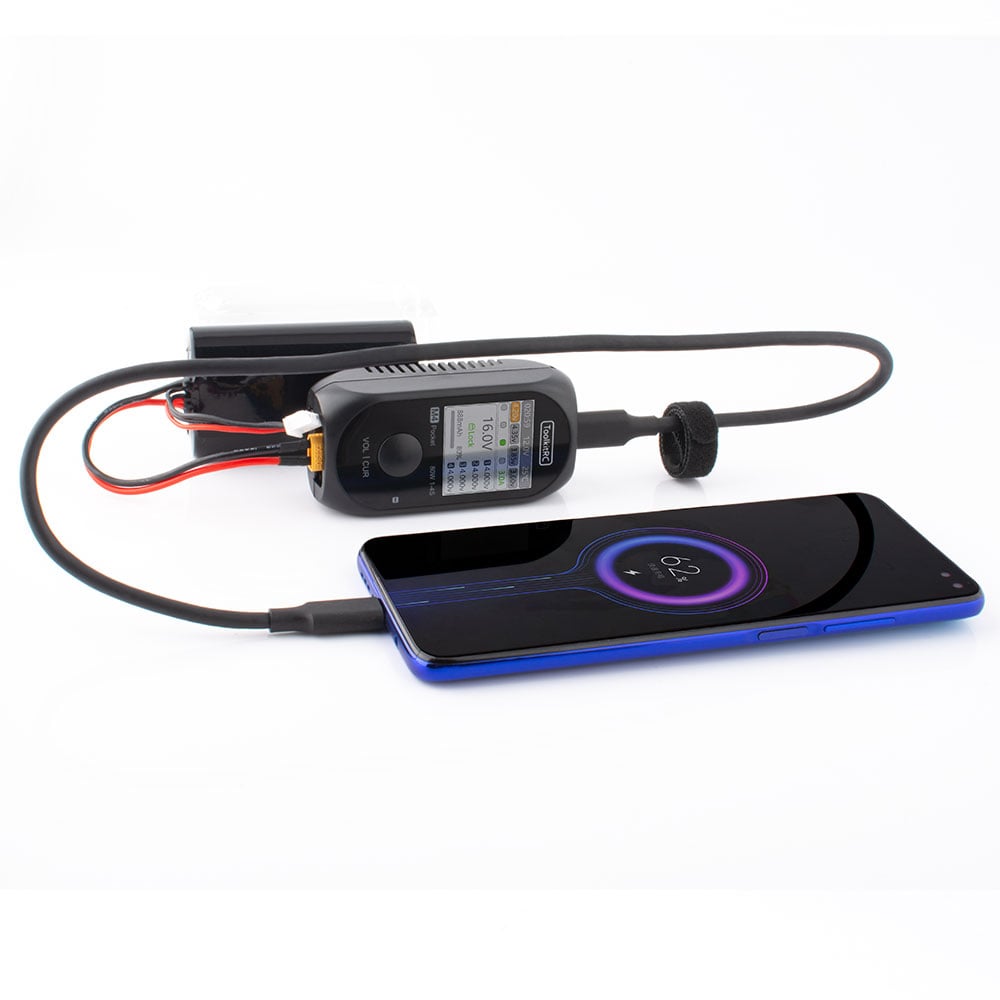

- Built-In USB-C Input and Output

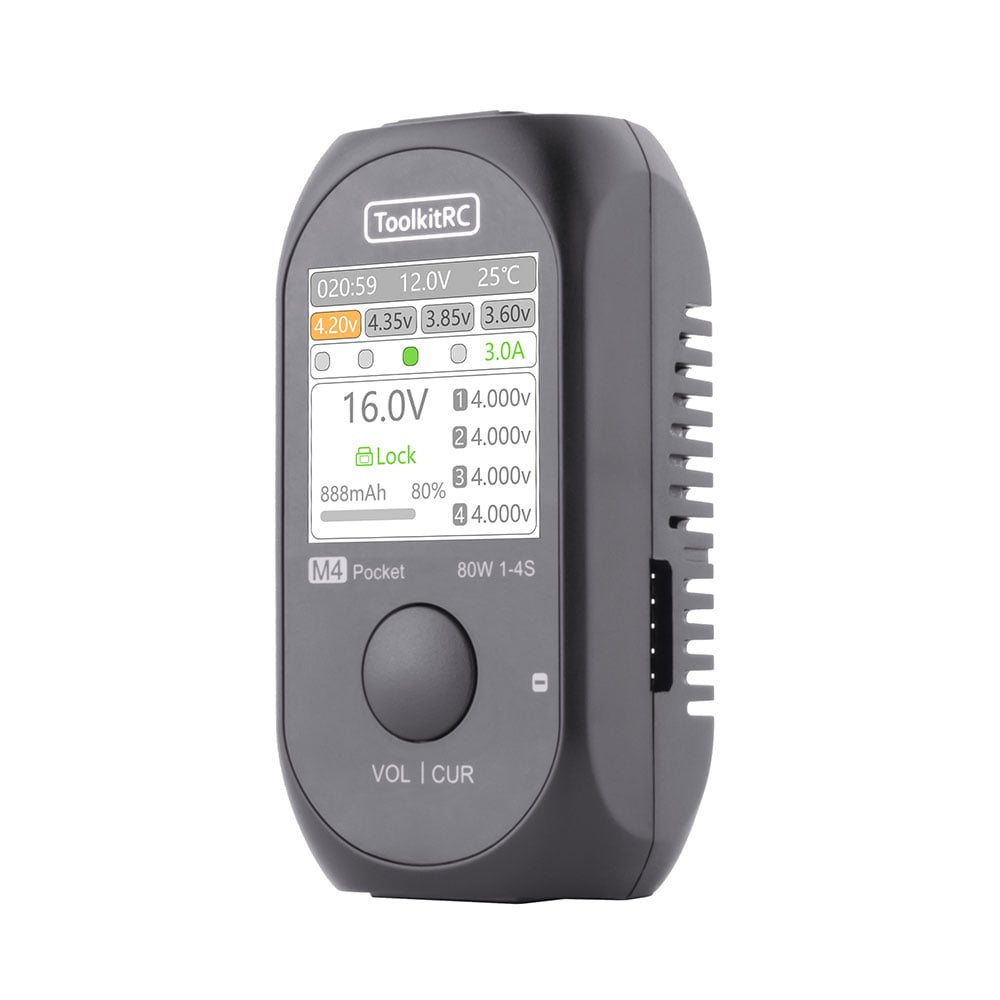

- IPS Wide-Angle Color Display
- Fast Charging Support
- 80 Watts of Power
- Pocket-Sized
Please note that for Toolkit RC chargers, a voltage calibration may be required before use or after a firmware update. This calibration ensures accurate readings and optimal performance. For detailed instructions on how to perform a voltage calibration, please refer to the manual included with your charger. You can also find more information on this process at the following link: https://help.unmannedtech.co.uk/portal/en-gb/kb/articles/how-to-calibrate-toolkit-rc-voltage.
Specifications
- Input Voltage: XT60 7.0-25.0V MAX 5.0A, USB-C 7.0-20.0V
- Type of battery: LiPo LiHv LiFe Lipo Storage 1-4S
- USB-C protocol: QC,PD,AFC,FCP Protocol
- Screen: IPS 1.54inch LCD 240*240 Pixel
- Charge power: 1.0-5.0A@MAX 80W
- Balance current: 400mA @4.20V
- Balance accuracy: <0.005V @ 4.2V
- USB-C output: 1.0A @5.0V
- Dimensions: 80x40x30
- Weight: 75g
Manual
Includes
- 1x ToolkitRC M4 Pocket 80W 5A 1-4S Compact DC Charger
