Product Details

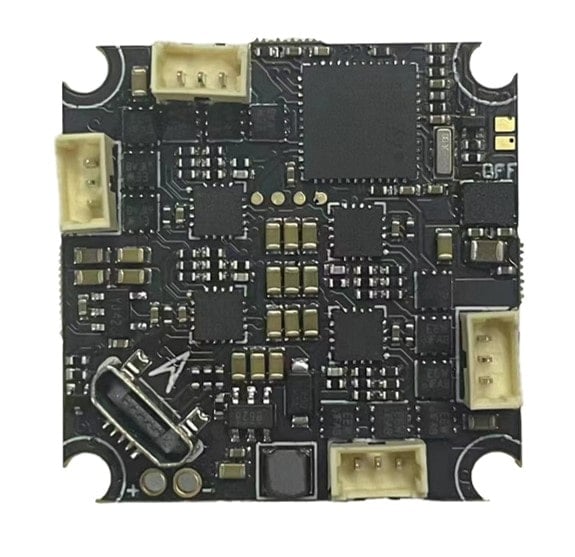

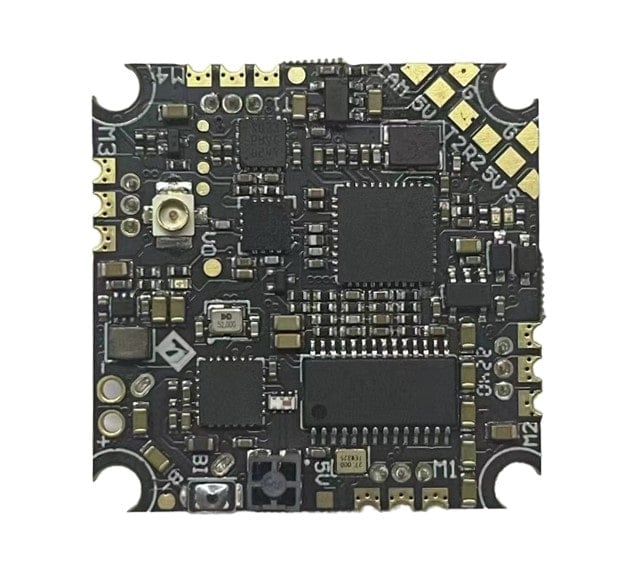

The T-Motor F4 13A 1S AIO board is a compact and lightweight electronic speed control (ESC) board that is perfect for building small drones. It is designed to support a single cell input voltage of 1S and can handle a continuous current of 6A and a peak current of 7A. The board features the BlueJay ESC firmware, an STM32F411 MCU, a BMI270 gyro, and an ELRS 2.4GHz V2 receiver. The board also includes a 48CH 50mW Smartaudio 1.0 video transmitter (VTX) for transmitting video signals. It measures 29.5x29.5mm and weighs just 6.7g, making it easy to install in a variety of drone frames. The board has 25.5x25.5mm M2 holes for mounting.
Specifications
- Input Voltage: 1S
- Continuous Current: 6A
- Peak Current: 7A
- ESC Firmware: BlueJay
- MCU: STM32F411
- Gyro: BMI270
- Receiver: SPI ELRS 2.4GHz V2
- VTX: 48CH 50mW Smartaudio 1.0
- Size: 29.5x29.5mm
- Weight: 6.7g
- Mounting Hole: 25.5x25.5mm (M2 Holes)
Included
- 1x T-Motor F4 6A 1S AIO With VTX + ELRS
- Accessories (Gummies, Cable, Antenna)
