Product Details

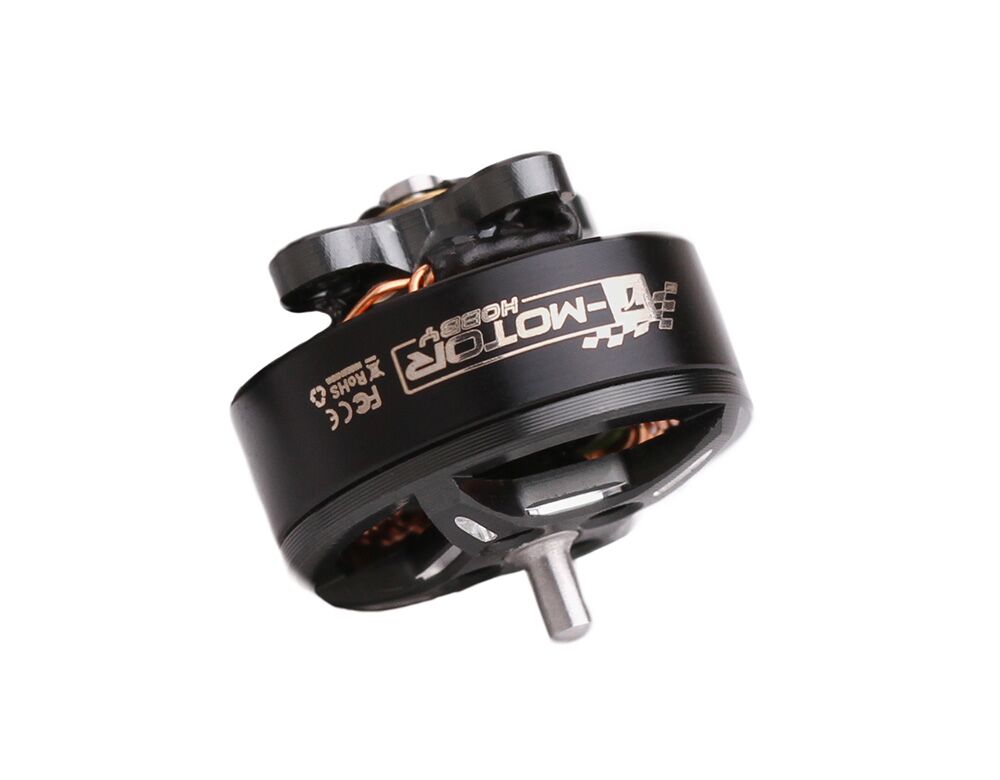

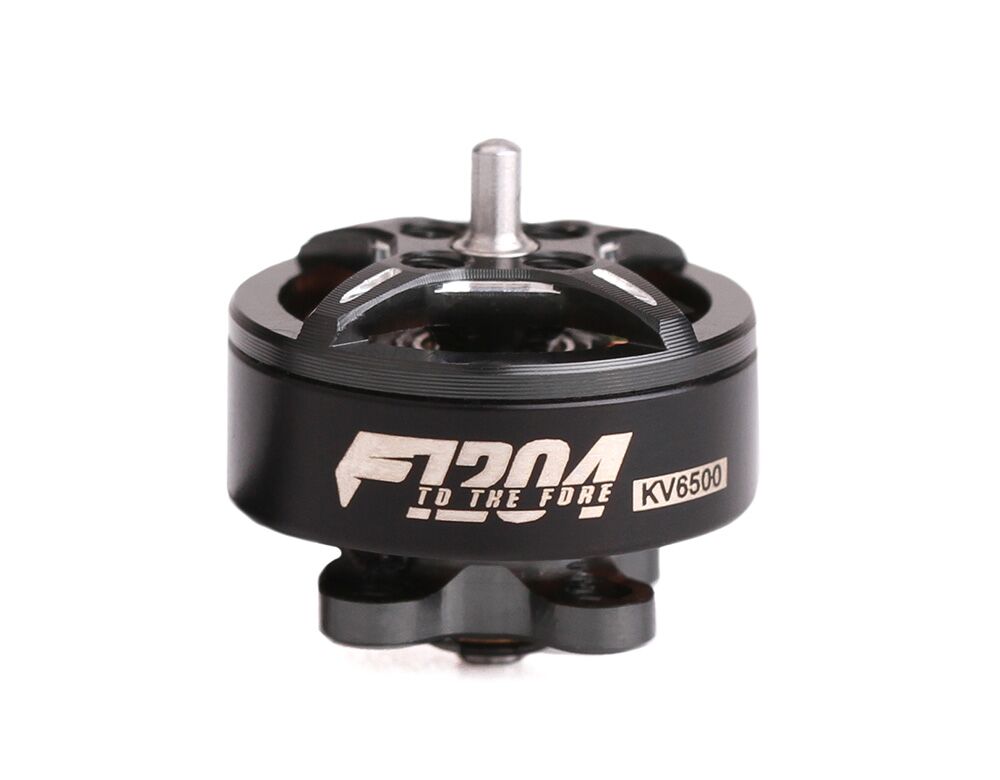

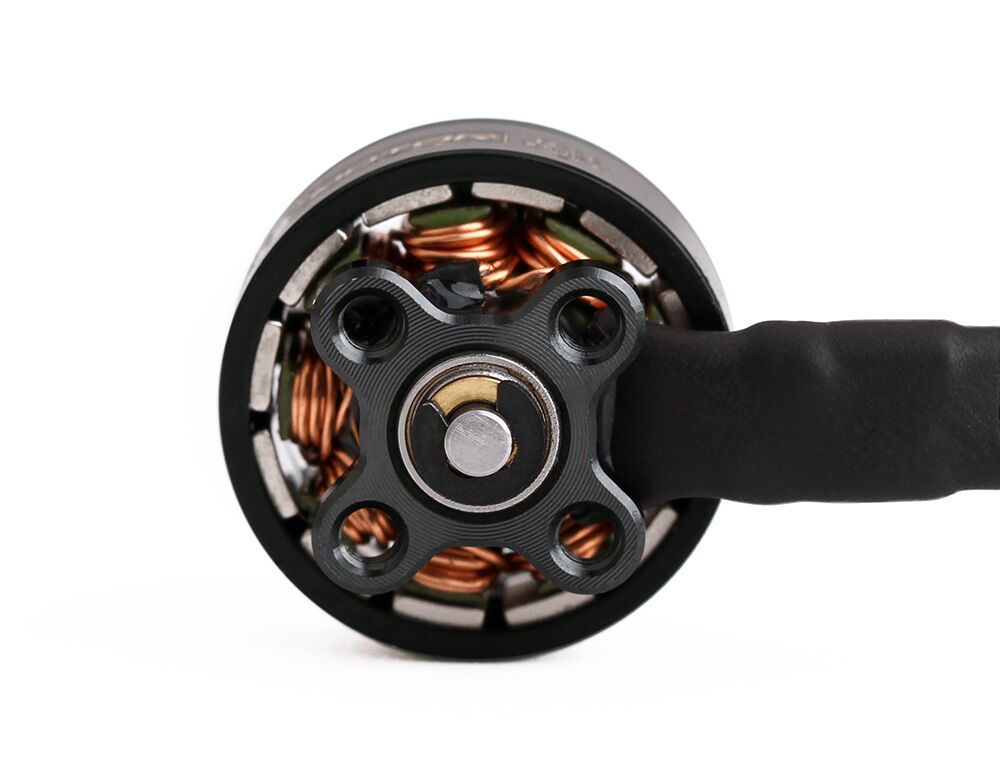

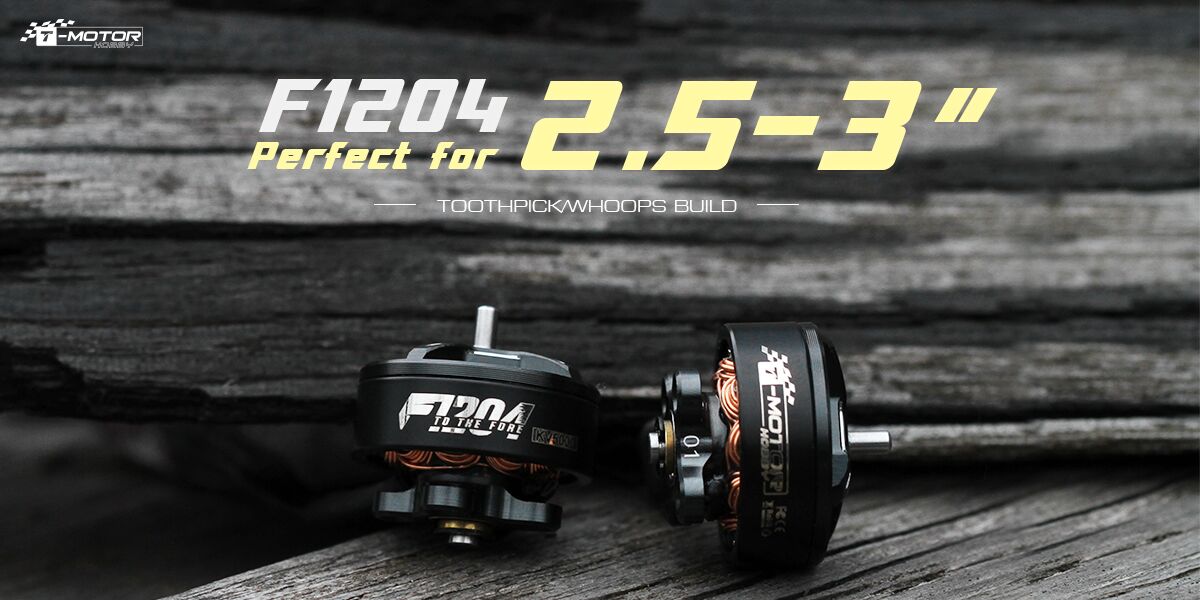

The F1204 motors from T-Motor are ultralight motors that are specially made for toothpicks and whoops! The F1204 motor comes with a 1.5mm shaft to fit more props and features high efficiency, better cooling, and fast response. Suitable for 2.5-3" builds!
Two KVs to choose from: 5000KV, 6500KV
Specifications

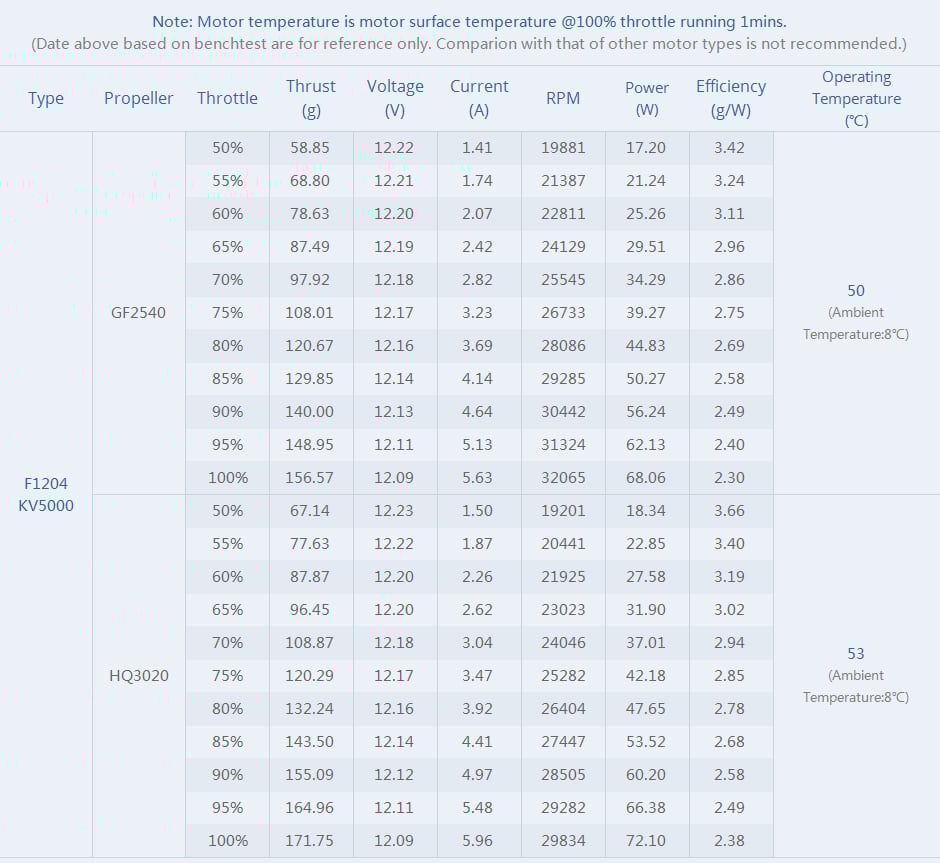

KV: 5000KV

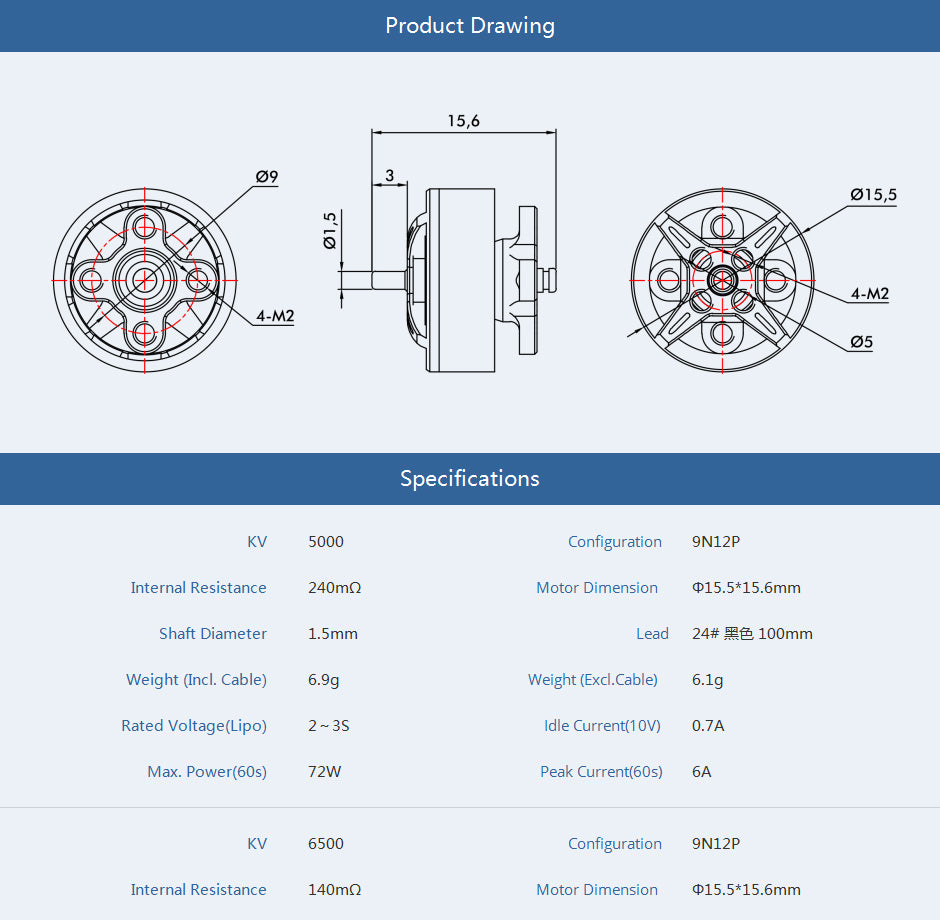

- Motor DimensionS: Φ15.5*15.6mm
- Lead: 24#AWG 100mm
- Shaft Diameter: 1.5mm
- Idle Current: 0.7A
- Max.Power (the 60s): 72W
- Weight (Excl. Cable): 6.1g
- Internal Resistance : 240mΩ
- Configuration: 9 N12P
- Rated Voltage (Lipo): 2-3S
- Peak Current (60s): 6A
KV:
6500KV
- Motor DimensionS: Φ15.5*15.6mm
- Lead: 24#AWG 100mm
- Shaft Diameter: 1.5mm
- Idle Current: 0.9A
- Max.Power (the 60s): 60W
- Weight (Excl. Cable): 6.1g
- Internal Resistance : 140mΩ
- Configuration: 9 N12P
- Rated Voltage (Lipo): 3-3S
- Peak Current (60s): 7A
