Product Details

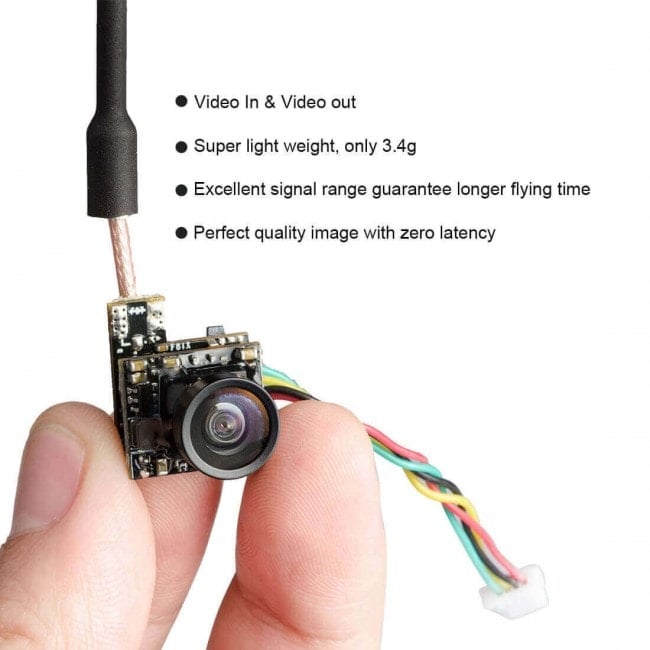

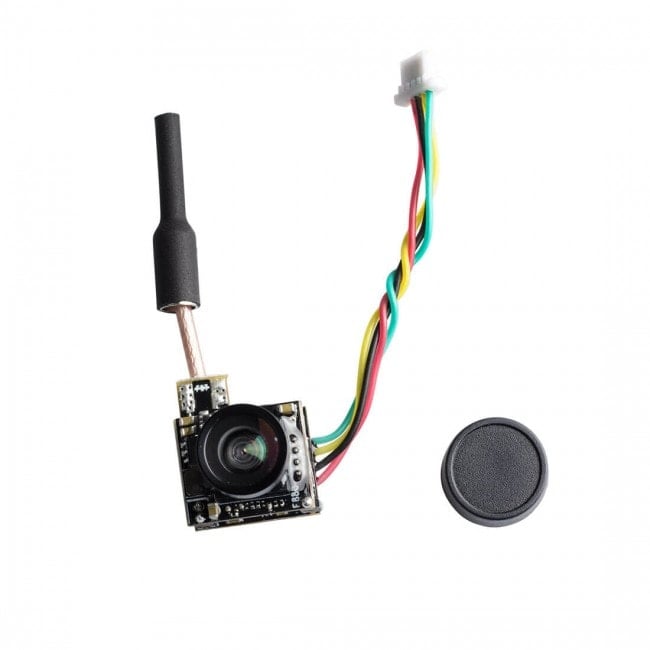

This is a tiny all in one FPV and VTX combo ideal for tiny whoop quadcopters. This camera has a video in and out option that lets you use your OSD with this camera. If you do not want to use an OSD you just need to connect the Video in and out on the AIO unit together giving you the best of both options. Otherwise it uses a decent quality lens to give you a great picture from your tiny whoop for this price.
Specifications
- Output power：25mW
- Frequency：48CH
- Input voltage： 3.3V-5.5V
- Current consumption：300mA(type)
- Camera resolution： 600TVL
- Field of view： 120°
- Video Format：NTSC
- Antenna : Dipole Antenna
- Frequency: 5.8GHz 6 bands 48 channels
- with Raceband: 5474-5945 MHZ

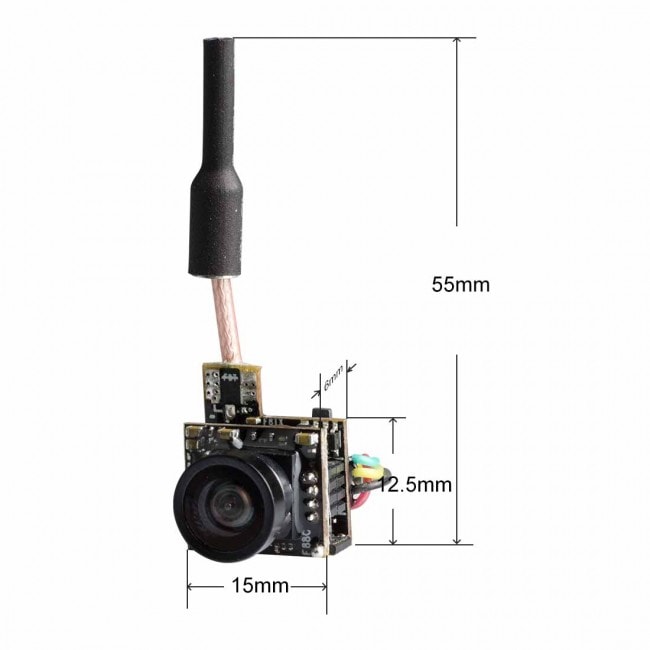

- Size：13.9*12.0mm(L*W)
- Weight：2.6g (without antenna and cable)
If you do not want to use your FC OSD please connect the Video Out and Video in wires together
