Product Details

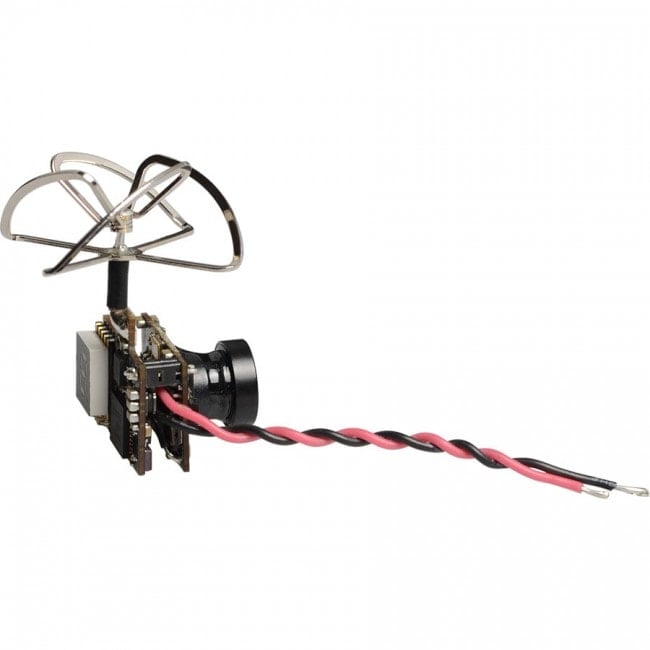

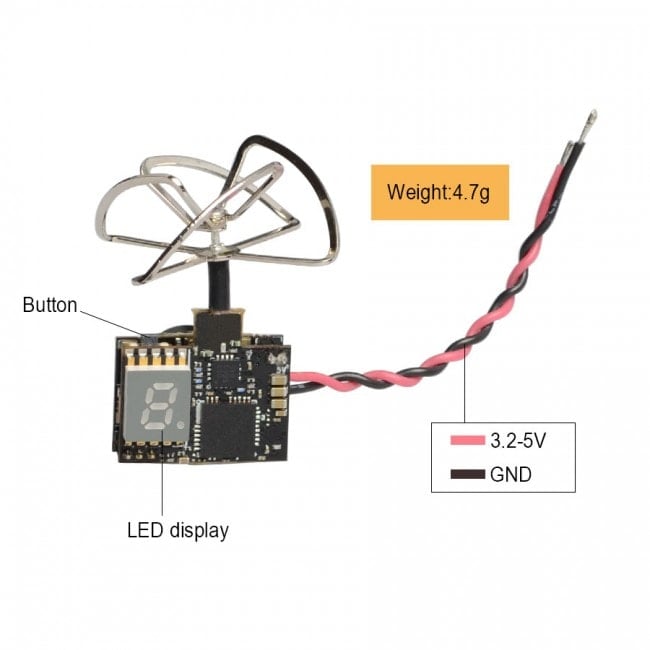

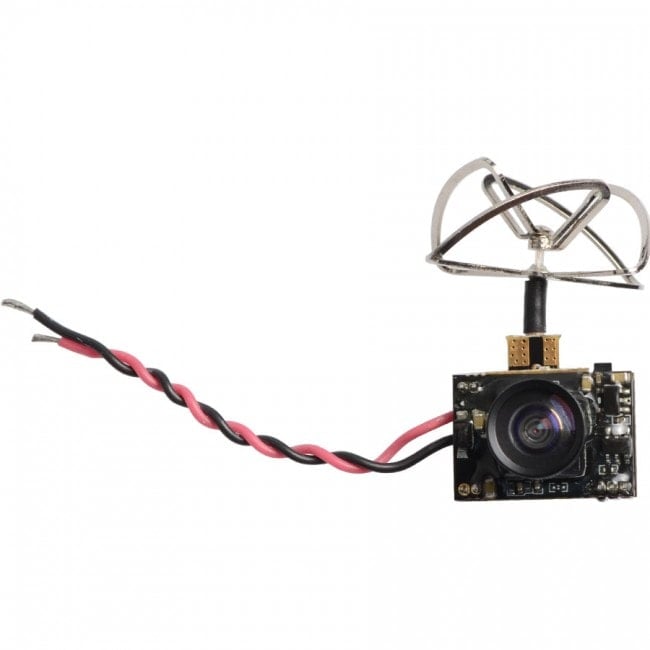

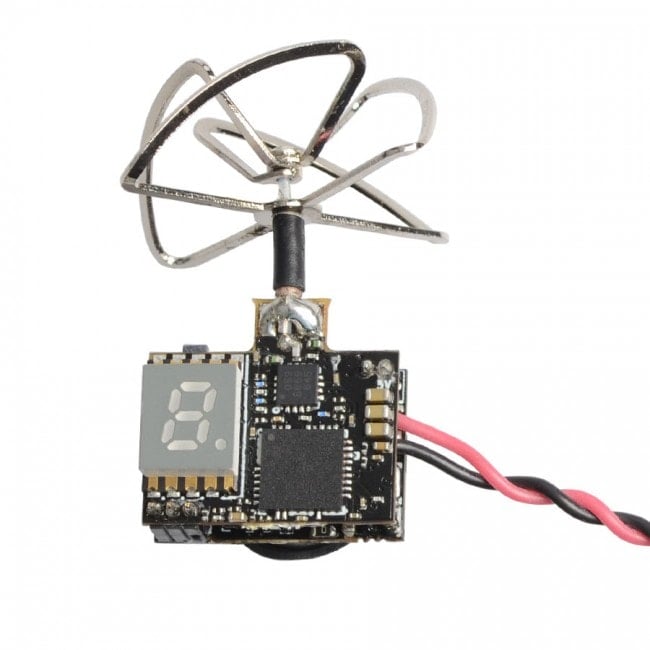

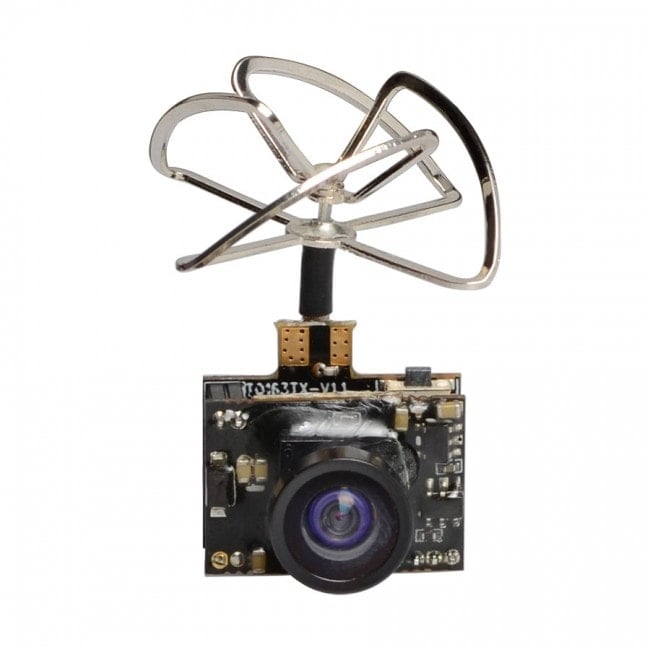

If you are looking for a super tiny, cheap and lightweight FPV camera that uses a proper circular polarised antenna, then the A6 Micro is a great option. It features a 600TVL camera connected to a 25mW VTX, making it a super easy addition if you want to add FPV to just about anything. The unit is powered by 3-5V and weighs just 4.3g.
Specifications
-
Output power: 25mW
-
Input power: 3.2-5V
-
Current consumption:3.2V-5V,250mA(type)
-
Camera resolution: 600TVL
-
Video system: NTSC
-
Mini illumination: 1 lux
-
Field of view: 120°viewing angle
-
Antenna dimensions: 22mm X 29mm diameter
-
Antenna: 4 lobe right hand circular polarized
-
Frequency: 5.8GHz 5 bands 40 channels,
with Raceband: 5658-5917MHz -
Size: 18.7*13mm(L*W)
-
Weight: 4.3g
