Product Details

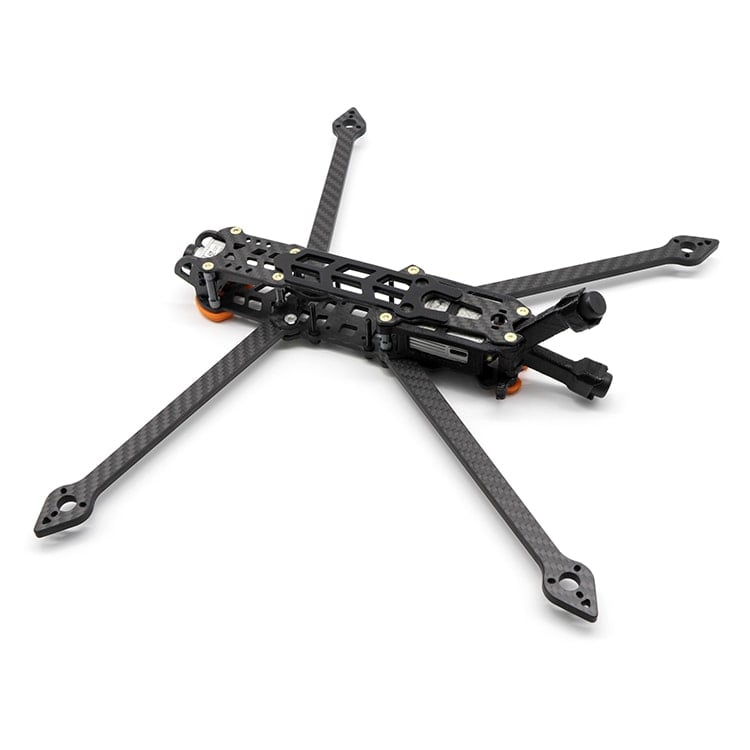

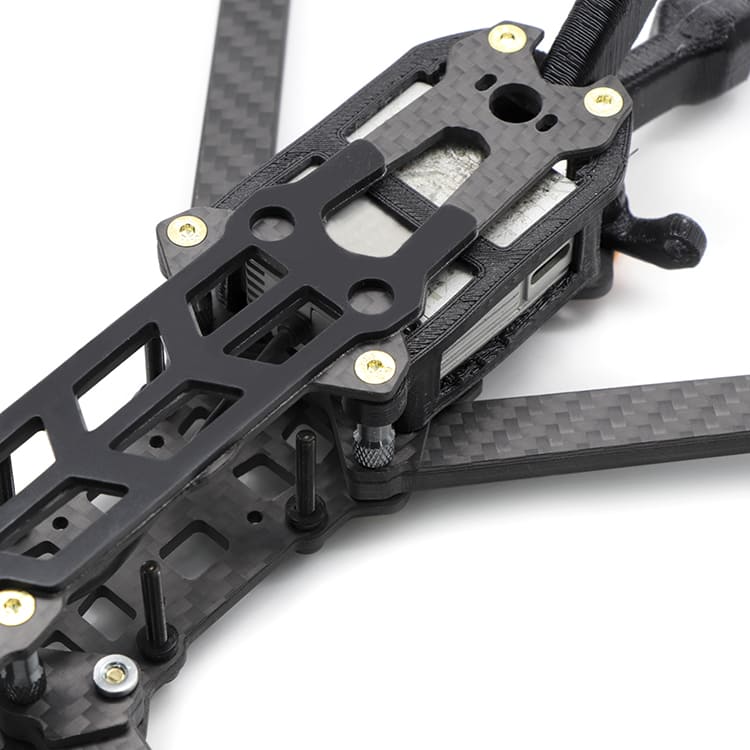

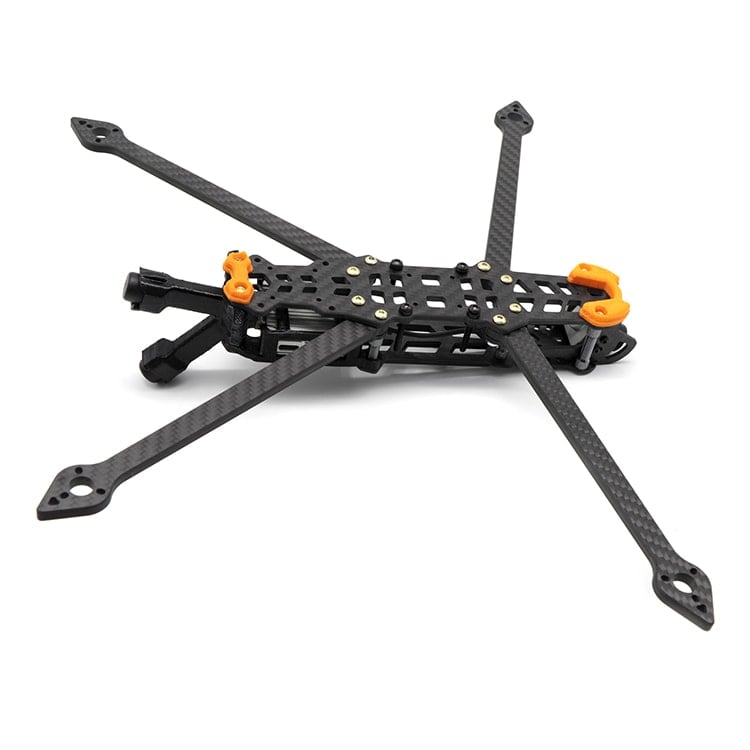

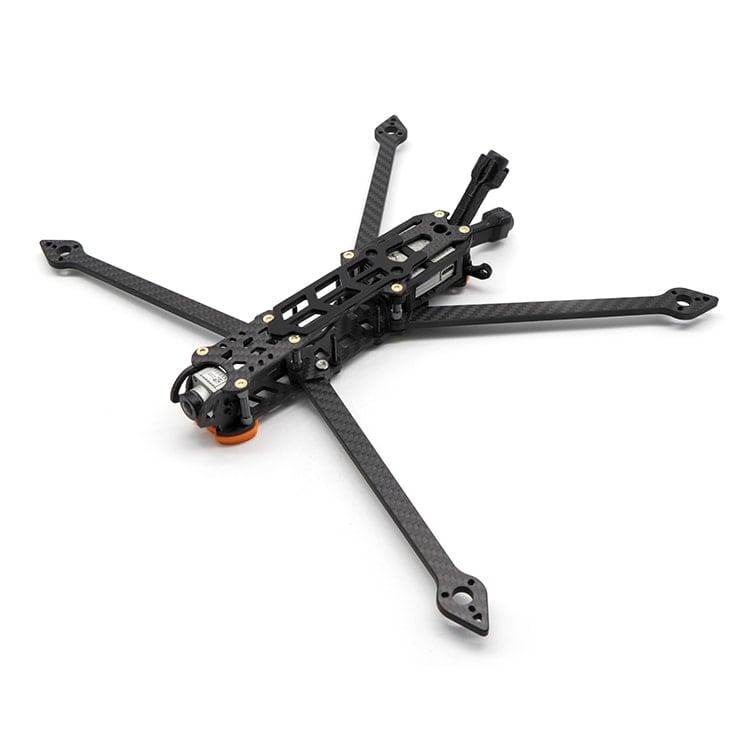

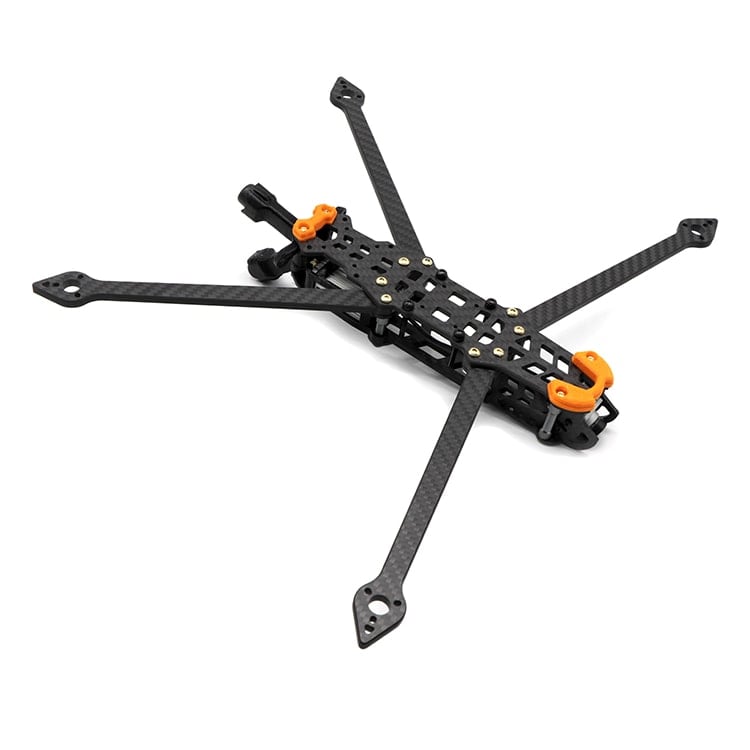

This HSKRC Brave is a freestyle H frame designed around the DJI HD FPV system. The Air unit is mounted in the center of the frame to ensure perfect balance and the H frame allows for loads of room to mount your 30x30 or 20x20 flight gear.

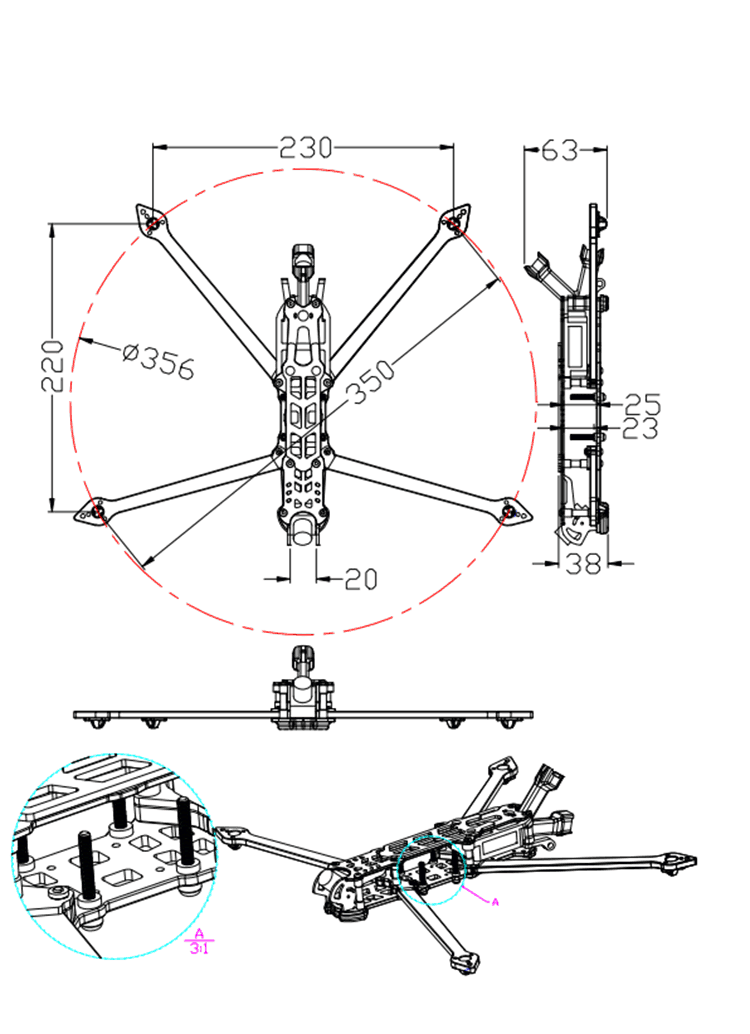

Specifications
- Material: 3K carbon fiber / TPU3D print
- Wheelbase: 350MM
- Arm thickness: 5MM
- Arm width: 11.5MM

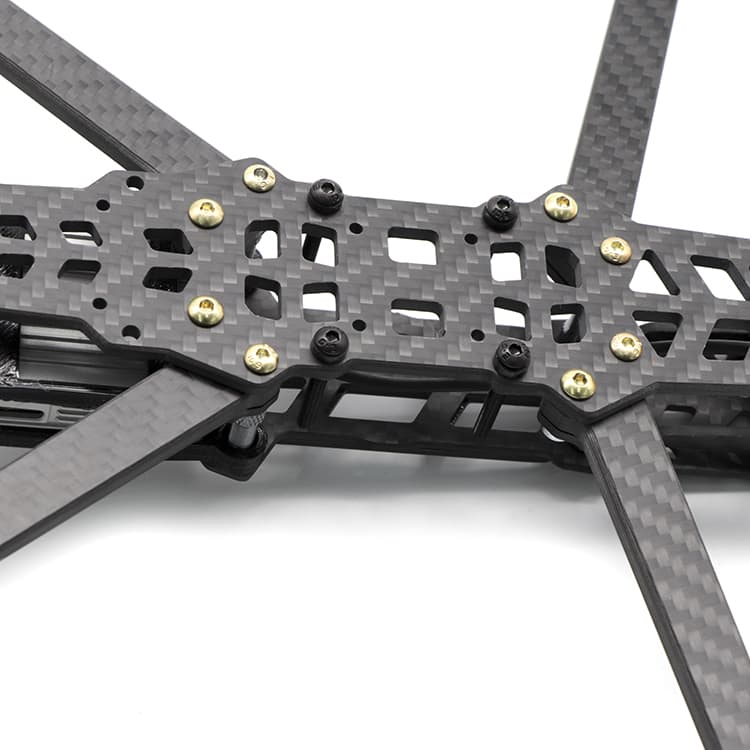

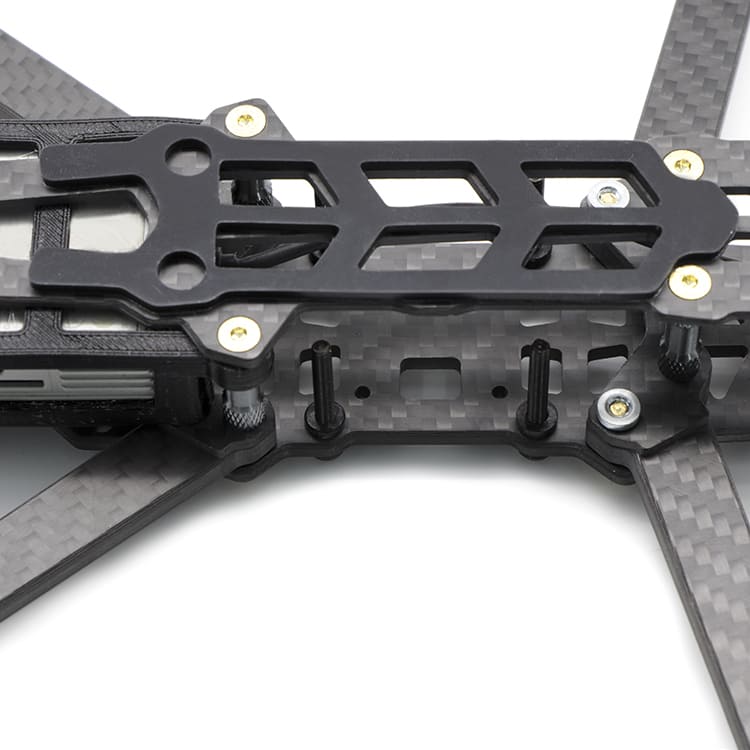

- Upper center board: 2MM
- Lower center plate: 3MM

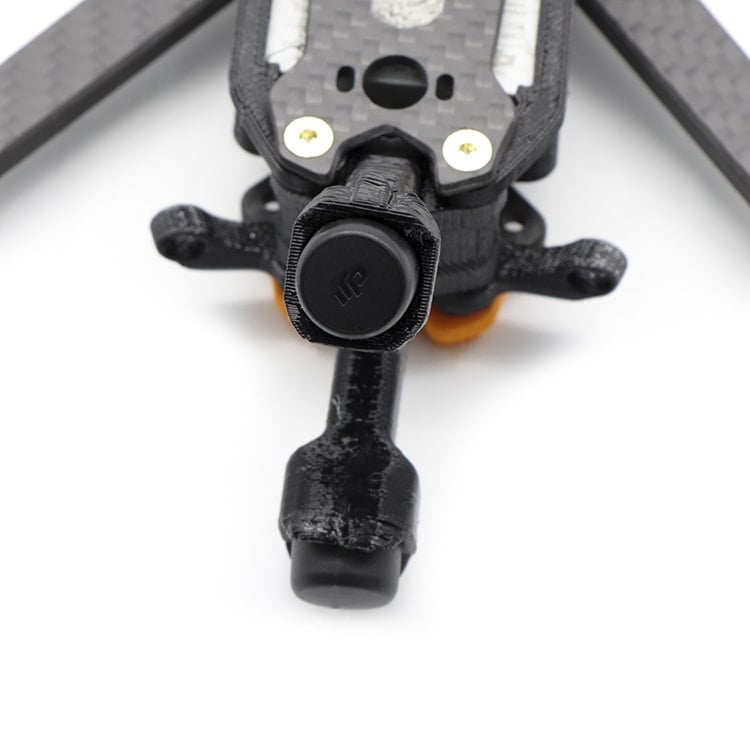

- Camera protection frame board thickness: 2MM
- Empty height in rack: 25MM
- Frame weight: about 153 grams
Suggested Configuration
- 8 Inch Props

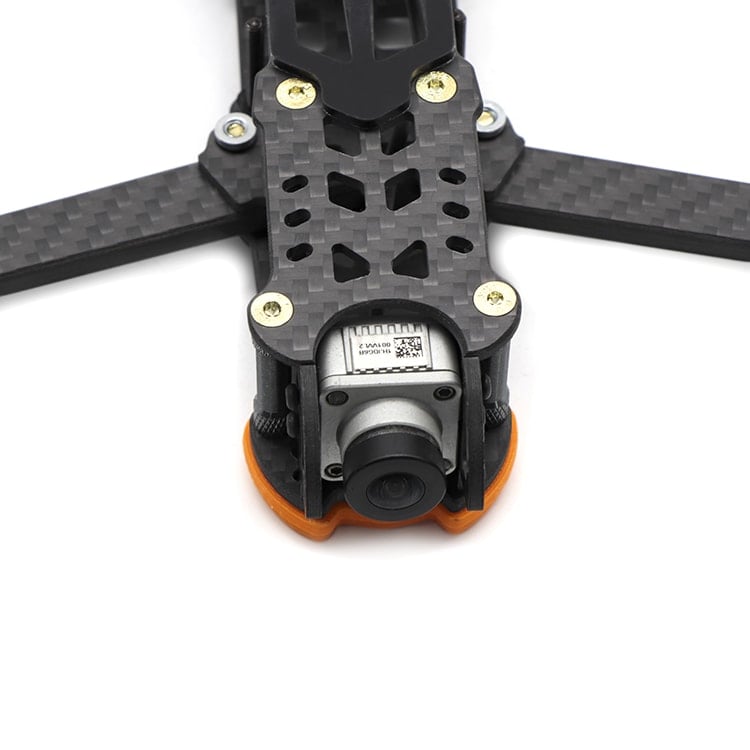

- DJI FPV System and Camera
- Mavic Motors
- F4 or F7 DJI compatible flight controller
- 20-30A ESC
- 3s or 4s 2000mAh to 5000mAh Lipo

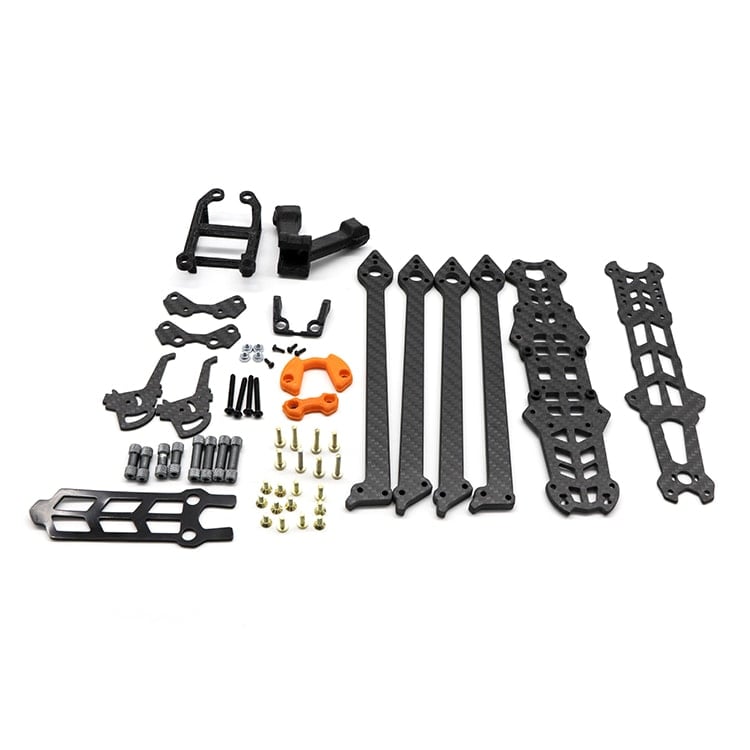

Included
- Splat HD8 Frame
- TPU DJI Air unit holder

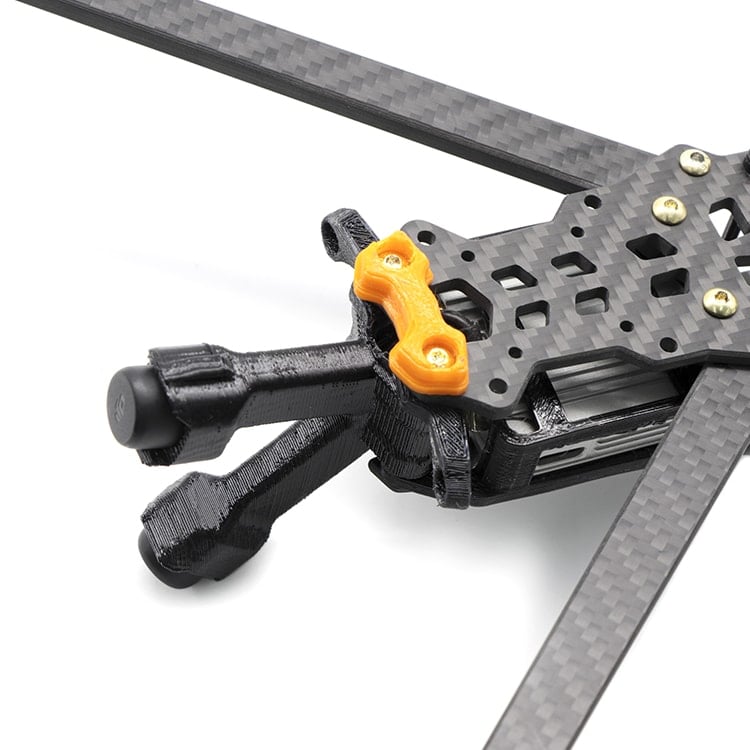

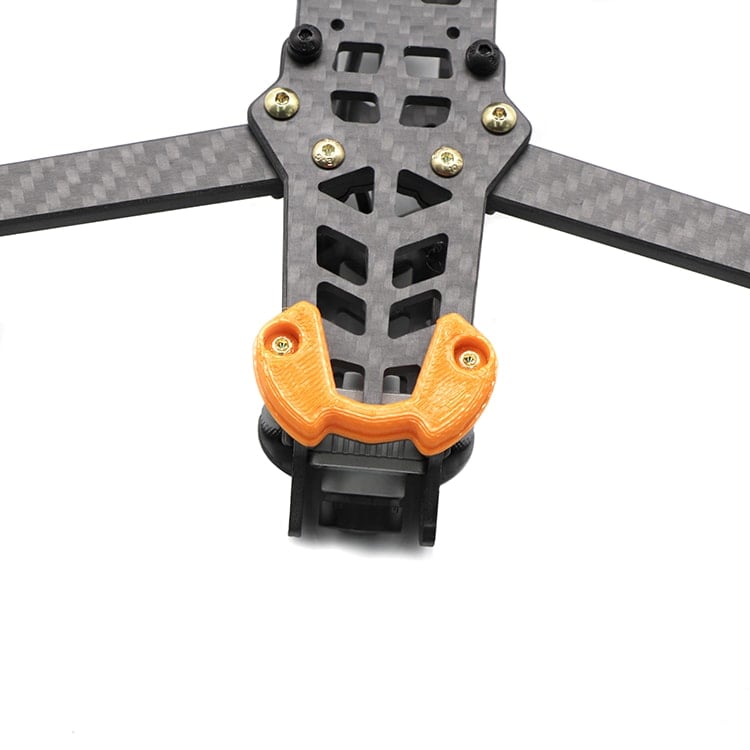

- TPU DJI antenna mount
- Screws and hardware
