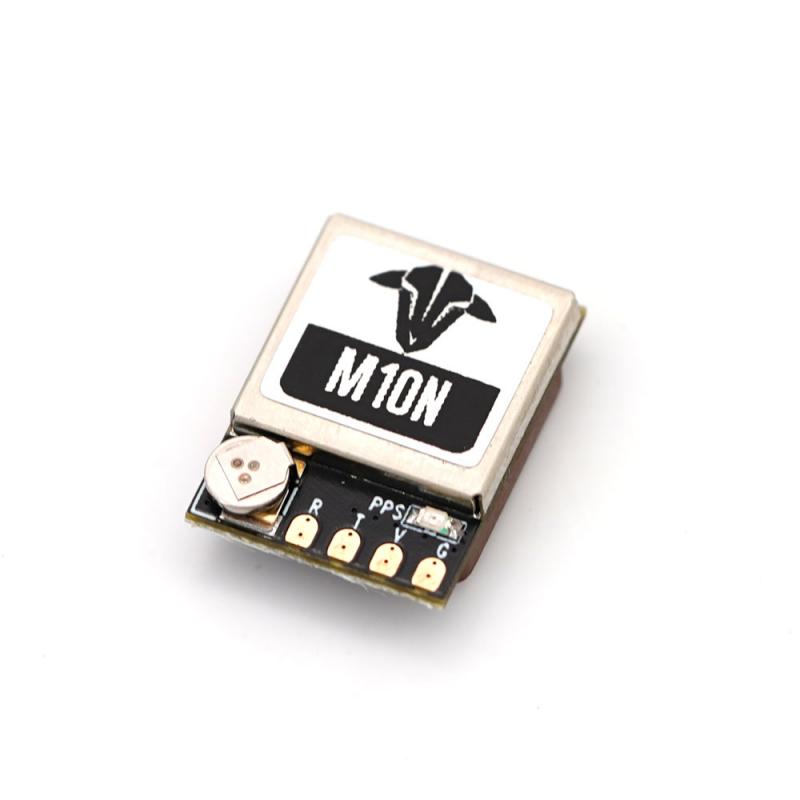

M10050 Multi-GNSS GPS Module

Finally, a GPS module that doesn’t make your quad feel like it’s navigating with a blindfold and a paper map. The M10050 packs GPS, BDS, Galileo, QZSS, and SBAS support into a 3-gram, matchbox-sized brain. Translation: it’ll lock satellites faster than your flying buddy can say “where am I?”. Bonus points for surviving -40°C winters and +85°C soldering-iron-left-on-the-bench summers.

Why You Want It

Because “close enough” isn’t what you want to hear when your £500 rig is somewhere in a field. With 2.0 m CEP horizontal accuracy and 0.05 m/s velocity precision, this thing nails position like Bardwell nails tutorial pacing. And yes, we profit off your paranoia about flyaways — but you’ll thank us when you’re not climbing a tree at 11 pm.

Specifications

• Chip: M10050 (the tiny genius inside)
• Receiver Type: GPS, QZSS, BDS, Galileo, SBAS (basically a UN summit in silicon)
• Default Systems: GPS, BDS, Galileo
• Sensitivity: -166 dBm tracking (hears satellites whispering)
• Accuracy: 2.0 m CEP position, 0.05 m/s velocity, 0.3° heading (your ex wishes they were this precise)
• Acquisition: 27 s cold, 1 s hot (coffee-level wake-up times)
• Data Output: 4800–921600 bps (default 115200), NMEA + UBX protocols
• Update Rate: 0.25–18 Hz (default 10 Hz — smooth tracking, not seizure mode)
• Memory: FLASH config retention (no amnesia after battery pull)
• Limits: 80,000 m altitude, 500 m/s velocity (rocket-class bragging rights)
• Power: 3.6–5.5 V input, 15 mA typical (your LiPo won’t even notice)
• Size: 16.5 × 12.3 × 6.0 mm (smaller than your patience)
• Weight: 3 g (aka negligible)
• Connector: 1.00 mm 4-pin (don’t lose the cable, seriously)
• Temperature Range: -40°C to +85°C operating (yes, even in UK winters)
• Indicator: PPS LED flashes blue when locked (instant pilot serotonin)

What’s in the Box*

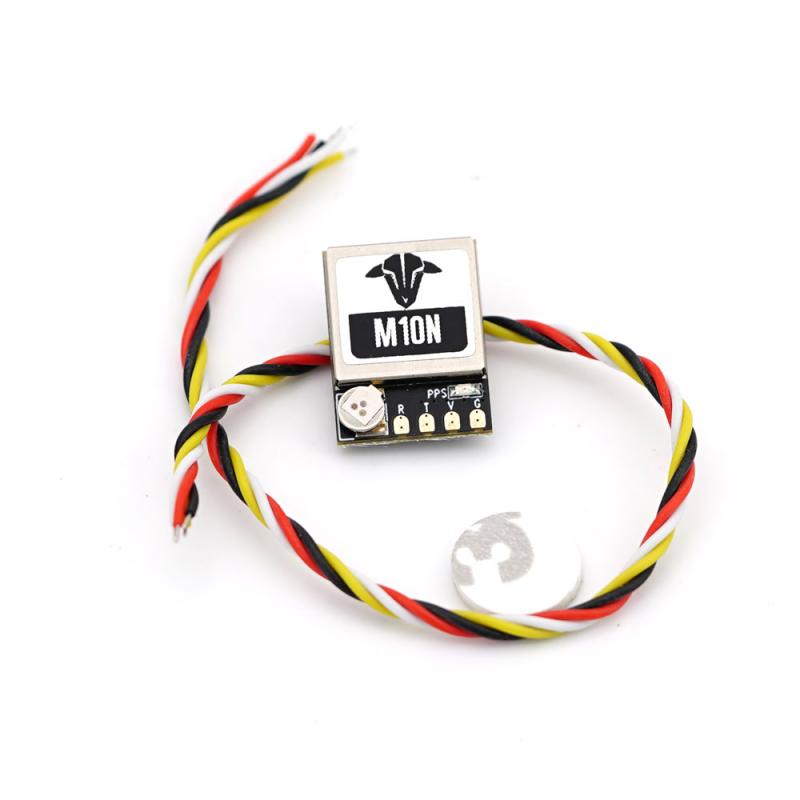

• 1× M10050 GNSS Module
• 1× Blue LED that validates your life choices

Disclaimer

Accessories may vary, but the tiny 3-gram GPS wizard is always included — no, we don’t supply lost-quad insurance.

Still Here?

Congrats, you actually read specs longer than your ESC manual. Here’s your prize: this GNSS GPS module is ideal for FPV drones, robotics, and anything needing reliable position tracking. If you’re still on the fence, just buy it now — or enjoy explaining “flyaway mode” to your mates later.
