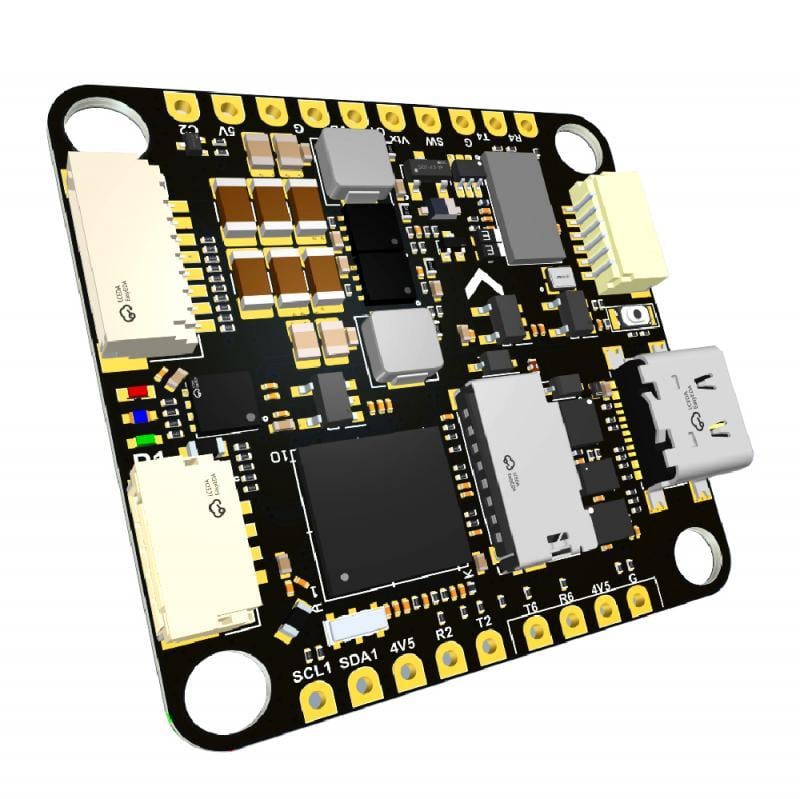

TBS Lucid H7 FC - Your Drone's New Brain on Steroids
Push your drone to its limits with the TBS Lucid H7 FC —a flight controller built for high-octane performance and unparalleled flexibility. With a lightning-fast 480MHz processor and dual gyro sensors, this FC is engineered for everything from freestyle maneuvers to precision racing. Whether you're rocking Betaflight, ArduPilot, or INAV, the Lucid H7 has your back. Plus, with dual camera inputs, DJI FPV OSD support, and seamless compatibility with modern peripherals, this compact powerhouse fits snugly into any build.
If you're the type who thinks "stock settings" is a dirty phrase, the Lucid H7 will make your tuning dreams come true.
Key Features and Specifications
Processing and Memory
- MCU: STM32H743VIH6 running at 480MHz with 1MB RAM and 2MB Flash
- Gyro: Dual ICM42688 sensors for precise data tracking
- Barometer: Infineon DPS310 (I2C2)
Connectivity and Interfaces
- UARTs: Seven total, ready for signal inversion (ports 1, 2, 3, 4, 6, 7, 8)
- CAN Bus: One available for advanced peripherals
- I2C Buses: Two accessible
- USB Interface: USB Type-C for hassle-free connections
Power and Output
- Input Voltage: 6-36V (2-8S LiPo)
- BEC Outputs: 5V @ 2A (3A max) and 9V @ 2A (3A max)
- ADC Voltage Support: Up to 36V with a 1K:10K voltage divider
Extras and Design
- Dual Camera Inputs: Easily switch between two camera feeds
- DJI FPV OSD: Fully compatible via spare UART
- LED Indicators: Blue (FC Status), Green (FC Status), Red (3.3V Power)
What's in the Box
- 1 x TBS Lucid H7 FC
- 1 x FC-to-ESC cable (plug & play)
- 1 x DJI O3 cable (plug & play)
- 4 x M3 rubber dampers
- 4 x M3x8 screws
Disclaimer: Accessories and connectors may vary depending on stock availability.
