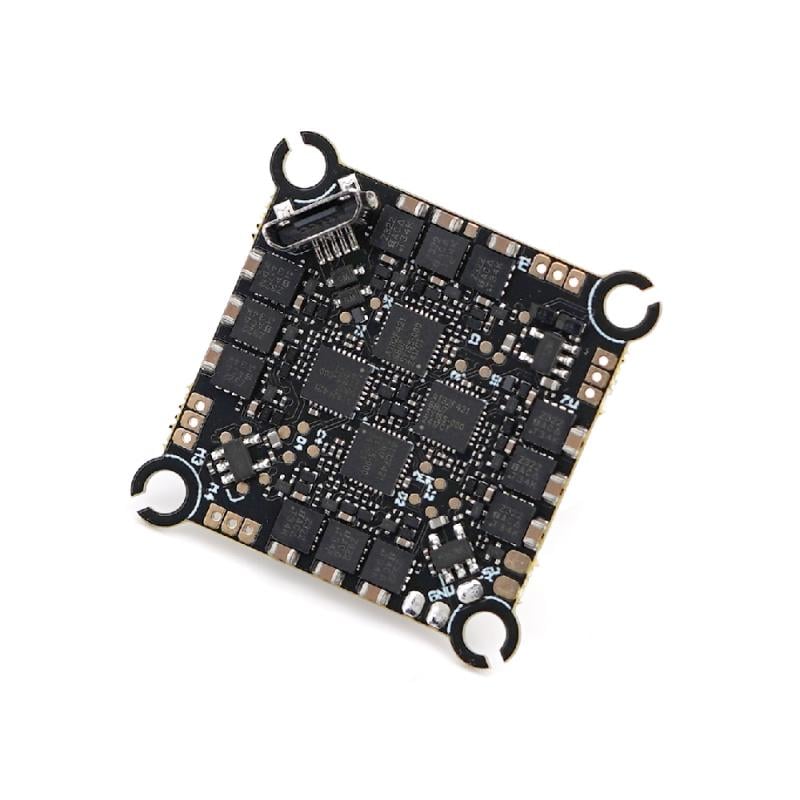

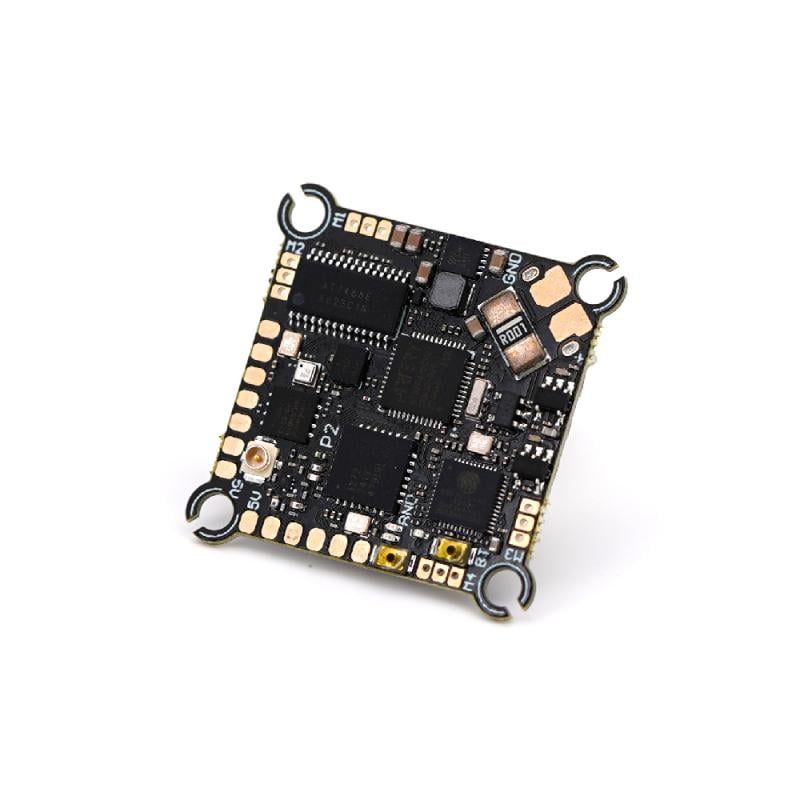

TBS Lucid AIO 1-2S: Compact Power for Whoop Enthusiasts and Long-Range Explorers
Meet the TBS Lucid AIO 1-2S , the flight controller that refuses to compromise. Designed to satisfy both 1S/2S whoop enthusiasts and long-range drone pilots, this all-in-one powerhouse delivers exceptional performance, rugged durability, and seamless connectivity—all in a compact, 25x25mm whoop-friendly form factor .
Whether you're cruising the skies with 1S or pushing the limits with 2S, the Lucid AIO provides the power and stability you need, while built-in Crossfire compatibility ensures you stay connected even at the edges of your range.
Key Features
- All-in-One Design: Flight controller, 4-in-1 ESC, and Crossfire receiver integrated into one board.
- High-Performance MCU: Powered by the AT32F435RMT7 clocked at 288MHz.
- Durable ESCs: Rated at 4x 7A (24A total max) with telemetry and current sensing, capable of handling 2S without breaking a sweat.
- Advanced Gyro: Features the ICM-42688P for precision flight control.
- Built-In OSD: Analog video support with the AT7456E chip.
- Blackbox: Includes 8MB of storage for logging flight data.
-
Port Configuration:
- UART1: Spare for custom uses.
- UART2: Smart Audio compatibility.
- UART3: Ready for DJI O3 Air Unit integration.
- UART5: Dedicated to the onboard Crossfire receiver.
Specifications
- Input Voltage: Supports 1S-2S LiPo batteries.
- BEC Output: 5V @ 2A.
- Dimensions: 28mm x 28mm (30mm x 30mm with outer mounting dimensions).
- Mounting Holes: Standard 25mm x 25mm whoop layout.
- Weight: A featherlight 4g.

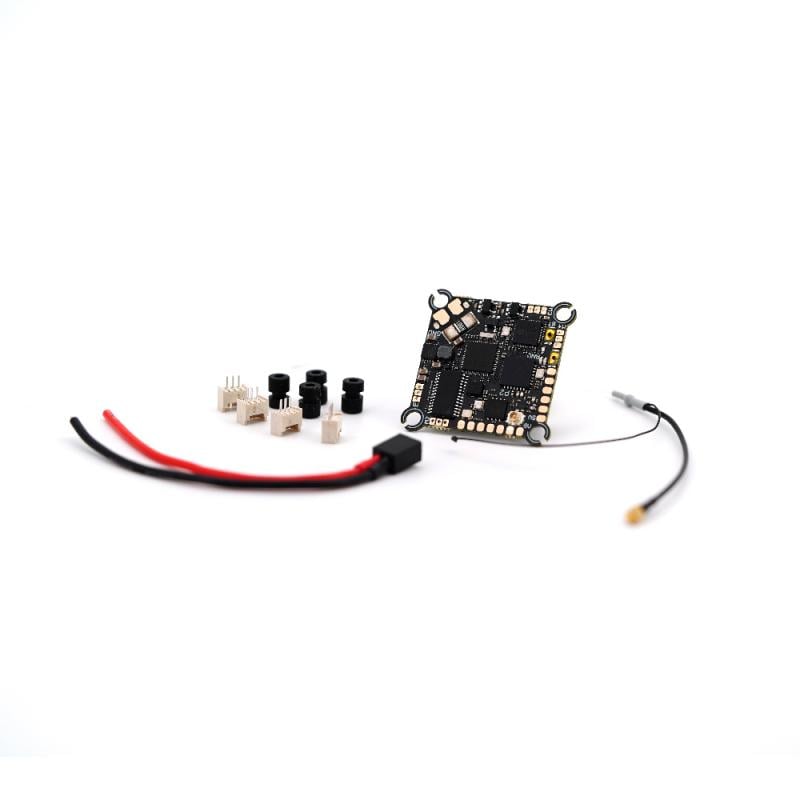

What's in the Box?
- 1x TBS Lucid AIO 1-2S Flight Controller (with integrated Crossfire receiver).
- 1x TBS Crossfire Micro RX antenna.
- 4x Rubber grommets for secure mounting.
- 4x Motor sockets (plug & play convenience).
Note: Accessories may vary depending on supply availability.
