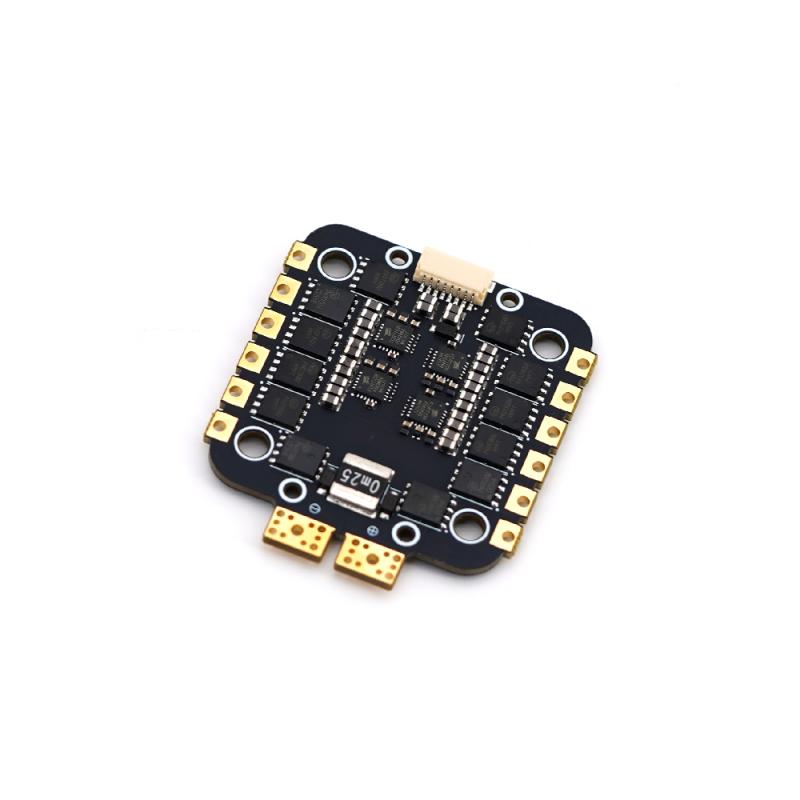

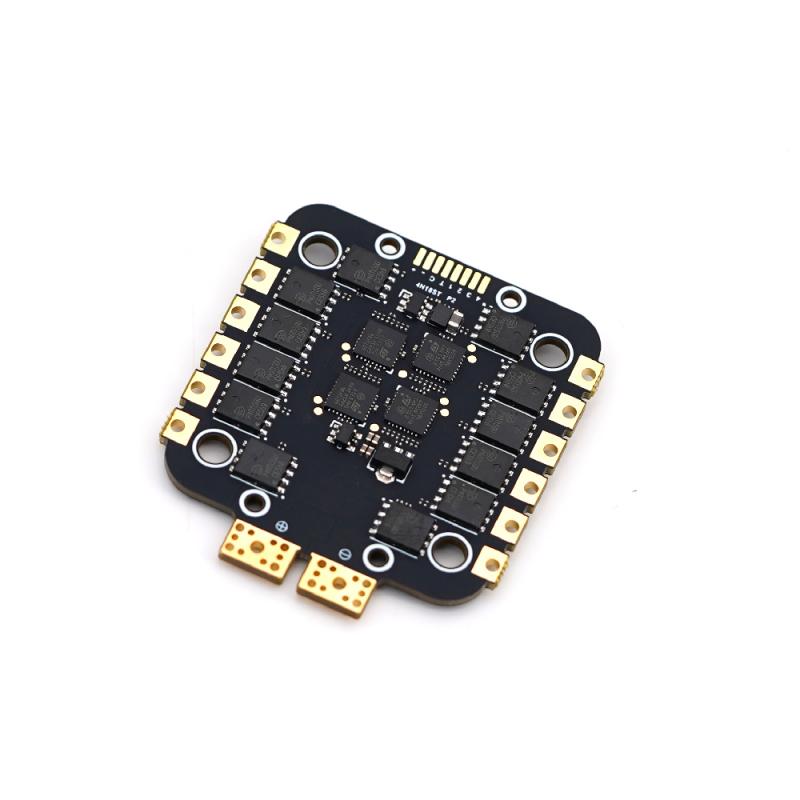

TBS Lucid 8S 4in1 ESC 60A AM32
The TBS Lucid 8S 4in1 ESC brings high-voltage 8S LiPo power and AM32 firmware to your FPV drone builds without instant magic smoke. Designed for cinematic rigs, freestyle bashers, and long-range drones running up to 11-inch propellers, this speed controller delivers 60A continuous and 85A peak burst current per motor. Featuring an 8-layer high current density PCB with twice the standard on-board capacitance, it provides thermal management without heavy heatsinks. Backed by 10 years of Unmanned Tech experience in manufacturing and supplying commercial FPV systems, this ESC offers native Gorilla mounting alongside standard 30.5x30.5mm and 20x20mm frame adapters.
Key Highlights
- 8S LiPo High-Voltage Support: Handles 3S to 8S LiPo input with 60A continuous (60s) and 85A peak (10s) ratings per channel.
- AM32 Firmware & Bi-Directional DShot: Pre-flashed with AlkaMotors32 (target: tbslu8s4in1) for telemetry, bi-directional DShot 300/600, and smooth motor control.
- Gorilla Mount Innovation: Direct frame perimeter mounting (39.5 x 16.0mm) eliminates central stack bolts, with included brackets for standard 30.5x30.5mm and 20x20mm FC stacks.
Why You Want It
If your 6S setups are feeling tame and you are tired of burnt pads after aggressive desyncs, upgrading to 8S is the logical next step. TBS worked directly with AM32 developers to optimize thermal dissipation and motor timing on an 8-layer PCB. You get instant throttle response, KISS ESC telemetry feedback, and enough power density to swing up to 11-inch props without melting your stack.
Specifications
- Weight: 17.58g (22g including mounting brackets)
- Dimensions: 50mm × 42mm
- Input Voltage: 3S - 8S LiPo
- Continuous Current: 60A x 4 (60 seconds)
- Peak Current: 85A x 4 (10 seconds)
- ESC Software: AM32 (AlkaMotors32)
- ESC Target: tbslu8s4in1
- Protocols: Bi-directional DShot (300/600), KISS ESC Telemetry
- BEC: None
- Current Port: Yes
- Propeller Compatibility: Up to 11 inches (airflow required over 7 inches)
- Mounting Patterns: Gorilla-mount (39.5 x 16.0mm), 30.5 x 30.5mm, and 20 x 20mm (via included brackets)
Downloads & Links
FAQ
Can I run the TBS Lucid 8S ESC on a standard 30x30 or 20x20 frame?
Yes. While it features native Gorilla perimeter mounting (39.5 x 16.0mm), it includes adapter brackets for standard 30.5 x 30.5mm and 20 x 20mm stack patterns in the box.

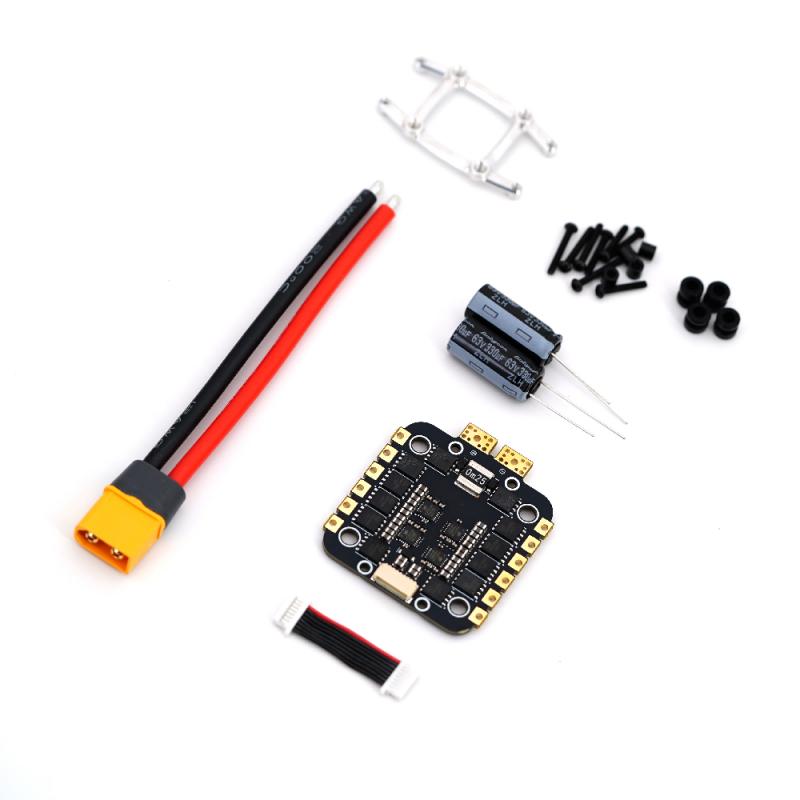

What’s in the Box*
- 1× TBS Lucid 8S 4in1 ESC
- 4× 2.2x4mm standoffs
- 1× Aluminum top bracket for 20x20 FCs
- 1× XT60 power connector
- 1× 560uF 8S Low ESR Capacitor
- 4× M2x12 screws
- 4× M2x14 screws (for 30x30 mount)
Disclaimer
Running 8S LiPo requires compatible 8S-rated flight controllers, motors, and capacitors. Ensure adequate airflow when swinging props over 7 inches. Inspect solder joints carefully prior to powering up to prevent reverse-polarity damage.
