Product Details

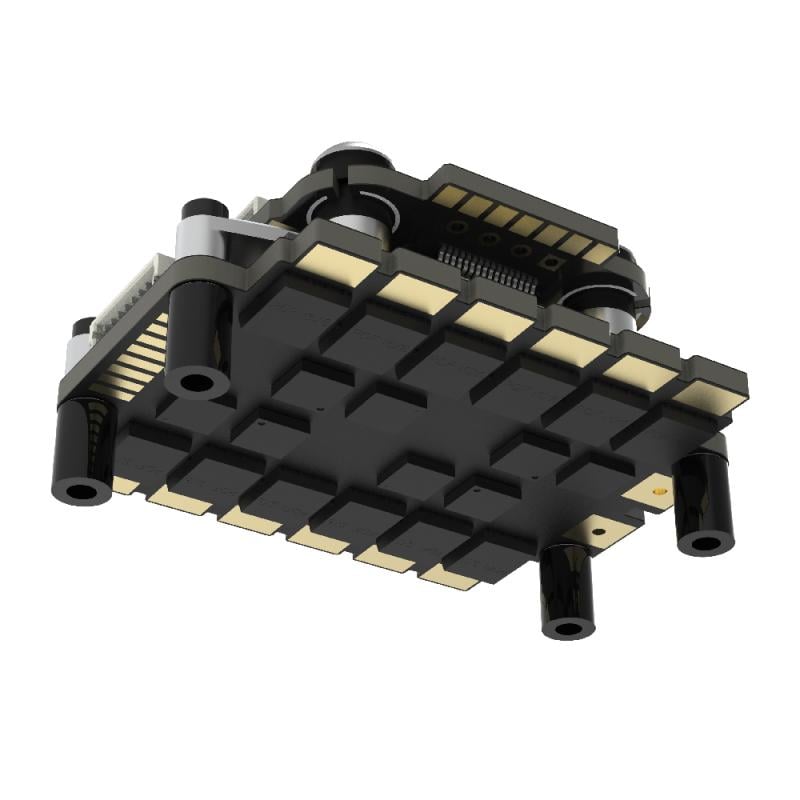

TBS Lucid Flight Stack: A Symphony of Precision and Power
The TBS Lucid flight stack is the latest opus in Team BlackSheep's engineering symphony. Tailored for both the hair-raising demands of racing and the artful grace of freestyle flying, this stack is a game-changer for seasoned pros and wide-eyed newbies alike.
Unrivaled Performance and Durability

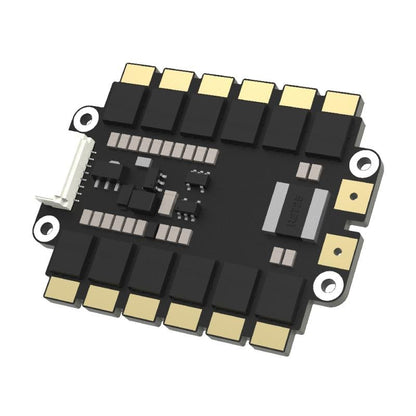

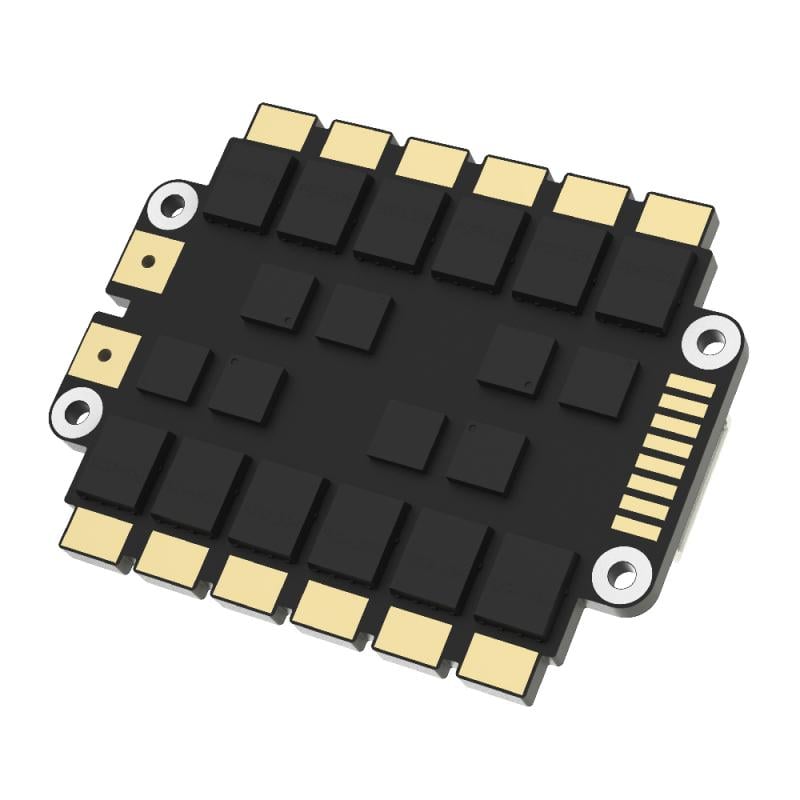

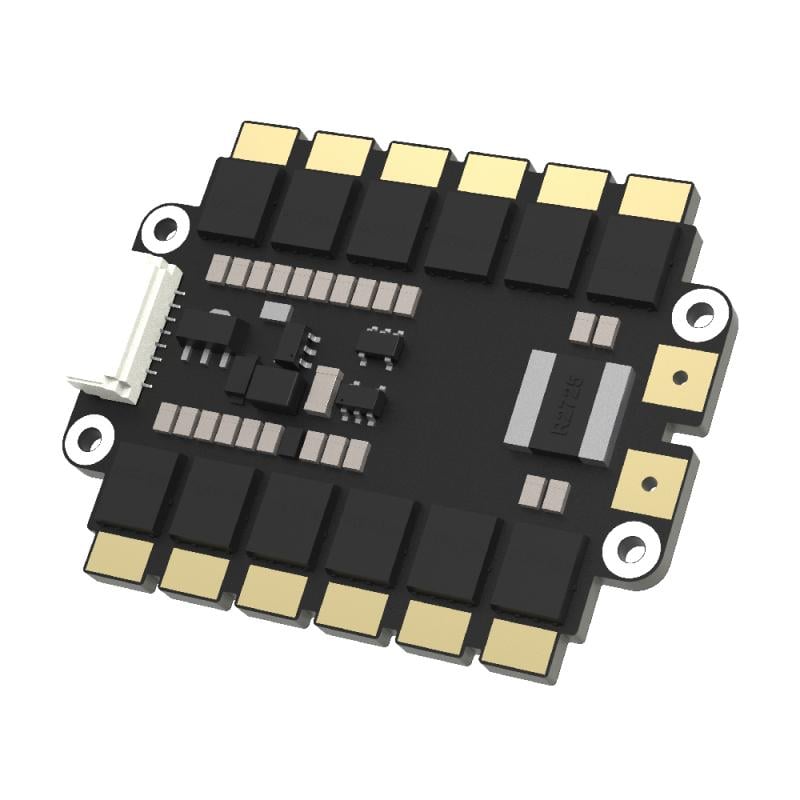

The star of the show is an 8-layer high current density board that doubles the industry-standard onboard capacitance. Translation? This ESC can take a beating and keep on ticking, delivering silky-smooth flight dynamics with the kind of acceleration that makes your face tingle. With an emphasis on thermal dissipation, the TBS Lucid flight stack achieves superb power-to-weight density sans bulky heat sinks.
In Partnership with AM32
Through a meticulous collaboration with AM32, we've pushed the boundaries of performance without pushing your budget to the brink. The result is an ESC that redefines what's possible in the FPV world.
Specifications
- ESC Software: AlkaMotors32 (AM32)
- ESC Target: tbslu6s4in1
- Rated Current: 60A x 4 (300 seconds)
- Peak Current: 70A x 4 (60 seconds)
- Propellers: Up to 9" (over 7" requires good airflow)
- Input: 3-6S Lipo
- Protocol: Bi-directional Dshot (300/600), KISS ESC Telemetry
- ESC Current Port: Yes
- BEC: No
- Size: 34mm x 44mm
- Mounting: Gorilla-mount (39.5 x 16.0mm) or brackets for 20x20mm, 30.5x30.5mm
- Weight: 13.81g (19g with brackets)
The Gorilla Mount: Power Unleashed
The secret sauce of superior power delivery is the Gorilla mount system. This innovative mounting bracket sidesteps the hassle of running bolts through the ESC's heart. Frame developers, take note: integrating the Gorilla mounting pattern into your frames is the way of the future. For those sticking with the old school, backward compatibility is a given, thanks to the adaptable mounting brackets.
In the Box
- TBS Lucid 4in1 ESC
- Accessories
Downloads
- Gorilla mounting pattern
- Frame developer pack for Gorilla mounting pattern
- AM32 Online Configurator
- AM32 Firmware
- TBS Lucid Manual
With the TBS Lucid flight stack, you're not just buying a piece of equipment; you're investing in the next evolution of FPV technology. Get ready to experience unparalleled precision and power that will make every flight unforgettable.
