Product Details
With the Pro version, TBS boosts the telemetry output power (downlink), without sacrificing compactness. Same form factor, same pinout, with 20x the power! The end result is a full range receiver, at the smallest size of any receiver in the industry with an incredibly increased output!
Key Features
- 500mW Output Power (downlink)
- 20x Power of standard Nano Rx
- Higher Telemetry Output
- Full Range Receiver
Specifications
- Output Power: Up to 500mW
- Weight: 0.5g (receiver only)
- Input Power: +3.3V to 8.4V
- Requires: Firmware V6.14
- Size: 11mm x 18mm
Manual
Includes
- 6x 30awg silicon connection wires (2 black, 2 red, 1 white, 1 yellow)
- 1x TBS Crossfire Antenna (Depending on supply, it may not be the same as in photos with the plastic T mount housing)

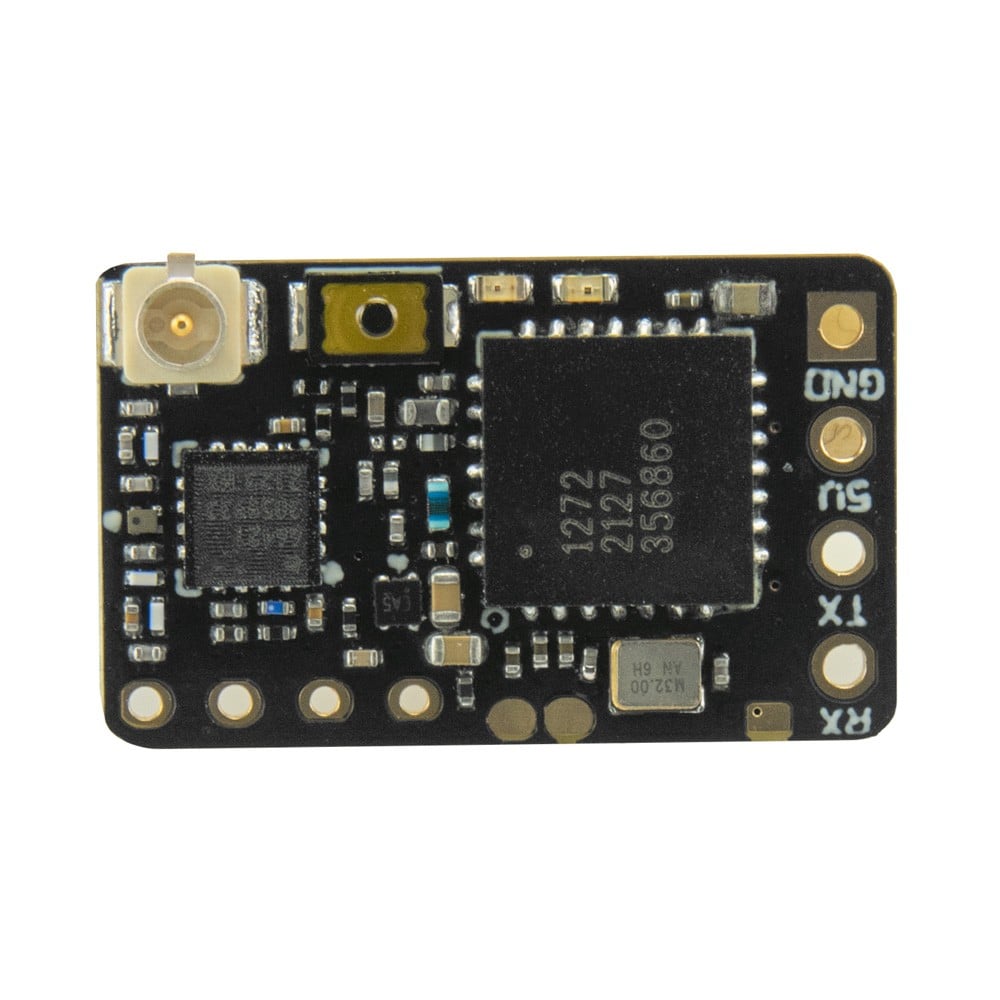

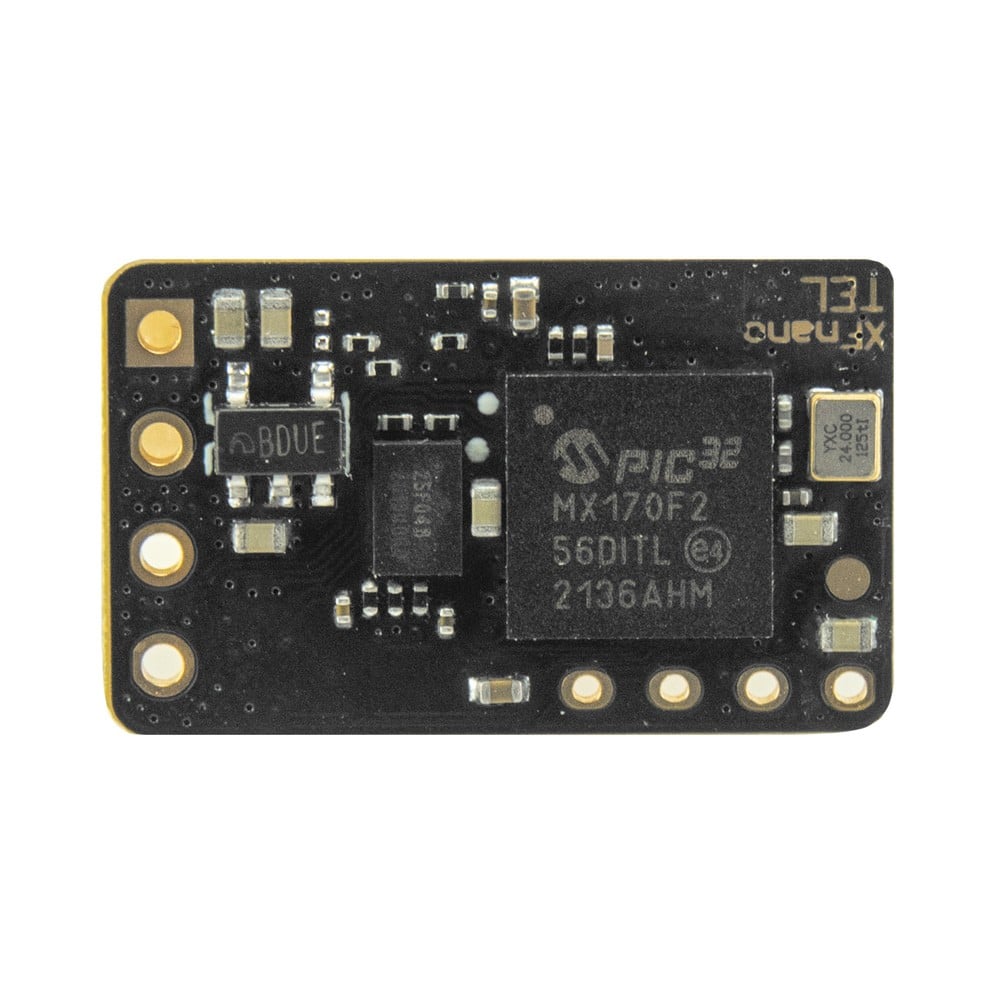

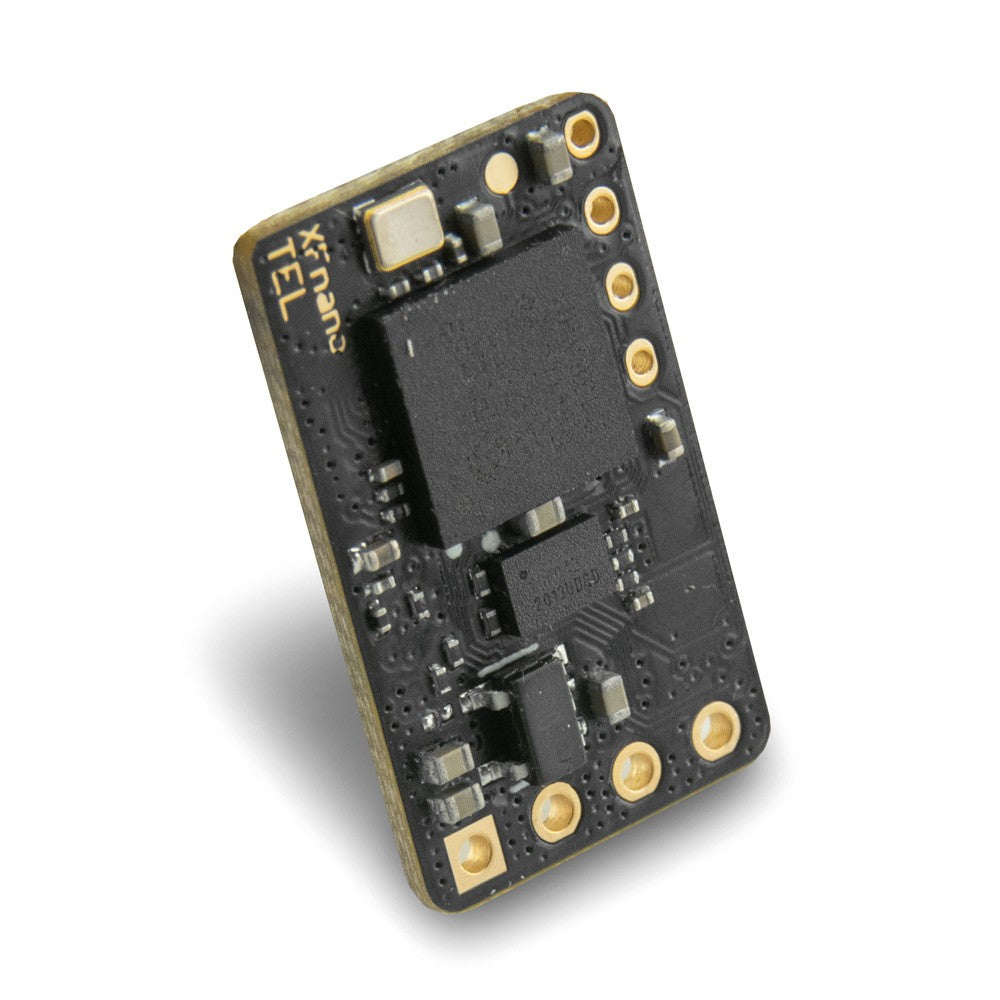

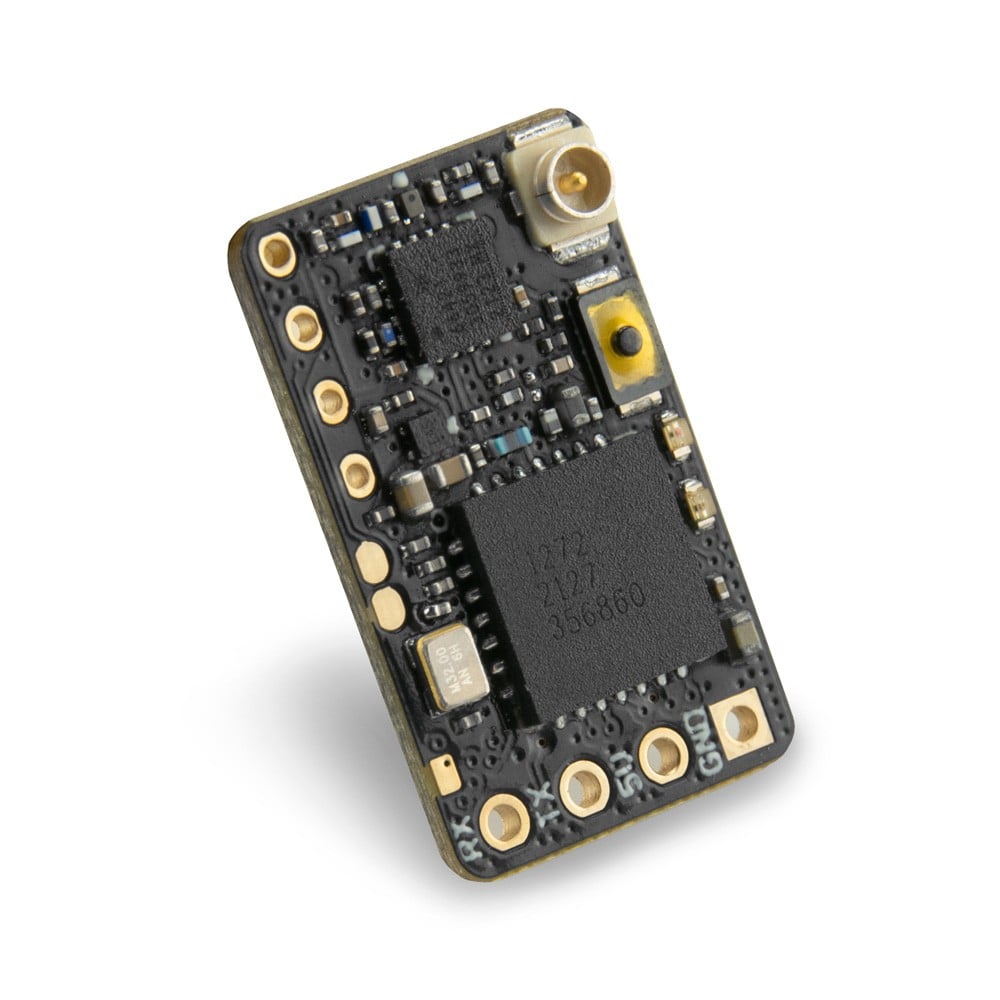

- 1x TBS Crossfire Nano Receiver Pro
- 1x Spare Shrink Tube
- 1x Pin header (1x4)
