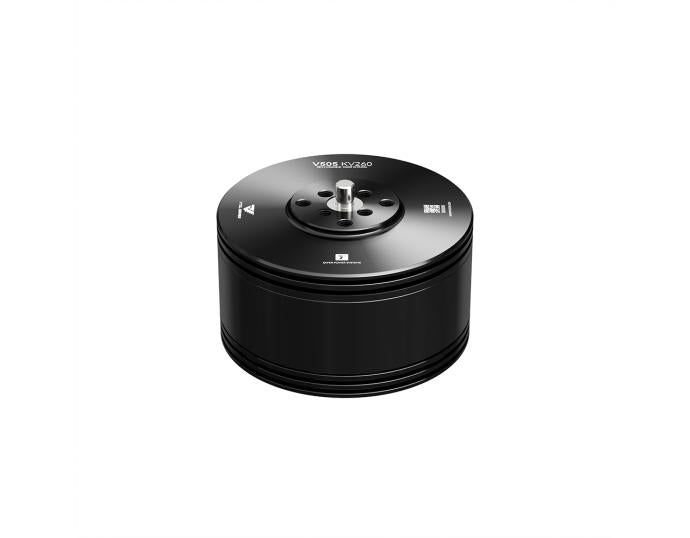

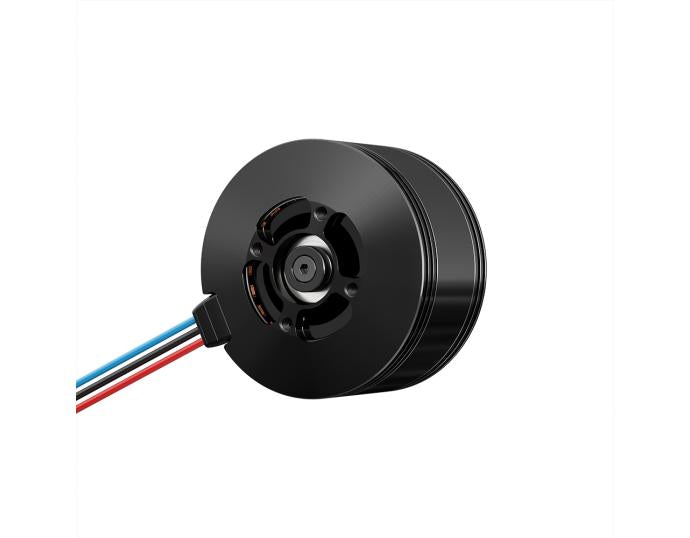

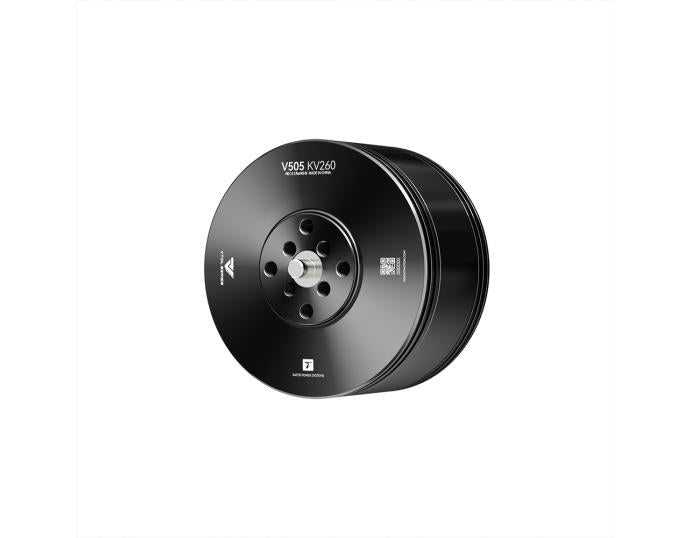

T-Motor V505 KV260 12S VTOL Motor

Because nothing says 'I value my £10k commercial payload' quite like refusing to buy bargain-bin motors. The T-Motor V505 KV260 is an industrial-grade 12S VTOL drone motor engineered for enterprise UAV power systems where thermal breakdown mid-flight simply isn't an option. After a decade of supplying the UK commercial drone sector, we know a tough motor when we see one. Featuring a robust 24N28P configuration, Class C 220°C enamelled wire, and IP45 weatherproofing, this workhorse is built for brutal real-world flight conditions. Mount a 17-inch prop, feed it 52V, and command up to 8.7kg of balanced, relentless thrust per arm.

Highlights

• 220°C Thermal Rating: High-grade Class C enamelled copper wire and Class E 150°C magnets prevent heat degradation under high continuous loads.
• IP45 Weather Protection: Sealed stator design guards against dust and rain, perfect for unpredictable UK weather.
• Ultra-Low Vibration: Dynamically balanced rotors rated to ≤5mg keep high-resolution camera payloads and sensors perfectly still.
• Heavy-Lift Performance: Pumps out up to 8,741g of peak thrust on a 12S setup with P17x5.8 props.

Why You Want It

Transitioning from hover to forward flight puts immense strain on your VTOL platform's propulsion. The V505 KV260 uses imported 696ZZ bearings and anti-rust coated stators to deliver zero-compromise reliability, ensuring your expensive mapping rig lands back on the pad in one piece rather than decorating a field in Yorkshire.

Specs

• KV Rating: KV260
• Configuration: 24N28P
• Supported Voltage: 12S LiPo (42V–52V)
• Continuous Power (180s): 2500W
• Peak Current (180s): 52A

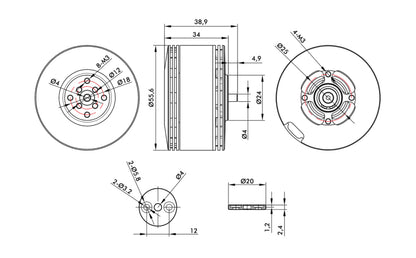

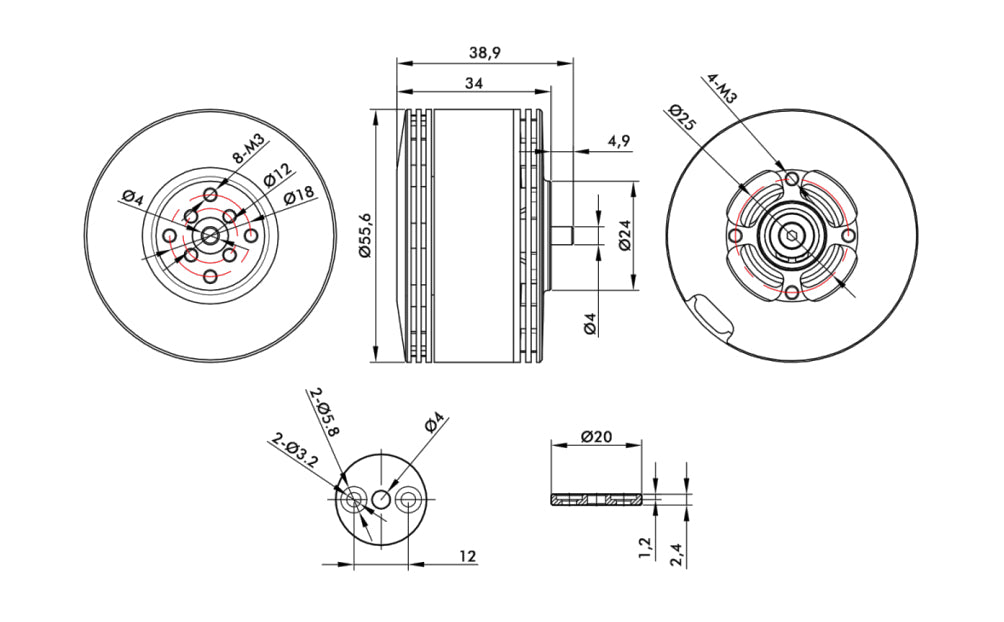

• Dimensions: Φ55.6 x 38.9 mm
• Shaft Diameter: Internal 6mm / External 4mm
• Motor Weight: 215g (255g including 600mm 16AWG leads)
• Ingress Protection: IP45
• Recommended ESC: FLAME 60A 12S
• Recommended Propellers: P16x5.4 / P17x5.8

FAQ

What ESC should I pair with the T-Motor V505 KV260?

We recommend pairing this motor with a high-voltage, commercial-grade ESC like the T-Motor FLAME 60A 12S for maximum reliability and thermal stability.

What is the maximum thrust produced by this motor?

At 100% throttle on a 12S LiPo supply using a T-Motor P17x5.8 propeller, the V505 KV260 delivers 8,741g (8.74kg) of peak thrust.

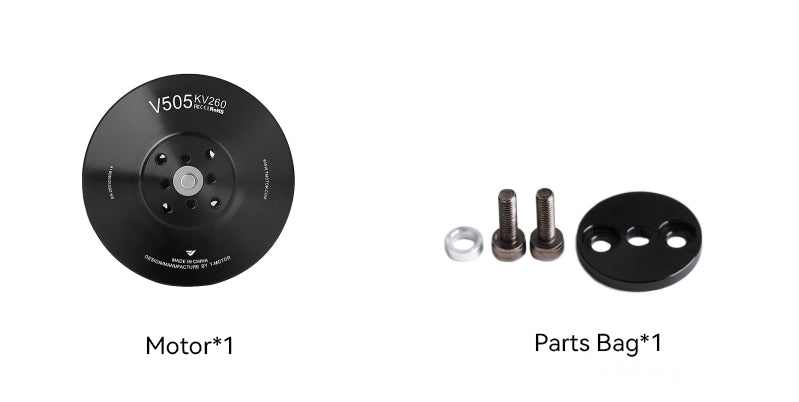

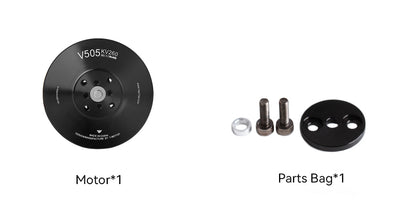

In the Box

• 1x T-Motor V505 KV260 Motor (with 600mm 16AWG cables)
• 1x Mounting Screw Hardware Pack
