Product Details

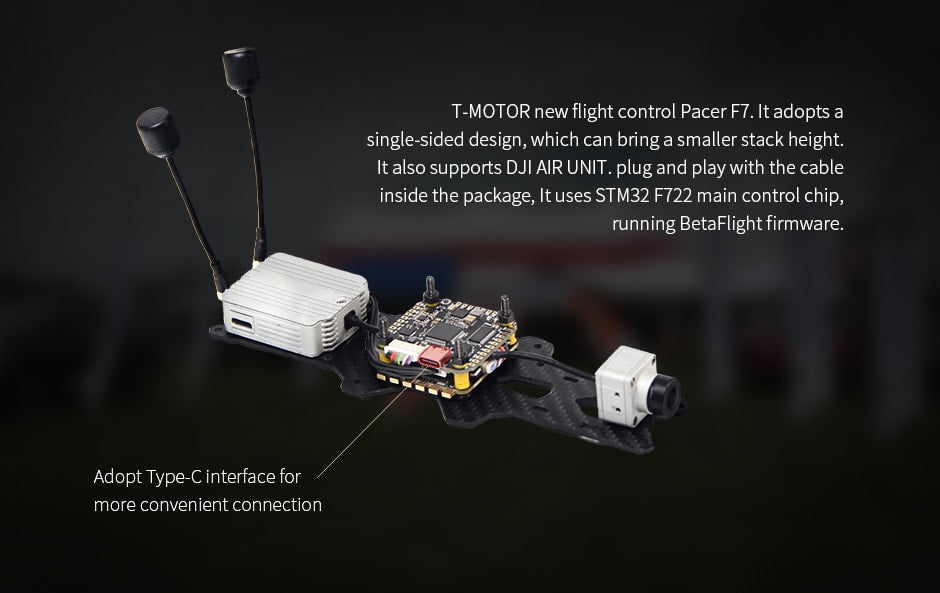

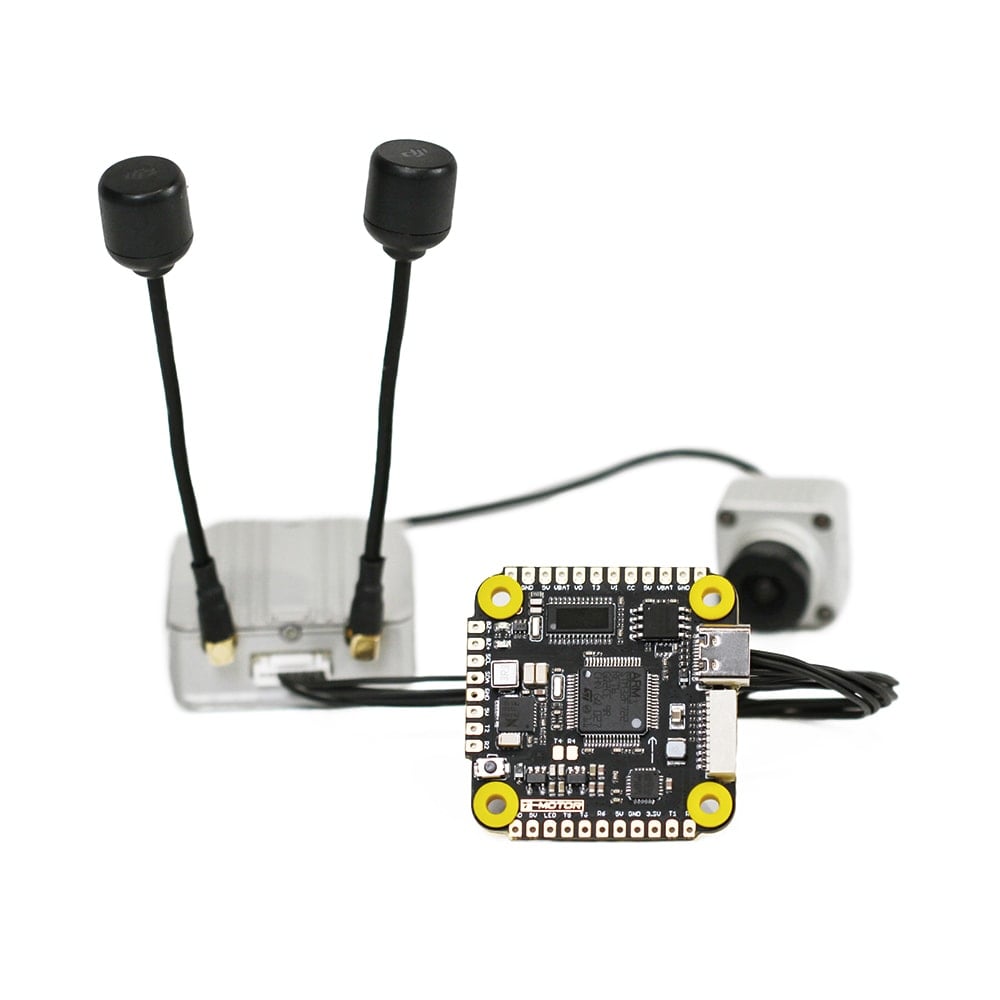

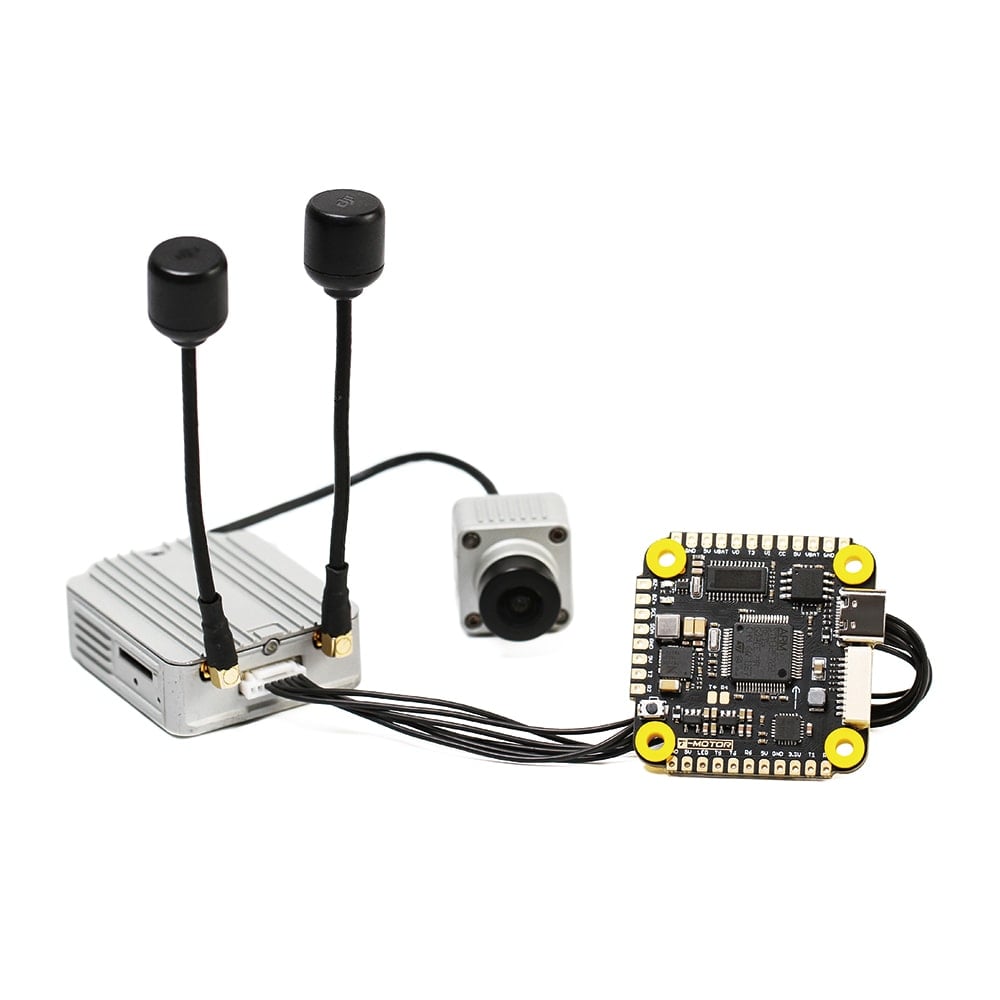

This is a 30x30 flight controller form Tmotor that is single sided to allow for a lower flight stack. It is plug and play compatible with the DJI HD FPV system, but still has an OSD chip built in you you want to fly analog FPV. So essentially you can use this flight controller for just about any company build you want.
Key Features

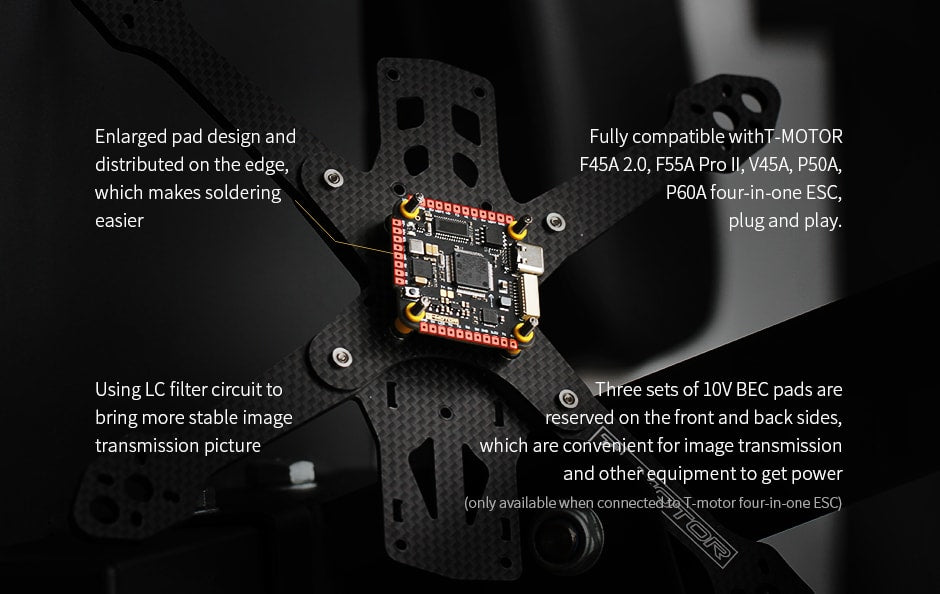

- Large solder pads to make installation and soldering easier
- Integrated Betaflight OSD chip
- 6 hardware UART serial ports
- Supports 3-6S lipo input power
- 5v/3A BEC power supply
- Three sets of 10V BEC pads on the board makes it ideal for powering your HD FPV system, or other devices (requires 4in1 ESC connected)
- Plug and play compatible with Tmotor series 4in1 ESC
- 16M Flash for easy logging and tuning
- Supports analogue camera control
Specifications
-
Brand: T-Motor
-

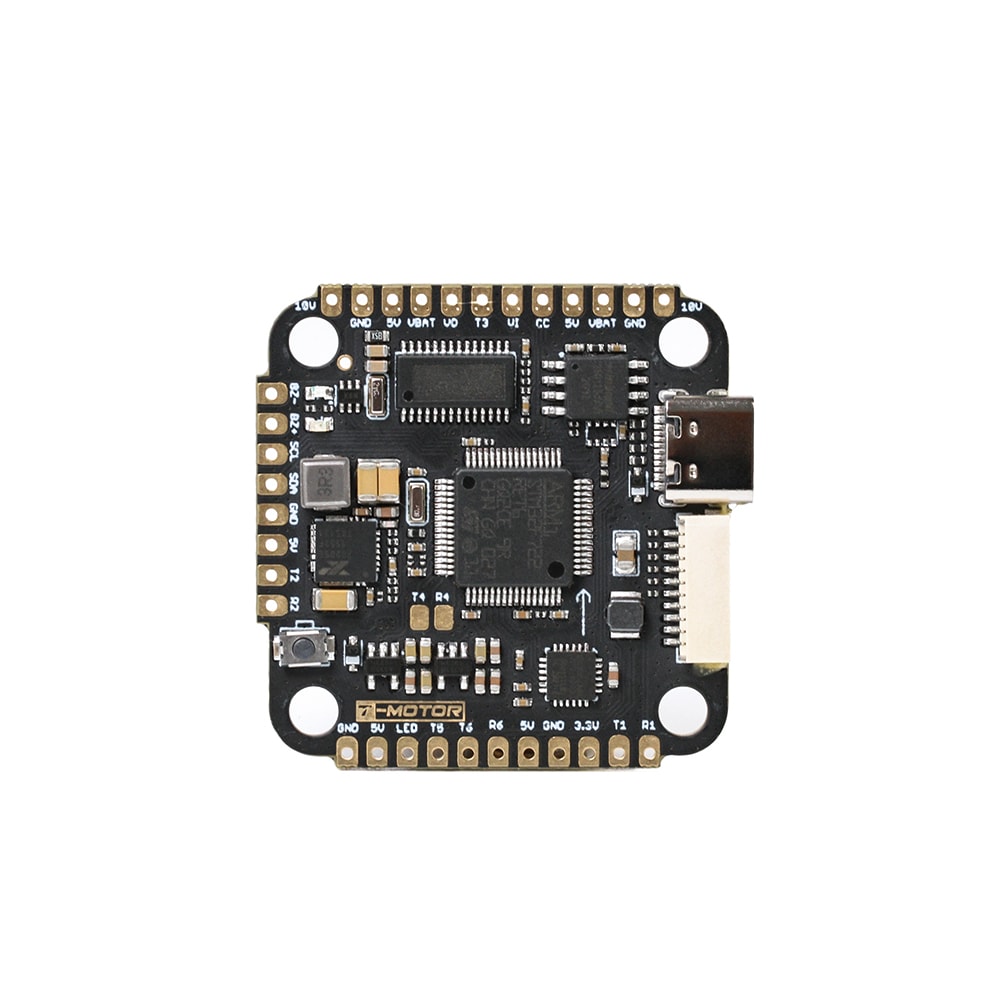

Item Name: Pacer F7 Flight Controller
-
Input Voltage: 3~6s
-
BEC: 5v/2A, 10V/2A (For DJI HD VTX)
-
Main Control：STM32F722
-
Gyroscope: MPU6000/BMI270 depending on supply
-
RAM: Onboard 16M
-
OSD: Support
-
Barometer: No
-
Mounting pitch: 20*20mm
-
Weight: 5.1g
-
Firmware: TMOTORF7 (STM32F7X2)
Includes
- 1 x Pacer F7 Flight Controller

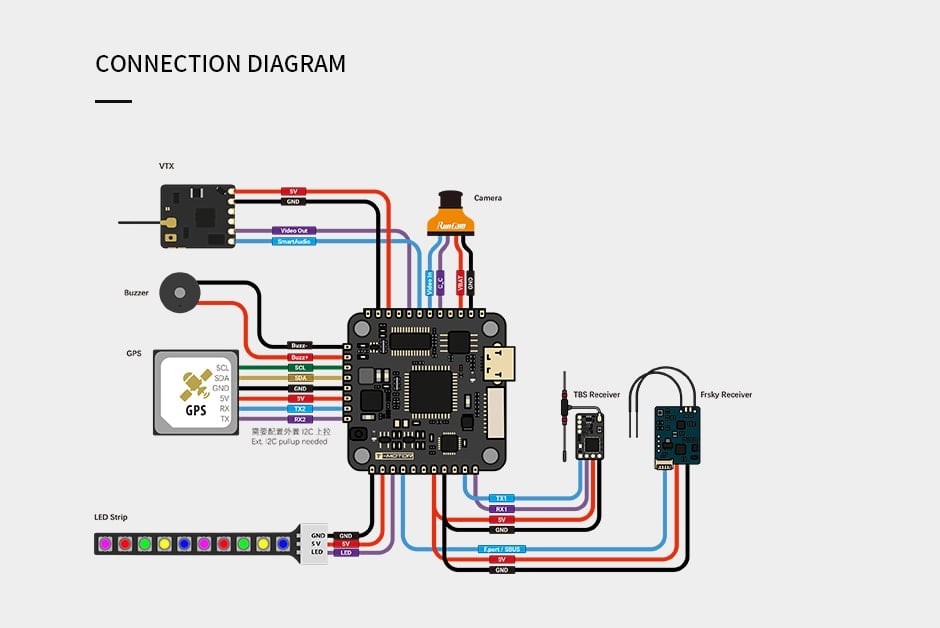

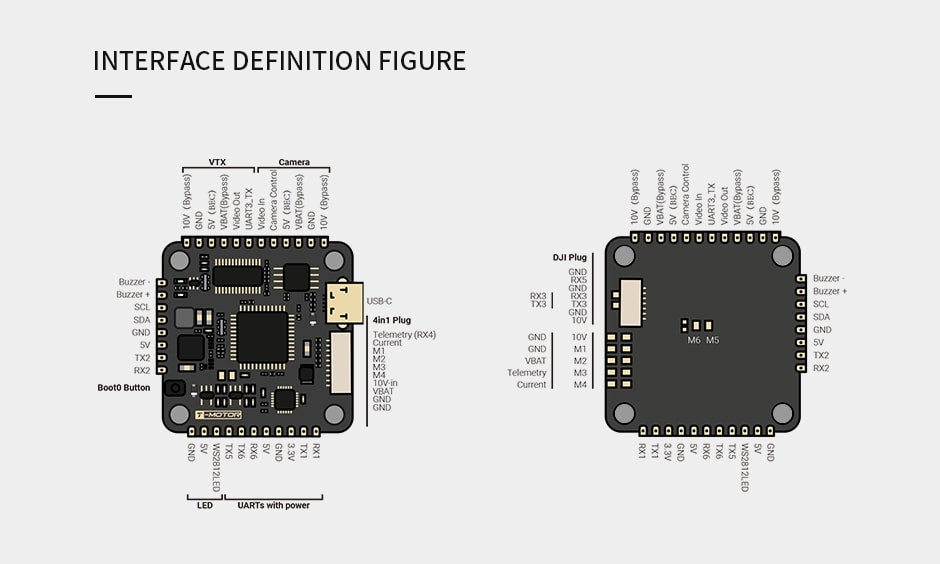

Connection diagram and Pacer F7 Pinout
