Product Details

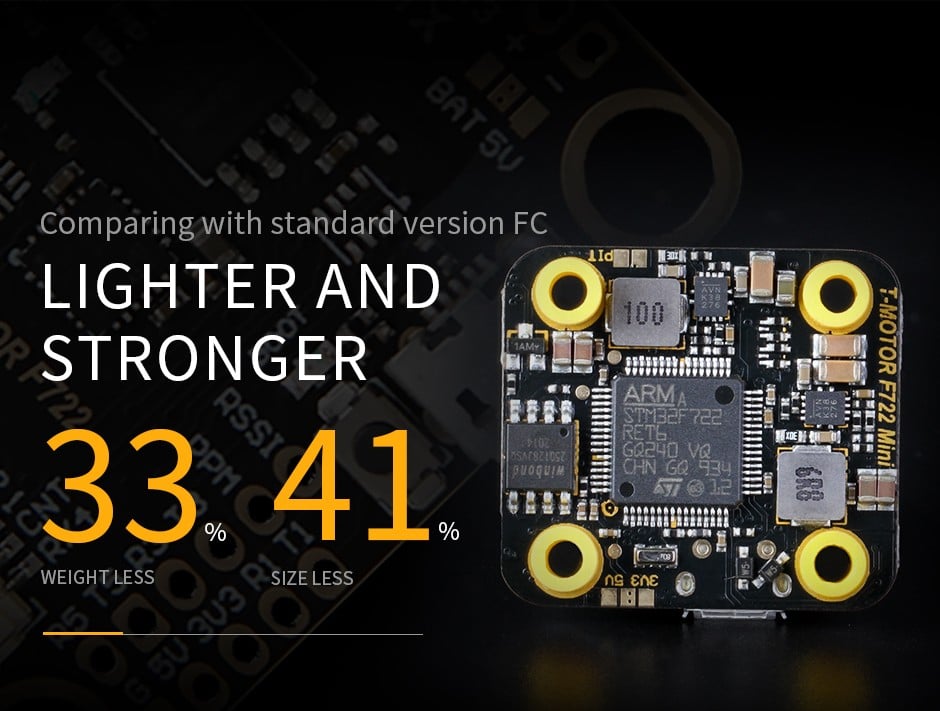

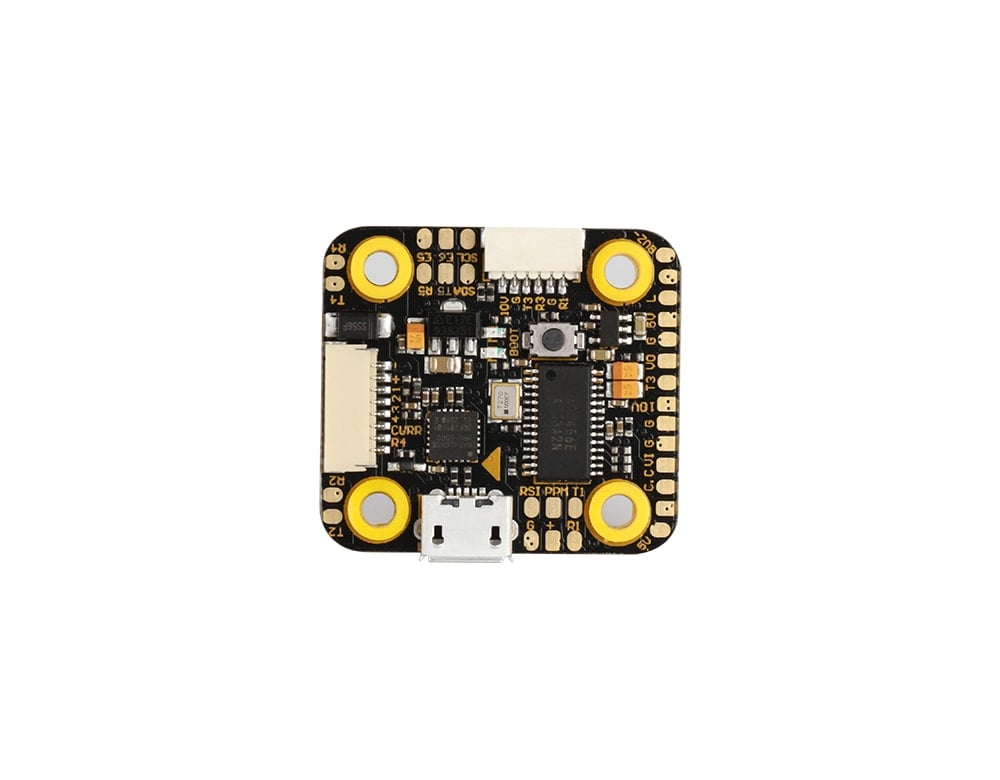

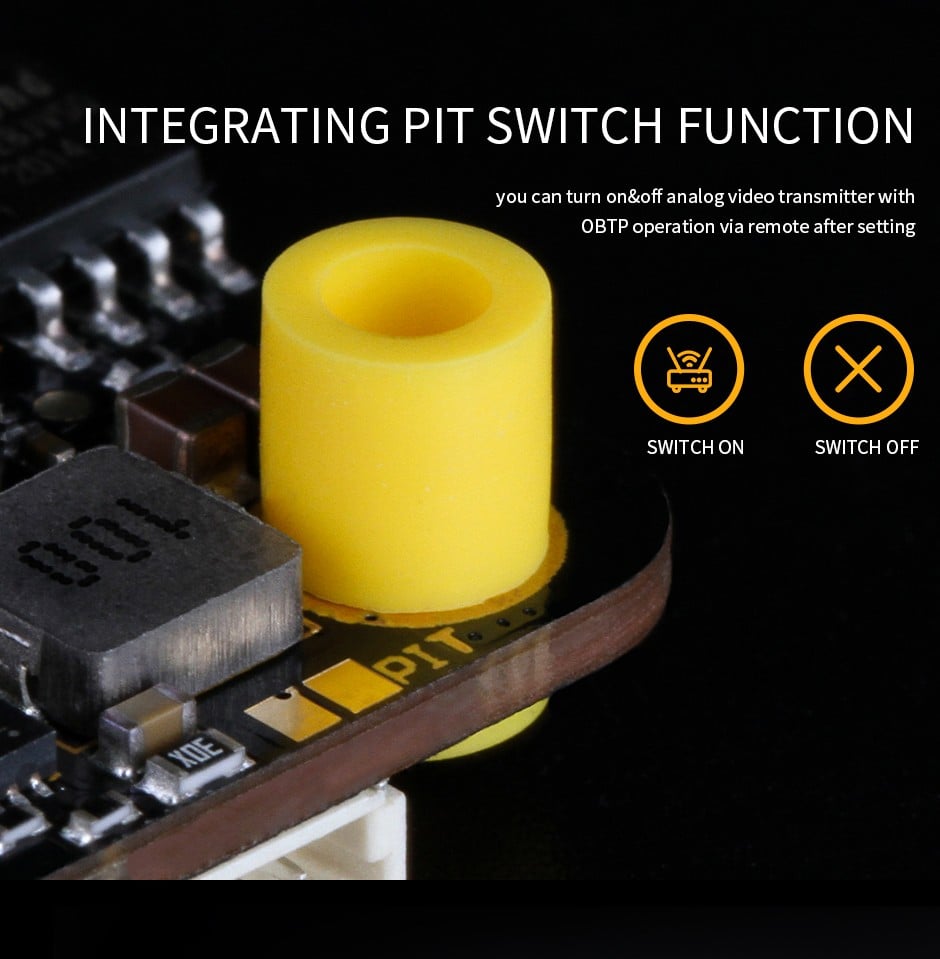

This is a 20x20 mountable flight controller form Tmotor that packs alot into a such a small form factor. It is plug and play compatible with the DJI HD FPV system, but still has an OSD chip and a remote VTX power switch built in. So essentially you can use this flight controller for just about any company build you want.
Specifications
-
Brand: T-Motor
-
Item Name: F722 MINI Flight Controller
-
Input Voltage: 3~6s
-

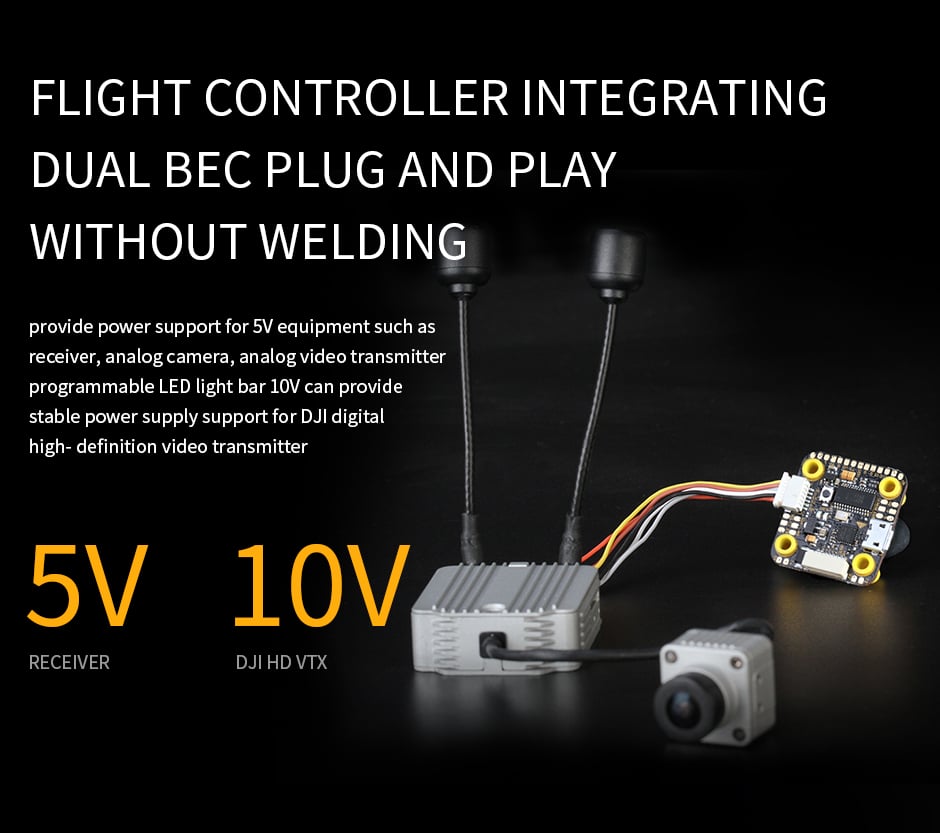

BEC: 5v/2A, 10V/2A (For DJI HD VTX)
-

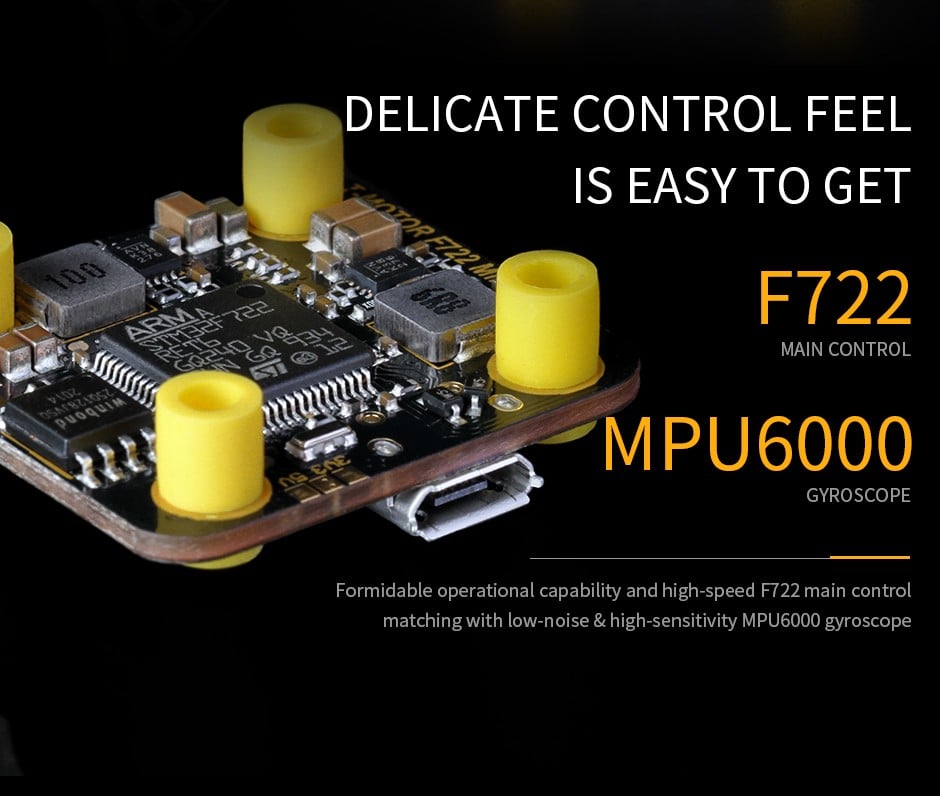

Main Control：STM32F722
-
Gyroscope: MPU6000
-
RAM: Onboard 16M
-

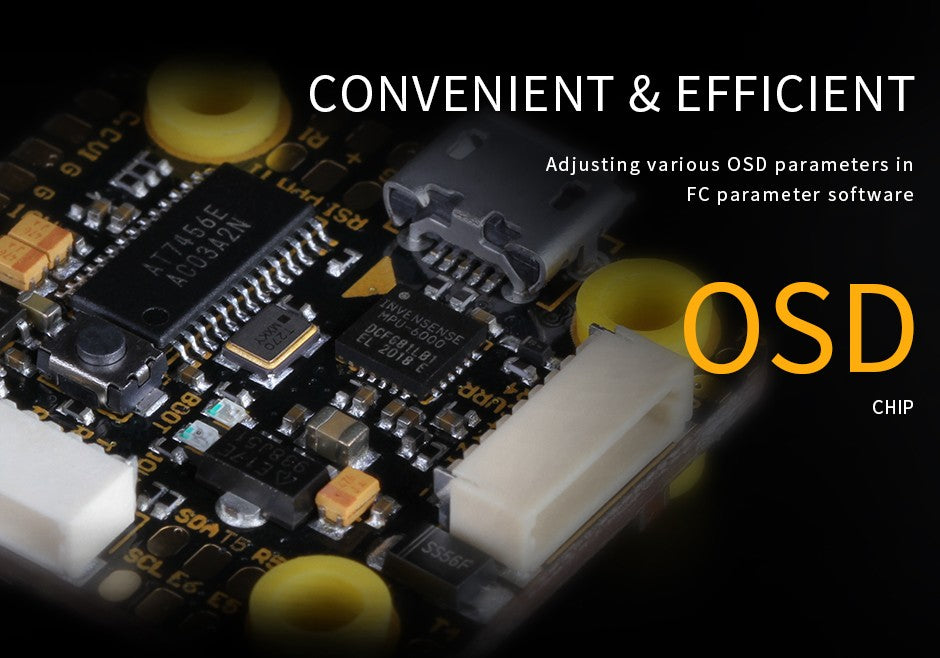

OSD: Support
-
Barometer: No
-

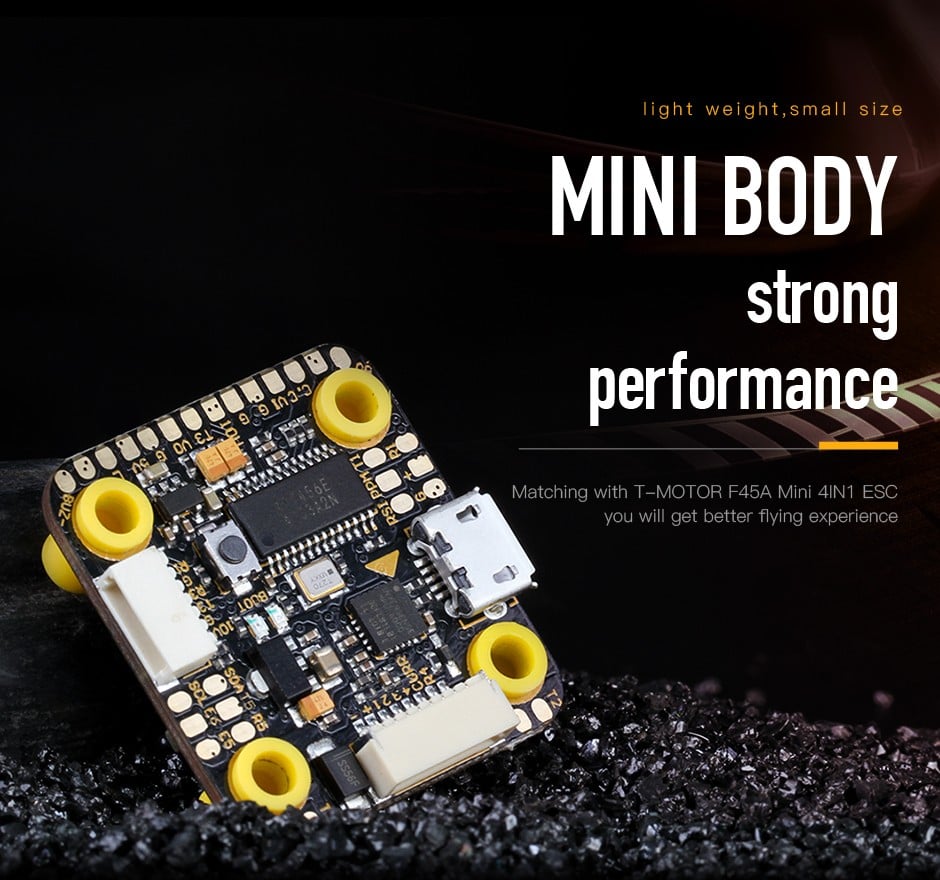

Mounting pitch: 20*20mm
-
Weight: 5.1g
-
Firmware: TMOTORF7 (STM32F7X2)
Includes
- 1 x F722 MINI Flight Controller

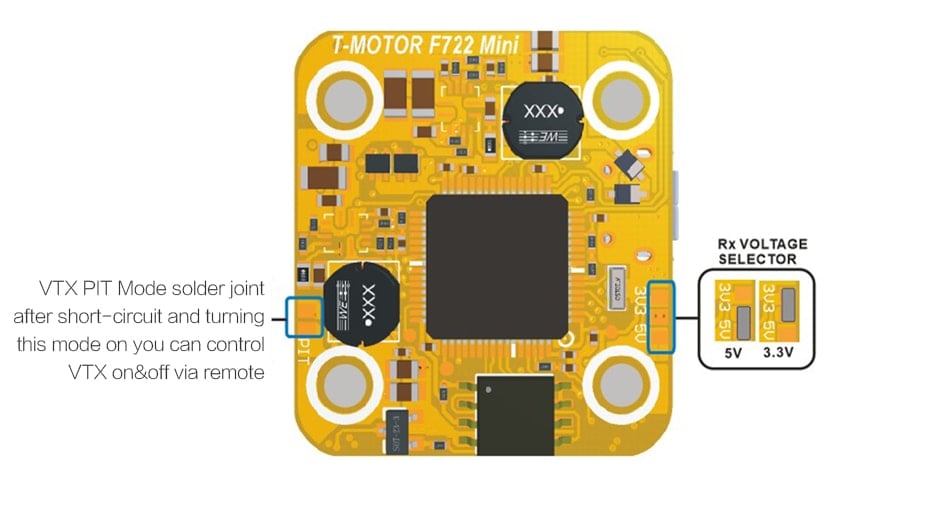

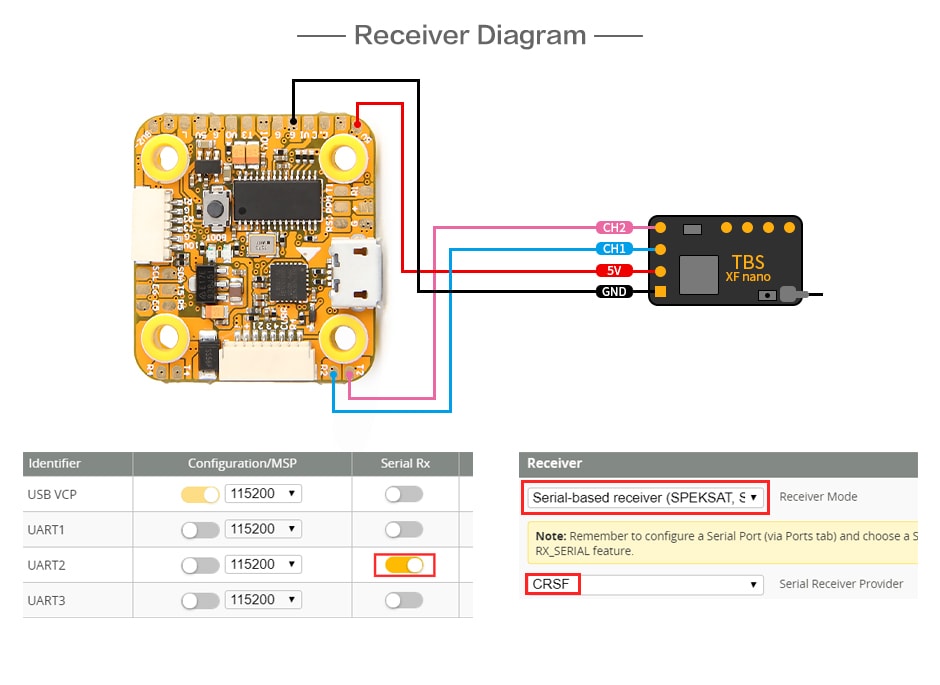

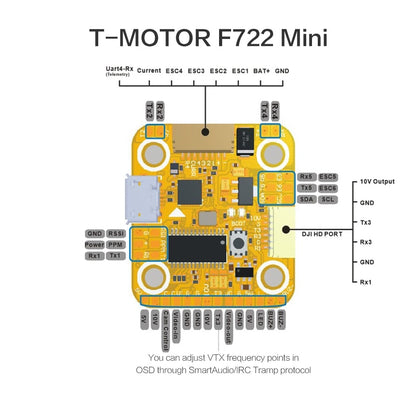

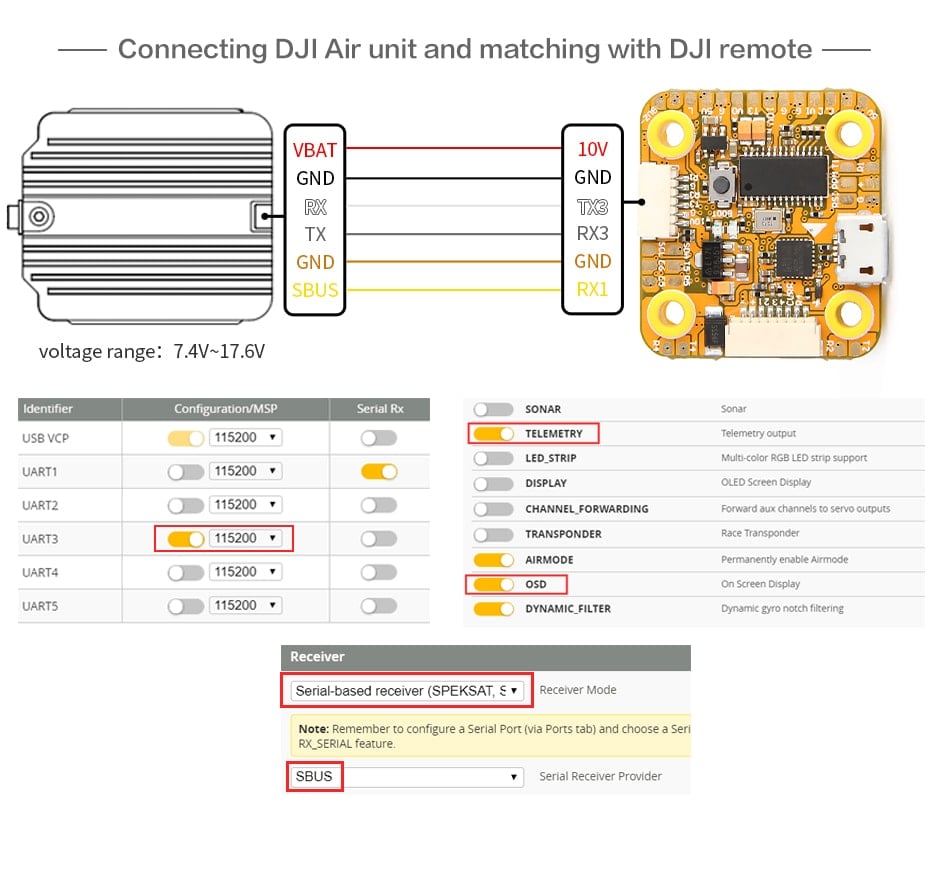

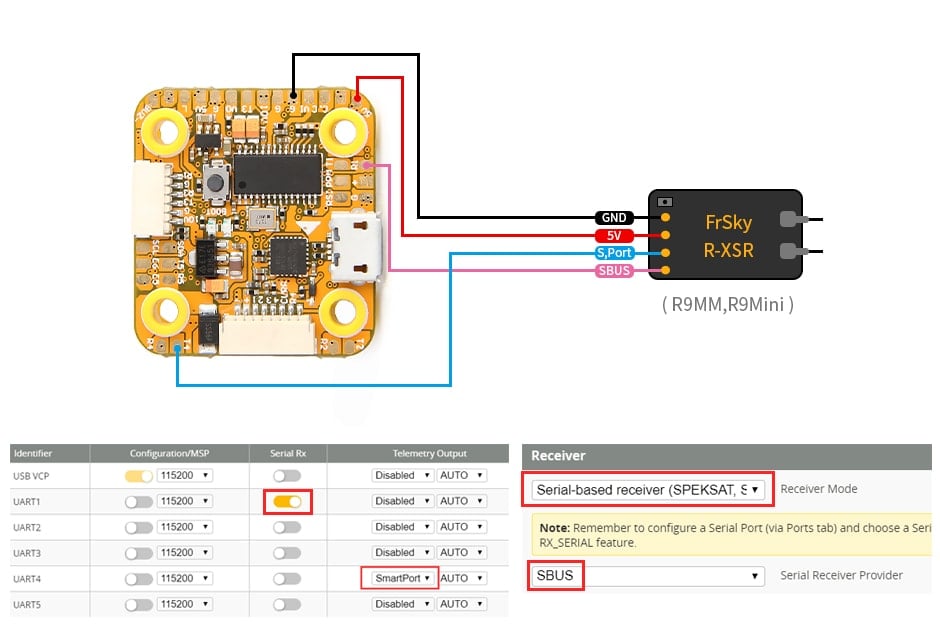

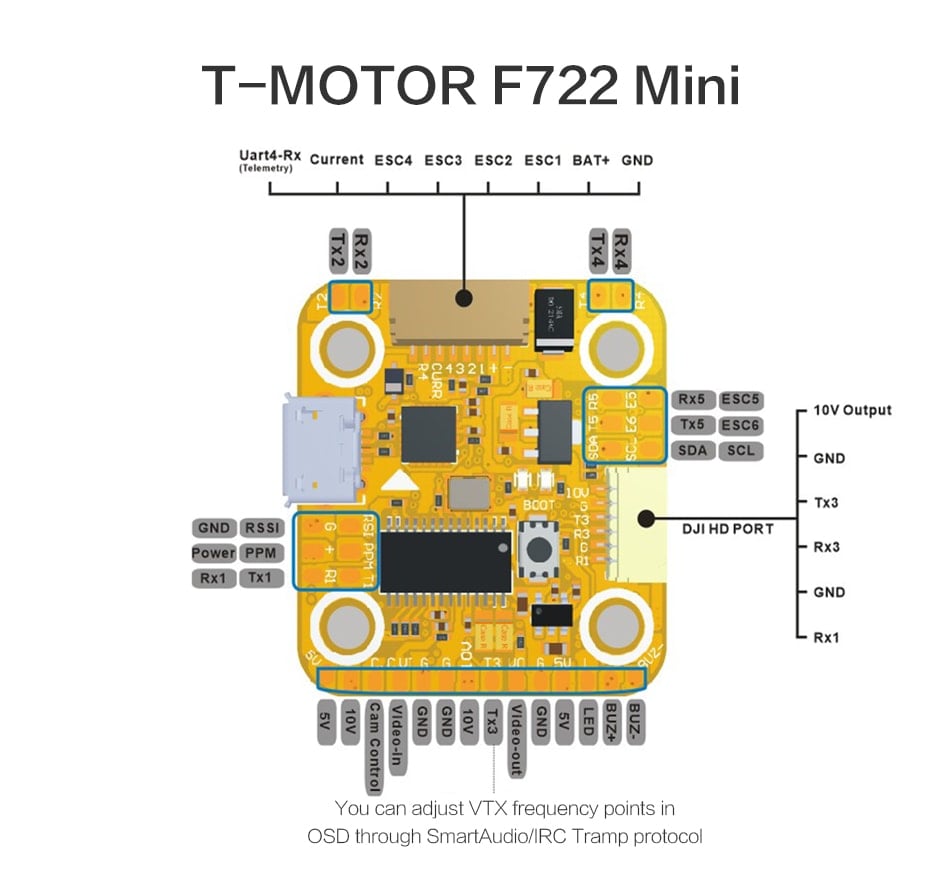

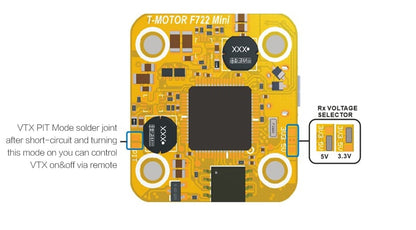

Connection diagram and F7 Mini Pinout
