SunnySky X2814 1100KV - The 'Actually Works' Brushless Motor

Look, we know why you're here. You're tired of generic motors that have the structural integrity of a damp digestive biscuit. You want something that screams 'I actually know what I'm doing' while your RC aircraft defies gravity. The SunnySky X2814 1100KV is the precision-engineered solution for pilots who prefer flying over soldering mid-field.

Why You Want It

Most motors are built by machines that don't care about your hobbies. These, however, feature hand-wound coils—artisanal, if you will, but without the £9 avocado toast price tag. The hollow CNC design isn't just there to look pretty for the 'gram; it's a thermodynamic masterpiece designed to keep your setup cool while you're pushing the limits of your 4S pack. It's the motor your airframe deserves, even if your landing skills suggest otherwise.

Specs

• Stator Diameter: 28mm (The size that matters)
• Stator Thickness: 14mm (Thick enough for genuine torque)
• Motor KV: 1100 (The Goldilocks zone of RPM)
• No-Load Current: 1.3A @ 10V (Low enough to keep your battery happy)
• Resistance: 21.3mΩ (Low resistance, high performance)
• Max Continuous Current: 55A for 30s (Don't hold it longer, we aren't magicians)
• Max Continuous Power: 815W (Enough to outrun your regrets)
• Weight: 113g (Doesn't eat into your payload capacity)
• Shaft Material: 420 Stainless Steel (Imported and incredibly stiff)

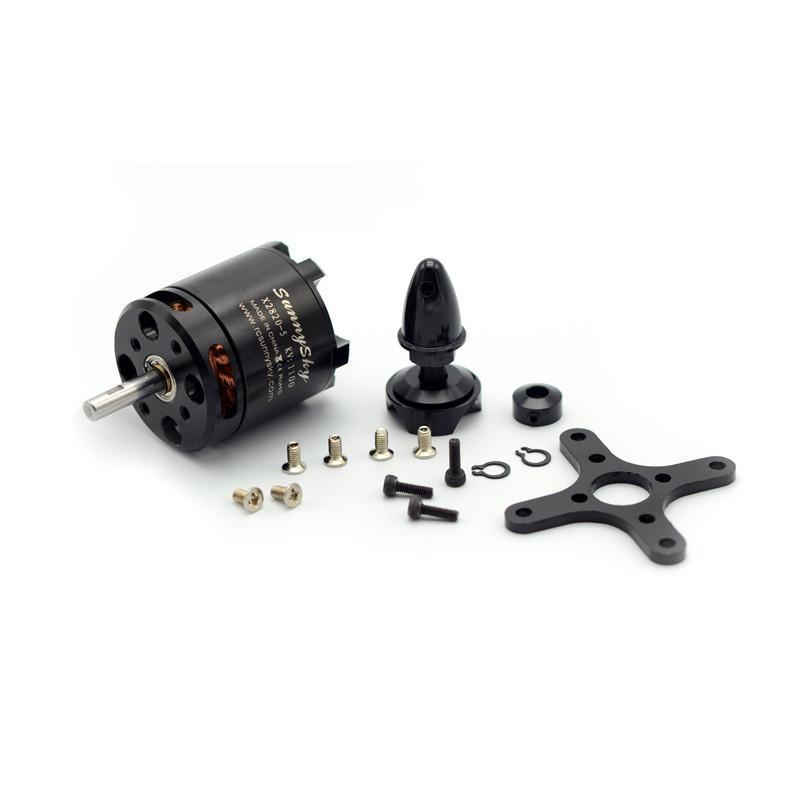

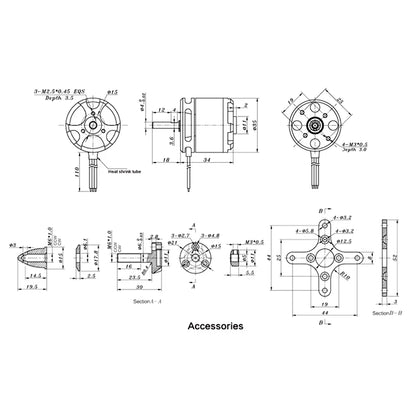

In the Box

• 1x SunnySky X2814 1100KV Brushless Motor
• 1x X-Mount Bracket with 6 Silver Screws
• 1x Propeller Collet Adapter
• 4x Black Screws (Because colour coordination is vital)

Compatibility

Best paired with a 40-60A ESC. If you're on 3S, grab an APC 12x6 or 12x8. Stepping up to 4S? Stick to an APC 11x5.5 unless you enjoy the smell of ozone in the morning.

Highlights

• Japanese NMB Bearings: Smoother than a silk-coated jazz saxophonist.
• 6061-T6 Aviation Alloy: Because your motor shouldn't be made of the same stuff as a lemonade can.
• Hand-Wound Coils: Tighter windings for better power delivery. Your move, robots.

Notes

Ensure your mounting screws aren't too long or you'll be poking the windings, and nobody wants a short-circuited Sunday.

Disclaimer

Unmanned Tech is not liable for your plane reaching orbit or any sudden urges to buy more carbon fiber after installation.

Still Here?

You’ve scrolled past the specs and the sarcasm. You clearly need this SunnySky X2814 1100KV motor for your next build. Stop overthinking it and add it to the basket before the warehouse bot gets lonely. #SunnySky #RCPlane #BrushlessMotor #FPVUK #MakerMovement
