Product Details

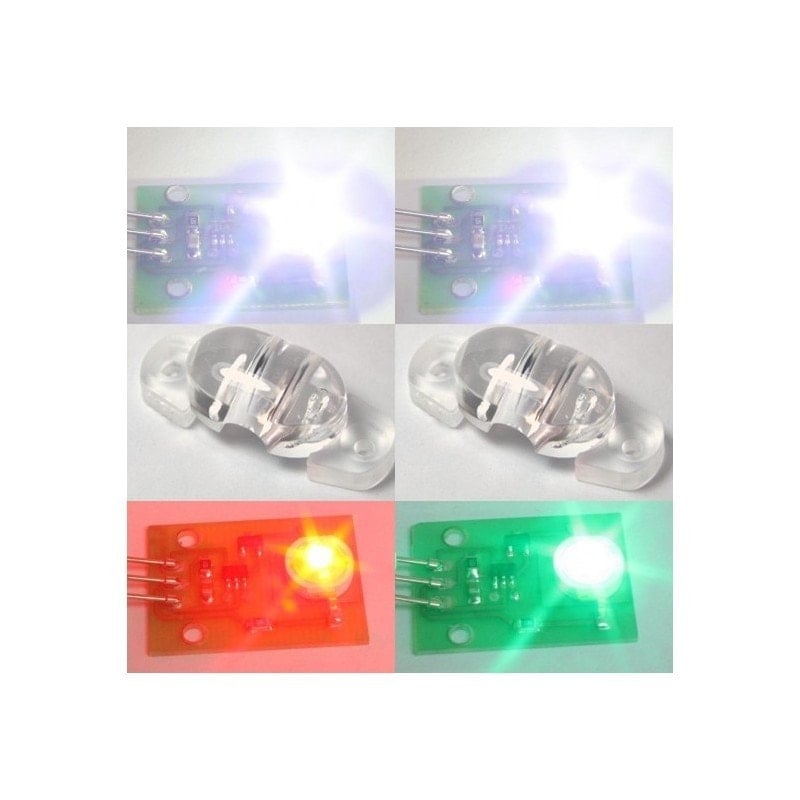

This STROBON navigation pack includes 4x LED's to have a complete navigation light set for your aircraft.
- 2x White STROBON Navigation Strobe
- 2x 130x50° Special Brake/Navigation Light lens for PowerLEDs
- 1x Red STROBON Navigation Strobe
- 1x Green STROBON Navigation Strobe
STROBON LED light are known as the brightest navigation lights for your RC aircraft. Despite the super bright lights that let you see your aircraft at creater distances (up to 2-3Km at night), the power consumption of each LED is just 50mA per hour of use when in strobe mode.
The STROBON powers the LED with 1000mA for short bursts of 40ms (2x 20ms pulse) per second which allow each strobe light to consume very little power.
Two modes of operation are possibe with the STROBON, RC mode, and standalone mode:

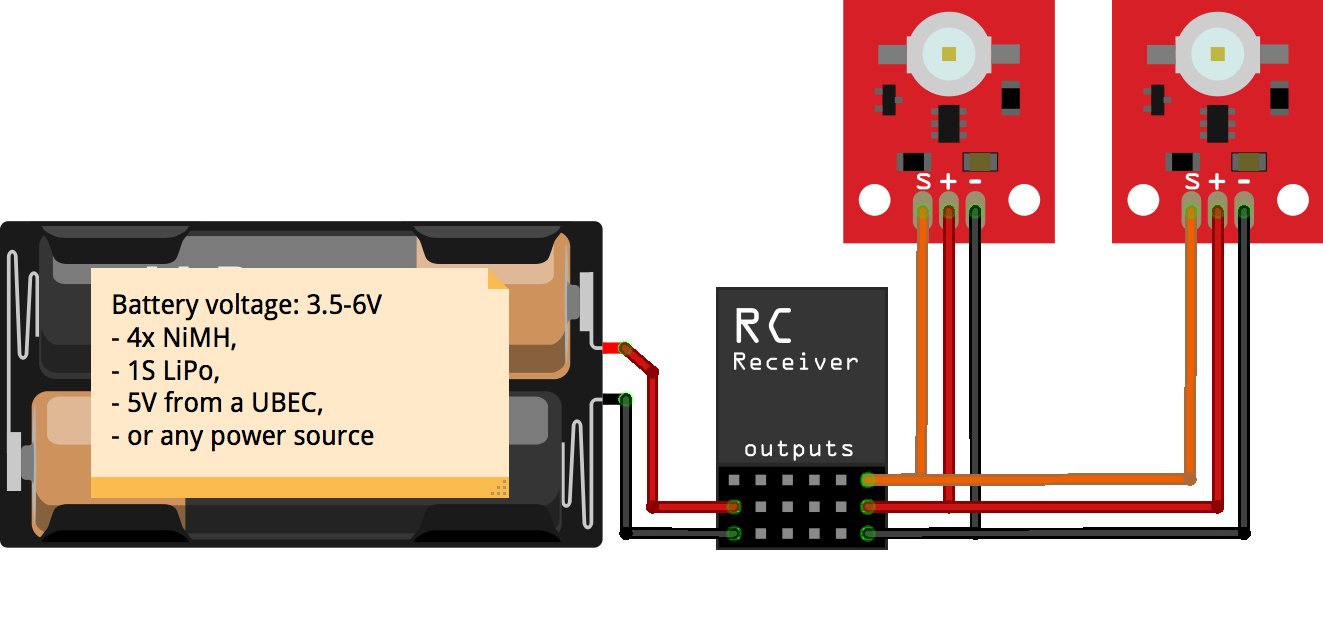

RC mode
Plug it on your RC receiver's any channel for RC mode, then you can turn the Strobe On/Off it over servo channel.

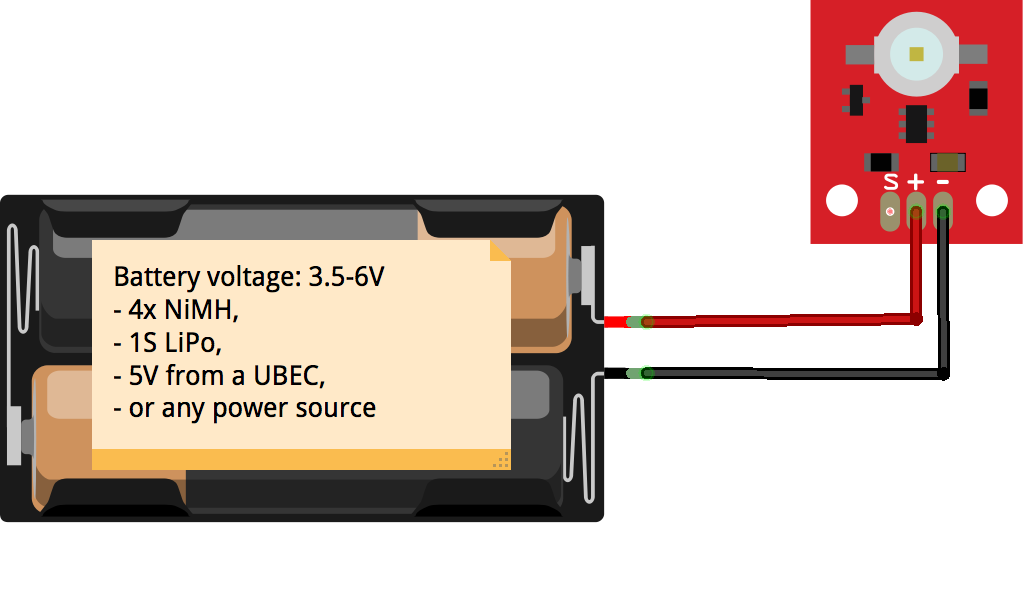

Standalone mode
Power it with directly from battery (3.5-6v) it works on Standalone mode and strobes continuously.
Specifications
|
Supply Voltage |
3.5 - 6 volt from servo channel |
|
Operating Temperature |
-40 to +105 °C |
|
Current Consumption |
50mA (1A pulses for 2x20ms) |
|
Dimensions( L X W X H) |
5mm X 20mm X 23mm |
|
Weight |
1.50 gram without wires |
