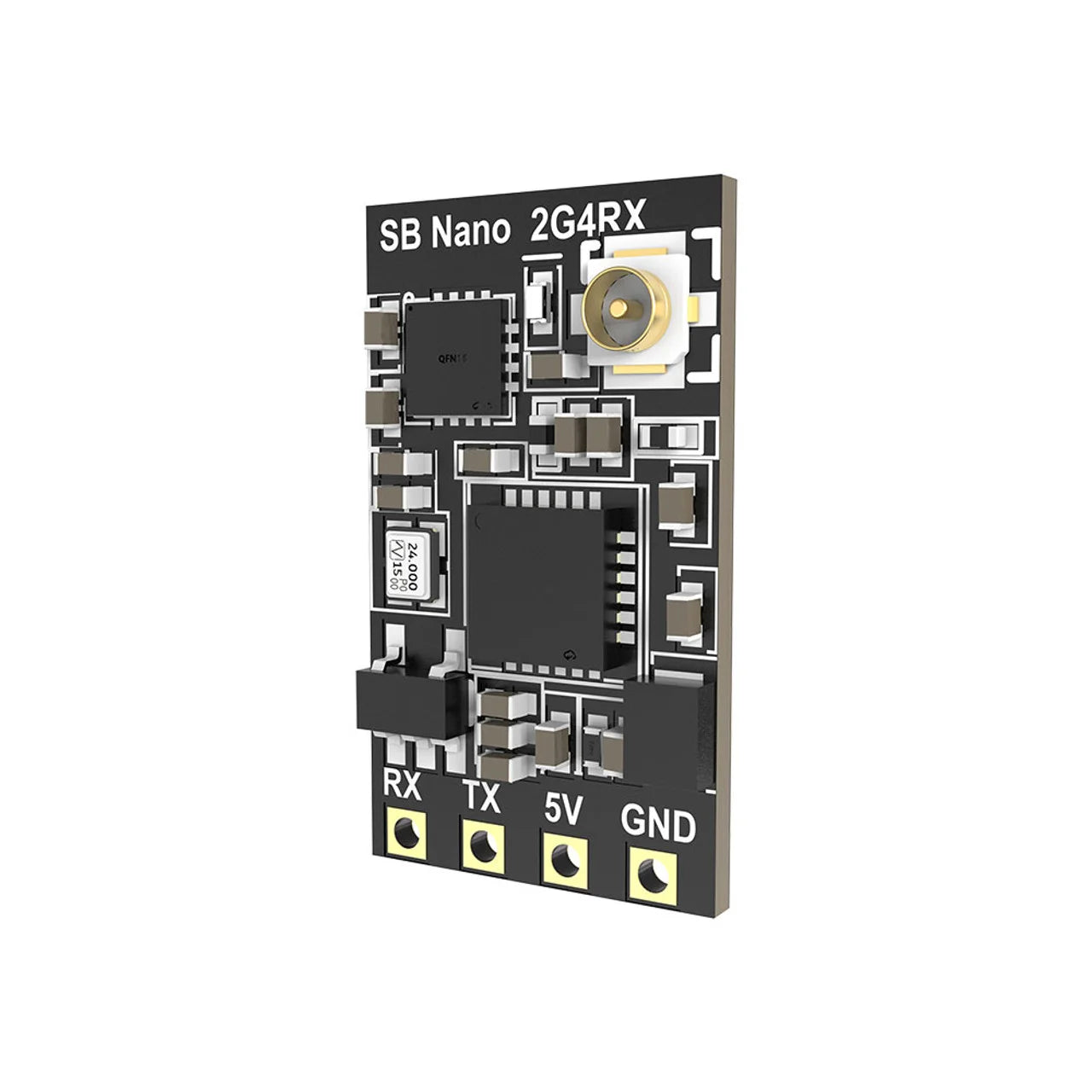

SpeedyBee Nano 2.4GHz ExpressLRS Receiver | Tiny & Lightweight ELRS RX for FPV Drones
Unlock incredible range and lightning-fast response for your FPV drone with the SpeedyBee Nano 2.4GHz ExpressLRS Receiver. This incredibly small and lightweight ELRS receiver is specifically designed for tight builds, micro quads, and whoops where every gram counts. Experience the robust performance and low latency connection that makes ExpressLRS the go-to 2.4GHz control link for serious FPV pilots.
Based on the reliable SX1281 and ESP8285 chipset, this nano receiver delivers powerful performance in a minuscule package. Despite its tiny size, it boasts a 100mW output (measured even higher at ~170mW), ensuring a solid and reliable signal for impressive long range FPV flights. If you're looking for a top-tier ELRS receiver that won't weigh down your micro drone, the SpeedyBee Nano RX is the perfect choice.
Key Features:
- Ultra Compact & Lightweight: Weighing only 0.7g (without antenna) and measuring just 10.4x18.4mm, it fits virtually anywhere!
- Genuine ExpressLRS Performance: Leverage the power of the popular ELRS protocol for superior range, low latency, and a reliable control link.
- Optimized 2.4GHz Operation: Utilizes the proven SX1281+ESP8285 chipset for stable FPV receiver performance.
- Solid Signal Strength: Rated at 100mW (often exceeding 170mW in tests) for excellent penetration and long range capabilities.
- Easy Integration: Features a standard IPEX1 antenna connector and runs on 5V input, making it compatible with most flight controllers.
- Ready to Bind: Comes pre-flashed with ExpressLRS firmware (Version 3.4.3 default) for quicker setup.
Specifications:
- Model: SpeedyBee Nano 2.4GHz RX
- Product Name: ExpressLRS Receiver
- Frequency: 2.4GHz
- Antenna: T-antenna (Dimensions: 56*82mm, Weight: 0.6g)
- Chipset: SX1281 + ESP8285
- Telemetry Power: 100mW (Measured approx. 170mW)
- Input Voltage: 5V DC
- Antenna Connector: IPEX1
- Receiver Weight: 0.7 gram (without antenna)
- Dimensions: 10.4mm * 18.4mm
- Default Firmware: SpeedyBee Nano 2.4GHz RX 3.4.3 (compatible with ELRS V3.x TX modules)

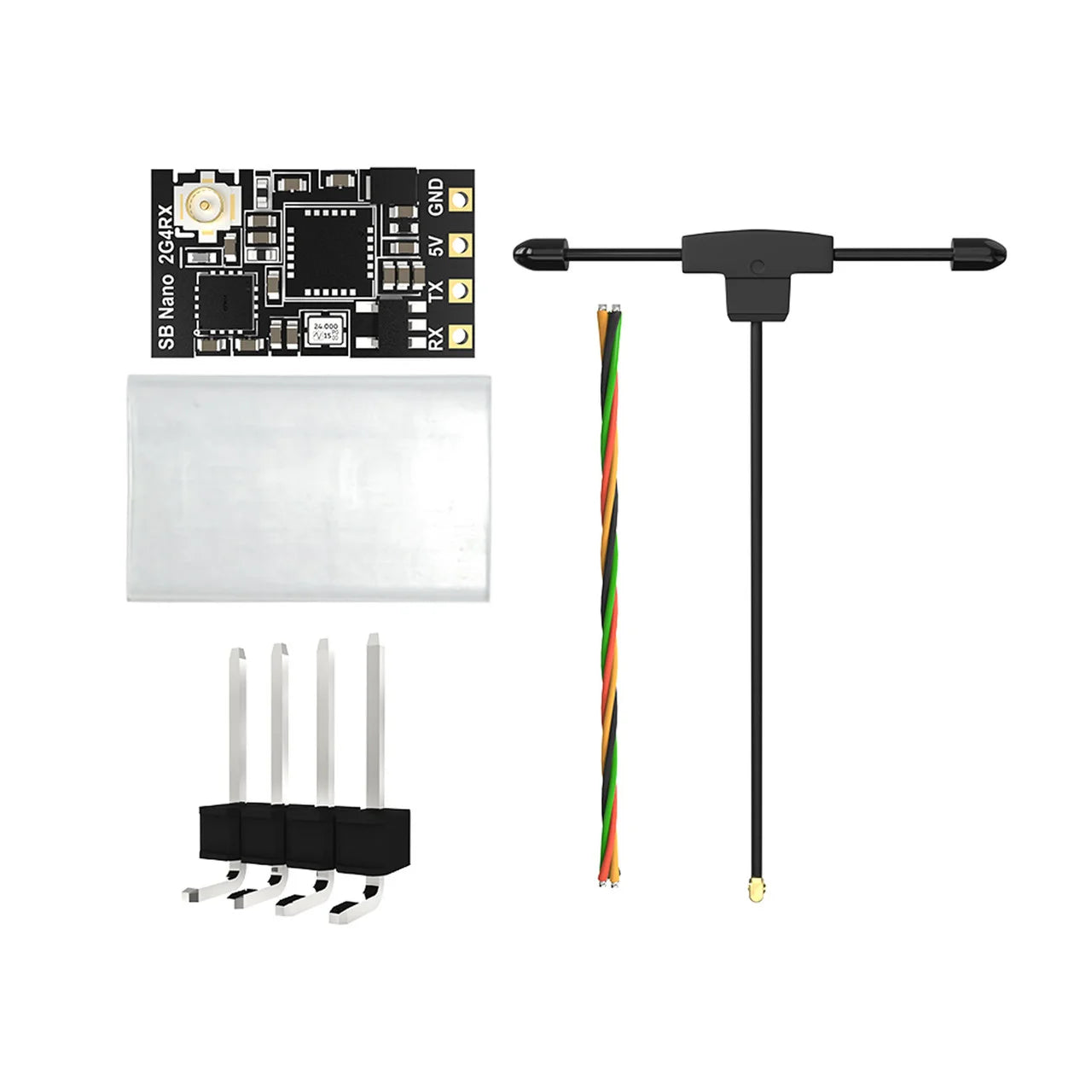

What's in the Box:
- 1 x SpeedyBee Nano 2.4GHz RX Receiver
- 1 x 2.4GHz T-Antenna
- 1 x 4-Pin SH1.0mm Wiring Harness
- 1 x Heatshrink Tube
Disclaimer: Please note that the included accessories (such as antenna type/color or wire colors) may vary slightly depending on manufacturer supply and production batch.
